Bosch DHD3014UC
Discontinued
Bosch Ventilations 2024 Bosch Ventilations 2024
1OL3SS
Save An Additional 5% GST Instore, Chat or Phone
Save An Additional 5% GST Instore, Chat or Phone
Price Match & Beat Guarantee
We will beat any Canadian competitor’s price!* Terms apply.
Ratings & Reviews
3.7
67%
recommend this
Read Reviews
(14 reviews)
1OL3SS
When will I get this?

Reserve & Pick Up
FREE
Distribution Centres
Address
Units Available
Woodbridge, ON
27 Director Crt.
Winnipeg, MB
191 Elan Blvd
Burnaby, BC
8010 Winston St.
Ottawa, ON
55 Banton St.
Laval, QC
1340 Boul. Dagenais Ouest
Dartmouth, NS
315 Wilkinson Ave.
Calgary, AB
2777 23 Ave. NE
For more information on range hood installation services, click here.

Protect your purchase with an extended warranty.

Protect purchase for 2 years: $99.99 CAD
Protect purchase for 3 years: $169.99 CAD
Description & Features

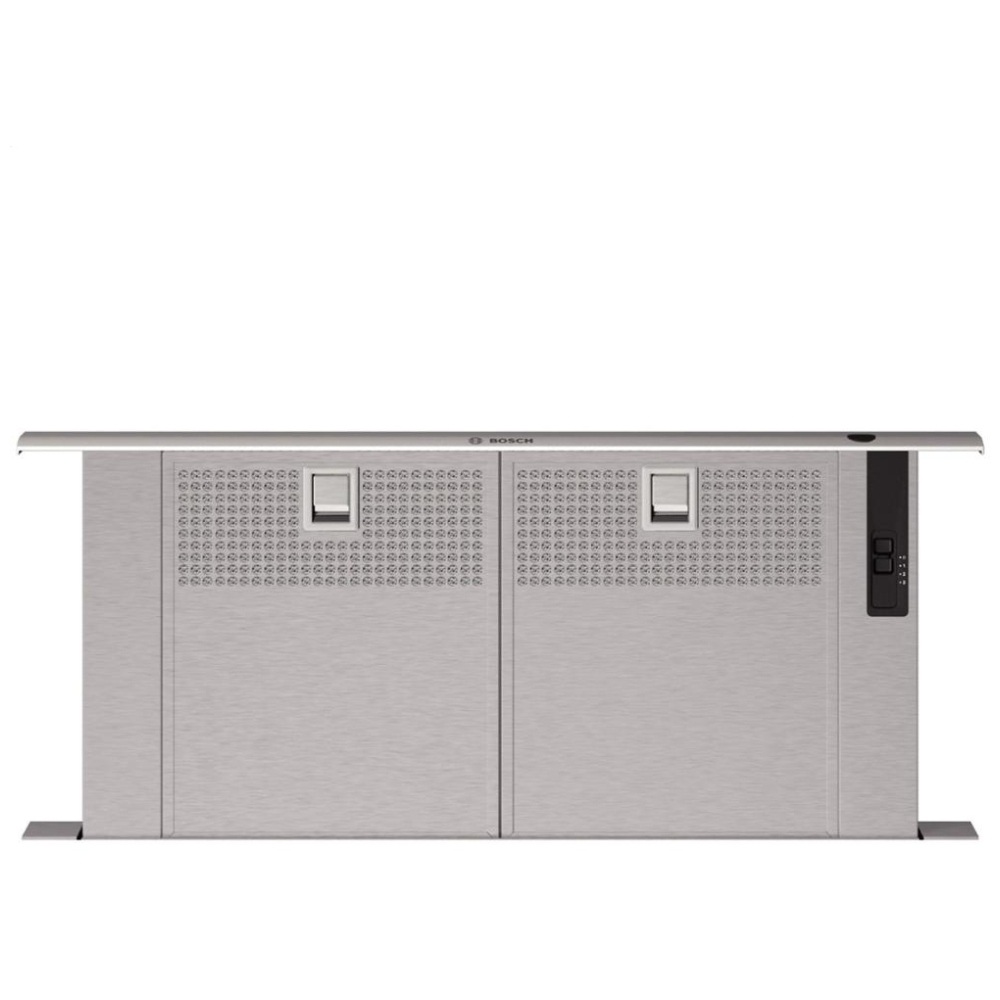

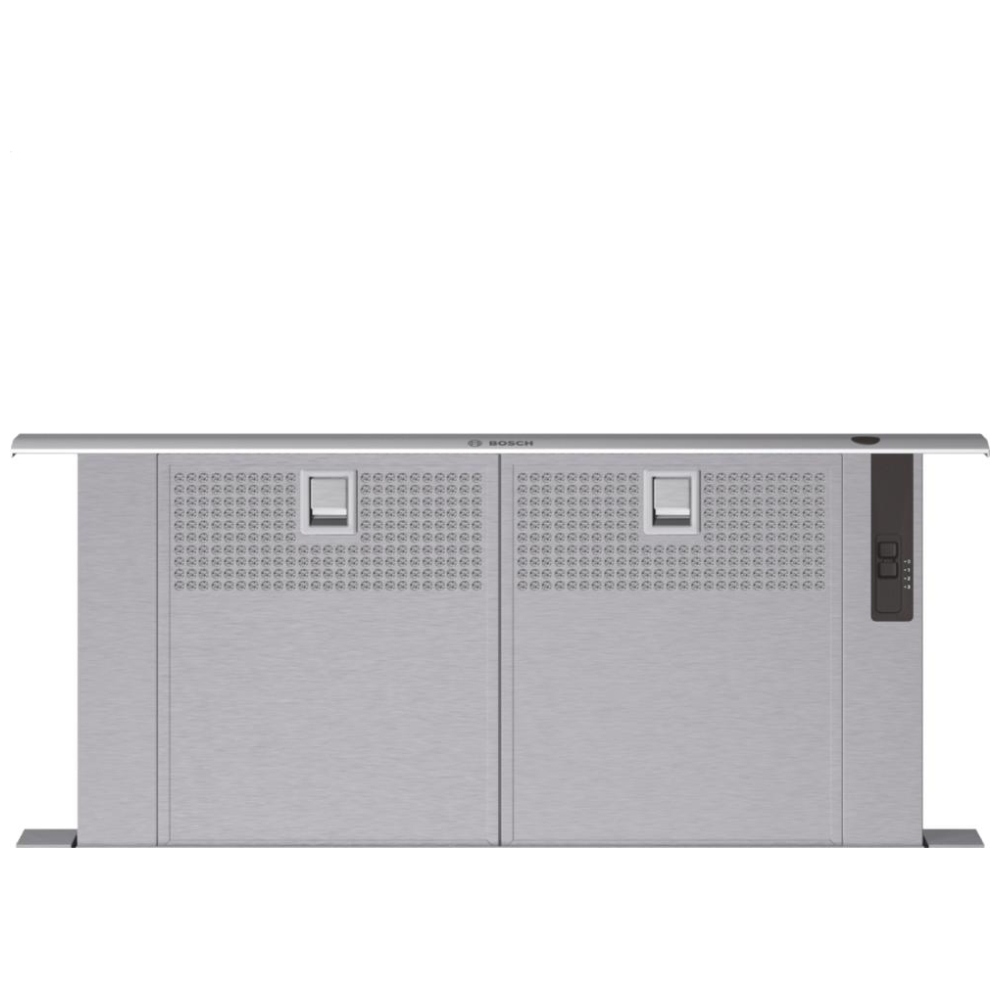

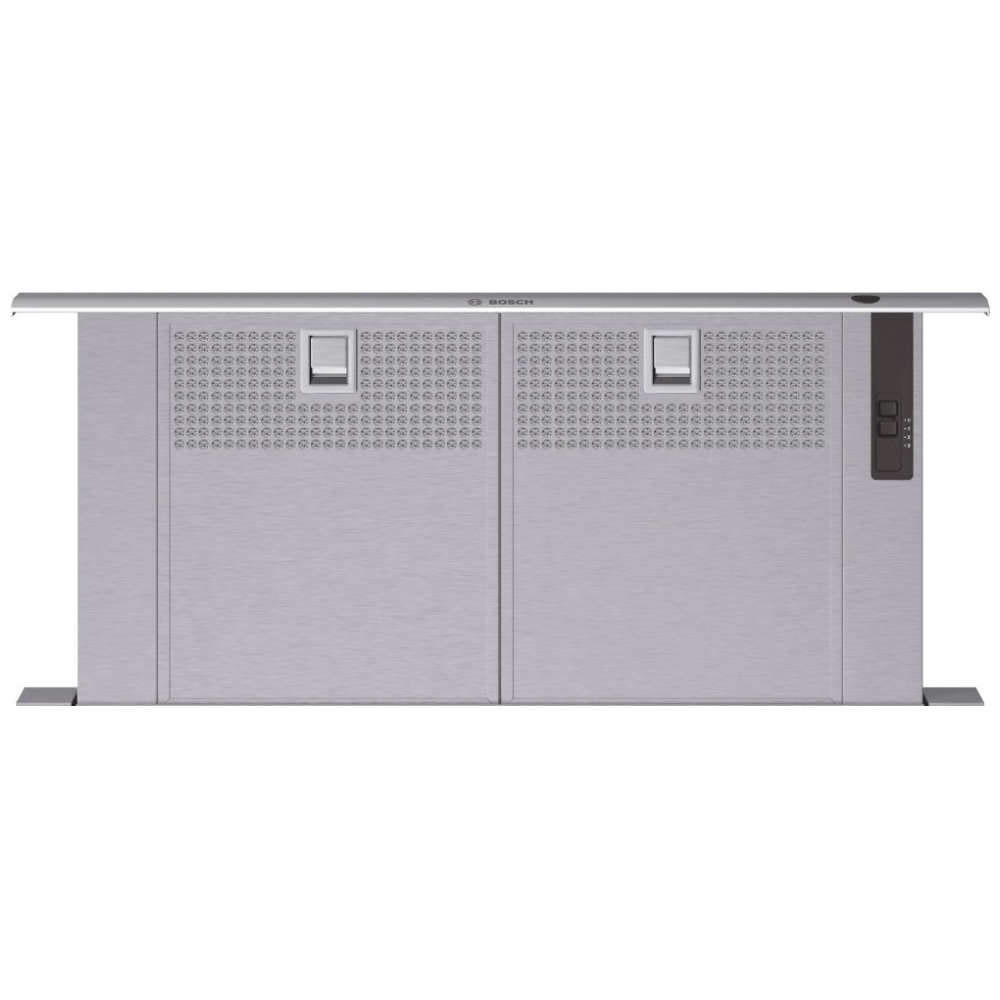

Bosch 800 Series DHD3014UC Downdraft, Downdraft, Island, 30" Exterior Width, BLOWER SOLD SEPARATELY, Outside / Ducting, Dishwasher Safe Filters, Stainless Steel colour
Bosch (DHD3014UC) 800 Series 30 inch, 14 inch rise retractable intake, stainless steel, mechanical controls, full-face filters, slide-switch control, dishwasher-safe filter, 3-speed control, optional recirculation module available (DHDRM36UC)
This downdraft vent lowers out of sight when not in use

  • Stands Over 13" Tall
  • 600 CFM Blower Options (Sold Separately)
  • Three Power Levels
  • Dishwasher-safe Mesh Filters
  • Recirculation Option Available

  • Key Features
  • 600 CFM Blower Options (Sold Separately)
  • Stands Over 13 Inch Tall
  • This downdraft vent lowers out of sight when not in use.
  • Recirculation Option Available
  • Design
  • Stands Over 13 Inch Tall
  • Full Face Mesh Filters
  • Wall or Island Installations
  • Performance
  • 600 CFM Blower Options (Sold Separately)
  • Three Power Levels
  • Quickly and Quietly Clears the Air of Smoke and Odor
  • Convenience
  • This downdraft vent lowers out of sight when not in use.
  • Intake Area Captures Smoke, Odor, and Grease
  • Dishwasher-safe Mesh Filters
  • Recirculation Option Available
  • Use with an Integrated, Remote or Inline Blower
  • Duct Blower Left, Right, or Straight Down

Key Features
 Blower Options (Sold Separately)
Stands Over 13" Tall
Lowers Out of Sight When Not in Use
Recirculation Option Available

Design

Stands Over 13" Tall
Full Face Mesh Filters
Wall or Island Installations

Performance

 Blower Options (Sold Separately)
Three Power Levels
Quickly and Quietly Clears the Air of Smoke and Odor

Convenience

Lowers Out of Sight When Not in Use
Intake Area Captures Smoke, Odor, and Grease
Dishwasher-safe Mesh Filters
Recirculation Option Available
Use with an Integrated, Remote or Inline Blower
Duct Blower Left, Right, or Straight Down


UPC: 825225865810

Specs
Technical Specifications
General
Width 80 cm
Depth of the product 95 mm
Construction type Built-in
Operating Mode Convertable: Ducted / Recirculating
Type of control Slide switch
Connectivity
Home Connect
Construction type
Color Stainless steel
Grease filter material Washable aluminium
Grease filter type Multilayer cassette
Installation Type Built-in
Material Stainless steel
Number of motors 0
Operating Mode Convertable: Ducted / Recirculating
Connection
Power cord length (cm) 150 cm
Frequency (Hz) 60 Hz
Volts (V) 120 V

SKU:   DHD3014UC
Material:   Stainless steel
Operating Mode:   Convertable: Ducted / Recirculating
Current (A):   10 A
Volts (V):   120 V
Frequency (Hz):   60 Hz
Approval certificates:   CSA, UL
Plug type:   120V-3 prong
Number of speed settings:   3-stage
Grease filter material:   Washable stainless steel
Grease filter type:   Multilayer cassette
Overall appliance dimensions (HxWxD) (in):   / x 31 '' x 3 3/4 '' "
Product packaging dimensions (HxWxD) (in):   7.48 x 32.67 x 27.16
Vertical rise height:   13'' "
Net weight (lbs):   37 lbs
Gross weight (lbs):   41 lbs
Diameter of air duct (in) back:   10 "
Required accessories:   Blower
UPC code:   825225865810
SERIES:   800 Series
