AZ28E07EAB GE Air Conditioner Canada Parts

Description & Features

7100 BTU (Cooling)
12.7 E.E.R
1.7 Dehumidification (pts/hr)
250/215 CFM Indoor Fan (High/Low)
50/40 Vent CFM
Electronic 7-Step Temperature Limiting To Prevent Overcooling or Overheating of Room
Heat Sentinel

Specs

CAPACITY
CFM Indoor Fan Low	215
Vent CFM	50/40
CFM Indoor Fan High	250
Cooling E.E.R. (BTUH / Watt)	12.7
Dehumidification (pts./hr.)	1.7
Sensible Heat Ratio at 265 Volts	74%
Cooling BTUH	7100 Btu
FEATURES
Auto Frost Control Monitor	Yes
Vent Control	3-position
Control Panel Door	Yes
Temperature Limiting	Electronic 7-Step
Weather Protected Electrical Components	Yes
Universal Heaters	Yes
Central Desk Control Compatibility	Yes
Rotary Compressor	Yes
Fan Motor	2

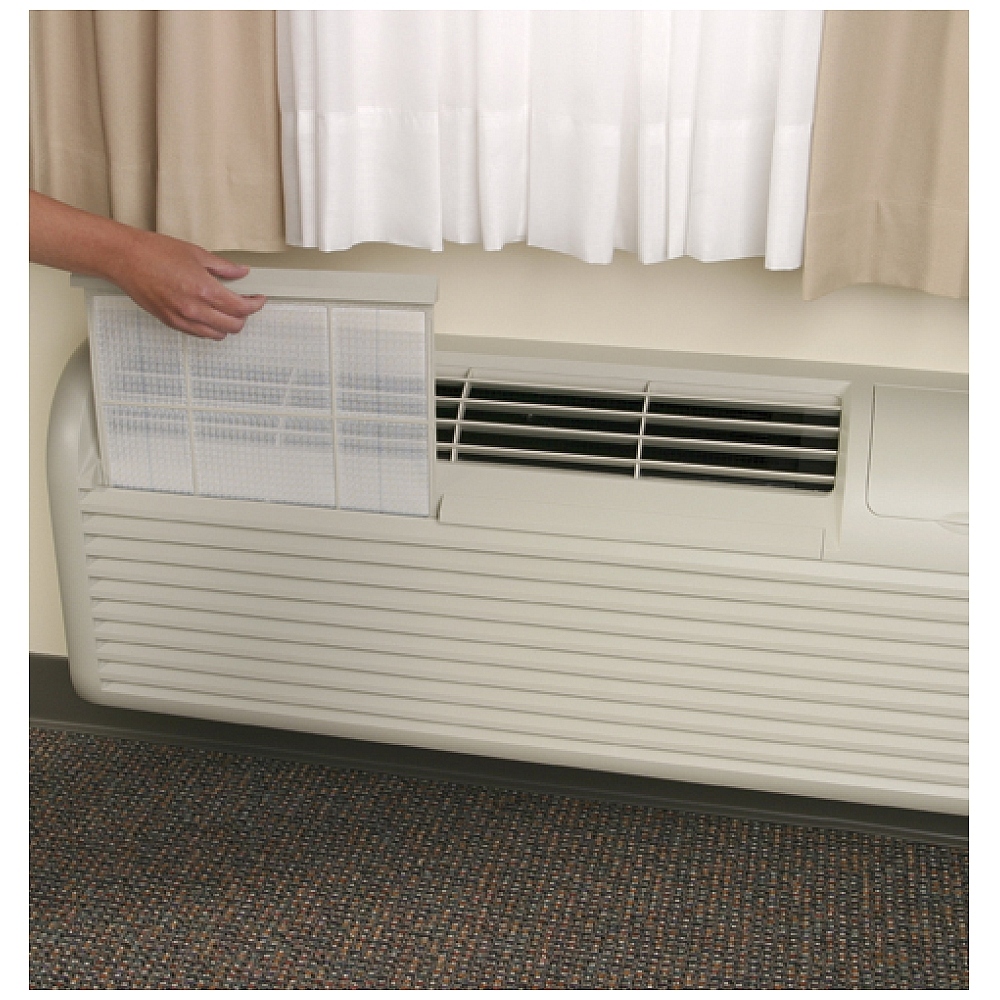

Upfront Filter	Yes
Fan Speed Selections	Hi/Low Cooling 2 Fan Only Hi/Low Heating
Freeze Sentinel	Yes
Heat Sentinel	Yes
Louver Style	Reversible
Auto Power Recovery	Yes
Solid State Thermostat Control	Yes
Discharge Grille	2-position
Remote Control	Compatible
Room Occupancy Sensor	Compatible
Sound Transmission Class (STC)	29
"SmartFan" Fan Cycle	Yes
Control Type	Standard Microcomputer; Rotary Knobs
APPEARANCE
Color Appearance	Warm Gray Beige
WEIGHTS & DIMENSIONS
Approximate Shipping Weight	115 lb
Net Weight (lbs.)	100 lb
Overall Height	16 in
Overall Width	42 in
Overall Depth	13 3/4 in
POWER / RATINGS
Cooling - Watts	560
Cooling - Amperes; L.R.	16.0
Voltage	265 V
Power Factor	87
Cooling - Amperes; F.L. - Cooling	2.4
ACCESSORIES
Extruded Aluminum	RAG67
SMC Wall Case	RAB77
Duct Adaptor	RAK6052
Duct Extension	RAK601
Power Connection Kit	RAK5172/5202/5302
Insulated Wall Case	RAB71
Exterior Architectural Louvers	RAG61(Beige); RAG62(Maple); RAG63(Bittersweet)
Stamped Aluminum Exterior Rear Grille	RAG60
WARRANTY
Warranty Notes	For models produced on or after January 1, 2006 See written warranty for full details
Labor Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Parts Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system

Dimensions
Height:	16"
Width:	42"
Depth:	13 3/4"
Sleeve Width:	1
Sleeve Height:	1
Minimum Window Opening Width (in.):	1
Maximum Window Opening Width (in.):	1
Minimum Window Opening Height (in.):	1
Depth to Louvers (in.):	1
Interior Unit Height (Mini-split systems only):	1
Interior Unit Width (Mini-split systems only):	1
Interior Unit Depth (Mini-split systems only):	1
Weight:	115 lbs.
Capacity
CFM Indoor Fan High:	250
CFM Indoor Fan Low:	215
Cooling E.E.R. (BTUH / Watt):	12.7
Dehumidification (pts./hr.):	1.7
Sensible Heat Ratio at 265 Volts:	74 %
Vent CFM:	50/40
Features
Cooling BTUH:	7100
Control Panel Door:	Yes
Control Type:	Standard Microcomputer; Rotary Knobs
Auto Power Recovery:	Yes
Freeze Sentinel:	Yes
Heat Sentinel:	Yes
Louver Style:	Reversible
Upfront Filter:	Yes
Auto Frost Control Monitor:	Yes
Central Desk Control Compatibility:	Yes
Remote Control:	Compatible
Room Occupancy Sensor:	Compatible
Rotary Compressor:	Yes
Solid State Thermostat Control:	Yes
Temperature Limiting:	Electronic 7-Step
Weather Protected Electrical Components:	Yes
Vent Control:	3-position
SmartFan Fan Cycle:	Yes
Fan Motor:	2
Fan Speed Selections - Cooling:	Hi/Low
Fan Speed Selections - Fan Only:	2
Fan Speed Selections - Heating:	Hi/Low
Universal Heaters:	Yes
Discharge Grille:	2-position
Sound Transmission Class (STC):	29
Appearance
Color Appearance:	Warm Gray Beige
Power/Ratings
Power Factor:	87
Voltage:	265
Cooling - Amperes; F.L. - Cooling:	2.4
Cooling - Amperes; L.R.:	16.0
Cooling - Watts:	560
