Thermador UCVM36FS
Discontinued
1OK9XT
1OK9XT
When will I get this?

Reserve & Pick Up
FREE
Distribution Centres
Address
Units Available
Woodbridge, ON
27 Director Crt.
Winnipeg, MB
191 Elan Blvd
Burnaby, BC
8010 Winston St.
Ottawa, ON
55 Banton St.
Laval, QC
1340 Boul. Dagenais Ouest
Dartmouth, NS
315 Wilkinson Ave.
Calgary, AB
2777 23 Ave. NE
For more information on range hood installation services, click here.

Protect your purchase with an extended warranty.

Protect purchase for 2 years: $99.99 CAD
Protect purchase for 3 years: $169.99 CAD
Description & Features

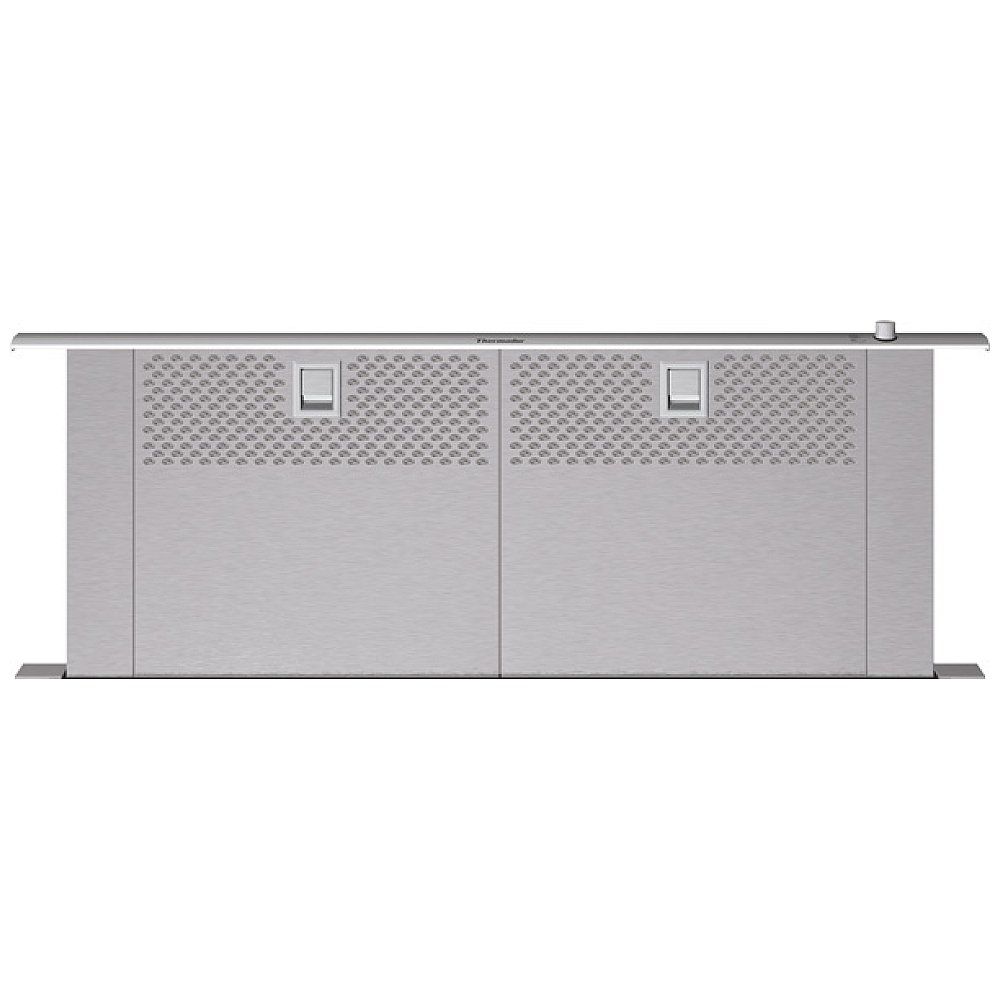

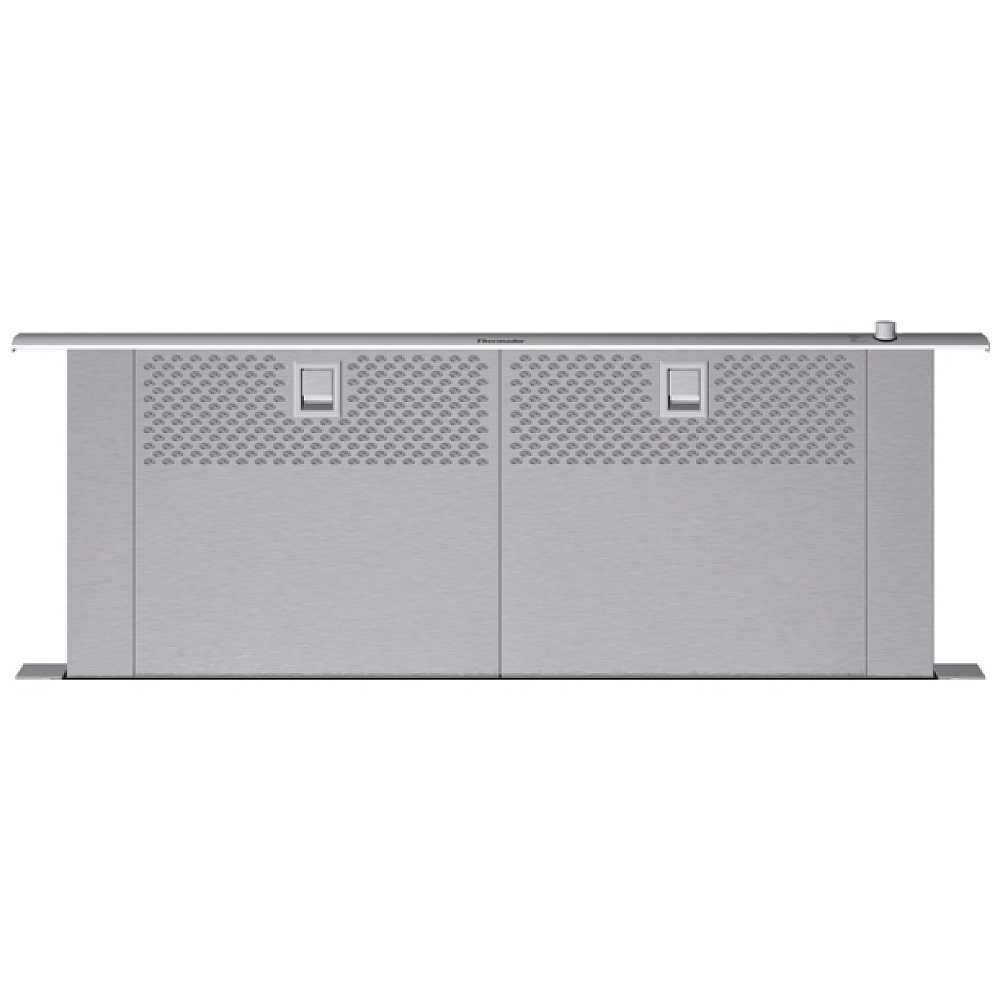

Thermador Masterpiece Series UCVM36FS Downdraft, 36" Exterior Width, 600, 1000 CFM, Accepts Both, NA, Dishwasher Safe Filters, Aluminum Mesh, Stainless Steel colour
Thermador Masterpiece Series UCVM36FS Downdraft Ventilation 36 in with Optional Internal/In-Line/Remote Blowers, Dishwasher-safe Filters, 3-Speed Button Control and Screw Drive System
A beautiful Masterpiece Series kitchen deserves Masterpiece Ventilation. For island cooktops our Downdraft ventilation unit rises over 13-inches and can be installed with an optional recirculation kit. Learn more about downdraft ventilation for cooktops and stovetops .

  • Full 13" Rise
  • With a 13" intake, the tallest on the market, the UCVM rises well above even the tallest pans. This protects against splatters when cooking and provides better performance in capturing steam and smoke - even from the front burners.
  • Full Face Filters
  • Full-face filters combine a filter with a splatter shield in one easy-to-remove, dishwasher-safe element. These filters maximize grease capture without affecting airflow.
  • Downdraft Recirculation Option
  • Downdraft recirculation is now available for island or wall applications. Combine the performance of the UCVM Downdraft with the odor- and moisture-removing filters in the Recirculation Module for the perfect ventilation combination for anywhere in your kitchen.
  • All Features
  • Performance
  • Suitable for wall or island applications
  • Downdraft rises over 13" to capture steam from the tallest pots
  • Downdraft recirculation possible with module RECIRC36DF
  • Three fan speeds
  • Dishwasher safe full-face filters also act as a splatter shield
  • Filter systems are highly efficient at capturing grease
  • Powerfully quiet ventilation systems
  • Blowers sold separately
  • Choose from Inline, Remote or Integrated Blowers
  • Replacement charcoal filters available (CHFILT3036)
  • Design
  • Brushed stainless steel finish
  • Easy to operate control buttons

Performance

  • 3 fan speeds
  • Filter systems are highly efficient at capturing grease
  • Powerfully quiet ventilation systems

Design

  • Suitable for wall or island applications
  • Brushed stainless steel finish
  • Easy to operate control buttons

Capacity

  • Downdraft rises over 13" to capture steam from the tallest pots
  • 600 CFM Integrated Blower option VTN600CV2C
  • Inline Blowers: VTI610D (600 CFM) or VTI1010D (1000 CFM)
  • Remote Blowers: VTR630D (600CFM), VTR1030D (1000CFM)
  • Requires Transition CV2T6 for Remote and Inline Blowers
  • Remote Blower requires Roof Plate RFPLT600 for roof installations (600 CFM)
  • Remote Blowers require Roof Plate RFPLT1000 for roof installations (1000/1300 CFM)
  • Downdraft recirculation possible with module RECIRC36DF
  • Replacement charcoal filters available (CHFILT3036)

Convenience

  • Dishwasher safe full-face filters also act as a splatter shield
  • Blowers sold separately
  • Choose from Inline, Remote or Integrated Blowers






UPC: 825225865766

Specs
Technical Specifications
Amps (A) 10
Frequency (Hz) 60
Approval certificates CSA, UL
Plug type 120V-3 prong
Vertical rise height (in) 13''
Net weight (lbs) 42
Gross weight (lbs) 47
Motor location External motor
Diameter of air duct (in) back 10
No-return airflow flap No
Product Features
Operating mode Convertable: Ducted / Recirculating
Required accessories Blower
Optional accessories EXTNCB25, RECIRC36DF, RFPLT1000, RFPLT600
Grease filter material Washable aluminium
Grease filter type Multilayer cassette



Technical Specifications





Amps (A)

10

Frequency (Hz)

60

Approval certificates

CSA, UL

Plug type

120V-3 prong

Vertical rise height (in)

13''

Net weight (lbs)

42

Gross weight (lbs)

47

Diameter of air duct (in) back

10

No-return airflow flap

No













Product Features





Operating mode

Convertable: Ducted / Recirculating

Required accessories

Blower

Optional accessories

RECIRC36DF, RFPLT1000, RFPLT600

Grease filter material

Washable stainless steel

Grease filter type

Multilayer cassette
