SPECIFICATIONS GUIDE
Configuration and Overview
ADA Compliant	No
Size (in.)	36
Amps	15
Cooktop Surface Material	Porcelain Coated Steel

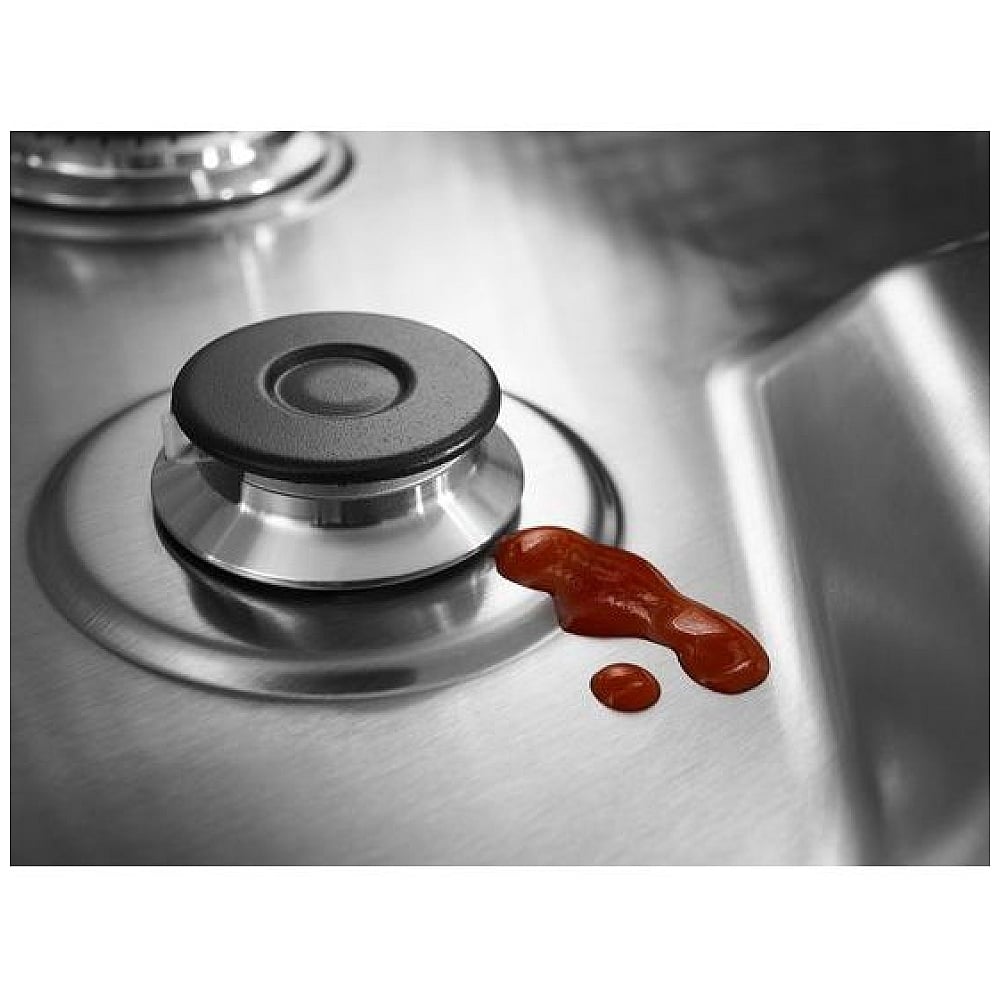

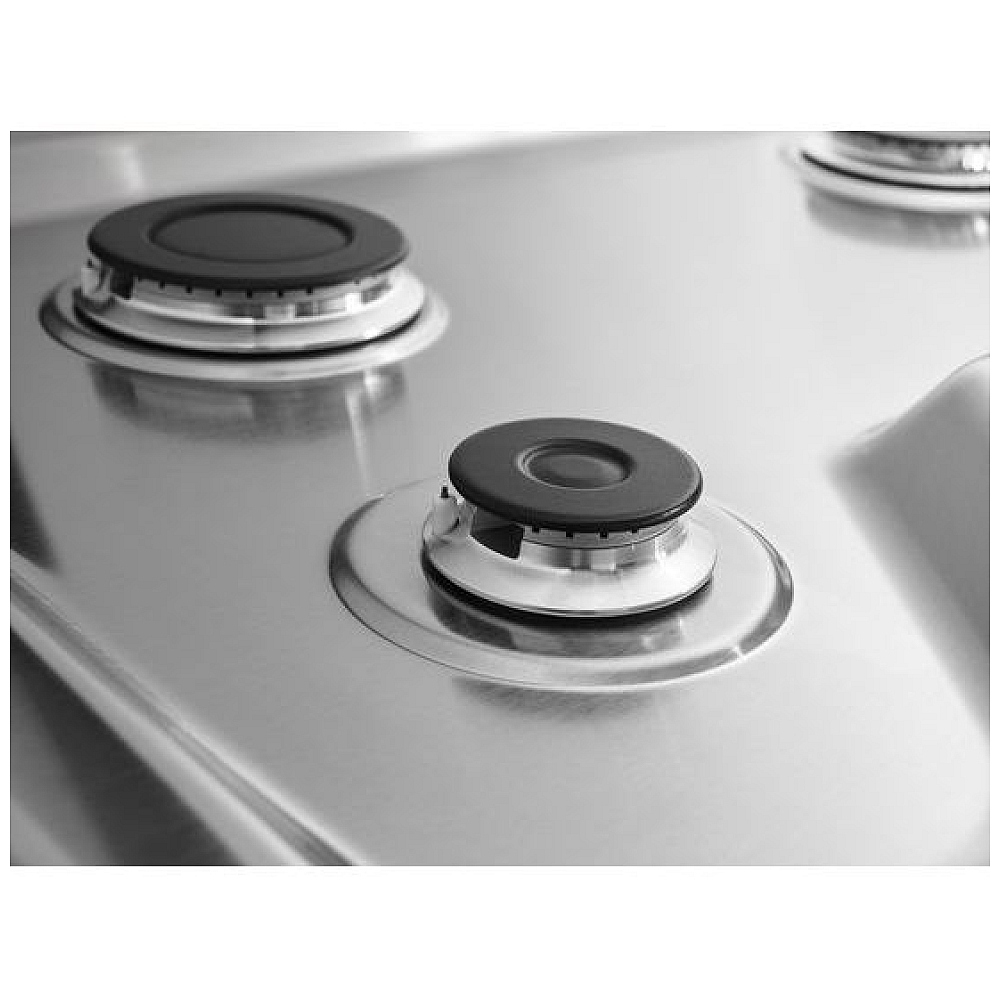

Cooktop Element Style	Sealed Burner
Volts	120
Hz	60
Number of Cooking Element-Burners	5
Installs Over Built-In Oven	Yes
Cooktop Features
Left Front Element-Burner Power	9200 BTU
Left Front Element-Burner Type	Sealed Burner
Left Rear Element-Burner Power	10,500 BTU
Left Rear Element-Burner Type	Sealed Burner
Right Front Element-Burner Power	12,500 BTU
Right Front Element-Burner Type	Sealed Burner
Right Rear Element-Burner Power	9200 BTU
Right Rear Element-Burner Type	Sealed Burner
Center Rear Power	9200 BTU
Center Rear Type	Sealed Burner
Dimensions
Width	36 Inches
Depth	21 Inches
Height	3 13/16 Inches
Cutout Depth	19 15/16 Inches
Cutout Width	34 1/2 Inches
Controls
Digital Display	No
Downdraft Vent	No
Hot Surface Indicator Light	No
Power Boost	No

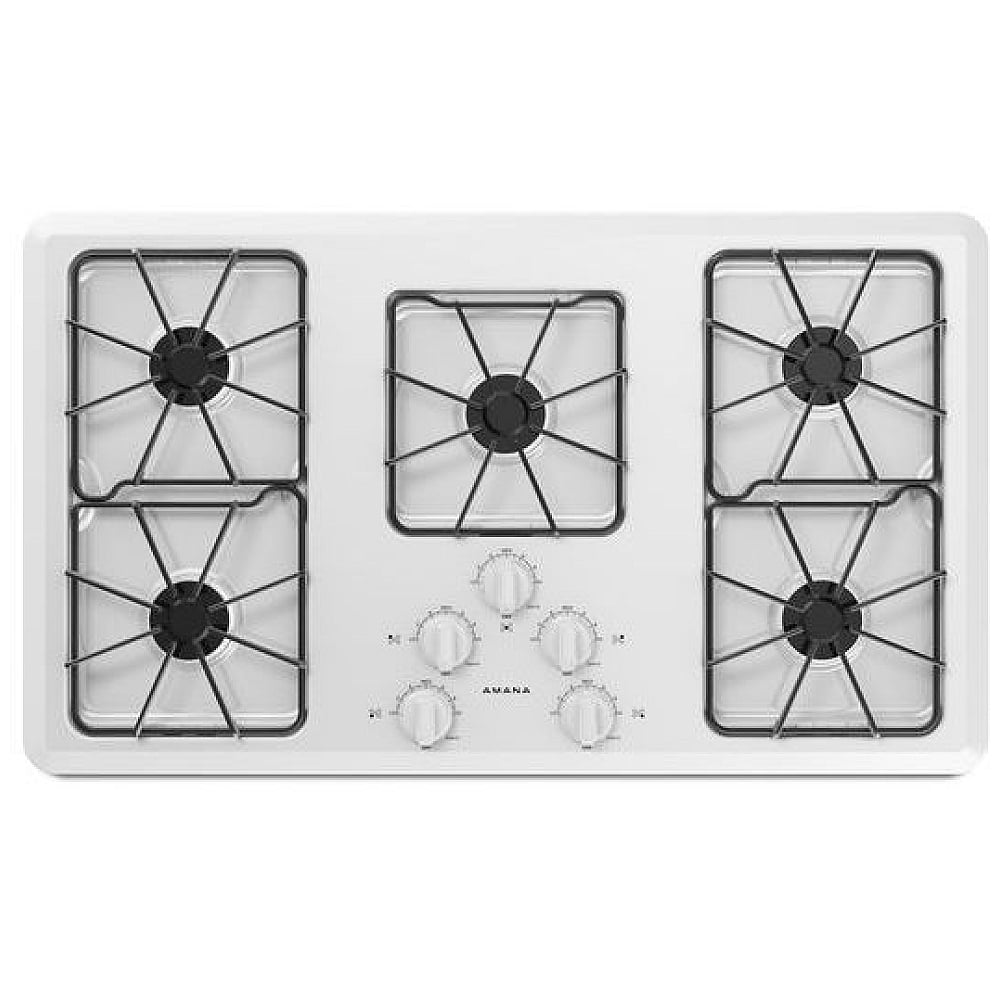

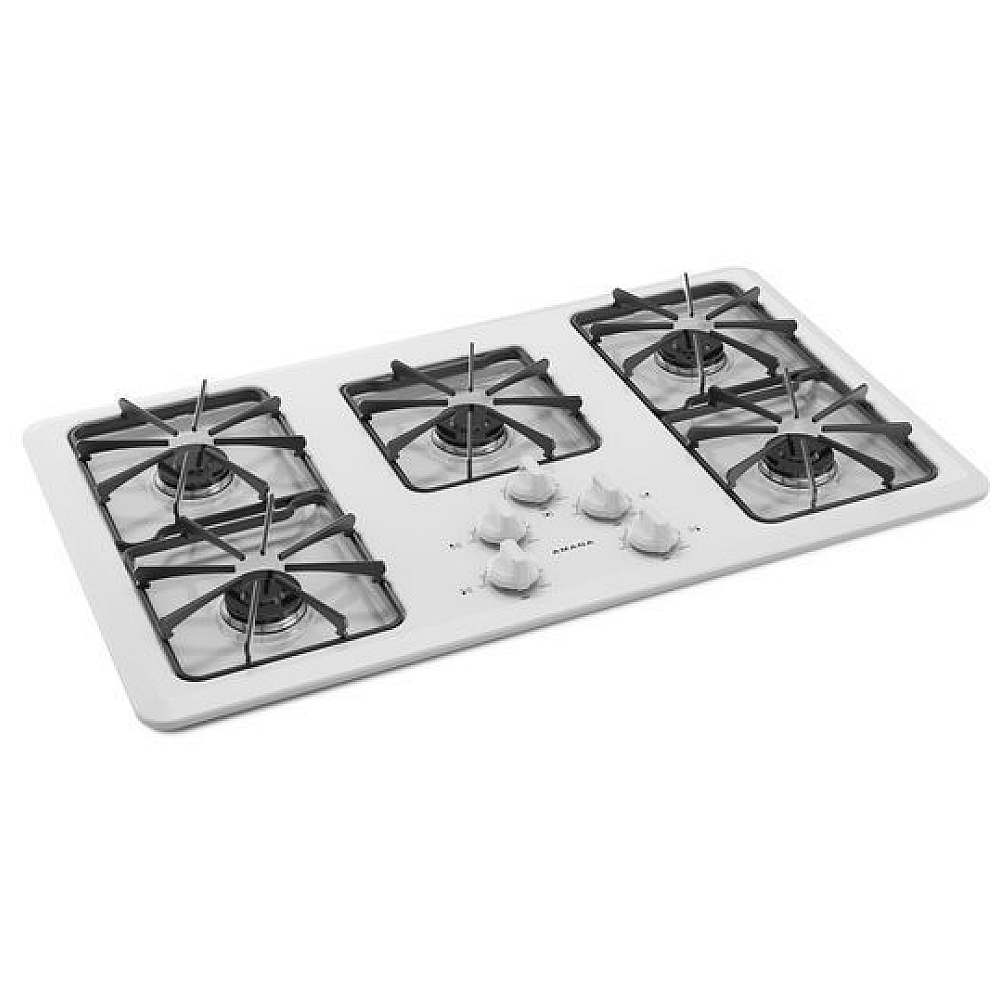

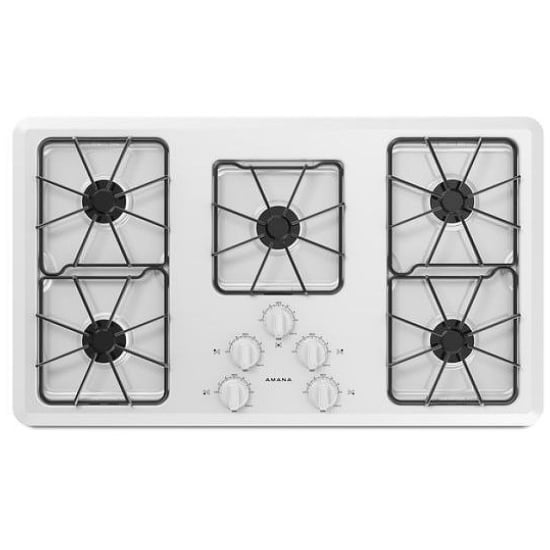

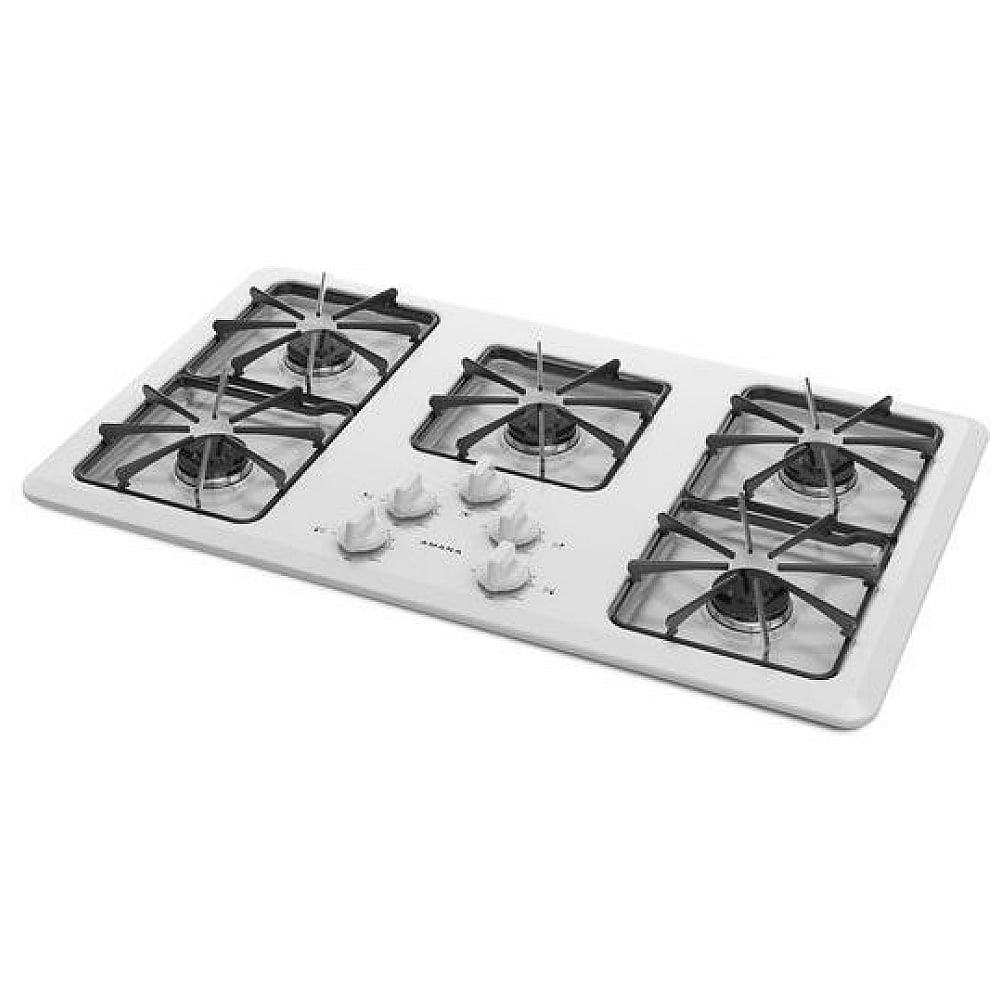

Amana AGC6356KFW

Amana AGC6356KFW, 36 pouce Largeur extérieure, 5 brûleurs, 12,500 BTU maximal du brûleur, couleur Blanc
