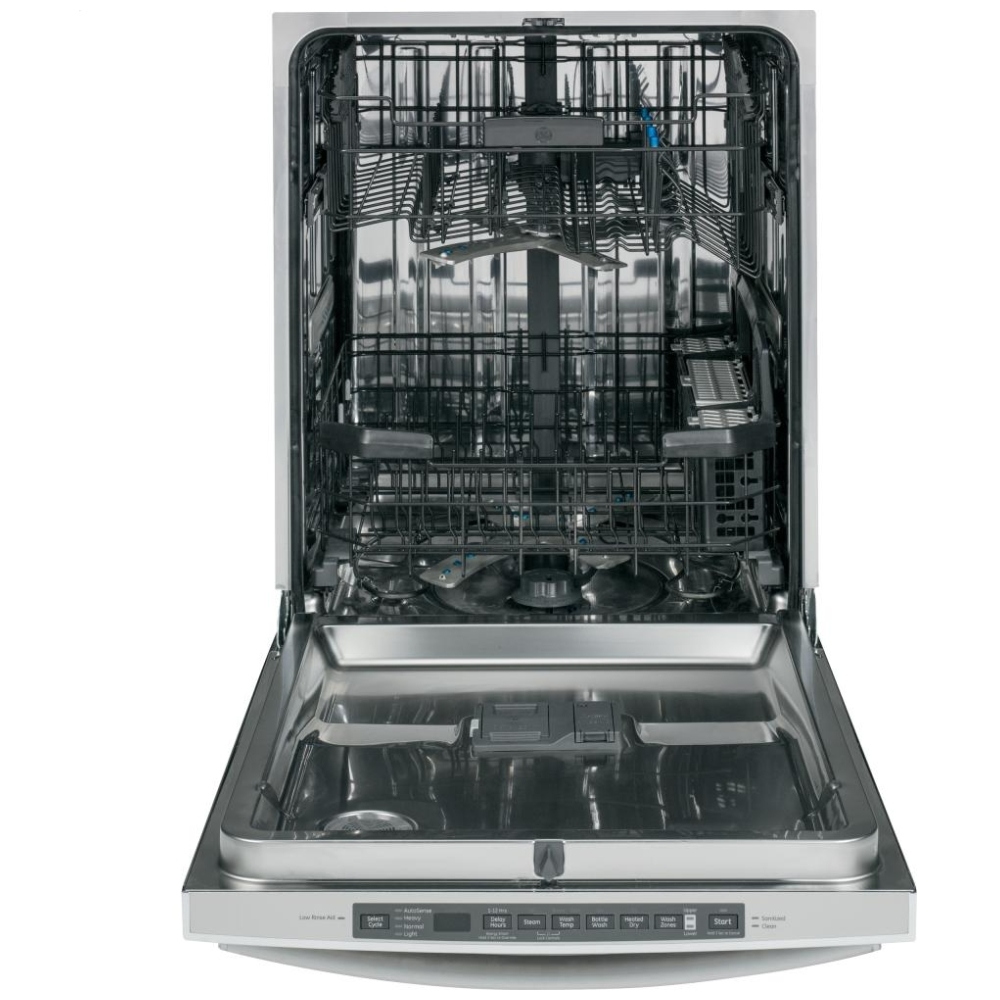

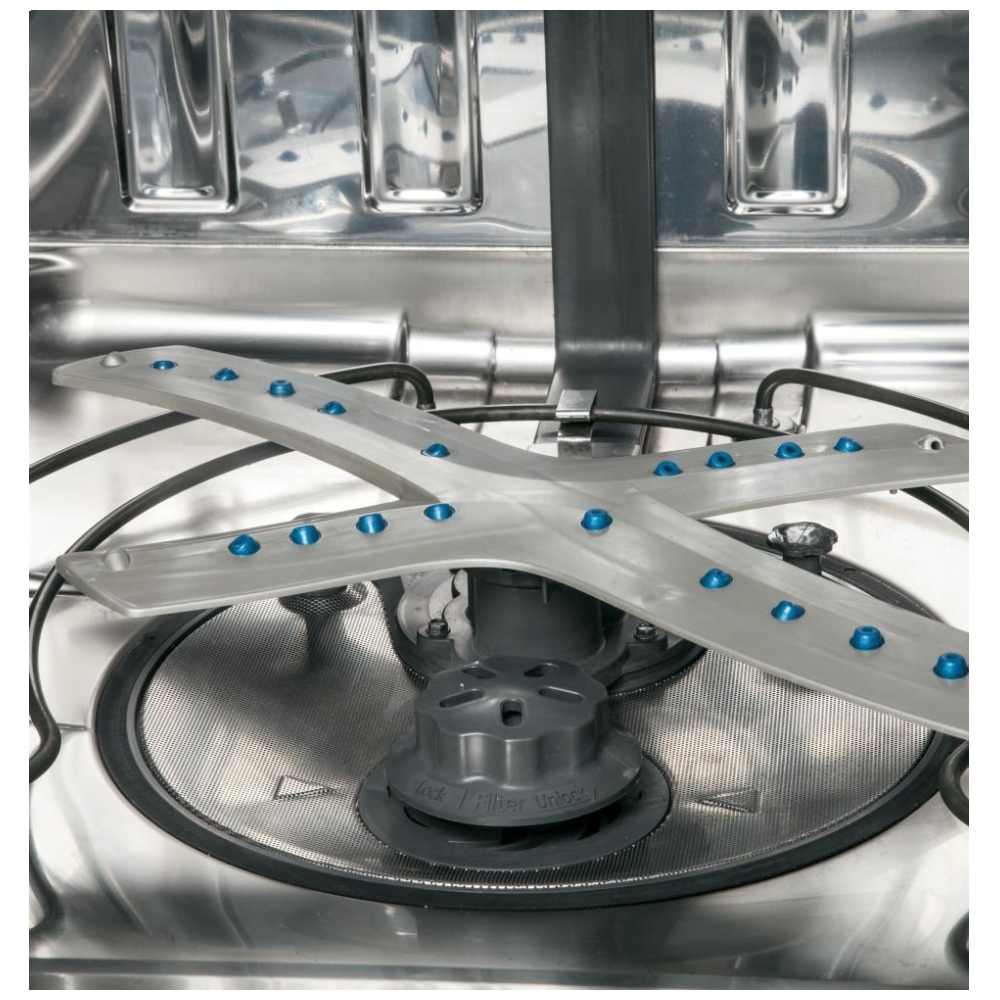

Reversing quad blade wash arm
Dishes come out impressively clean thanks to this revolutionary lower wash arm, with 25 spray jets reversing direction to hit items from every angle

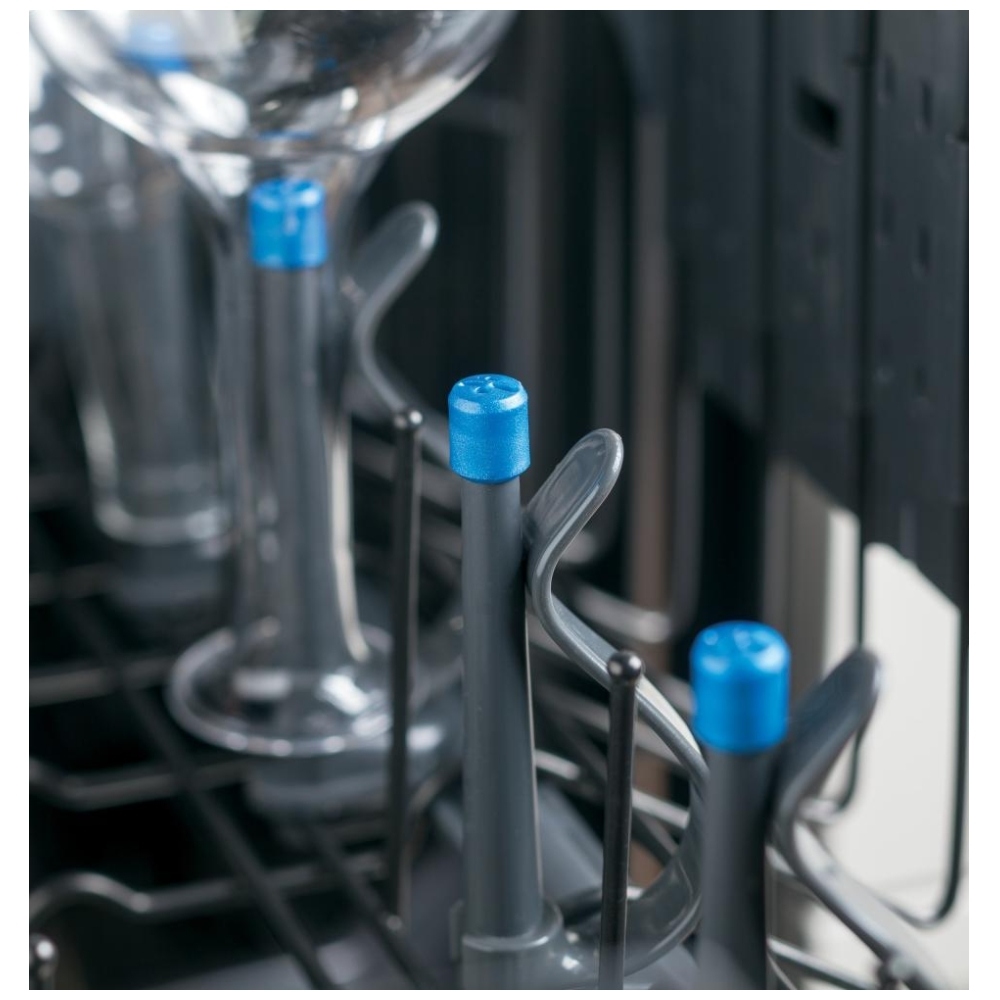

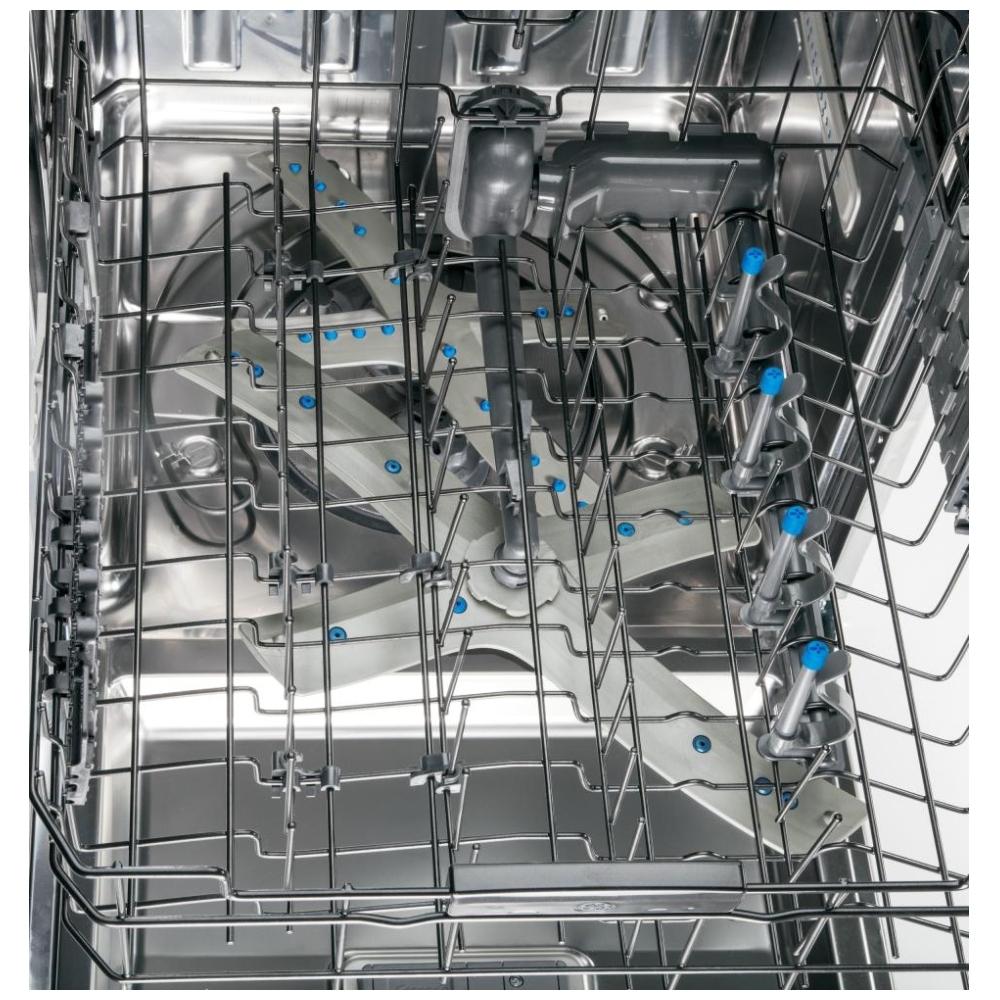

Bottle Wash Jets
Hard-to-reach areas inside tall items get completely clean with four dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean

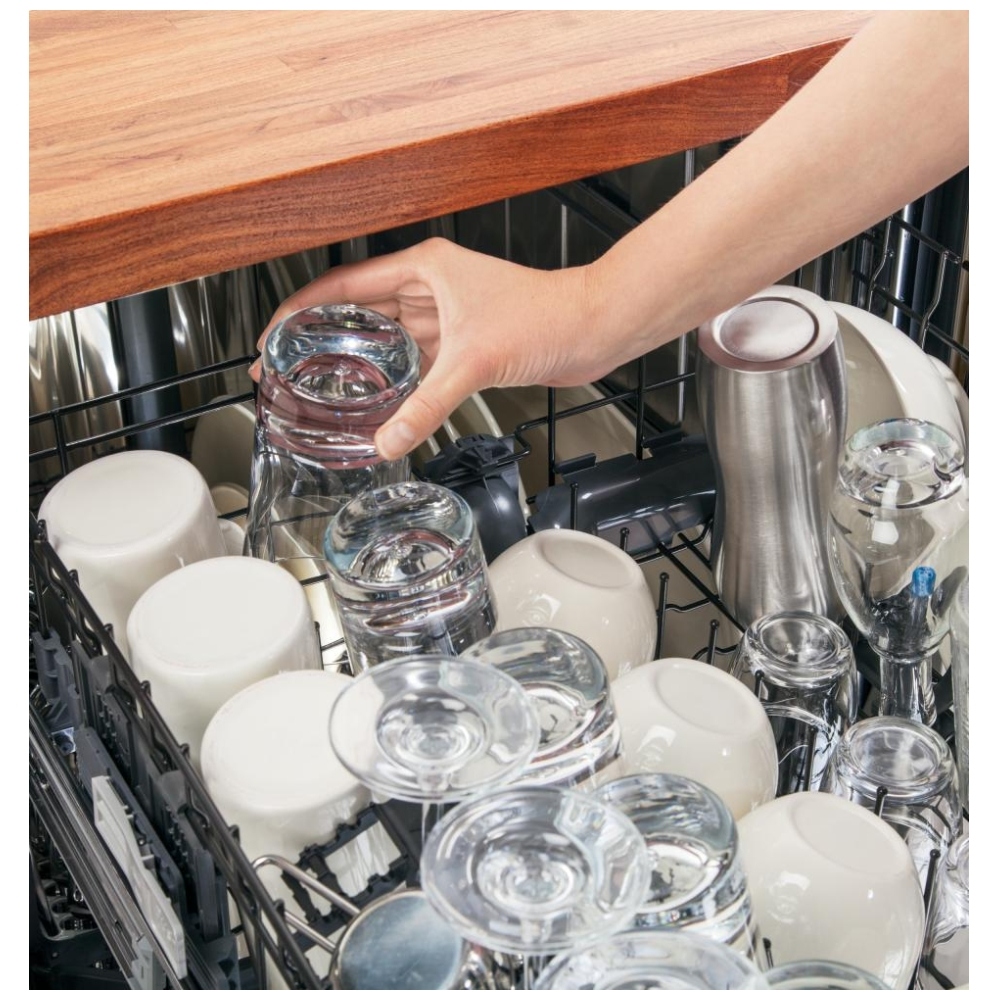

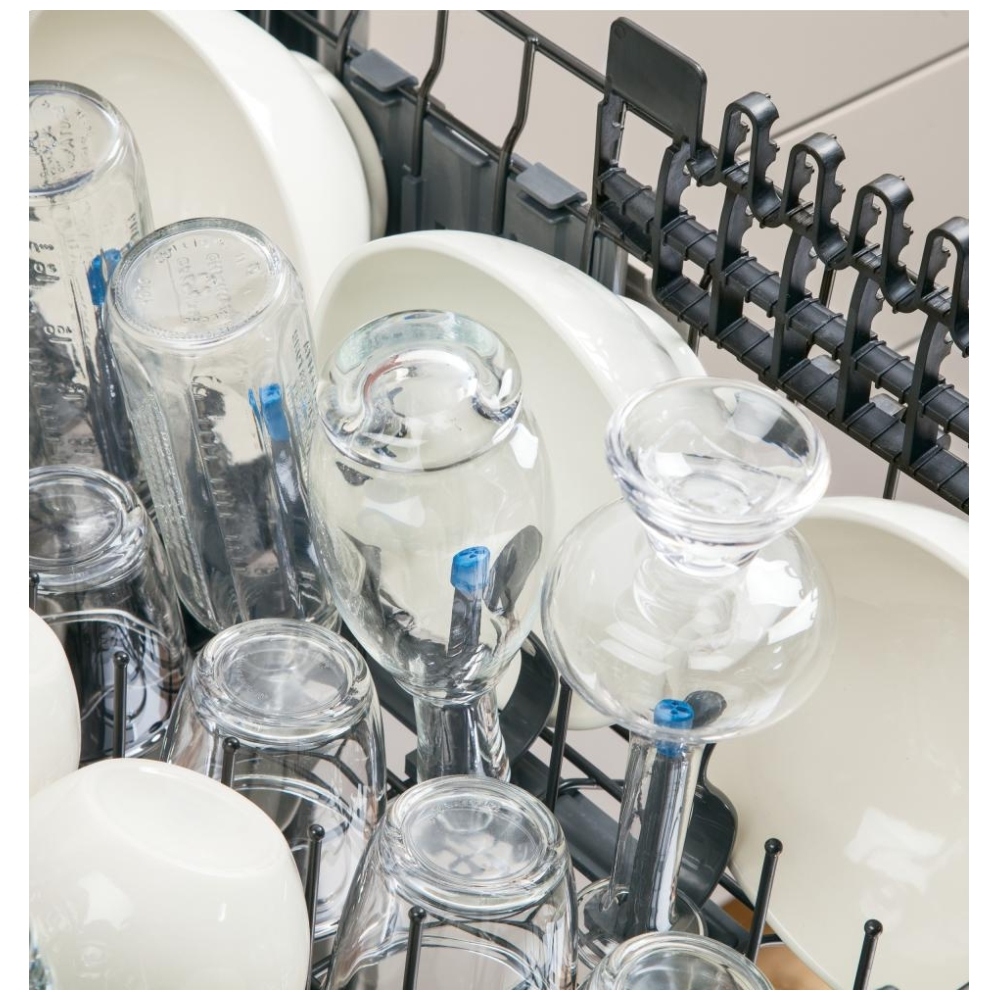

Easy touch adjustable upper rack with 2 Stem Safe shelves

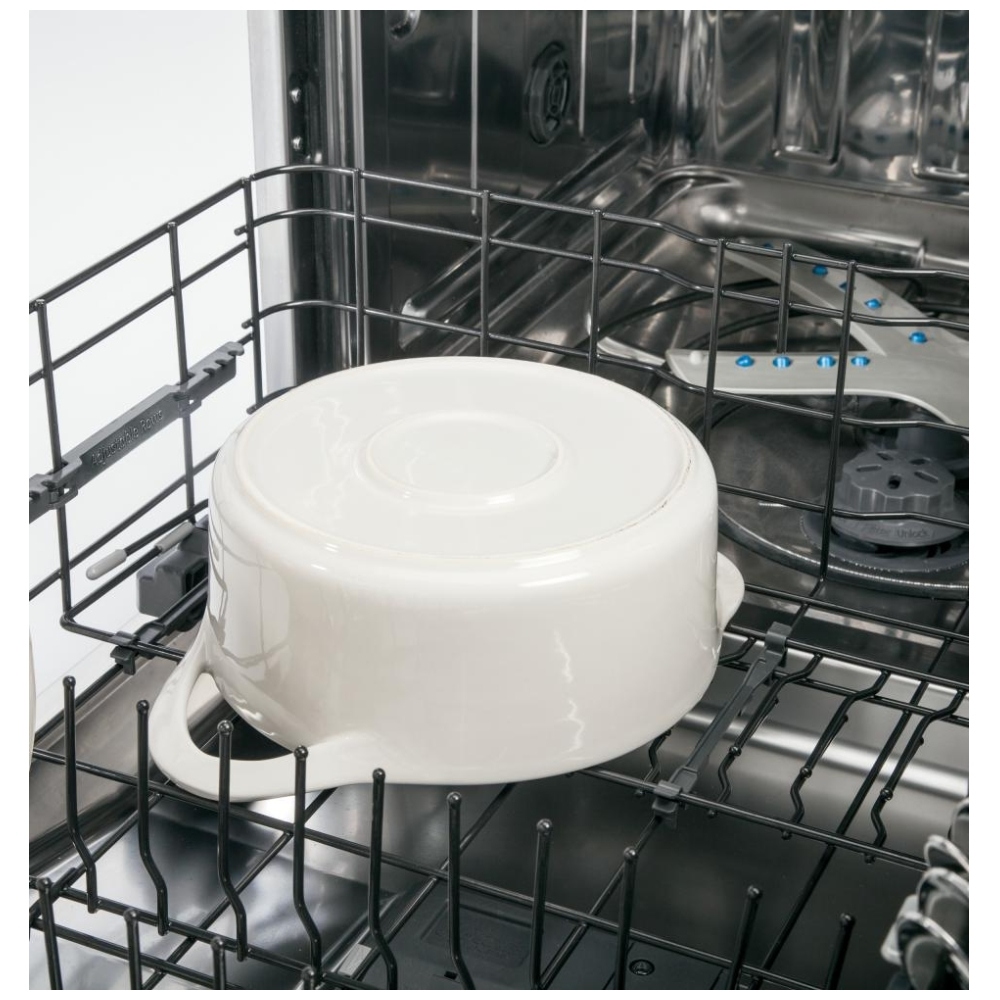

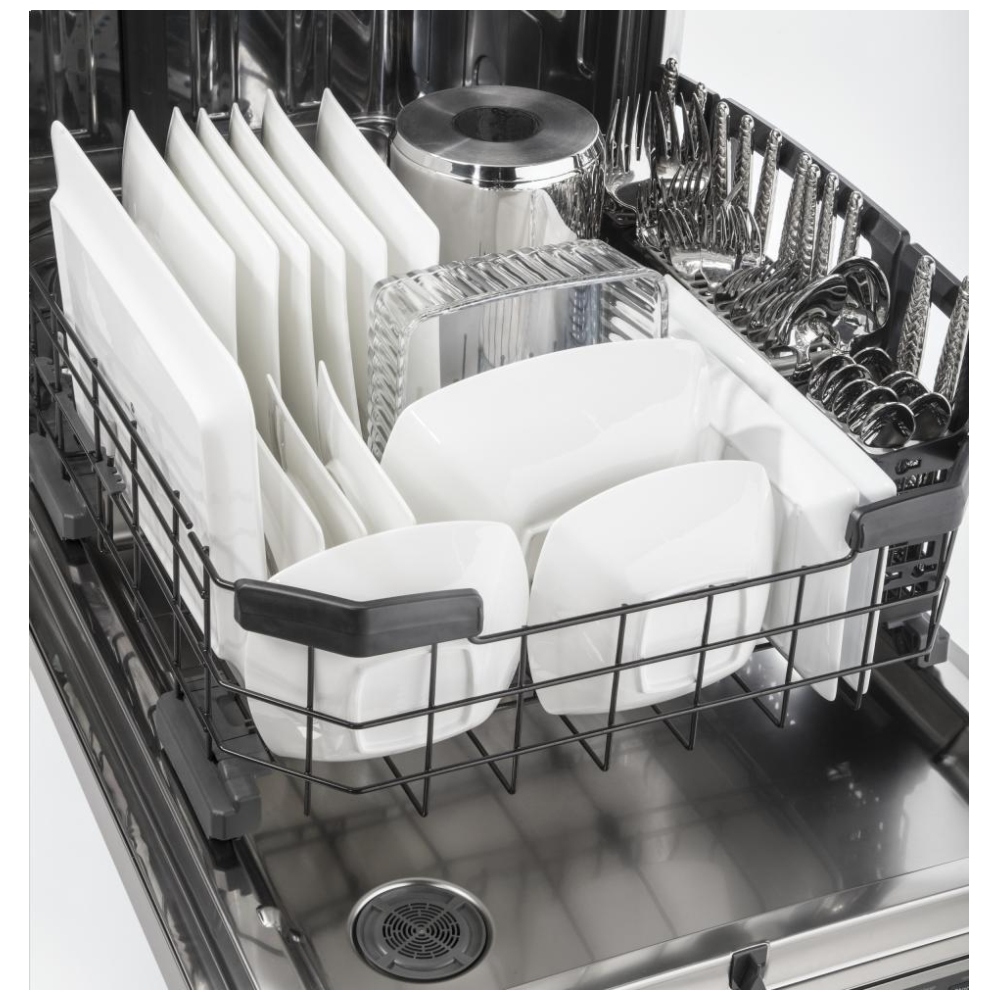

Quickly adjust the upper rack 2 inches up or down to accommodate tall glassware and 10 1/2" plates with plenty of room in the bottom rack for large platters and cookie sheets

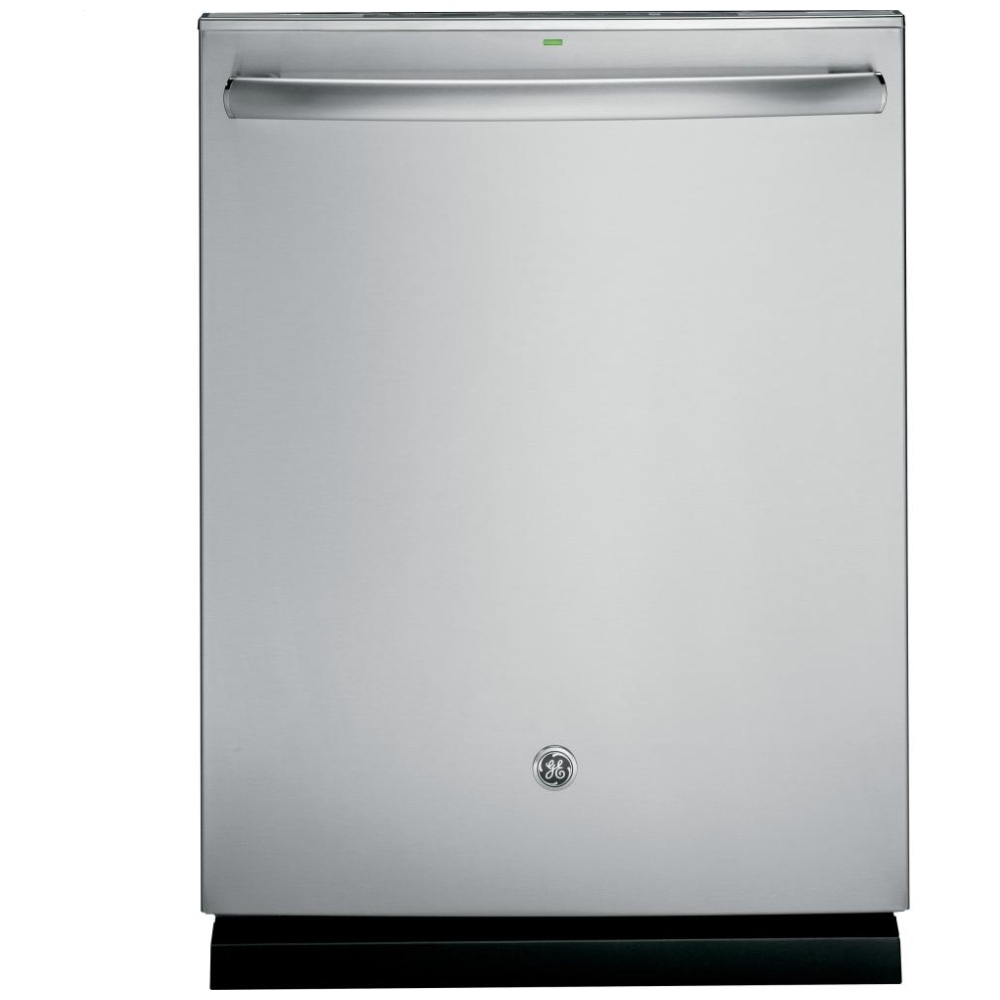

46 dBA with status light on door
A dishwasher this quiet has a status light to let you know it is running
- Enjoy an attractive appearance and long-lasting durability
- Achieve the ultimate clean from an industry-leading number of jets that deliver complete washing coverage to every corner of the dishwasher
- Cascading water fills the dishwasher while hydrating soils
- Easily fit large or odd-shaped items in the upper rack
- Dishes dry quickly and efficiently with a fan that extracts moisture from the interior
Garantie du fabricant: 1 an
APPEARANCE | |
Color Appearance | Stainless Steel |

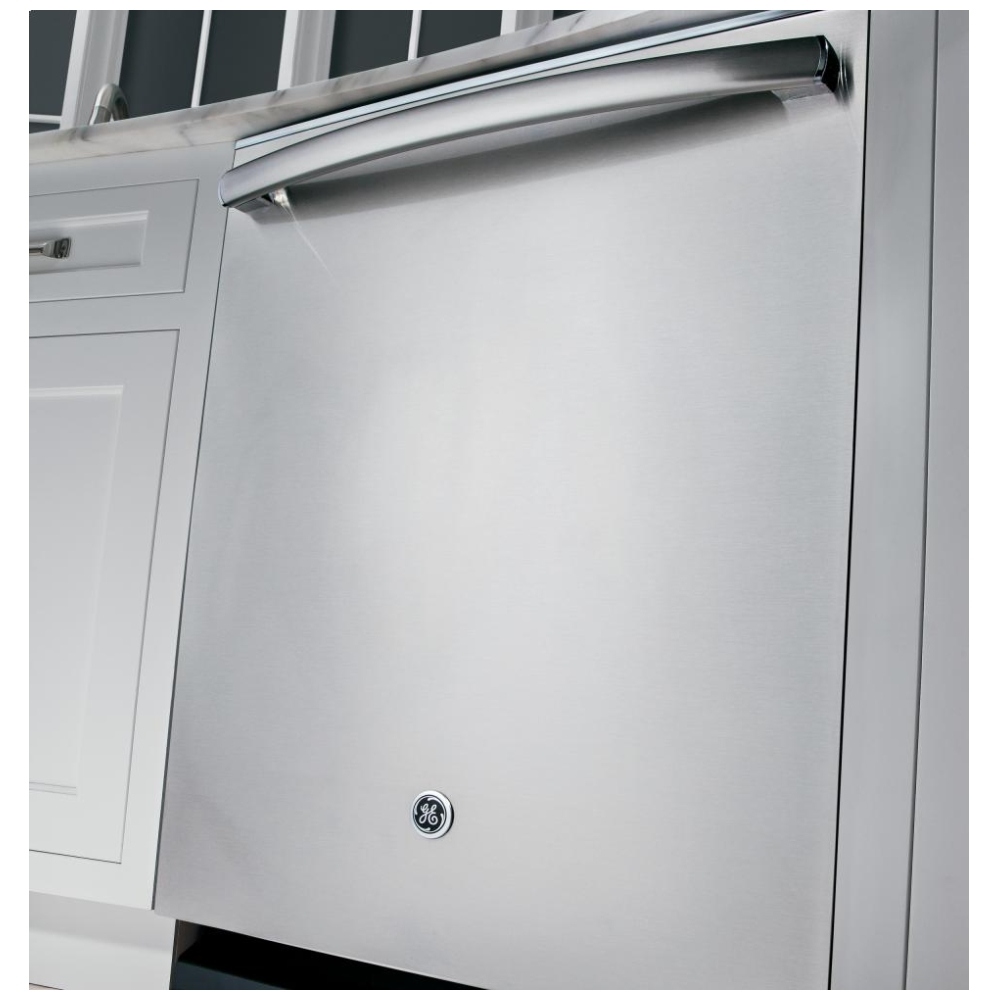

Door Style | Long Door with Top Controls |
Installation | Side Installation or Top Installation IncludedBuilt-Up Floor CapableFlush Cabinet Installation |
Door Appearance | Full-length door |
Handle | Rounded Handle - Stainless Steel |
Handle Color | Stainless Steel w/Chrome |
Handle Design | Designer Style |
ECONOMICAL / QUIET | |
Quiet Package | 46 dBA |
Quiet Features | Quiet Water ValveSealed Toe KickTub Collar Trim |
Motor Type | Single Speed |
FEATURES | |
Energy Star® Qualified | Yes |
Style | Built-In |
Tub and Door Liner | Stainless Steel |
Tub Type | Tall Tub |

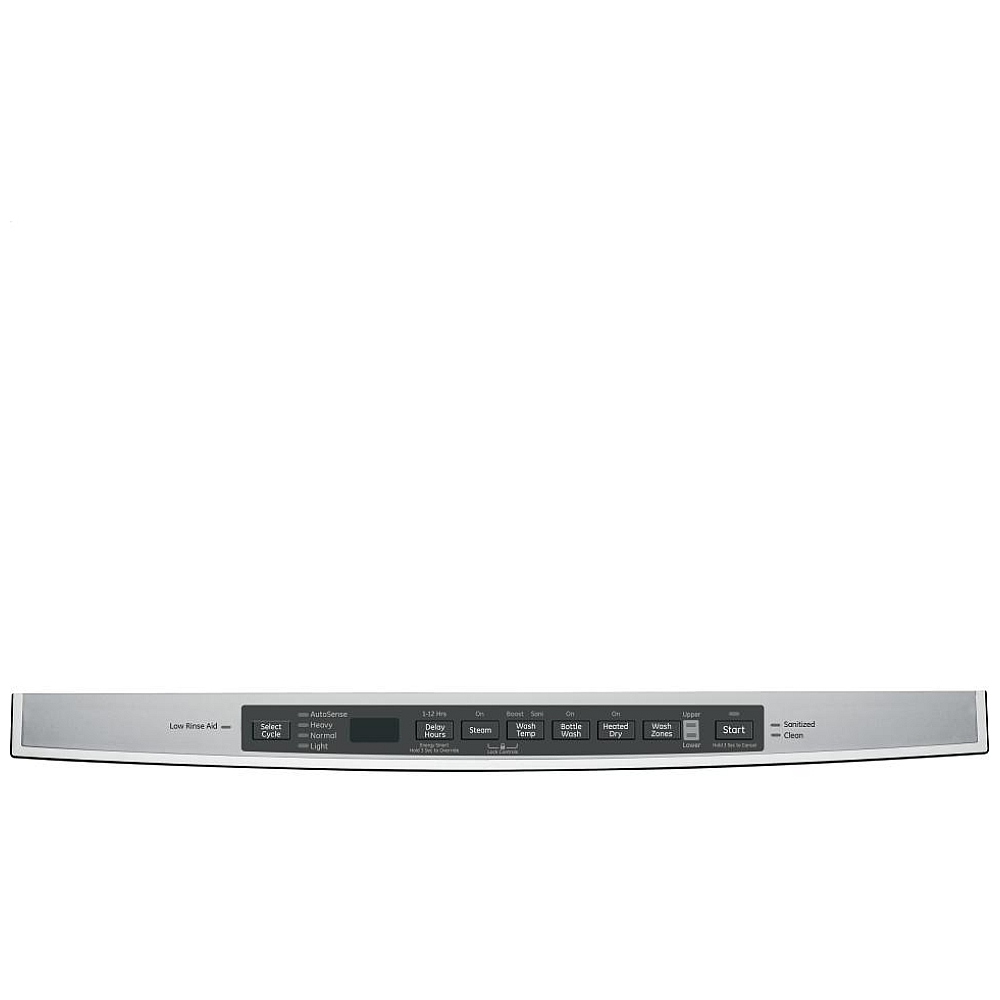

Control Type | Top ControlsElectronic Tactile Buttons |
Dishwasher Control Features | 3 Digit Display Cycle Countdown with Bi-Color LED Status Light on door1 "Clean" Light, 1 "Sanitized" Light, 1 "Low Rinse Aid" LightLast Cycle MemoryAudible End-of-Cycle Signal |
Wash System | 700 Series |
Wash System Features | Dual Pumps and MotorsAutomatic Temperature ControlDrain PumpPiranha™ Hard Food Disposer with removable filterDedicated Silverware JetsReversing Quad Blade Lower Wash ArmQuad Blade Middle Wash ArmBottle Wash JetsSide Jets100+ Spray Jet Wash System |
Sensor | Clean Sensor |
Wash Arms | 3 Pressurized Wash ArmsLower- Reversing Quad BladeMiddle - Quad BladeBottle Wash JetsSide Jets100+ Spray Jet Wash System |
Water Filtration System | 100% Filtration with Piranha Hard Food Disposer and Removable Filter |
Dispenser | Rinse Aid with Indicator and AdjustmentElectronic Low Rinse Aid Sensor |
Number of Cycles | 4 |
Dishwasher Cycles | Auto SenseHeavy WashNormal WashLight Wash |
Number of Options | 10 |
Dishwasher Options | Delay Start 1-12 Hr.Steam PreWashChild LockWash TempBoostSani (NSF Certified)Heated DryWash Zone Upper OnlyWash Zone Lower OnlyStart/ResetEnergy SmartBottle Wash |
Rack Features | 2 Utility Shelves with Stem Safe - UpperBall-Tipped TinesSmall Items Basket2 Fold-Down Tines - LowerUpper and Lower Rack Flex BasketsAdjustable Upper RackWash Your Way Customizable Rack3 Piece Silverware Basket with Soft Touch Handle |
Racking Material | Nylon |
Rack Color | Black Pearl Gray |

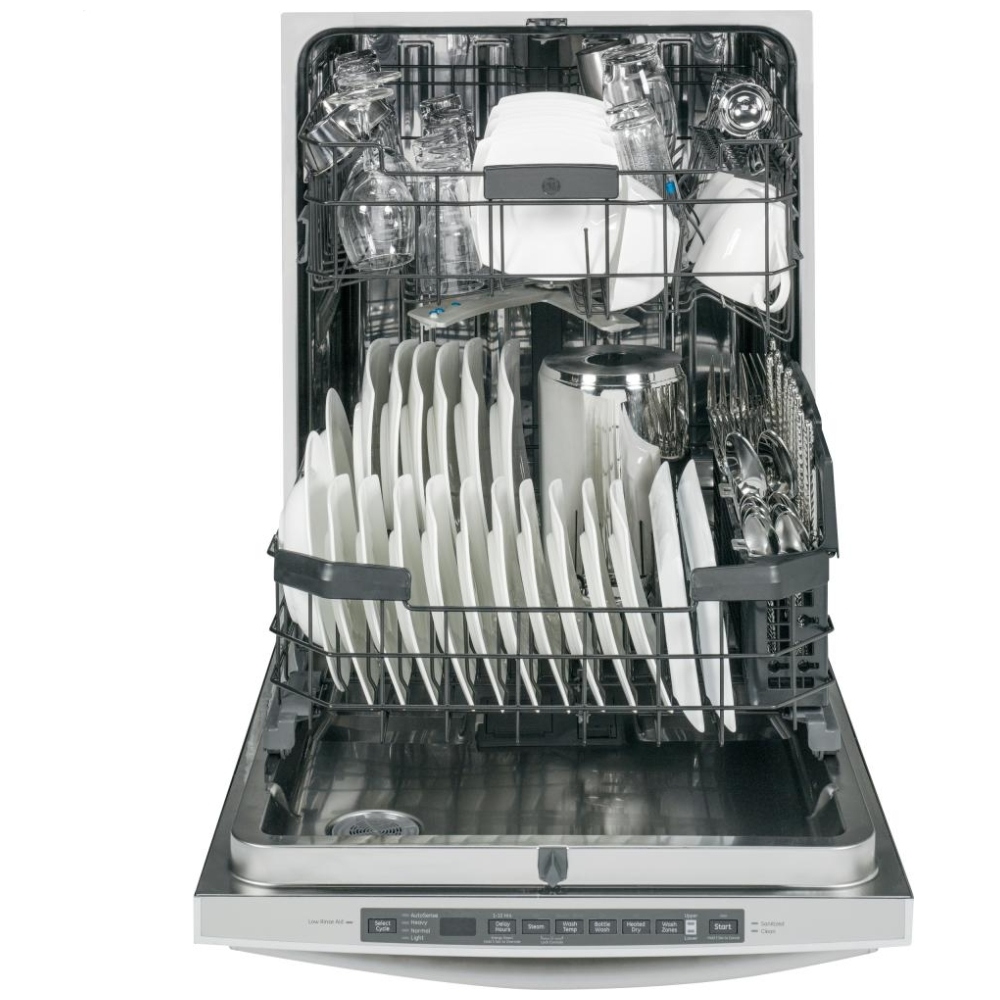

Number of Place Settings | Up to 16 |
Upper Rack | Deep TieredPremium Height AdjustableBall-Tip Tines2 Stem Safe ShelvesFold down tines1 Rack handleEasy touch adjustable full-extension |

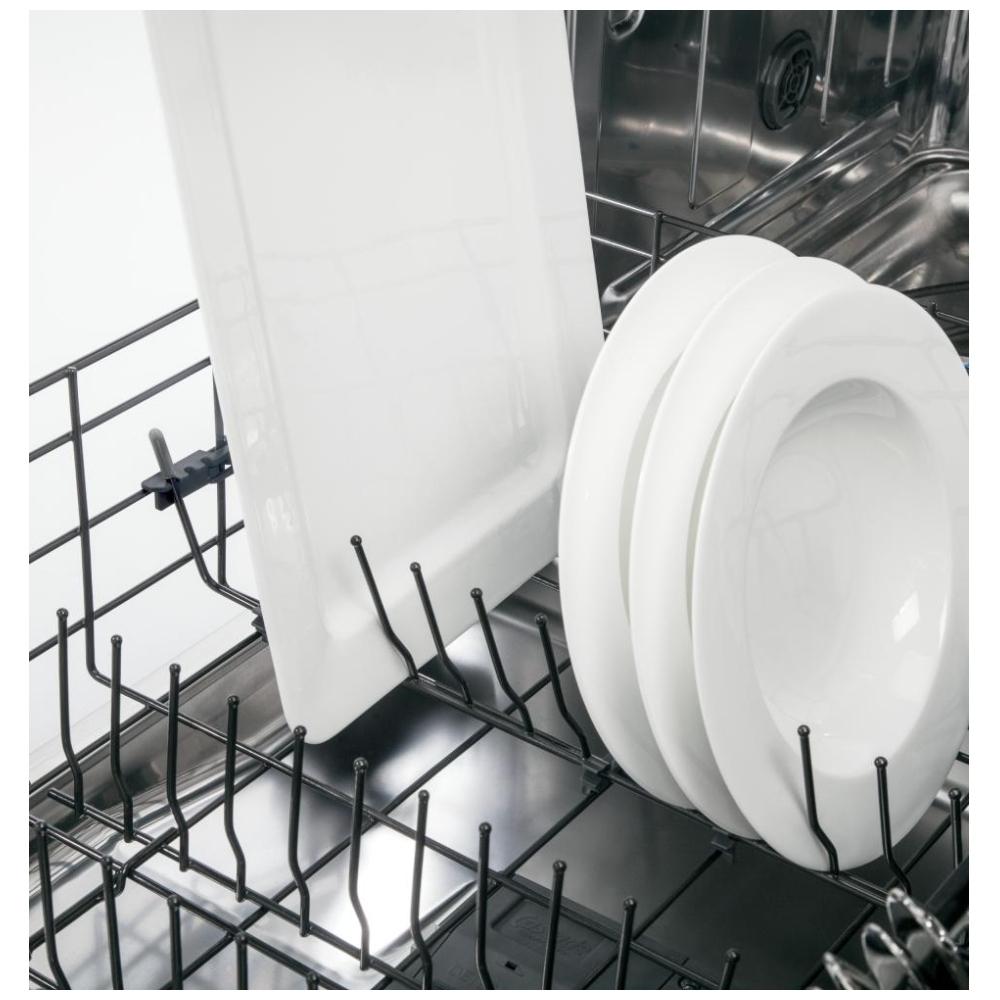

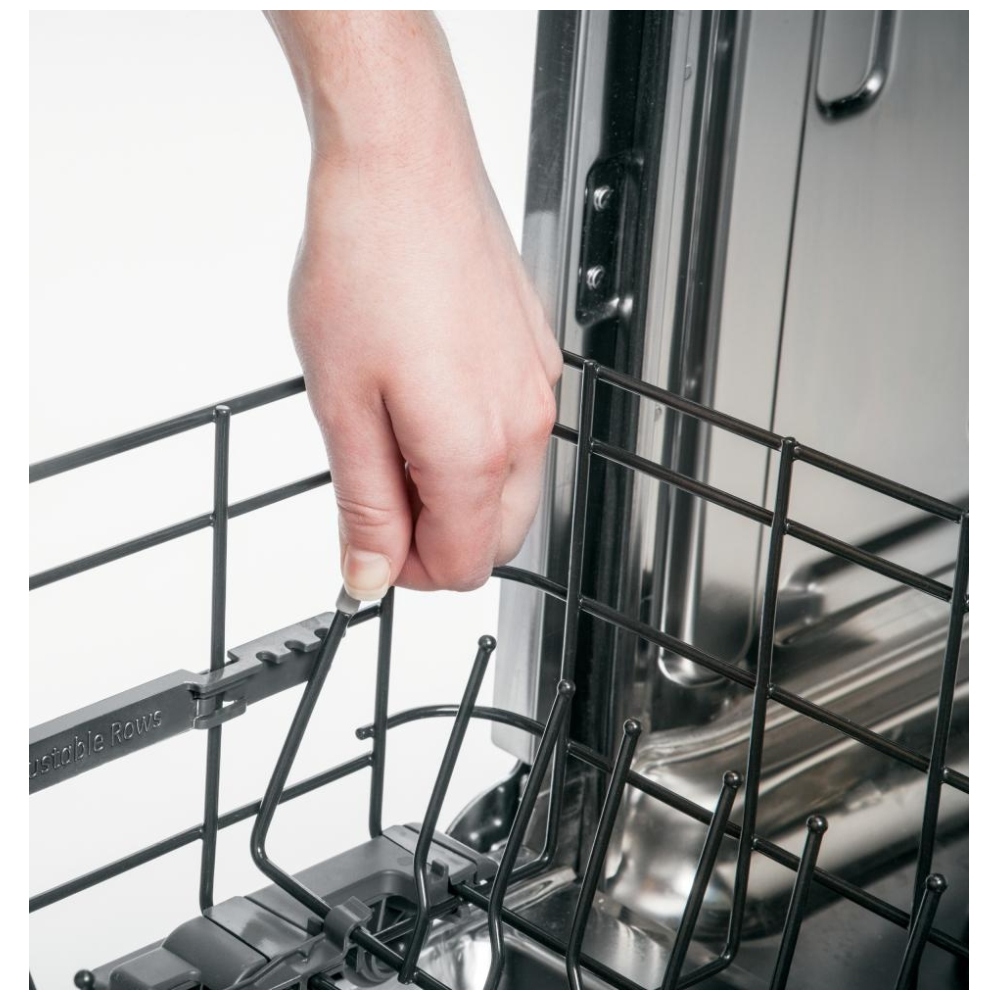

Lower Rack | Ball-Tip TinesWash Your Way Customizable RackMulti-Position Fold Down Tines2 Rack handles |
Dishwasher Drying Features | 4-Pass Multi-Wattage Wash & Dry ElementHeated Dry - On/OffRinse Aid Indicator Light |

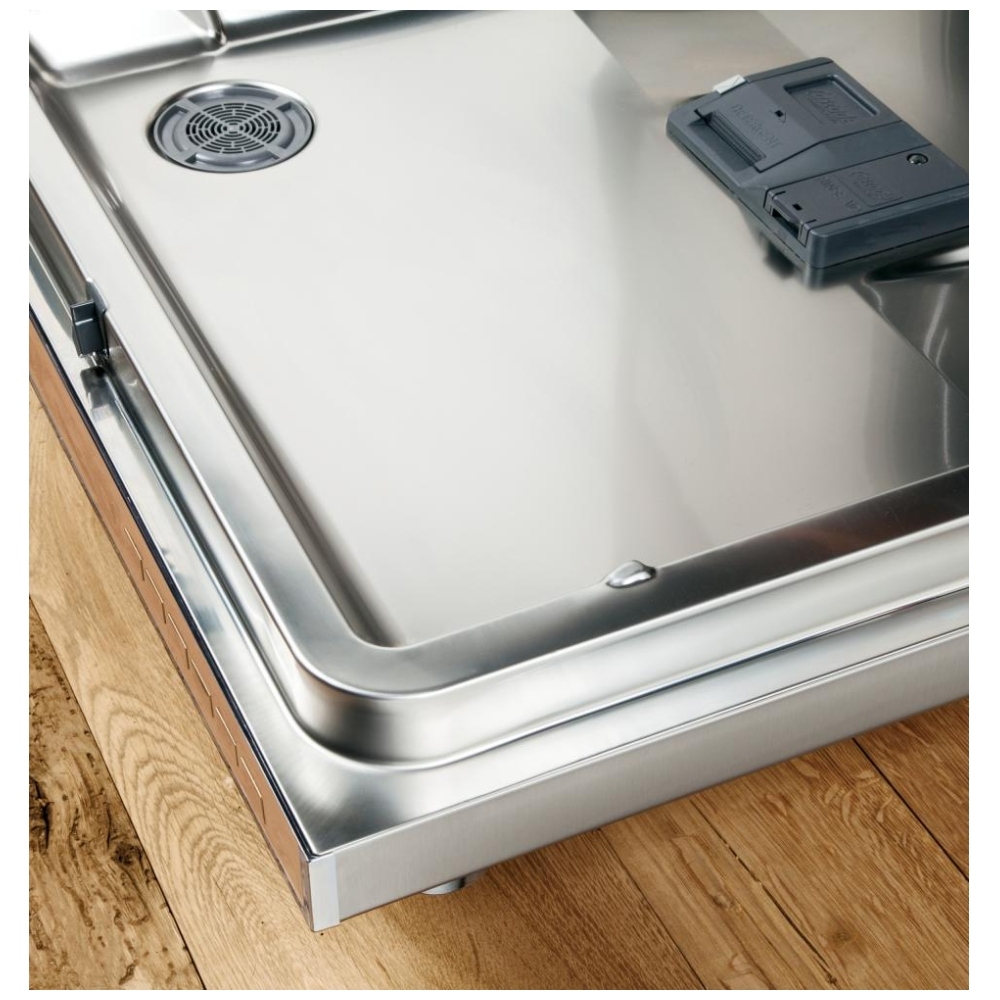

Floor Protection | Floor Protect |
Leveling System | 4 Leveling Legs |
Latch | Pull with Handle |
Showroom Power Mode | Yes |
Connected Home Ready | Yes |
Communication Module | Required |
Exterior Style | Traditional |
POWER / RATINGS | |
Calrod Heater Watts | 415/800 |
Volts/Hertz/Amps | 120v; 60Hz; 7.1A |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
WEIGHTS & DIMENSIONS | |
Cabinet Width | 24.0 |
Approximate Shipping Weight | 117.0 |
Net Weight | 104.0 |
Overall Height | 34.0 |
Height w/ Legs Retracted - Minimum Height | 33.375 |
Height w/Legs Extended - Maximum Height | 34.625 |
Overall Depth | 24.0 |
Overall Width | 23.75 |
