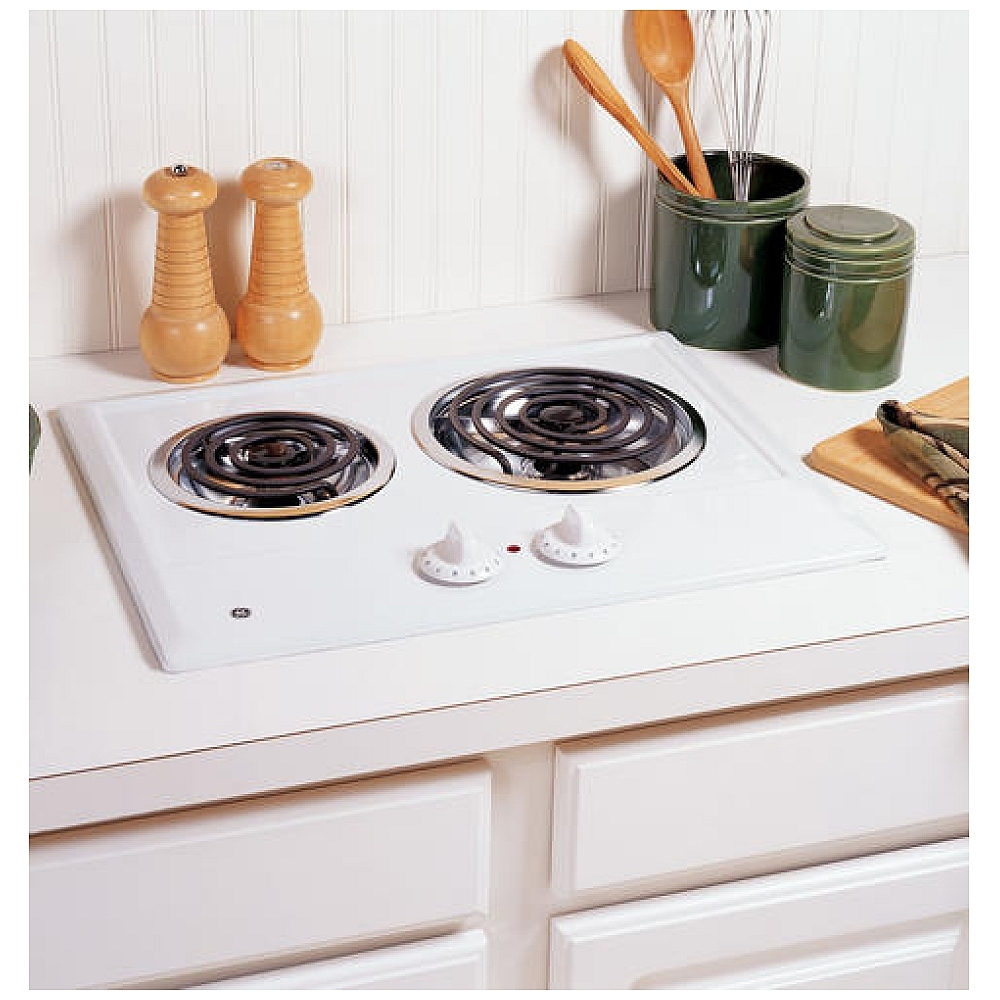

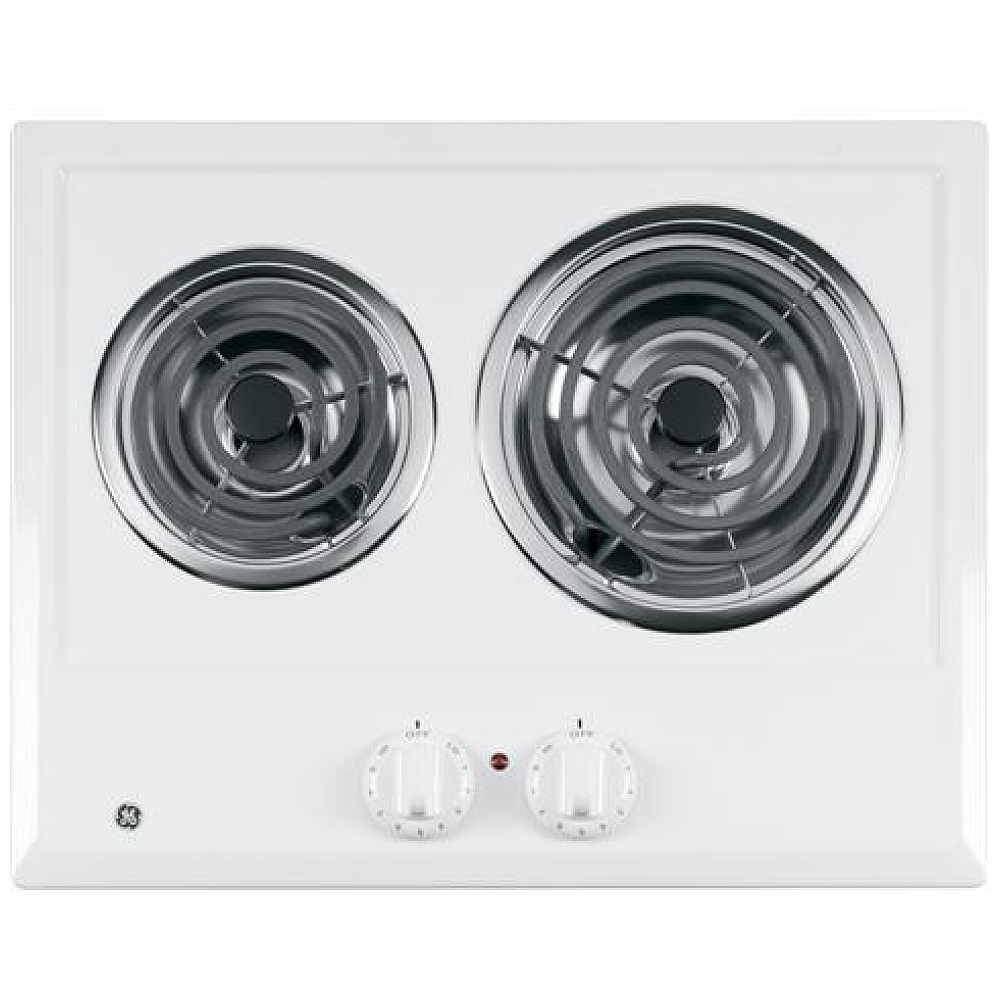

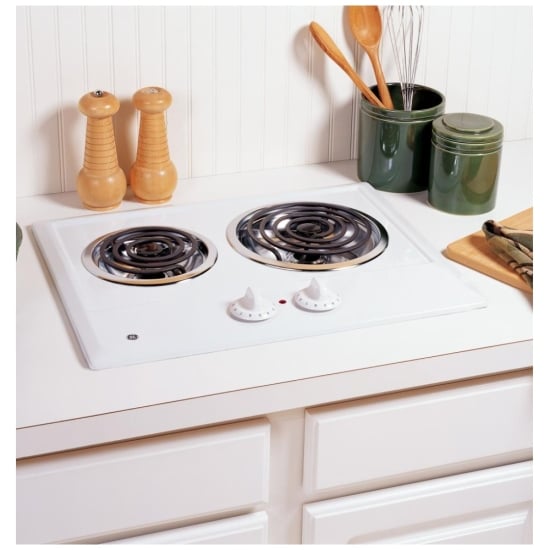

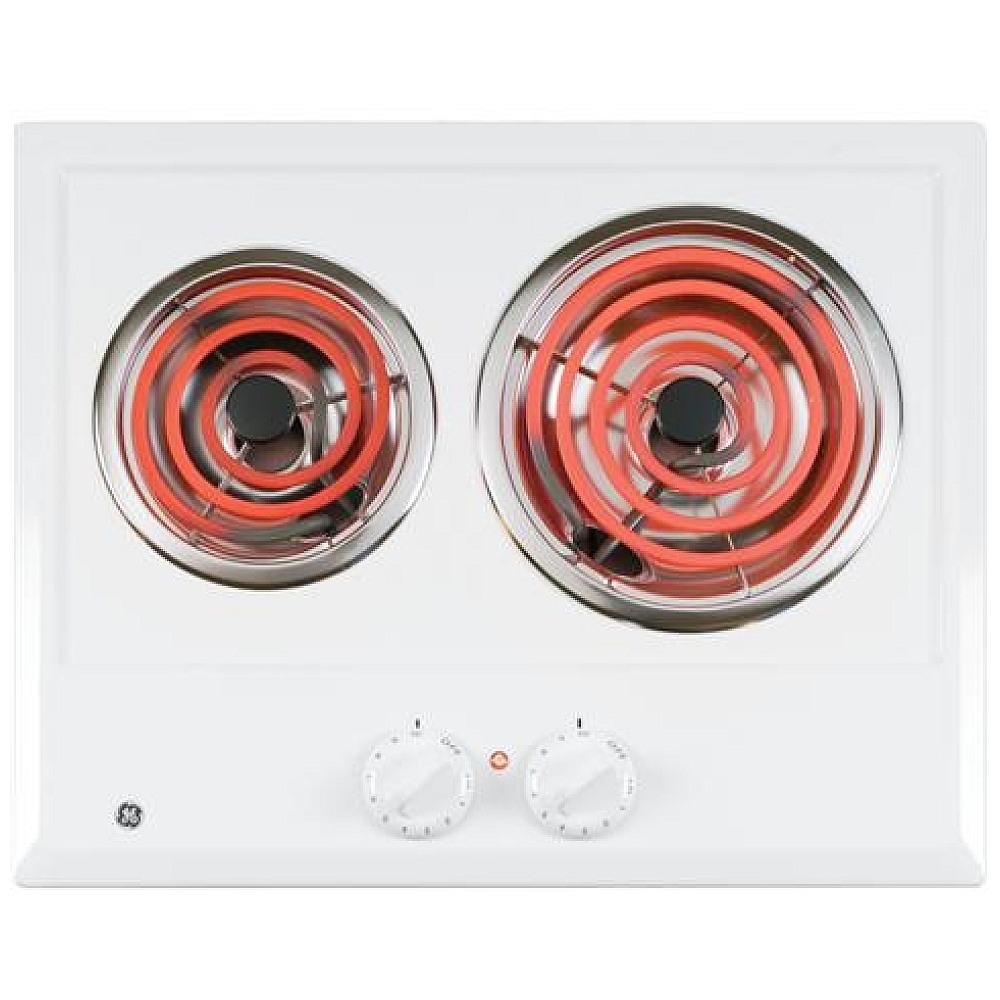

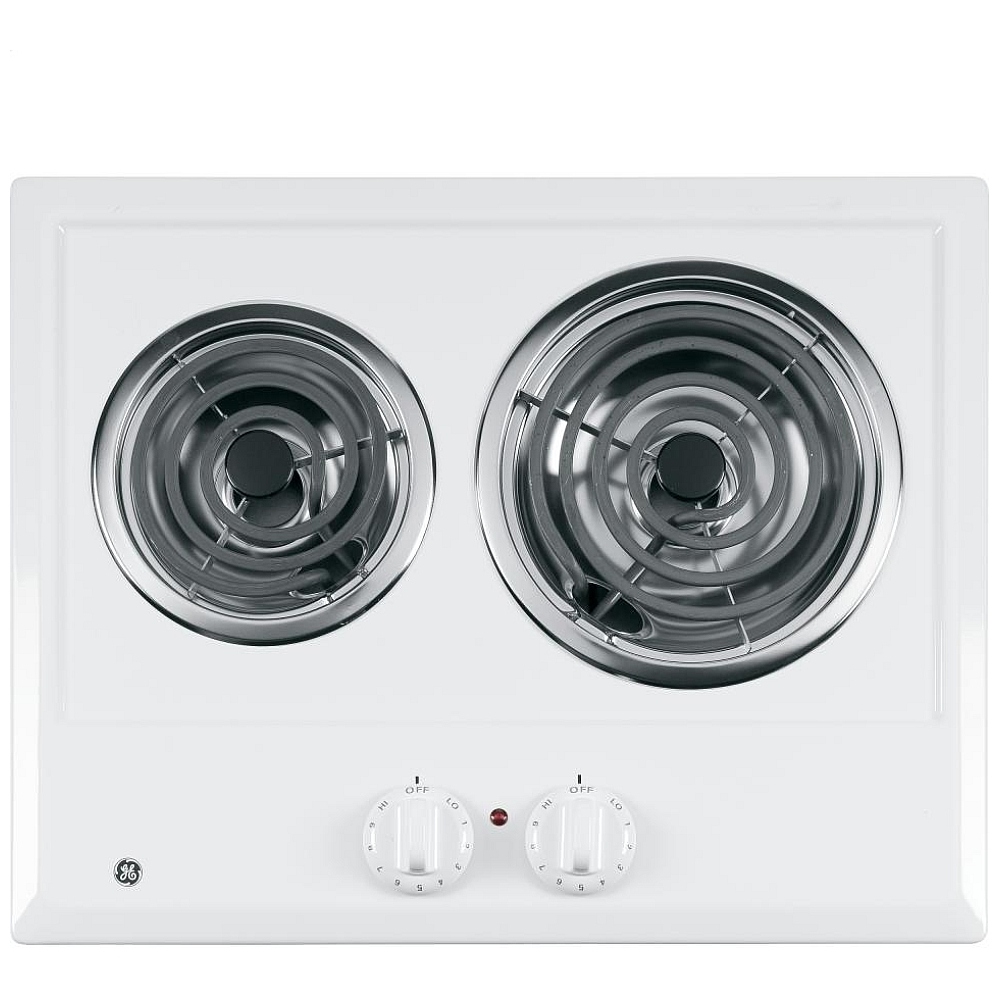

GE JP202DWW Table de Cuisson électrique de 21 1/4 po.
21" cooktop for specialty installations
Provide even heat and easy cleanup
Removable for easy cleaning
Know when an element is on
- 21" cooktop for specialty installations
- Provide even heat and easy cleanup
- Removable for easy cleaning
- Know when an element is on
Voyants de fonctionnement des éléments de surface
Table de cuisson a 2 serpentin
Surface de cuisson en émail vitrifié 21 1/4"
Rotative à réglage continu
Garantie du fabricant: 1 an
UPC: 084691054481
EAN: 0084691054481
FILTER | |
App Filter - Control Type | Rotary knobs |
App Filter - Cooktop Type | Coil |
App Filter - Cabinet Width | Cooking 21 in. |
App Filter - Fuel Type | Electric |
APPEARANCE | |
Color Appearance | White on White |
POWER / RATINGS | |
KW Rating at 208V | 2.5 |
KW Rating at 240V | 3.4 |
Amp Rating at 208V | 20 |
Amp Rating at 240V | 20 |
WARRANTY | |
Warranty Notes | For models produced on or after January 1, 2006 See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
WEIGHTS & DIMENSIONS | |
Net Weight | 13.0 |
Cooktop Size | 21.25 |
Overall Depth | 16.625 |
Cutout Dimensions (Width x Depth) (In.) | 20-1/8 x 16-1/8 |
Overall Width | 21.25 |
Overall Height | 3.0 |
Approximate Shipping Weight | 18.0 |
Cabinet Width | 30.0 |
FEATURES | |
Cooktop Burner Type | 2 Coil |
Element - Left Front | 6" 1250W |
Removable One-Piece Drip Bowls | Chrome with Removable Trim Rings |
Indicator Lights | Surface Element "ON" |
Control Type | Infinite Heat Rotary |
6" Heating Element(s) | 1 Plug-In |
Element - Right Front | 6" 1500W 4-turn |
Control Location | Upfront |
8" Heating Element (s) | 1 Plug-In |
Cuvettes monopièces amovibles | Chrome |
Élément chauffant de 6 po | 1 |
Élément chauffant de 8 po | 1 |
Rondelles décoratives | Acier inoxydable |
Surface Chaude | Oui |
Surface de cuisson en émail vitrifié | Blanc |
Type d'alimentation | Électrique |
Type de brûleur | 2 serpentins |
Type de commande | Rotative à réglage continu |
Dimensions de la surface de cuisson (po) | 21 1/4 |
Dimensions de l'ouverture (L x P) (po) | 20 1/8 x 16 1/8 |
Hauteur hors tout (po) | 3 |
Largeur hors tout (po) | 21 1/4 |
Poids approx. à l'expédition (lbs) | 18 |
Profondeur hors tout (po) | 16 5/8 |
Intensité (ampères) à 208 V | 20 |
Intensité (ampères) à 240 V | 20 |
kW à 208 V | 2.5 |
kW à 240 V | 3.4 |
