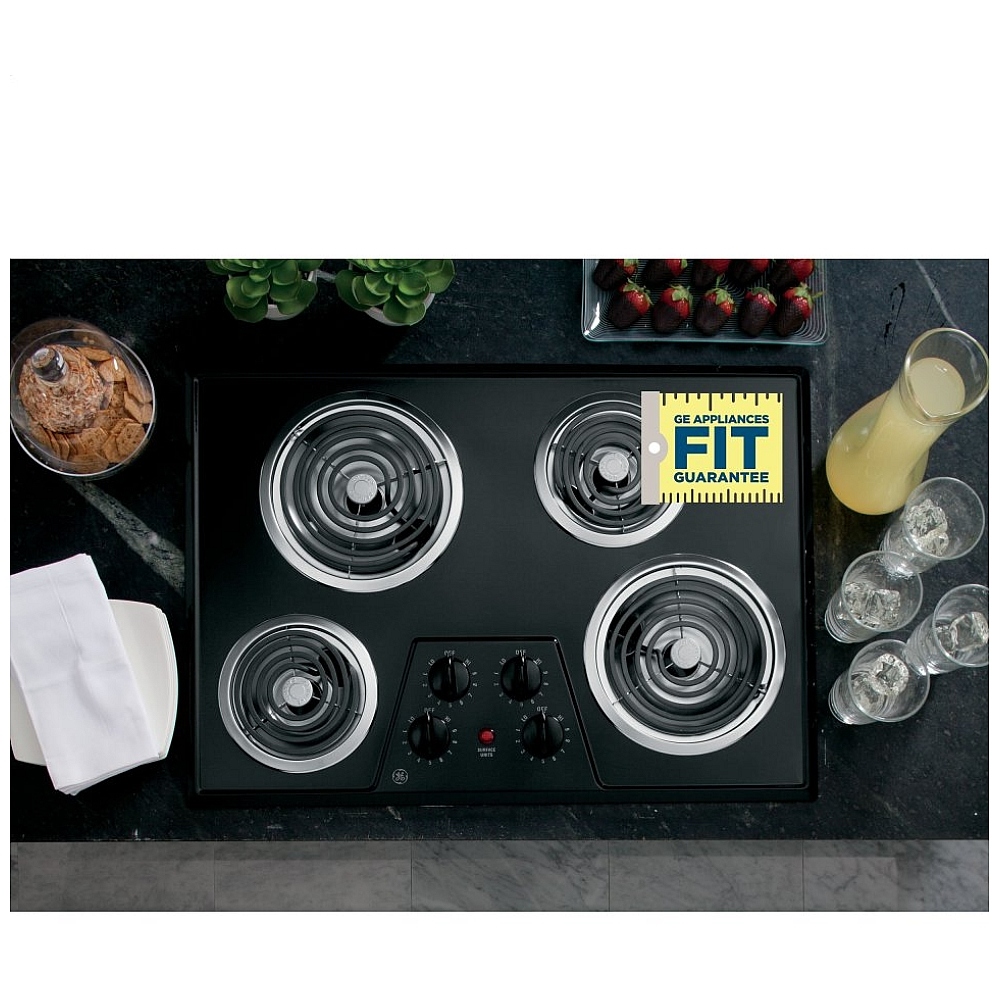

Replacing a similar cooktop from GE or another brand? GE cooktops are guaranteed for an exact fit to make replacement easy. See offer criteria and details
Provide even heat and easy cleanup
Removable for easy cleaning
Access messes under the cooktop for easy cleanability
Easy-to-read graphics and one-touch control makes everyday cooking easy as ever
Know when an element is on
- Replacing a similar cooktop from GE or another brand? GE cooktops are guaranteed for an exact fit to make replacement easy. See offer criteria and details
- Provide even heat and easy cleanup
- Removable for easy cleaning
- Access messes under the cooktop for easy cleanability
- Easy-to-read graphics and one-touch control makes everyday cooking easy as ever
- Know when an element is on
Commandes à l'avant
Garantie du fabricant: 1 an
UPC: 084691130840
EAN: 0084691130840
FILTER | |
App Filter - Control Type | Rotary knobs |
App Filter - Cooktop Type | Coil |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Fuel Type | Electric |
APPEARANCE | |
Color Appearance | Black on Black |
POWER / RATINGS | |
KW Rating at 208V | 5.6 |
KW Rating at 240V | 7.4 |
Amp Rating at 208V | 30 |
Amp Rating at 240V | 40 |
WARRANTY | |
Warranty Notes | For models produced on or after January 1, 2006 See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
WEIGHTS & DIMENSIONS | |
Net Weight | 27.0 |
Cooktop Size | 30.0 |
Overall Depth | 21.25 |
Cutout Dimensions (Width x Depth) (In.) | 28-1/2 x 19-1/2 |
Overall Width | 30.25 |
Overall Height | 3.0 |
Approximate Shipping Weight | 32.0 |
Cabinet Width | 30.0 |
FEATURES | |
Cooktop Burner Type | 4 Plug-In Calrod™ Coil |
Element - Left Front | 6" 1300W |
Removable One-Piece Drip Bowls | Chrome with Removable Trim Rings |
Cooktop Surface | Black Porcelain-Enamel |
Indicator Lights | Surface Element "ON" |
Control Type | Infinite Heat Rotary |
Lift-Up Cooktop With Support Rods | Yes |
Element - Right Front | 8" 2400W |
Control Location | Front Center |
Element - Right Rear | 6" 1300W |
Element - Left Rear | 8" 2400W |
Autres couleurs offertes | WW; SS |
Couleur | Noir |
Emplacement des commandes | À l'avant |
Matériau du panneau de commande | Verre assorti |
Commutateurs à réglage continu | Oui |
Cuvettes monopièces amovibles | Chrome |
Élément chauffant de 6 po | 2 enfichables CalrodMC (1300 W) |
Élément chauffant de 8 po | 2 enfichables CalrodMC (2400 W) |
Rondelles décoratives | Chrome |
Surface de cuisson | Émail vitrifié noir |
Surface de cuisson relevable | Oui |
Type d'alimentation | Électrique |
Type de brûleur | Relevable LiftTop- à serpentin |
Type de surface de cuisson | à serpentin |
Voyant de marche | Oui |
Garantie limitée d'un an | Appareil complet, pièces et main-d'uvre à domicile |
Dimensions de la surface de cuisson (po) | 30 |
Dimensions de l'ouverture (L x P) (po) | 28-1/2 x 19-5/8 |
Hauteur hors tout (po) | 3 |
Largeur hors tout (po) | 30 1/4 |
Poids approx. à l'expédition (lbs) | 32 |
Profondeur hors tout (po) | 21-1/4 |
Intensité (ampères) à 208 V | 30 |
Intensité (ampères) à 240 V | 40 |
kW à 208 V | 5.6 |
kW à 240 V | 7.4 |
