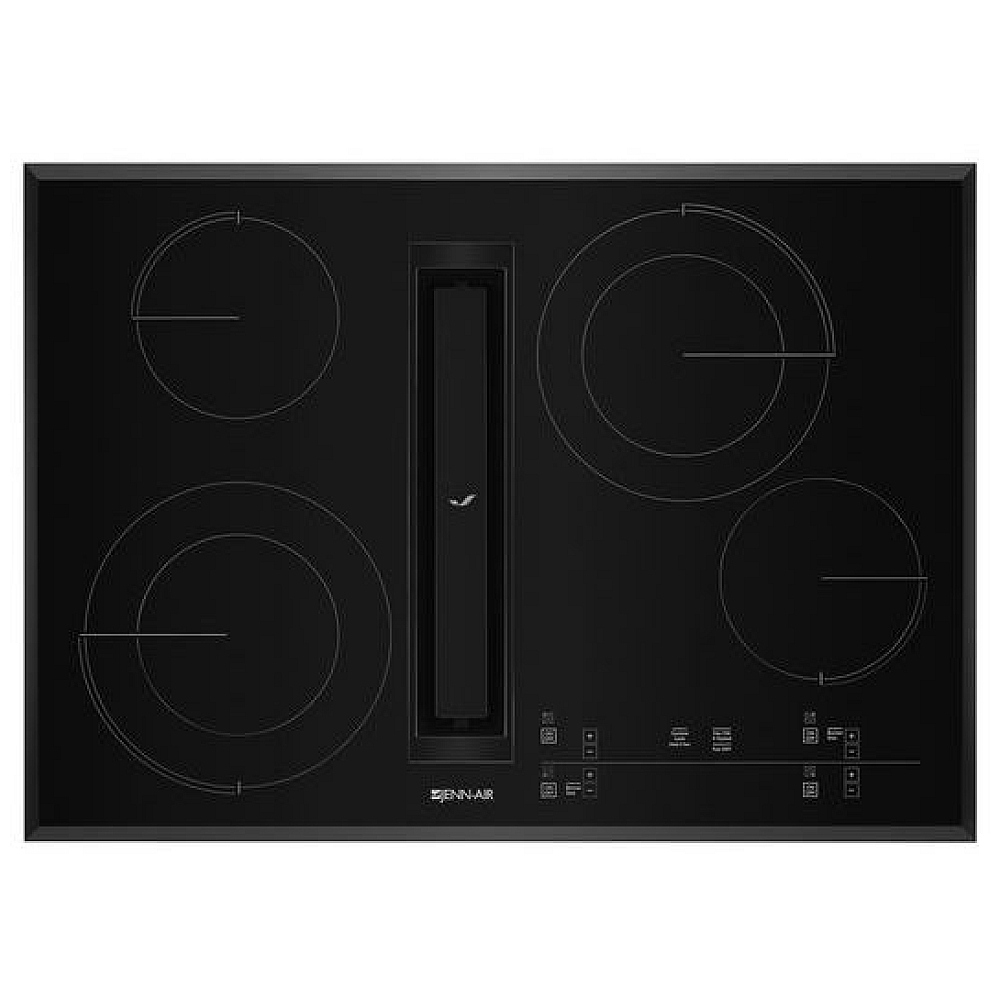

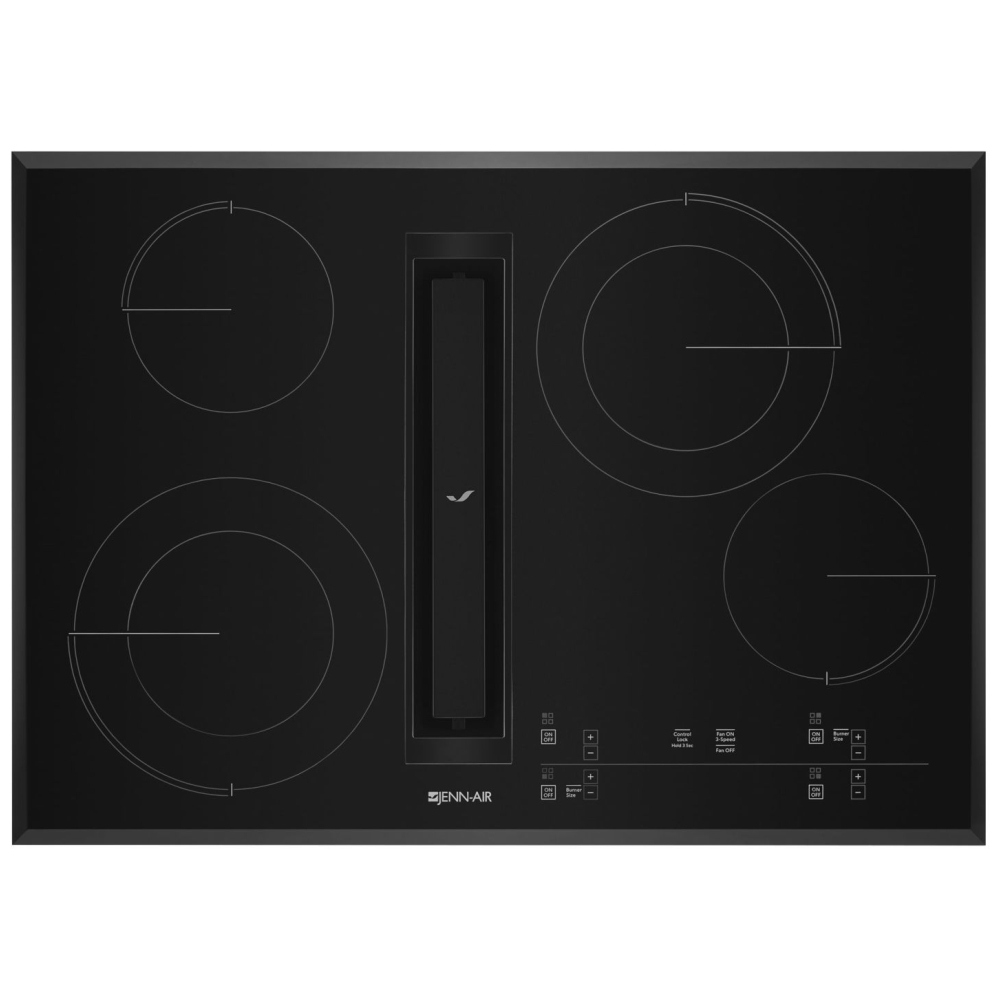

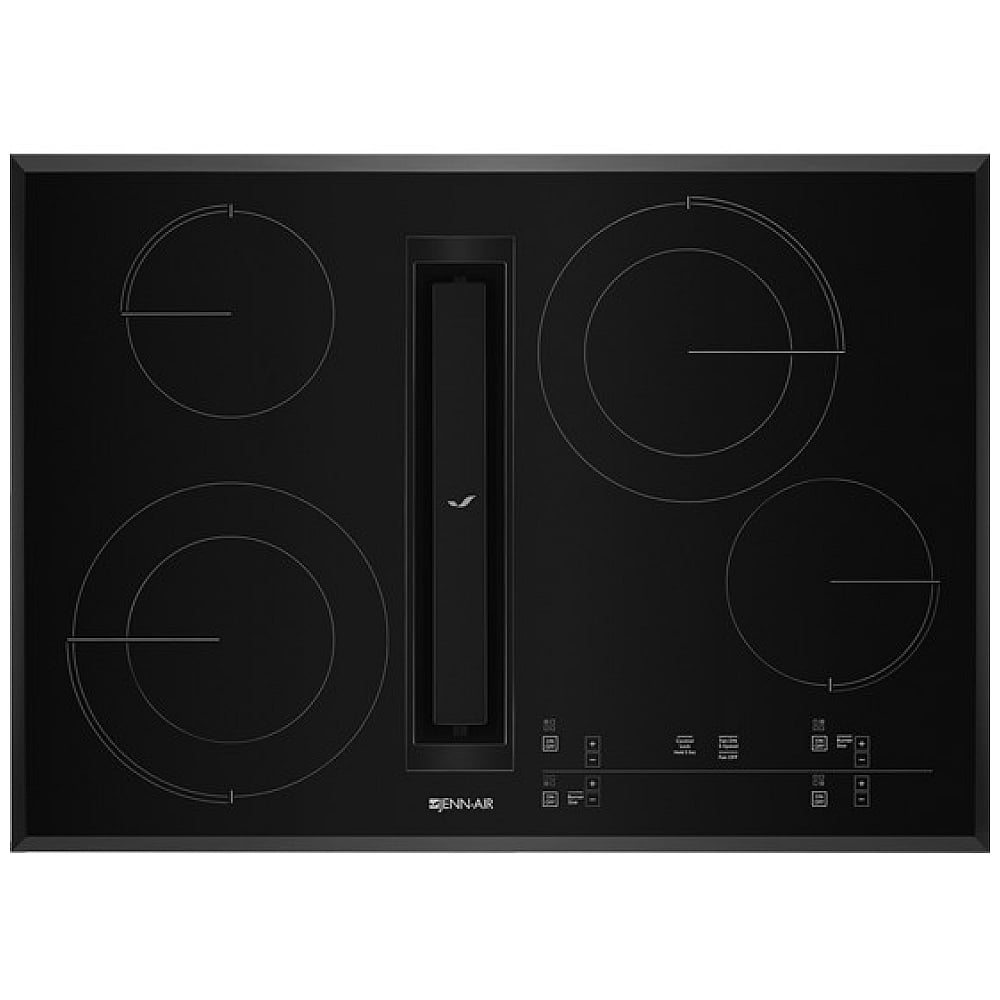

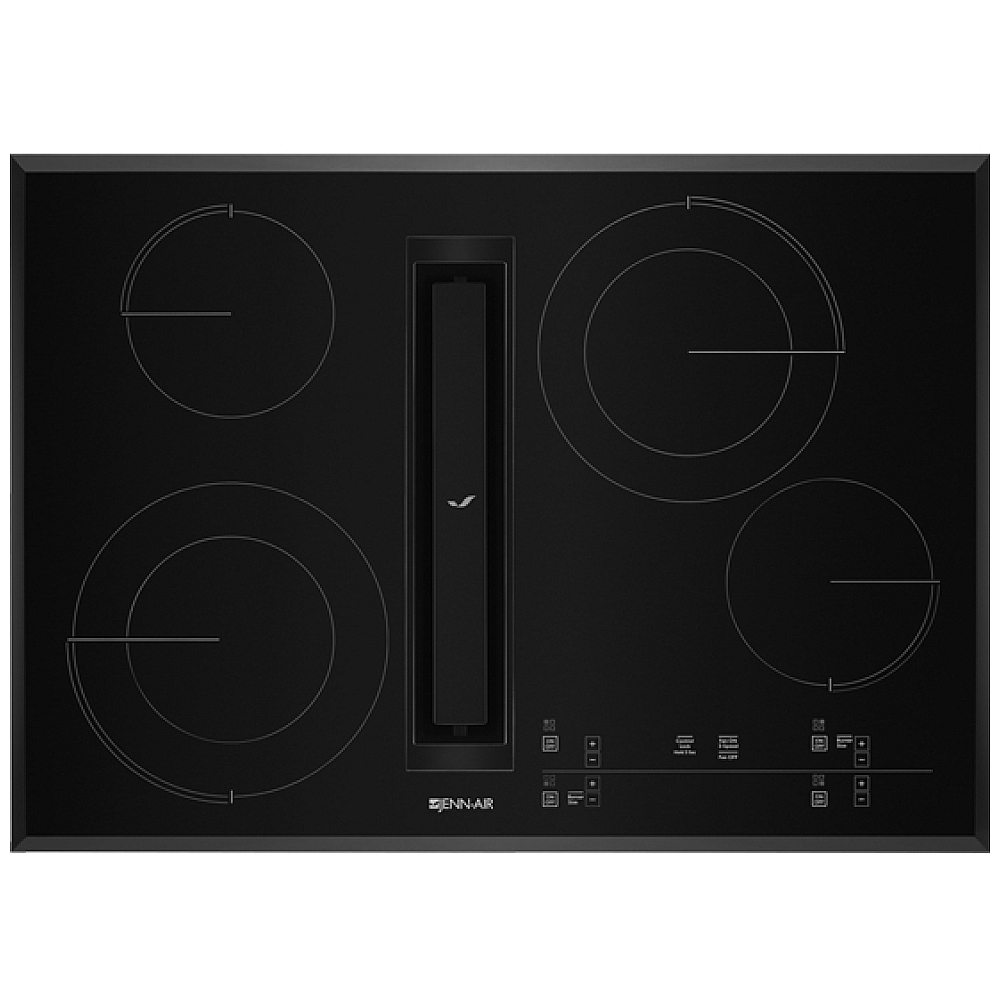

This Jenn-Air® luxury electric radiant downdraft cooktop with electronic touch controls offers a sleek design and responsive performance. Its glass touch controls and four radiant elements create a smooth, integrated cooktop surface, and the impressive JX3 downdraft ventilation system quickly and efficiently clears the air without a hood.
- Developed and refined by the Jenn-Air brand, a downdraft ventilation system uses proximity ventilation to capture smoke, steam and odors at the cooking surface, whisking them down and out of the kitchen before they can escape.
- This sophisticated design is not only attractive, it is the secret behind the ventilation system's exceptional performance and quiet operation.
- This two-tiered single element accommodates various-sized cookware in one location and can achieve an output of 3,000 watts when both elements are active.
- Intuitive controls are highly responsive to a light touch increasing usability while making it easy to clean the cooking surface.
- DuraFinish® Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.
- Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.
Le puissant système à évacuation descendante JX3™ utilise la ventilation de proximité pour éliminer la fumée et les odeurs de cuisson directement à la surface de cuisson, purifiant ainsi l’air efficacement sans nécessiter de hotte.
Garantie du fabricant: 2 ans
UPC: 883049412740
EAN: 0883049412740
Certifications | |
ADA Compliant | Yes |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Appearance | |
Digital Display | Yes |
Controls | |
Infinite Heat Controls | No |
Dimensions | |
Maximum Height | 18-3/4 in |
Width | 30-7/8 in |
Height | 3.65625 in |
Depth | 22-1/16 in |
Features | |
Griddle | NA |
Dimensions | |
Gross Weight | 78.000 in |
Design Type | |
Design Expression | Black Glass |
Cooktop Details | |
Left Rear Element-Burner Type | Hyper |
Right Rear Element-Burner Power | 3000W/1400W |
Downdraft Vent | Yes |
Cooktop Element Style | Radiant |
Left Front Element-Burner Type | Dual |
Hot Surface Indicator Light | Yes |
Cooktop Surface Material | Ceramic Glass |
Heating Element On Indicator Light | Yes |
Automatic Pan Detection | No |
Number of Cooking Element-Burners | 4 |
Right Front Element-Burner Power | 1200W |
Power Outage Compatible | No |
Configuration and Overview | |
LP Convertible | No |
Cooktop Type | Downdraft |
UL | UL |
Size | 30 in |
Installs Over Built-In Oven | No |
ADA Compliant | Yes |
Power Boost | No |
Fuel Type | Electric Radiant |
Ventilation System | |
Number of Speeds | 3 |
Electrical Requirements | |
Power Cord Included |
Général | |
---|---|
Couleur du fabricant | Noir |
Couleur | Noir |
Type | Encastrée |
Surface de cuisson | |
Caractéristiques de la surface | Vitrocéramique |
Type d'alimentation | Électrique |
Élements | Surface lisse |
Brûleurs/Éléments | 4 |
Caractéristiques | |
Technologies | • Système à ventilation à évacuation descendante JX3™ à trois vitesses • Élement Dual-Choice™ de 10 po/6 po (3000 watts) • Revêtement protecteur DuraFinish® |
Wi-Fi | Non |
Affichage numérique | Oui |
Ventilation à évacuation descendante | Oui |
Informations additionnelles | • Commandes électroniques à effleurement sous verre • Adaptable pour ventilation sans conduit • Voyant de surface chaude |
Homologations et approbations | |
Conforme à l’A.D.A | Non |
Informations électriques | |
Informations | • 220 V • 60 Hz • 40 A |
Garantie | |
Garantie | 2 ans |
CUP | |
CUP# | 883049412740 |
