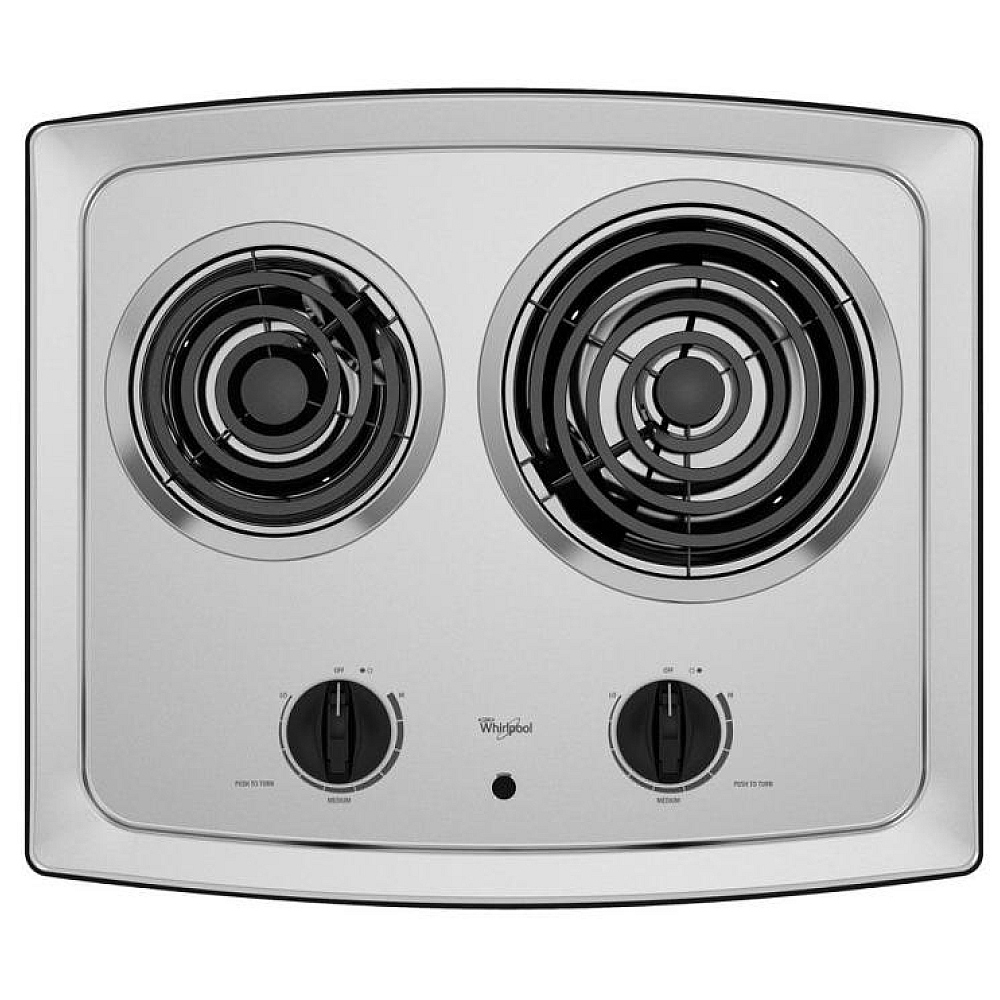

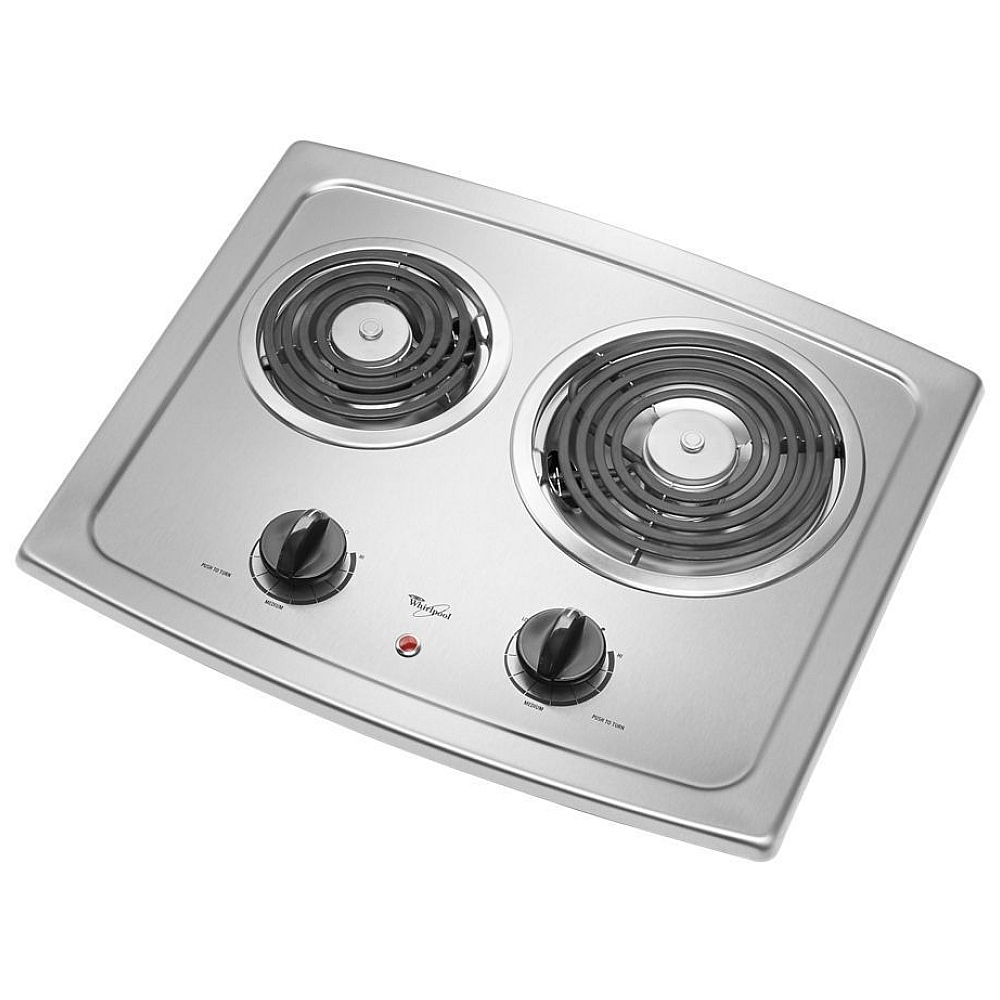

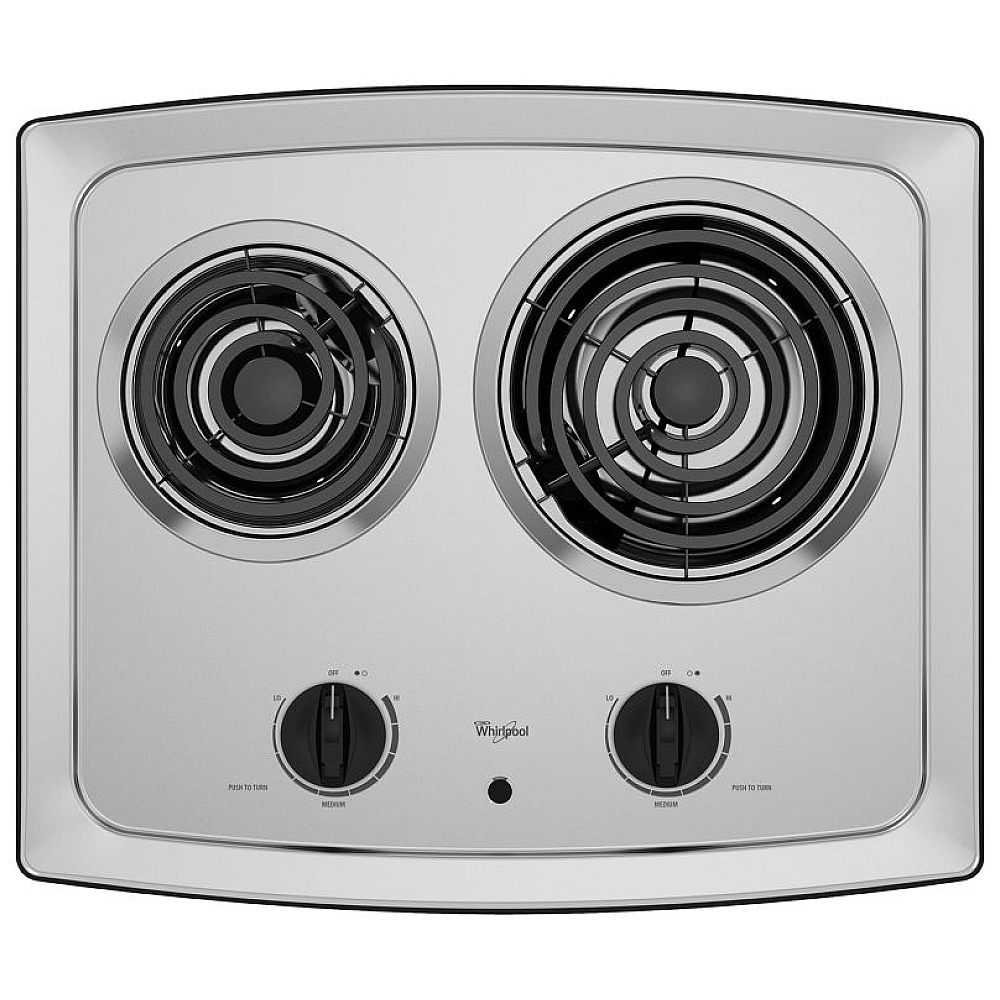

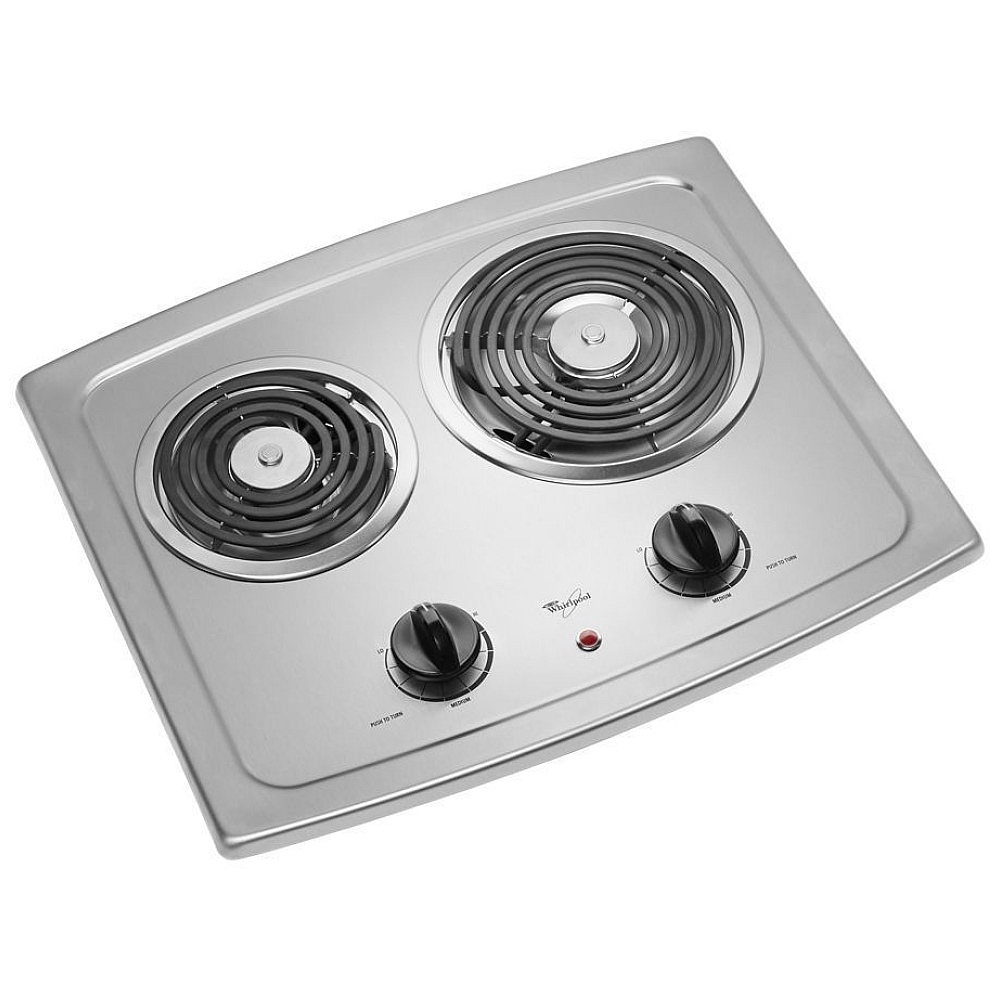

Cook what you need - in a hurry. This 21-inch electric cooktop features a stainless steel surface. The infinite heat controls allow you to select a heat output ranging from low to high with several intermediate settings for more convenience. The surface unit 'ON' indicator lets you know when a burner is hot, while drip bowls contain spills and remove easily for cleaning. Because sometimes you need the job done fast (Coil elements may vary. If you have concerns call (866) 698-2538).

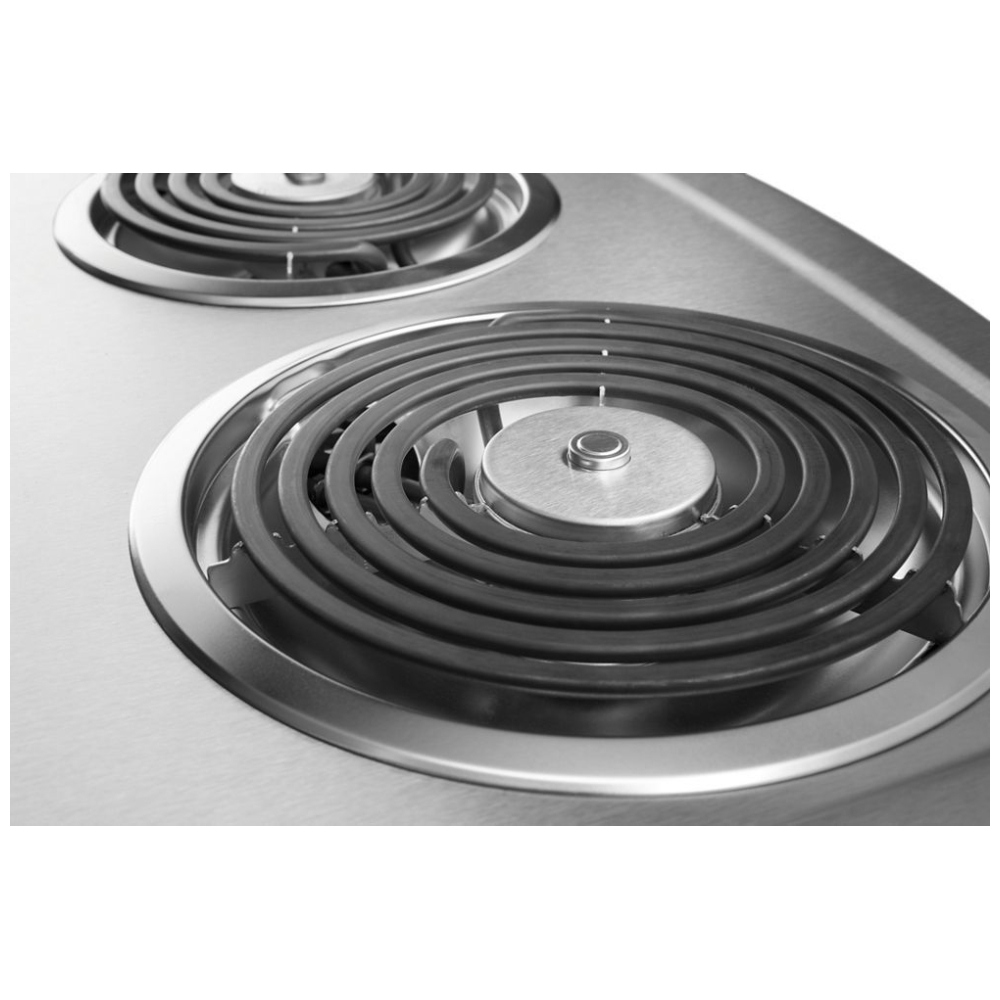

- High-speed coil elements heat fast, providing high temperatures for boiling and frying. With chrome drip pans below, spills and drips clean up with ease.
Garantie du fabricant: 1 an
Dimensions | |
Cutout Depth | 15-1/2 in |
Cutout Width | 18-5/8 in |
Depth | 16-1/2 in |
Height | 2-7/8 in |
Width | 21.0 in |
Configuration and Overview | |
ADA Compliant | No |
Cooktop Type | Standard |
Fuel Type | Electric |
Installs Over Built-In Oven | Yes |
Power Boost | No |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Size | 21 in |
Controls | |
Infinite Heat Controls | Yes |
Knob Color | Black |
Knob Type | Metal |
Location of Controls | Right Side |
Cooktop Details | |
Automatic Pan Detection | No |
Cooktop Element Style | Coil |
Cooktop Surface Color | Stainless |
Cooktop Surface Material | Porcelain Coated Steel |
Downdraft Vent | No |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | No |
Left Front Element-Burner Power | 1250W/900W |
Left Front Element-Burner Size | 6"" |
Left Front Element-Burner Type | Coil |
Number of Cooking Element-Burners | 2 |
Right Front Element-Burner Power | 2100W |
Right Front Element-Burner Size | 8"" |
Right Front Element-Burner Type | Coil |
Appearance | |
Digital Display | No |
Electrical | |
Hz | 60 |
Power Cord Included | No |
GDS | |
GPC Code | 10001951 |
IsInvoiceUnit | true |
IsOrderableUnit | true |
Product Type | EA |
UDEX | 1100400623 |
isBaseUnit | true |
isConsumerUnit | true |
Dimensions | |
---|---|
Exterior Width: | 21 |
Cutout Width: | 1 |
Cutout Depth: | 1 |
Space Required Below Cooktop: | 1 |
Weight: | 15 lbs. |
DIMENSIONS | |
Depth: | 18 in. |
Height: | 3 3/8 in. |
Width: | 21 in. |
FEATURES | |
Built-In Downdraft Vent System: | No |
Burner Bowl: | Chrome |
Burner Indicator Light: | Yes |
Burner Type: | High Speed Coil |
Cooktop Surface: | Porcelain-on-Steel |
Fuel Type: | Electric |
Grate Finish: | NOT APPLICABLE |
Hot Surface Indicator Lights: | No |
Infinite Position Control Knobs: | Yes |
Number of Burners: | 2 |
Optional Griddle Accessory: | No |
Oval Dual Circuit: | No |
Over Oven Installation: | Yes |
Round Dual Circuit: | No |
Simmer Burner: | No |
Ventilation System: | No |
Number of Elements: | 2 |
Power-On Light: | Yes |
Electronic Ignition: | No |
PERFORMANCE | |
Burner Configuration: | ONE 6 IN.; ONE 8 IN. |
Custom Control Temp Management System: | No |
CONTROLS | |
Control Type: | Dial |
Electronic Touch Controls: | No |
ELECTRICAL | |
Specifications: | 20 Ampere, 240/208 Volts, 60 Hertz (1/second), AC-ONLY. USE COPPER WIRE ONLY. A FOUR-WIRE OR THREE-WIRE, SINGLE PHASE ELECTRICAL SUPPLY REQUIRED. A TIME-DELAY FUSE OR CIRCUIT BREAKER AND SEPARATE CIRCUIT IS RECOMMENDED. |
