Bosch

HBL5754UC

• SpeedChef® programs (upper oven) – 9 pre-programmed SpeedChef® settings in the speed oven automatically set time, power, and cooking method for fast, reliable results with popular dishes.

• Convection Pro – European-style convection system in the lower oven uses a third heating element and fan to circulate hot air evenly for faster, more consistent baking and roasting on multiple racks.

• Home Connect™ compatibility (select models/regions) – enables smart connectivity features such as remote monitoring and control when used with the Home Connect™ app and compatible home network.

• 500 Series Combination Wall Oven – combines a full-size Bosch wall oven on the bottom with a versatile speed oven on top, maximizing functionality in a single 30" built-in unit.

• Speed combination oven (2‑in‑1) – upper cavity functions as both a microwave and a convection oven, allowing you to microwave, bake, roast, or combine methods for faster cooking.

• 6.2 cu. ft. total capacity – 1.6 cu. ft. upper speed oven plus 4.6 cu. ft. lower oven provide ample space for everyday meals or entertaining larger groups.

• Large 4.6 cu. ft. lower oven cavity – accommodates large roasting pans, multiple baking sheets, or several dishes at once for holiday meals and batch cooking.

• 1.6 cu. ft. upper speed oven cavity – ideal for quick meals, side dishes, reheating, and small-batch baking without using the full-size oven.

• Electric wall oven/microwave combo design – integrates microwave and traditional oven functions in one vertical unit to save space and streamline the cooking area.

• Stainless steel finish – modern, neutral stainless exterior coordinates with a wide range of kitchen styles and other appliances.

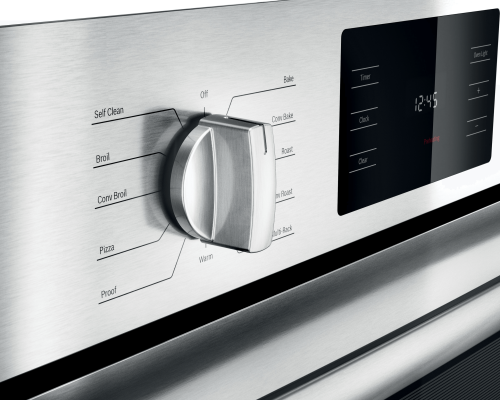

• Metal/stainless steel knobs – premium-feel knobs on the lower oven provide tactile, precise control of temperature and cooking modes.

• Sleek touch control panel (upper oven) – flat, easy-to-clean touch interface on the speed oven simplifies selecting microwave and convection functions.

• White LED display – clear, bright display shows time, temperature, and mode selections for both cavities at a glance.

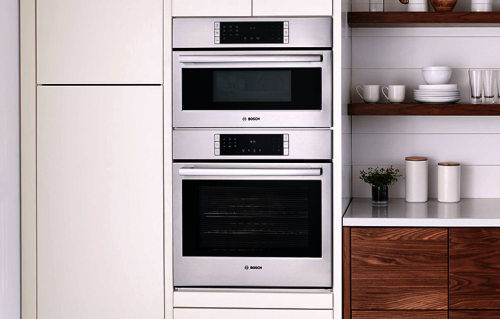

• Combination wall oven flexibility – use the upper speed oven for quick cooking and the lower oven for traditional or convection baking, or operate both simultaneously for large meals.

• Convection bake (lower oven) – uses fan-assisted heat for more even baking of cookies, cakes, and pastries on multiple racks.

• Convection roast (lower oven) – circulates hot air around meats and poultry for faster roasting with crisp exteriors and juicy interiors.

• Convection broil (lower oven) – combines top heat with convection fan to brown and crisp foods more evenly than standard broiling.

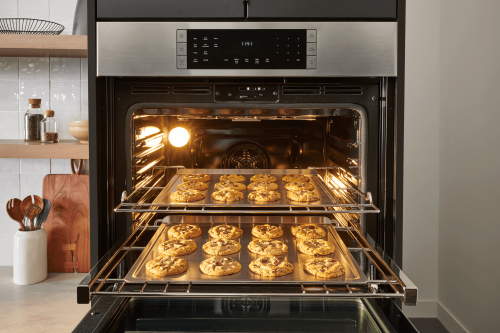

• Convection Multi-Rack mode – designed for baking on several racks at once, helping ensure consistent results across all trays.

• Convection conversion function – automatically converts standard baking temperatures and times to convection settings, reducing guesswork.

• Standard bake mode – traditional bottom-heat baking for recipes that call for conventional oven settings.

• Hi & Lo broil options – adjustable broil intensity lets you sear steaks on high or gently brown casseroles on low.

• Max convection broil (upper oven) – intense top heat with fan circulation in the speed oven for fast, even browning and charring.

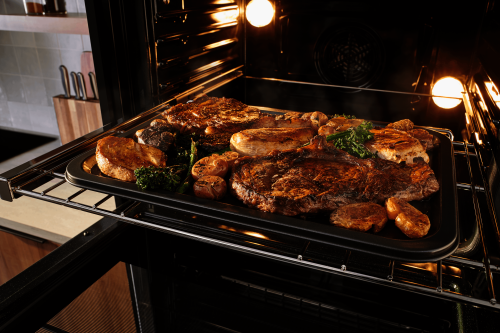

• Dedicated broil mode (both ovens) – powerful upper heating elements deliver strong direct heat for grilling-style results indoors.

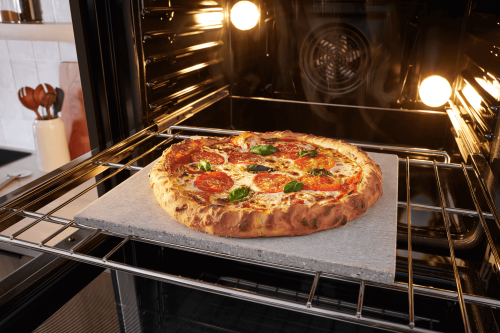

• Pizza mode – specialized setting mimics the high, even heat of a pizza oven to produce crisp crusts and well-melted toppings.

• Warm mode (both ovens) – keeps cooked food at serving temperature without overcooking, ideal for staging multiple dishes.

• Proof mode (lower oven) – maintains a gentle, consistent warmth to help yeast dough rise properly.

• Roast mode (lower oven) – optimized heat pattern for roasting meats and vegetables without convection if preferred.

• Microwave-only modes (upper oven) – standard microwave functions with 10 power levels for defrosting, reheating, and quick cooking.

• Auto programs (upper oven) – 12 automatic programs (including Auto Defrost, Melt Butter, Soften Ice Cream, and Pizza) adjust time and power based on food type.

• Sensor cook programs (upper oven) – 10 sensor-based programs detect steam and humidity to automatically adjust cooking time for consistent microwave results.

• Frozen foods defrost setting – dedicated mode in the speed oven for gently and evenly thawing frozen items.

• Keep Warm function (upper and lower) – maintains low, steady heat to hold dishes at temperature until serving.

• Multiple cooking modes (lower oven) – up to 13 lower-oven modes (bake, broil, roast, warm, proof, convection bake, convection broil, convection roast, pizza, convection multi-rack, convection conversion, Sabbath, etc.) for versatile cooking.

• 28 total cooking and combination modes – broad selection of preset modes across both cavities to match a wide variety of recipes and techniques.

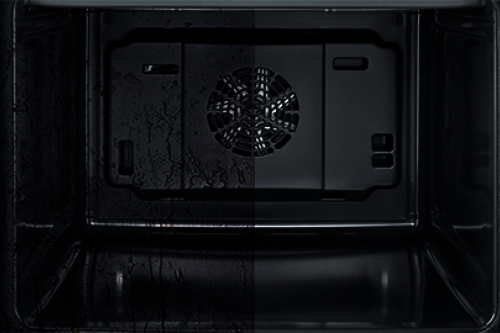

• Self-cleaning lower oven – high-heat self-clean cycle burns off baked-on residue, reducing the need for manual scrubbing.

• Multiple self-clean cycle lengths – 2-, 3-, and 4-hour options let you choose the cleaning intensity and duration based on soil level.

• Hidden bake element (lower oven) – concealed lower heating element creates a smooth interior surface that’s easier to wipe clean.

• Automatic door lock in self-clean – lower oven door locks automatically during self-clean cycles to enhance safety.

• Panel lock for upper speed oven – disables the upper oven’s control panel to help prevent accidental or unsupervised use.

• Safety switch-off function – automatically turns the oven off after a set period to help prevent overheating or forgotten operation.

• Electronic door lock – electronically controlled lock mechanism helps secure the oven door during certain operations.

• Sabbath mode – modifies certain functions and disables automatic shutoff to support observance of the Sabbath and religious holidays.

• Interior lighting in both ovens – LED/halogen lights in the upper oven and multiple lights in the lower oven illuminate the cavity for easy viewing.

• Large viewing window (lower oven) – oversized glass window lets you monitor cooking progress without opening the door and losing heat.

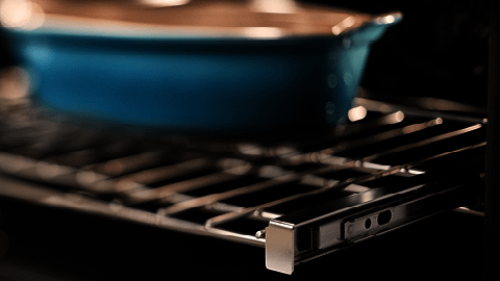

• Telescopic rack (lower oven) – full-extension rack glides smoothly out of the oven, providing safe, stable access to heavy dishes.

• Standard oven racks included – lower oven comes with at least one standard rack for flexible pan placement.

• Drop-down doors (both ovens) – traditional drop-down door design offers wide access to the cavity for loading and unloading.

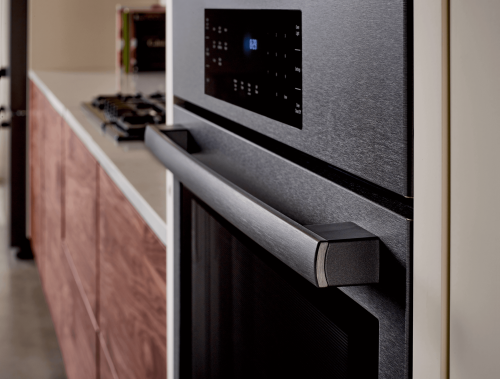

• Flush installation capability – designed to install nearly flush with surrounding cabinetry for a built-in, integrated look.

• 30" nominal width – fits standard 30-inch wall oven cutouts in many modern kitchens.

• Defined cutout dimensions – specified cutout size (approx. 45 5/8" H x 28 1/2" W x 23 1/2" D) helps ensure proper fit during planning and installation.

• Overall appliance dimensions – approximately 49" H x 29 3/4" W x 23 1/2" D, suitable for most standard wall oven cabinets.

• 208–240 V electric connection – hardwired high-voltage connection supports powerful heating performance in both ovens.

• 8,400 W total power rating – high wattage enables rapid heating and strong broiling performance.

• 40 A circuit requirement – designed for use on a dedicated 40-amp electrical circuit for safe operation.

• 60" power cord length – provides flexibility for electrical connection within the cabinet space.

• 950–1,000 W microwave power – robust microwave output for fast reheating and cooking in the upper speed oven.

• Timer and clock functions – built-in timer and clock support precise cooking times and scheduling.

• Electronic temperature control – maintains set temperatures accurately for consistent cooking results.

• 3D hot air distribution (select descriptions) – engineered airflow pattern helps distribute heat evenly on up to three levels.

• Sturdy bow-style handle – ergonomic handle design offers a comfortable grip when opening and closing the doors.

• Stainless steel interior trim – durable interior and trim materials resist staining and wear over time.

• Built-in installation – designed specifically for in-cabinet mounting to free up floor space and create a seamless kitchen layout.

• Non-ADA design – standard installation height and controls are optimized for typical wall oven placements rather than ADA-specific requirements.

• Door contact switch – detects when the door is open or closed to control interior lights and certain safety functions.

• Warm-up and preheat indication – display and indicators show when the oven has reached the set temperature.

• Versatile everyday use – combination of microwave, convection, and traditional oven modes supports everything from quick weeknight meals to elaborate multi-course dinners.
