- Black-glass Seamless Design
- Cooktop Design Coordinates with Bosch Ovens and Ventilation
- Dual Elements Offer the Capability to use Multiple Pan Sizes
- Bridge Element Accomodates Oblong or Oversized Pans and Griddles
- SpeedBoost® - Delivers More Power to Speed Up the Cooking Process
- PreciseSelect® - Direct Cooking Level Selection - 17 Settings for Precise Control
- CountDown Timer - Built-in Timers for Each Element. Doubles as General-Purpose Kitchen Timer
- CleanLock - Prevents Unwanted Changing of Setting While Cleaning Spills
- Two-Level Heat Indicator - Warns if Cooktop is Warm or Hot
- ChildLock - Prevents the Cooktop from Being Accidentally Switched On, Locks Temperature Settings if in Use
Manufacturer's Warranty: 1 year
UPC: 825225920175
EAN: 0825225920175
Features and Specifications | |
General | |
Energy source | Electric |
Type of control | DirectSelect 1.0 (Timer), front |
Safety device | childproof lock, Key Lock, Safety time-switch-off |
Features | 17 power levels |
Construction type | |
Color of surface | Black |
Construction type | Built-in |
Design - line | Frameless |
Number of electric elements | 0 |
Number of electric cooking zones | 5 |
Type of frame | Frameless |
Number of gas burners | 0 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Total number of cooktop burners | 5 |
Number of radiant elements | 5 |
Number of electric warming zones | 0 |
Size and weight | |

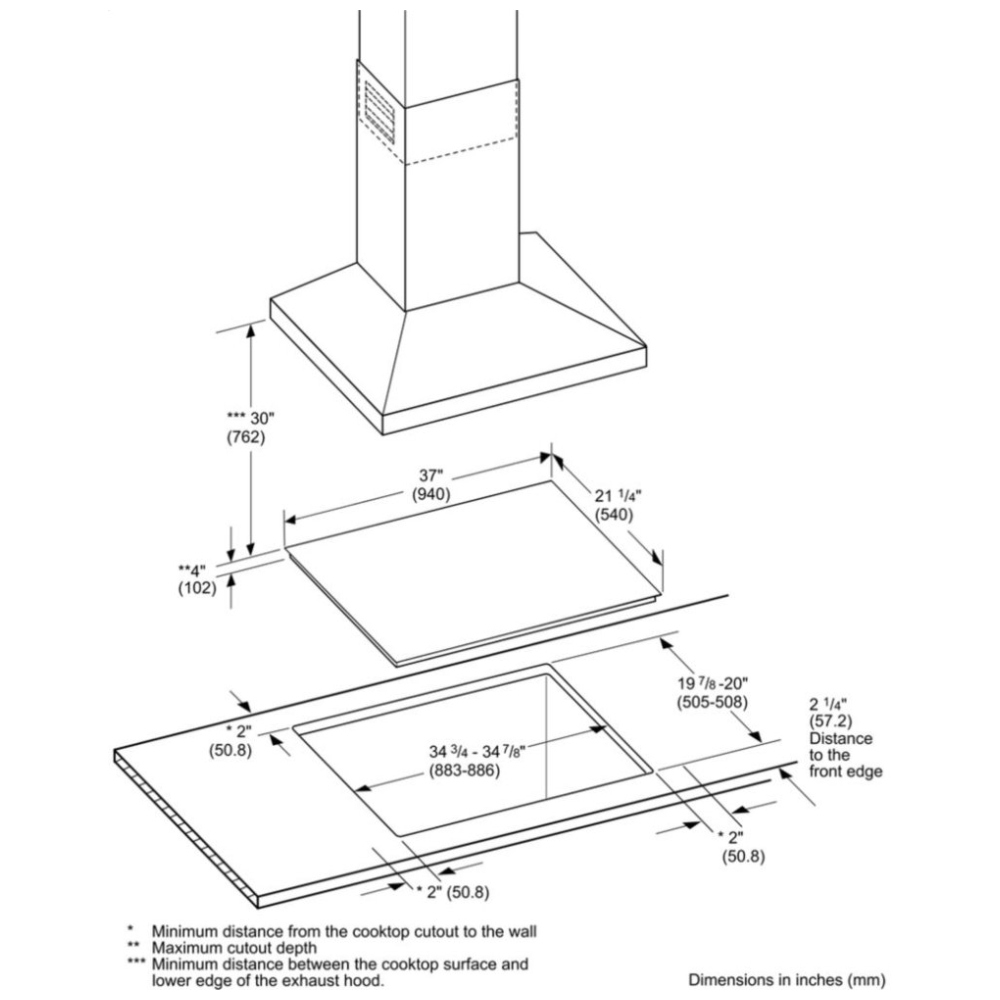

Overall appliance dimensions (HxWxD) (in) | 1/4" + 4" x 37" x 21 1/4" |
Net weight | 31.000 lbs |

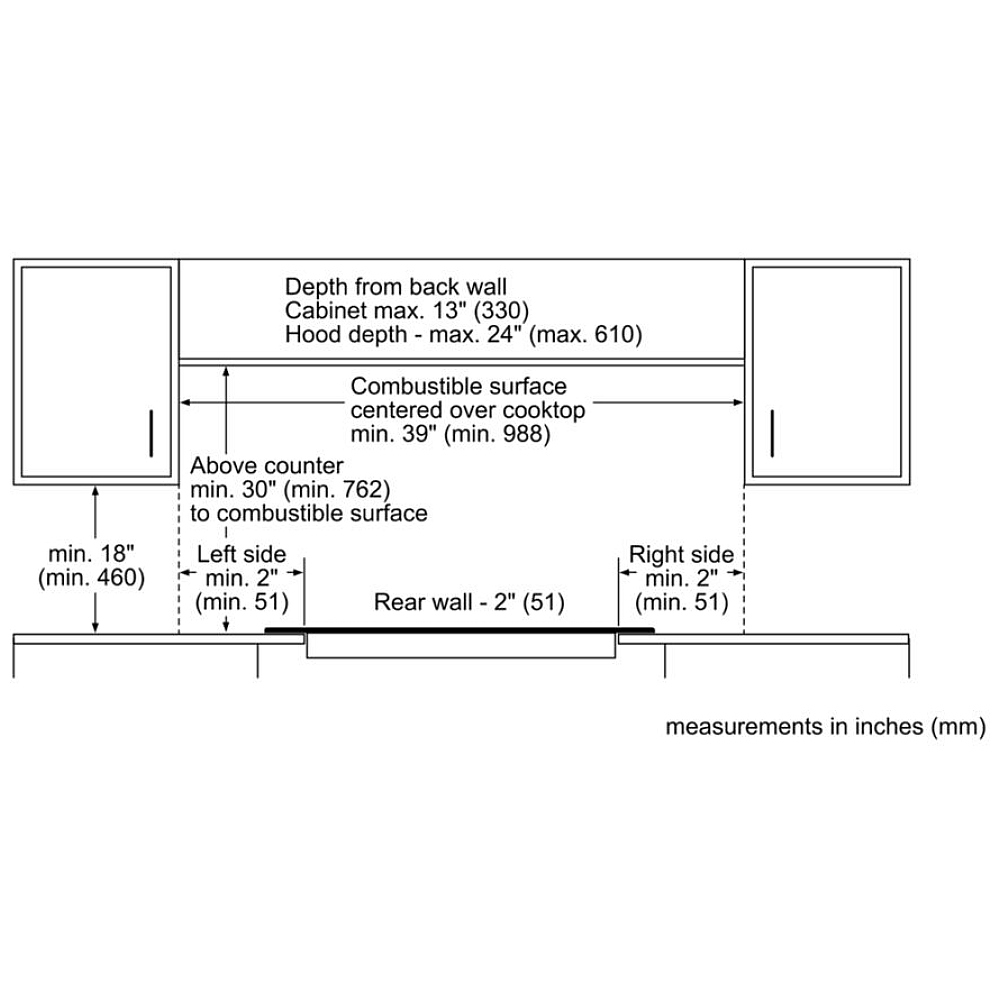

Minimum distance from counter front (in) | 2 1/4" |
Minimum distance from rear wall (in) | 2" |
Cooking zone 1 | |
Dimension of 1st heating element (in) | 7" |
Location of 1st heating element | front left |
Power of heating element (kW) | 1.8 kW |
Type of heating element | Radiant heating |
Cooking zone 2 | |
Location of 2nd heating element | center left |
Cooking zone 3 | |
Dimension of 3rd heating element (in) | 7" |
Location of 3rd heating element | back left |
Power of 3rd heating element (kW) | 1.8 kW |
Type of 3rd heating element | Radiant heating |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 5 | |
Dimension of 5th heating element (in) | 6" |
Location of 5th heating element | back right |
Power of 5th heating element (kW) | 1.2 kW |
Cooking zone 6 | |
Location of 6th heating element | center right |
Cooking zone 7 | |
Dimension of 7th heating element (in) | 5" ; 8" |
Location of 7th heating element | front right |
Power of 7th heating element (kW) | 0.8 ; 1.9 kW |
Type of 7th heating element | Radiant heating |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 9 | |
Dimension of 9th heating element (in) | 6" ; 9" |
Location of 9th heating element | front centre/cent |
Power of 9th heating element (kW) | 1.4 ; 3.6 kW |
Type of 9th heating element | Radiant heating |
Safety | |
Residual heat indicator | Separate |
Connection | |
Frequency | 60 Hz |
Energy source | Electric |
Watts | 10,200 W |
Energy source | Electric |
---|---|
Type of control | DirectSelect 1.0 (Timer), front |
Safety device | childproof lock, Key Lock, Safety time-switch-off |
Highlights | 17 power levels |
Home Connect |
---|
Color of surface | Black |
---|---|
Construction type | Built-in |
Design - line | Frameless |
Number of electric elements | 0 |
Number of electric cooking zones | 5 |
Type of frame | Frameless |
Number of gas burners | 0 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Total number of cooktop burners | 5 |
Number of radiant elements | 5 |
Number of electric warming zones | 0 |
Overall appliance dimensions (HxWxD) (mm) | 102 x 940 x 540 mm |
---|---|
Net weight (kg) | 14.057 kg |
Dimension of heating element (mm) | 180 mm |
---|---|
Location of 1st heating element | front left |
Power of heating element (W) | 1.8 kW |
Type of heating element | Radiant heating |
Location of 2nd heating element | center left |
---|
Dimension of 3rd heating element (mm) | 180 mm |
---|---|
Location of 3rd heating element | back left |
Power of 3rd heating element (W) | 1.8 kW |
Type of 3rd heating element | Radiant heating |
Location of 4th heating element | middle back |
---|
Dimension of 5th heating element (mm) | 140 mm |
---|---|
Location of 5th heating element | back right |
Power of 5th heating element (W) | 1.2 kW |
Type of 5th heating element | Radiant heating |
Location of 6th heating element | center right |
---|
Dimension of 7th heating element (mm) | 120 ; 195 mm |
---|---|
Location of 7th heating element | front right |
Power of 7th heating element (kW) | 0.8 ; 1.9 kW |
Type of 7th heating element | Radiant heating |
Location of 8th heating element | front middle / central |
---|
Dimension of 9th heating element (mm) | 230 ; 140 mm |
---|---|
Location of 9th heating element | front centre/cent |
Power of 9th heating element (kW) | 1.4 ; 3.6 kW |
Type of 9th heating element | Radiant heating |
Power on indicator | |
---|---|
Residual heat indicator | Separate |
Safety device | childproof lock, Key Lock, Safety time-switch-off |
Main on/off switch |
Power cord length (cm) | 96 cm |
---|---|
Watts (W) | 10,200 W |
Energy source | Electric |
Frequency (Hz) | 60 Hz |
