Gets hard-to-dry items up to 3 times drier than heated dry cycles *Compared to heated dry option
Clean hard-to-reach areas inside tall items with up to 4 dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean
Wash a true half-load in either the upper or lower rack without sacrificing cycles and options available on a full wash
Loosens tough soils before any cycle virtually eliminating the need for soaking or pre-rinsing dishes. Plus a High-temperature rinse sanitizes and reduces 99.999% of bacteria found on dishes
Manufacturer's Warranty: 1 year
Canadian model: GDP645SYNFS
| FILTER | |
| App Filter - Cabinet Width | Dish Traditional 24 in. |
| App Filter - Stainless Steel Interior | Yes |
| App Filter - Product Type | Dish Built-In Top Control |
| App Filter - WiFi Connect | Optional |
| App Filter - Food Disposer | Yes |
| App Filter - Bottle Wash | Yes |
| APPEARANCE | |
| Handle | Pocket Handle |
| Installation | Built-Up Floor Capable Flush Cabinet Installation Side or Top Mount Install Brackets Included |
| Handle Color | Fingerprint Resistant Stainless |
| Door Style | Long Door with Top Controls |
| Door Appearance | Full-length door |

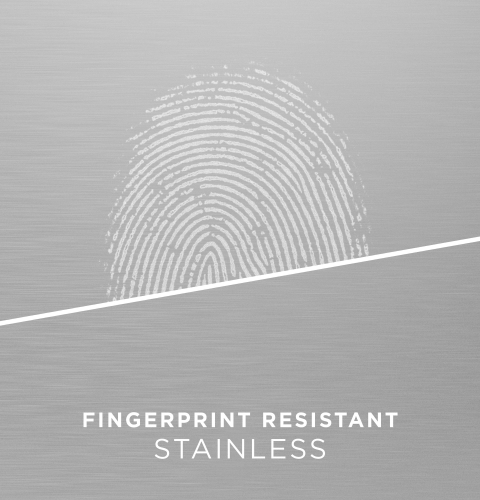

| Color Appearance | Fingerprint Resistant Stainless |
| POWER / RATINGS | |
| Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
| Hertz | 60 |
| Electrical Requirements | 120V |
| Watts | 936 |
| Calrod Heater Watts | 800/500 |
| Volts/Hertz/Amps | 120V; 60Hz; 6.6A |
| WARRANTY | |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| ECONOMICAL / QUIET | |
| Door Insulation | Insulation Mastic |
| Quiet Package | 48 dBA |
| Outer Wrap | Bitumen Full-wrap Blanket |
| Motor Type | Single Speed |
| Quiet Features | Quiet Water Valve Sealed Toe Kick Tub Collar Trim |
| WEIGHTS & DIMENSIONS | |
| Height w/ Legs Retracted - Minimum Height | 33.375 in |
| Overall Depth | 24 in |
| Cabinet Width | 24 in |
| Net Weight | 99 lb |
| Overall Width | 23.75 in |
| Approximate Shipping Weight | 112 lb |
| Overall Height | 34 in |
| Height w/Legs Extended - Maximum Height | 34.625 in |
| FEATURES | |
| Wash System | 3-Level 600 Series |
| Sensor | Clean Sensor |
| Lower Rack | Ball-Tip Tines |
| Tub Type | Tall Tub |
| Leveling System | 4 Leveling Legs |
| OU Certified | No |
| Additional Protection | Active Flood Protect |
| Number of Place Settings | 16 |

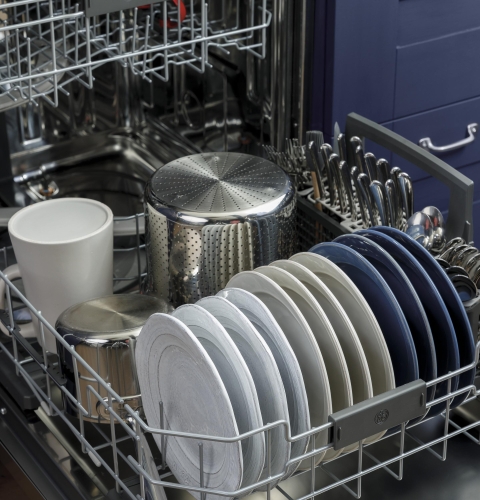

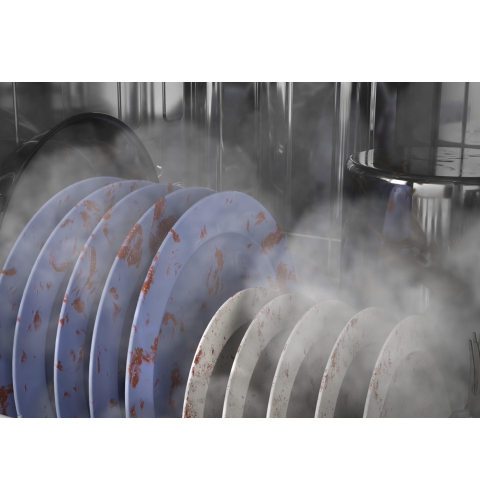

| Dishwasher Options | Bottle Jets Child Lock Delay Start 1-12 Hr. Dry Boost™ Heated Dry Sabbath Mode Sani (Certified to NSF Standard 184) Start/Reset Steam PreWash Wash TempBoost Wash Zone Lower Only Wash Zone Upper Only |
| Latch | Pull with Handle |
| Number of Options | 11 |
| Style | Built-In Top Control |
| Water Filtration System | 100% Filtration with Piranha Hard Food Disposer and Removable Filter |
| Rack Features | 1 Piece Silverware Basket with 3 Cell Covers 2 Plastic Utility Shelves with Stem Safe Adjustable Upper Rack Ball-Tipped Tines |
| Racking Material | Nylon |

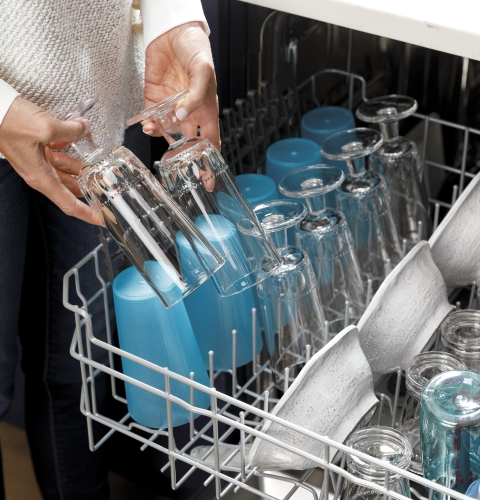

| Dishwasher Cycles | 1 Hour Wash AutoSense Heavy Wash Light Wash Normal Wash |
| Rack Color | Silver |
| Dispenser | Rinse Aid with Indicator and Adjustment |
| WiFi Connect | Optional (Requires part no. PBX23W00Y1) |
| Control Type | 8 Touchpads Clean Touch Controls Top Controls |
| Dishwasher Drying Features | Dry Boost™ Fan Assist Dry Heated Dry - On/Off Multi-Wattage Wash & Dry Element |
| Wash Arms | 3 Wash Levels Lower Middle Upper |
| Wash System Features | Automatic HotStart Automatic Temperature Control Bottle Jets (4) Drain Pump Dual Pumps and Motors Piranha™ Hard Food Disposer with removable filter |
| Exterior Style | Traditional |
| Product Type | Built-In |

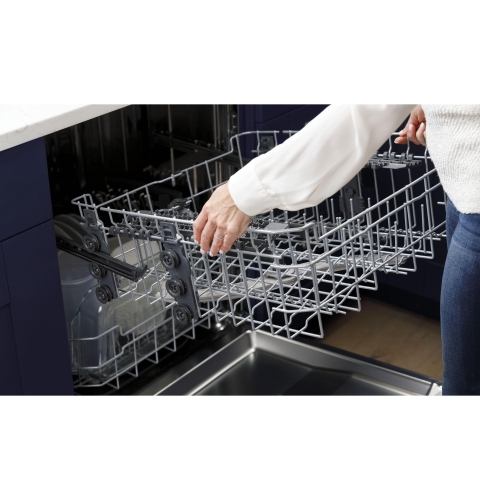

| Upper Rack | 2 Stem Safe Shelves Ball-Tip Tines Height Adjustable Removable |
| Dishwasher Control Features | 1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators 3 Digit Display Cycle Countdown with Bi-Color LED Status Light on door Audible End-of-Cycle Signal Last Cycle Memory |
| Number of Cycles | 5 |
| Tub and Door Liner | Stainless Steel |
| Sabbath Mode | Yes |
| Showroom Power Mode | Yes |
