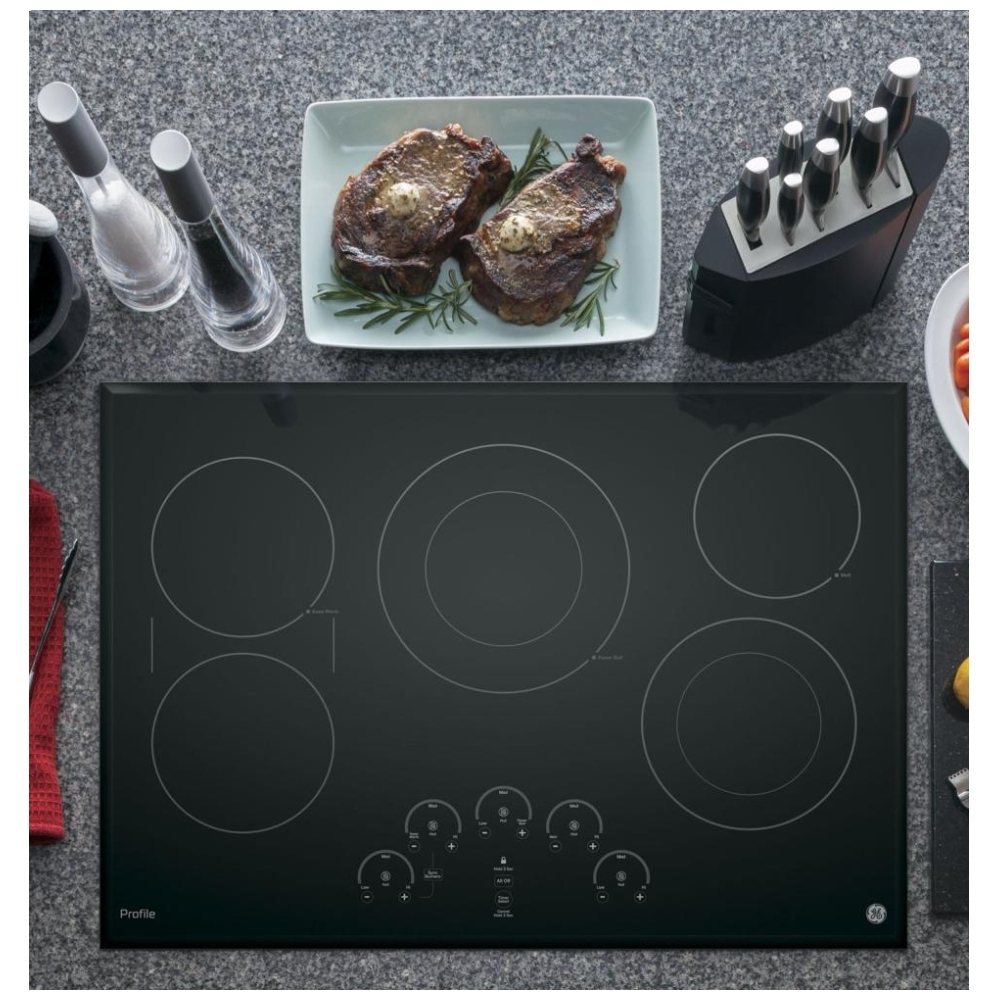

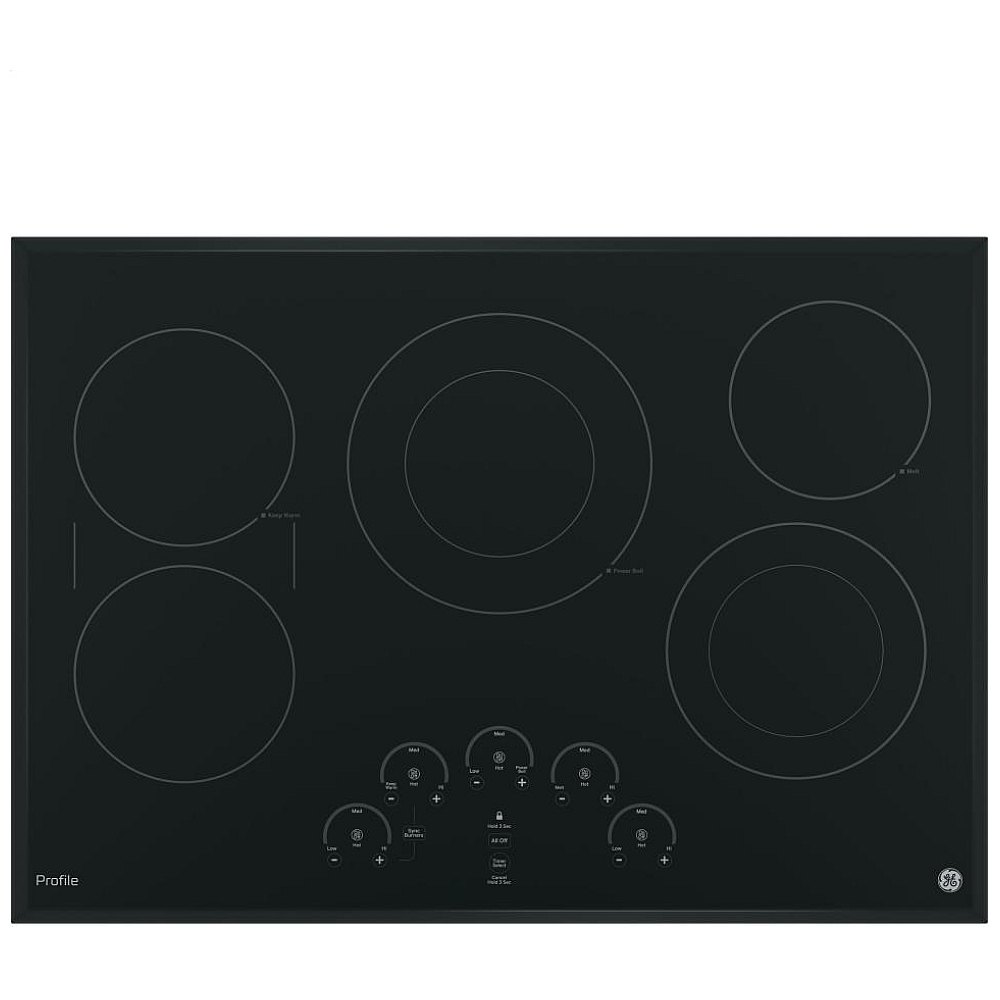

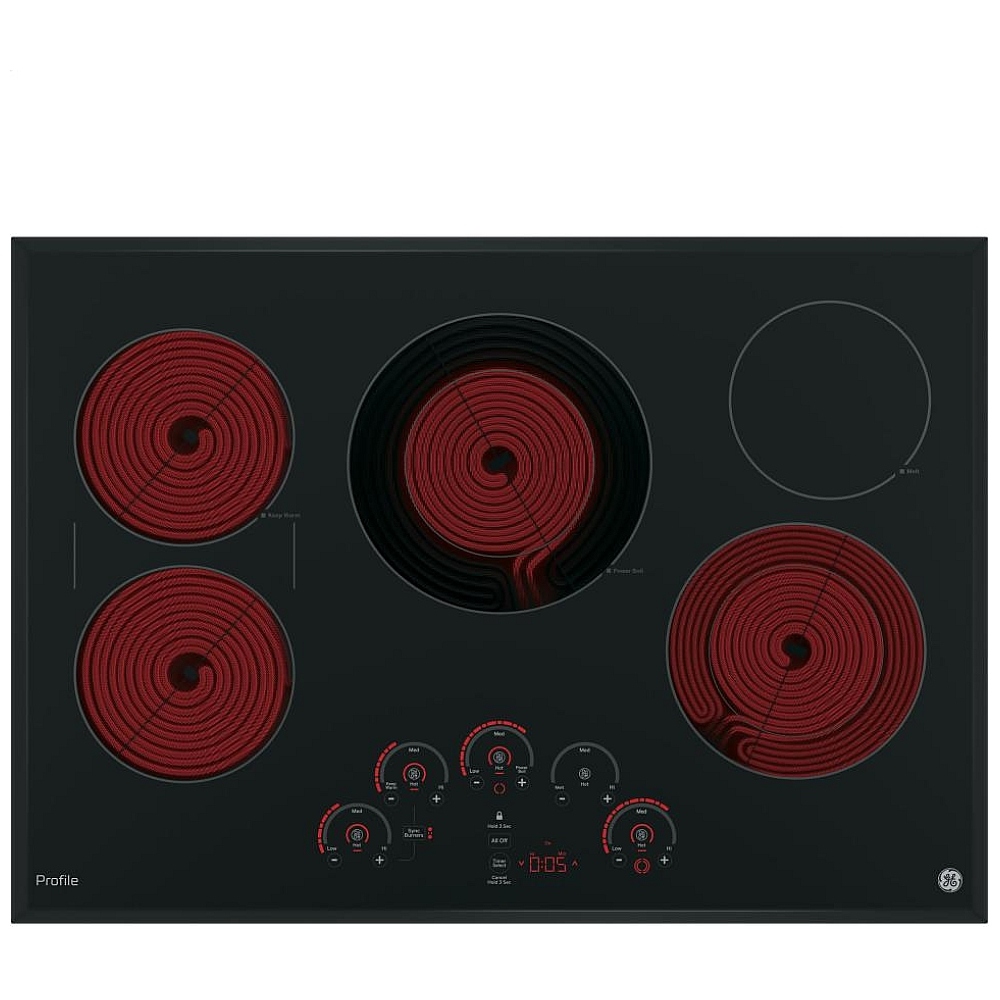

GE Profile 30" Electric Cooktop With Built-In Touch Control
Manufacturer's Warranty: 1 year
UPC: 084691809241
EAN: 0084691809241
FILTER | |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Cooktop Type | Radiant Smoothtop |
App Filter - Multi-Element Timers | Yes |
App Filter - Fuel Type | Electric |
App Filter - SyncBurners | Yes |
App Filter - Control Type | Glide touch |
APPEARANCE | |
Frame Color / Material | Stainless Steel |
Color Appearance | Black |
Frameless | Yes |
POWER / RATINGS | |
Recommended Circuit Breaker (Amps) at 240V | 40 |
Max. Connected Load (kW) at 240V | 9.5 |
Max. Current Draw (Amps) at 240V | 39.6 |
Max. Connected Load (kW) at 208V | 7.1 |
Recommended Circuit Breaker (Amps) at 208V | 40 |
Max. Current Draw (Amps) at 208V | 34.3 |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
Labor Warranty | Limited 1-year entire appliance |
WEIGHTS & DIMENSIONS | |
Cooktop Size | 30 in |
Overall Height | 5.8125 in |
Cutout Depth (in) | 19-5/8 |
Cabinet Width | 30 in |
Approximate Shipping Weight | 46 lb |
Overall Width | 29.75 in |
Net Weight | 40 lb |
Cutout Width (in) | 28-1/2 |
Overall Depth | 20.875 in |
FEATURES | |
Filler trim kit | JXTR32B |
Cooktop Burner Type | 5 Ribbon Smoothtop |
Melt Setting | Yes |
Fuel Type | Electric |
Element - Left Front | 7" 1500W |
Indicator Lights | 5 Hot Surface Red Setting Level Indicators Surface Element "ON" |
Element - Right Front | 8"/5" 2200W Dual |
Control Location | Front Center |
Cooktop Type | Radiant Smoothtop |
Cooktop Surface | Black Ceramic Glass with Beveled Edge |
Cooktop Control Features | All-Off Control Control Lock Capability Custom Settings Keep-Warm Setting Kitchen timer Melt Setting Multi-element timer Sync-Burners Capability |
Timer | Yes |
Element - Left Rear | 7" 1500W |
Control Type | Glide Touch |
Element - Center | 9"/6" 3100W Power Boil |
Element - Right Rear | 6" 1200W |
Optional Filler Trim Kit | JXTR32B |
Colour Appearance | Black on Black |
Flushmount Capable | Yes |
Frame Colour / Material | Black |
Frameless | Yes |
ADA Compliant | Yes |
Control Location | Front Center |
Control Lock Capability | Yes |
Control Panel | Integrated |
Control Type | Electronic Touch |
Cooktop Surface | Black Ceramic Glass with Beveled Edge |
Cooktop Type | Smoothtop |
Element - Center | 6"/9" 3100W Power Boil |
Element - Left Front | 7" 1500W |
Element - Left Rear | 7" 1500W |
Element - Right Front | 5"/8" 2200W |
Element - Right Rear | 6" 1200W |
Element Type | 4 Ribbon |
Fuel Type | Electric |
GE Fits! Guarantee | Yes |
Heating Element "ON" Indicator Light | Yes |
Hot Surface | 5 |
Keep Warm Setting | Yes |
Kitchen Timer | Yes |
Melt Setting | Yes |
Setting Level Indicators | Yes |
Sync Burners Capability | Yes |
Amp Rating at 208V | 34.3 |
Amp Rating at 240V | 39.6 |
KW Rating at 208V | 7.1 |
KW Rating at 240V | 9.5 |
Limited 1-year | Entire Appliance; In Home; Parts & Labour |
Approximate Shipping Weight (lbs.) | 46 |
Cooktop Width (in.) | 30 |
Cutout Dimensions (w x d) (in.) | 28-1/2 x 19-5/8 |
Overall Depth (in.) | 21 3/8 |
Overall Height (in.) | 6 |
Overall Width (in.) | 29-3/4 |
