$2,337	(15% off)	if you buy 2 or 3 items.
$2,199	(20% off)	if you buy 4+ items.

Certifications
Ada Compliant	Yes
Prop65	Standard
Ul	Yes
Controls
Control Location	Right Side
Control Type	Knobs
Infinite Heat Controls	Yes
Cooktop Details
Cooktop Surface Color	Stainless
Cooktop Surface Material	Stainless Steel
Digital Display	No
Griddle Included	N/A
Heating Element On Indicator Light	Yes
Hot Surface Indicator Light	No

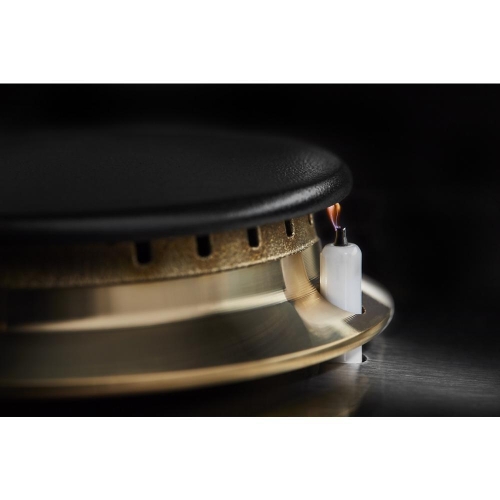

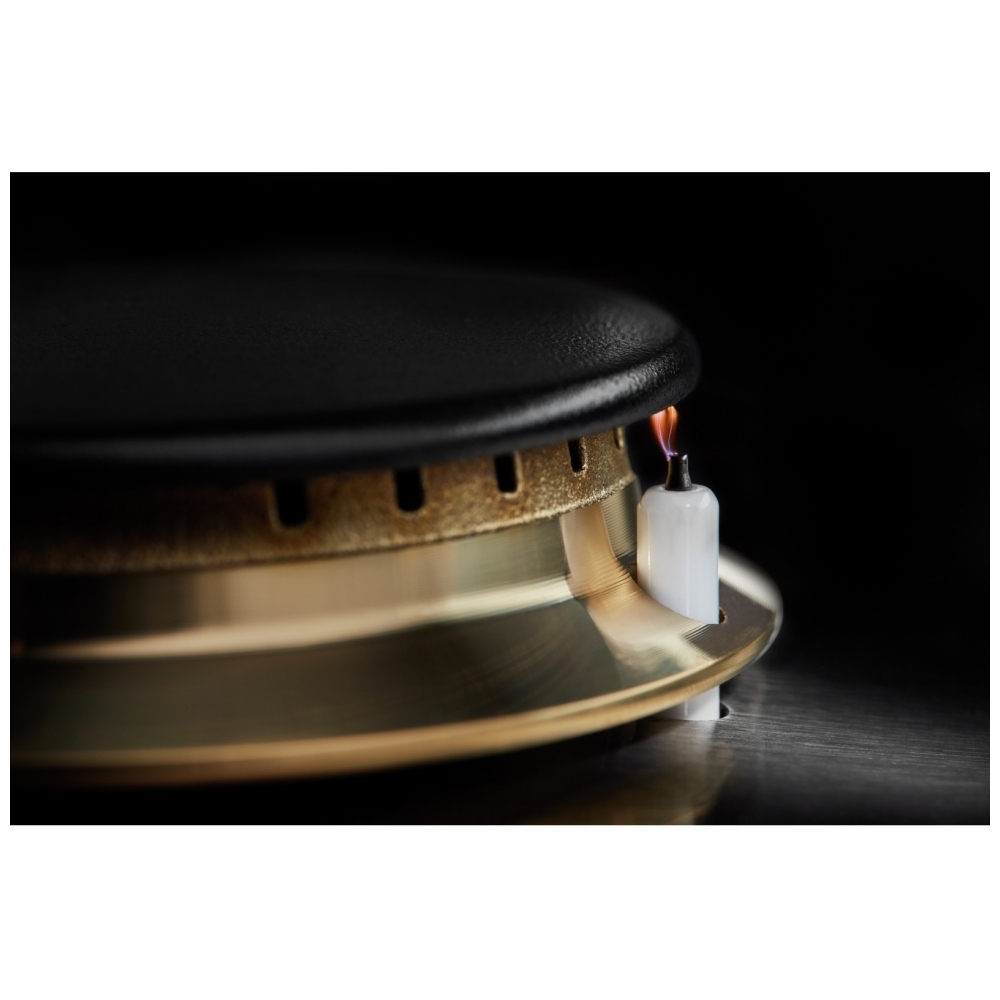

Ignition Type	Flame-Sensing™ Re-ignition
Details
Automatic Pan Detection	No
Combinations With Oven	JJW2424; JJW2427; JJW2430; JJW3430; JJW6024
Cooktop Selections	Simmer
Design Expression	Stainless Steel
Fuel Type	Gas
Installs Over Built-in Oven	Yes
Lp Convertible	Yes - Kit Included
Dimensions
Product Height	4.5
Carton Height	3.25
Gross Weight	63.5
Carton Depth	21
Carton Width	30
Product Depth	21.0
Cutout Width Max	29.375
Net Weight	0
Product Width	30.0
Cutout Depth Max	20.375
Electrical
Power Cord Included	Yes
Element/burner Details
Center Front Element-burner Power	15,000 BTU
Cooktop Element Style	Sealed Burner
Cooktop Type	Traditional
Left Front Element-burner Power	18,000 BTU
Left Front Element-burner Type	Power™ Burner
Left Rear Element-burner Power	12,000 BTU
Left Rear Element-burner Type	Burner
Number of Cooking Element-burners	5
Power Boost	No
Right Front Element-burner Power	9,000 BTU
Right Front Element-burner Type	Burner
Right Rear Element-burner Power	6,000 BTU
Right Rear Element-burner Type	Simmer
Exterior Details
Knob Color	Stainless Steel
Knob Type	Metal
General
Combination Match With Oven	JJW2424; JJW2427; JJW2430; JJW3430; JJW6024
Grate Details
Grate Details	Dishwasher Safe; Individual; Matte Finish; Steel Grates
Number of Grates	3
Ventilation Details
Downdraft Vent	No
Ventilation Type	Updraft

Dimensions
Depth	21
Width	30
Height	4 1/2
Carton Depth	21
Carton Height	3 1/4
Carton Width	30
Gross Weight	62

Certifications
Prop 65	Standard
ADA Compliant	Yes
UL	UL

Configuration and Overview
Fuel Type	Gas
Cooktop Type	Traditional
Size (IN,inches)	30
Installs Over Built-In Oven	Yes
LP Convertible	Yes - Kit Included
Power Boost	No

Description
Combinations with Oven	JJW2427,JJW2430,JJW3430

Controls
Control Type	Knobs
Infinite Heat Controls	Yes
Knob Color	Stainless Steel
Knob Type	Metal
Control Location	Right Side

GDS
isBaseUnit	true
isConsumerUnit	true
GPC Code	10001951
IsDispatchUnit	.
IsInvoiceUnit	true
IsOrderableUnit	true
Product Type	EA
UDEX	1100400623

Appearance
Digital Display	No

Cooktop Details
Automatic Pan Detection	No
Downdraft Vent	No
Hot Surface Indicator Light	No
Heating Element On Indicator Light	No
Number of Cooking Element-Burners	5
Cooktop Surface Color	Stainless
Cooktop Surface Material	Stainless Steel
Center Front Element-Burner Power	15,000 BTU
Left Front Element-Burner Power	18,000 BTU
Right Front Element-Burner Power	9000 BTU
Left Front Element-Burner Type	Power™ Burner
Right Rear Element-Burner Power	6000 BTU
Left Rear Element-Burner Power	12,000 BTU
Left Rear Element-Burner Type	Burner
Grate Details	Dishwasher Safe,Individual,Matte Finish,Steel Grates
Right Front Element-Burner Type	Burner
Cooktop Element Style	Sealed Burner
Ignition Type	Flame-Sensing™ Re-ignition
Number of Grates	3
Right Rear Element-Burner Type	Simmer

Features
Griddle	NA
Selection	Heating Element On Indicator Light,Simmer

Electrical
Amps	15
Hz	60
Volts	120
Power Cord Included	Yes

Refinement
Style	Cooktops

Design Type
Design Expression	Stainless Steel

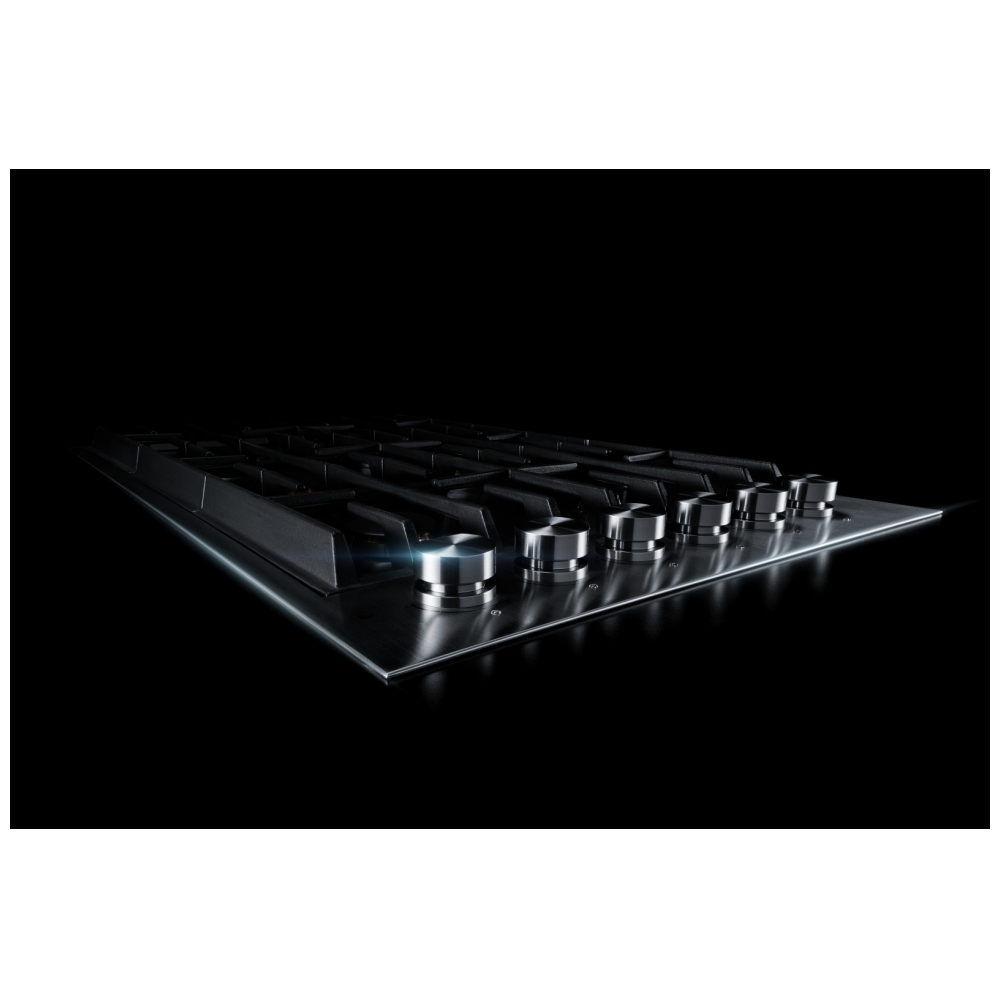

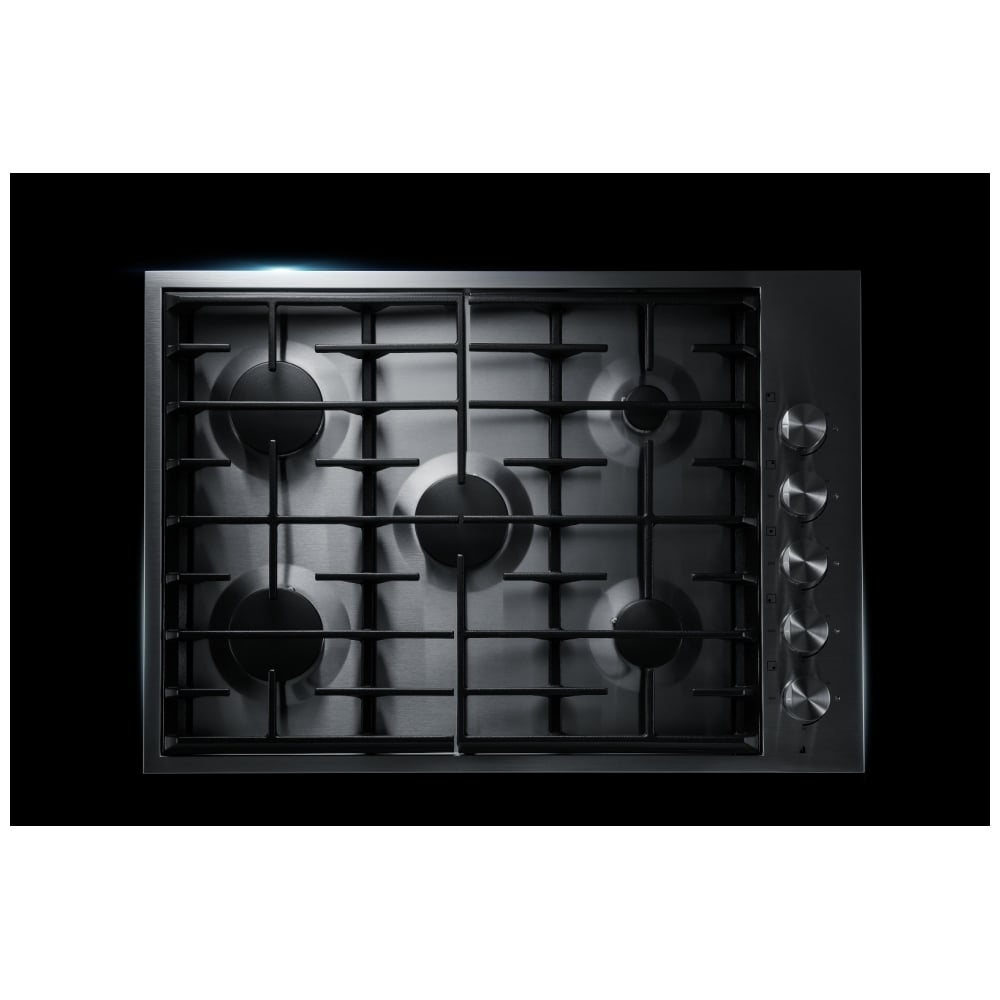

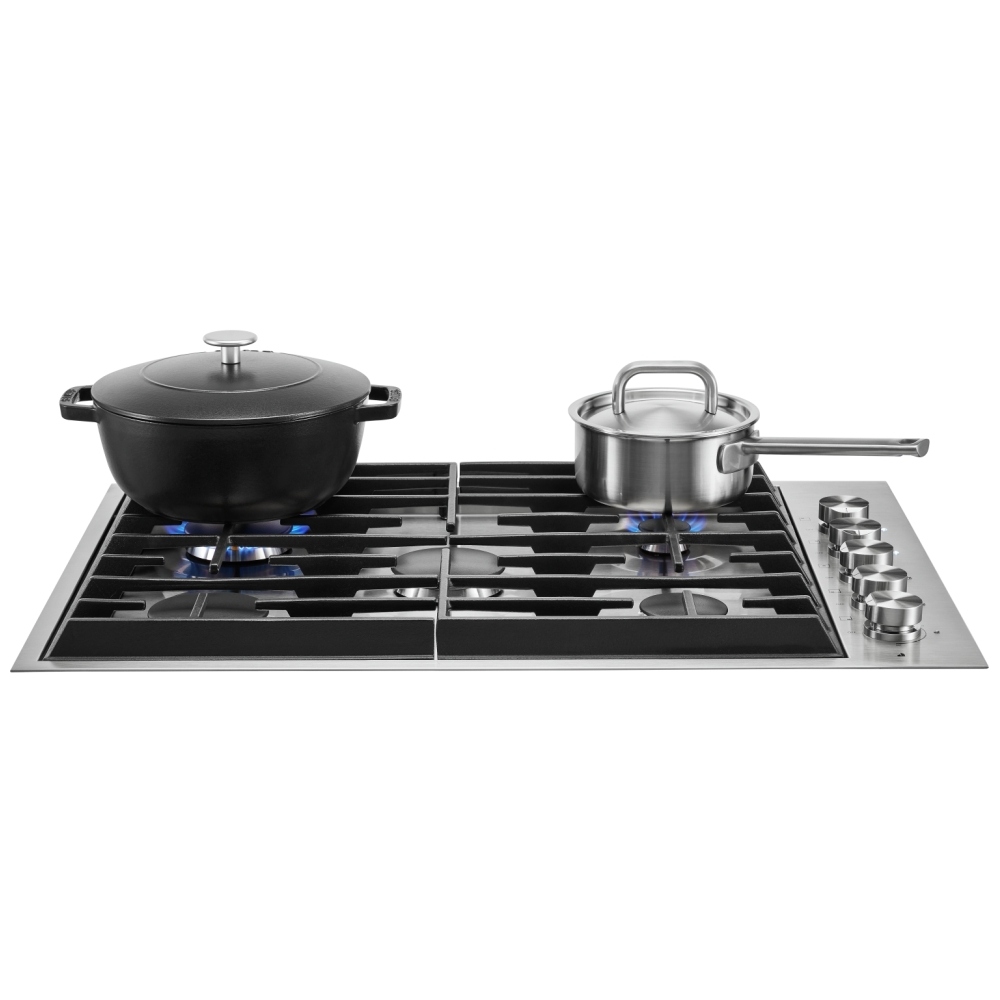

Jenn-Air JGC7530BS

Jenn-Air JGC7530BS

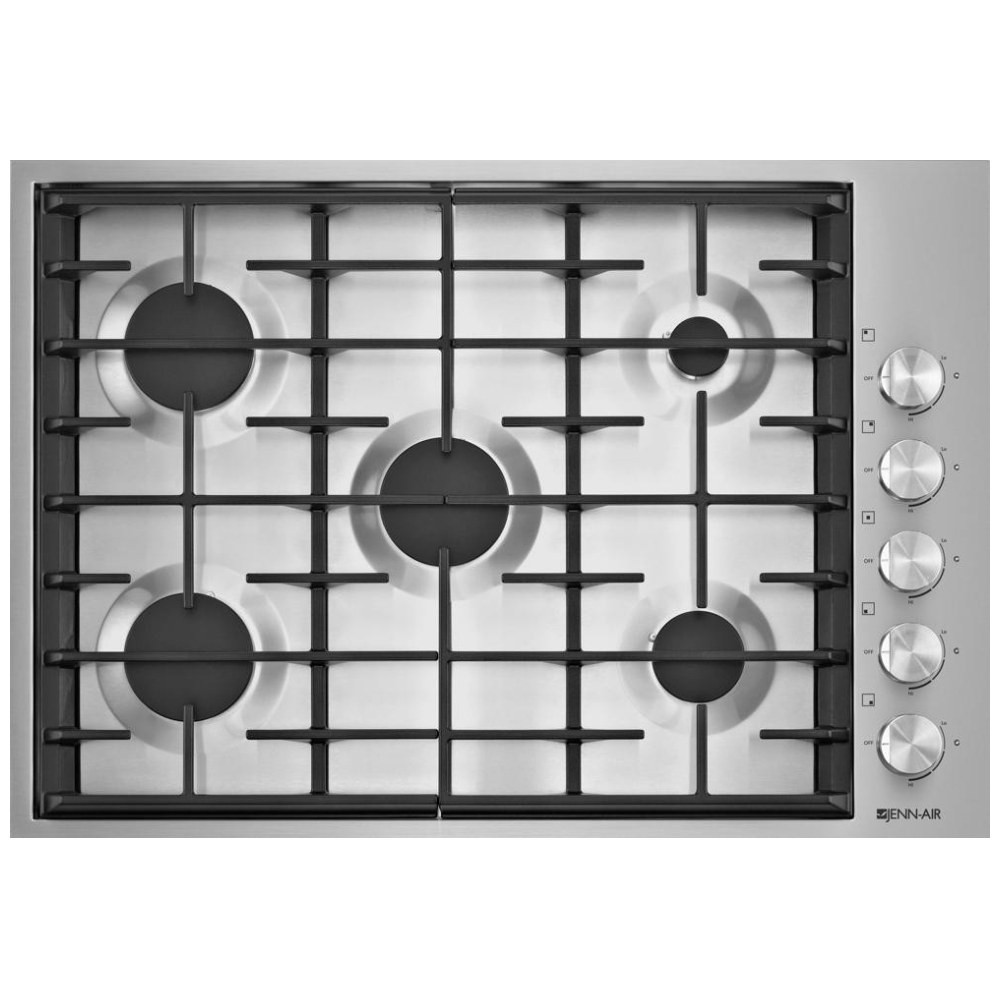

Jenn-Air Euro Style JGC7530BS Ga Cooktop, 30 inch Exterior Width, 5 Burners, 18,000 BTU Highest Burner, Stainless Steel colour
