- This two-tiered single element accommodates various-sized cookware in one location and can achieve an output of up to 3,000 watts when both elements are active.
- Reaching a powerful 4,500 watts, this three-tiered element provides versatility in both power levels and heating efficiency while accommodating various-sized cookware.
- A fast-heating heating element ideally sized for small sauce pans and sauciers that can reach up to 1,200 watts of power.
- A fast-heating element ideally sized for small sauce pans and sauciers that can reach up to 1,300 watts of power and as low as 300 watts.
- Enjoy cooking flexibility and efficiency with an electric element that features two element sizes at one position with a maximum output of 2,000 watts for greater cooking flexibility.
- Designed to meet ADA standards when installed according to the ADA guidelines.
- Our crew relentlessly engages with JennAir® appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you-from sales to installation to ownership.

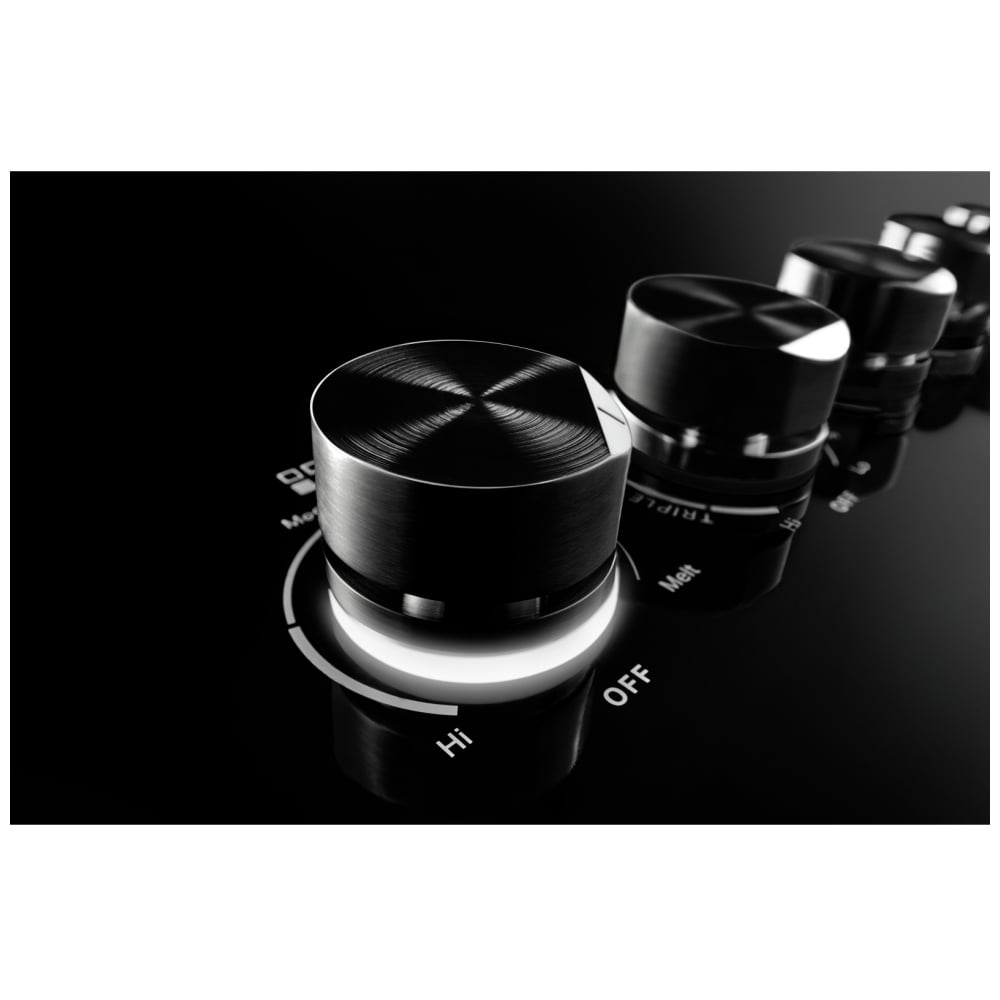

- A halo of luminary LEDs glows softly when the element is on.
- Light(s) positioned at the controls instantly show which element is still hot-even if the element has been turned off.
- Versatility and functionality converge with the ability to install in a countertop above our single wall oven.
- Ribbons of molten chocolate. Butter that yields to your knife. All elements are at your beck and call, ready to melt and soften with delicate heat that ignites passionate appetites.
- Plunge into the tranquility of smooth, shadow-black glass that lures you in-and wipes down easily.

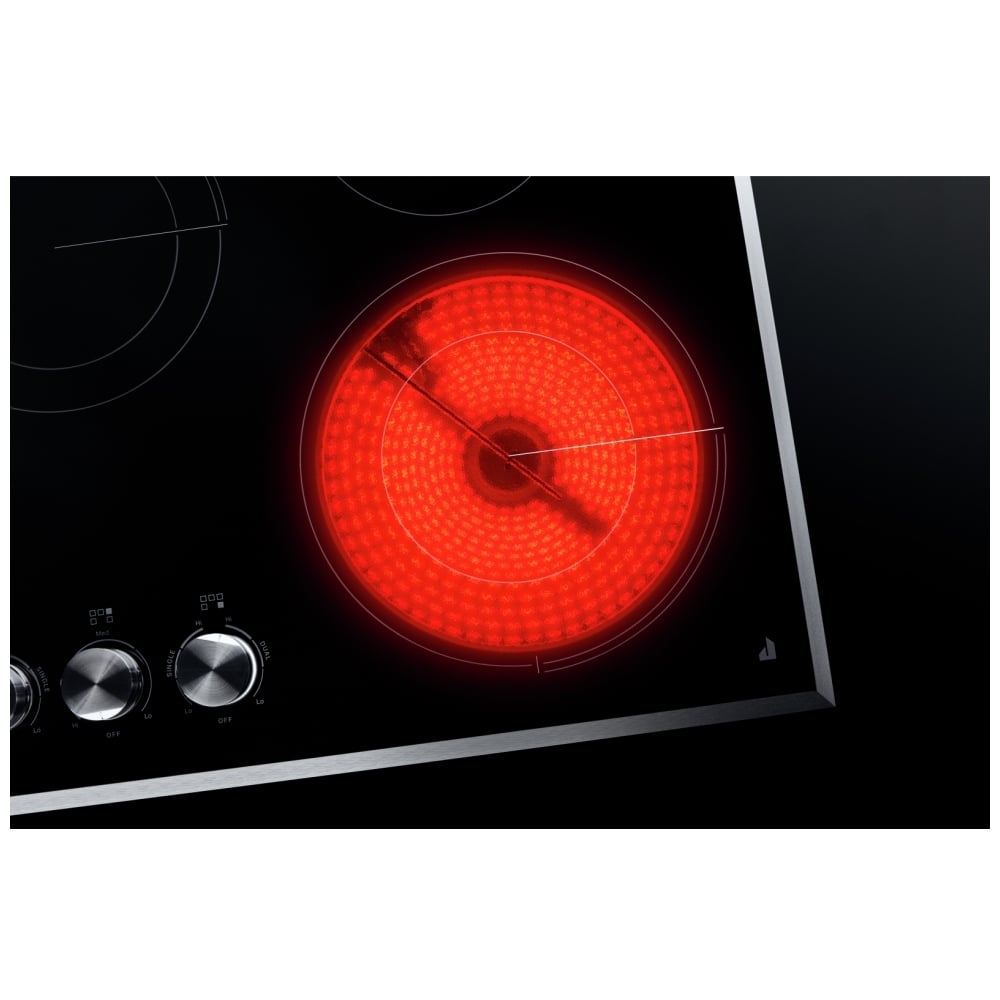

- See at a glance that power is on for an electric radiant element.

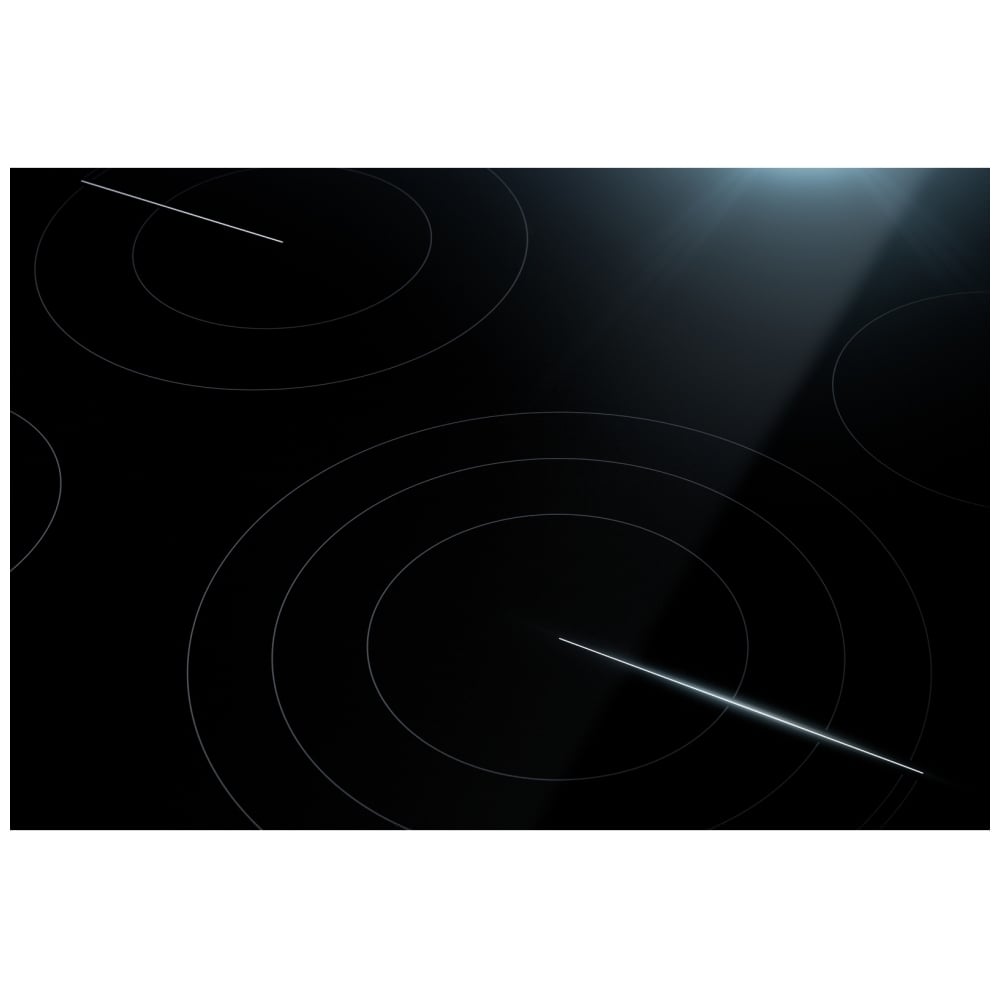

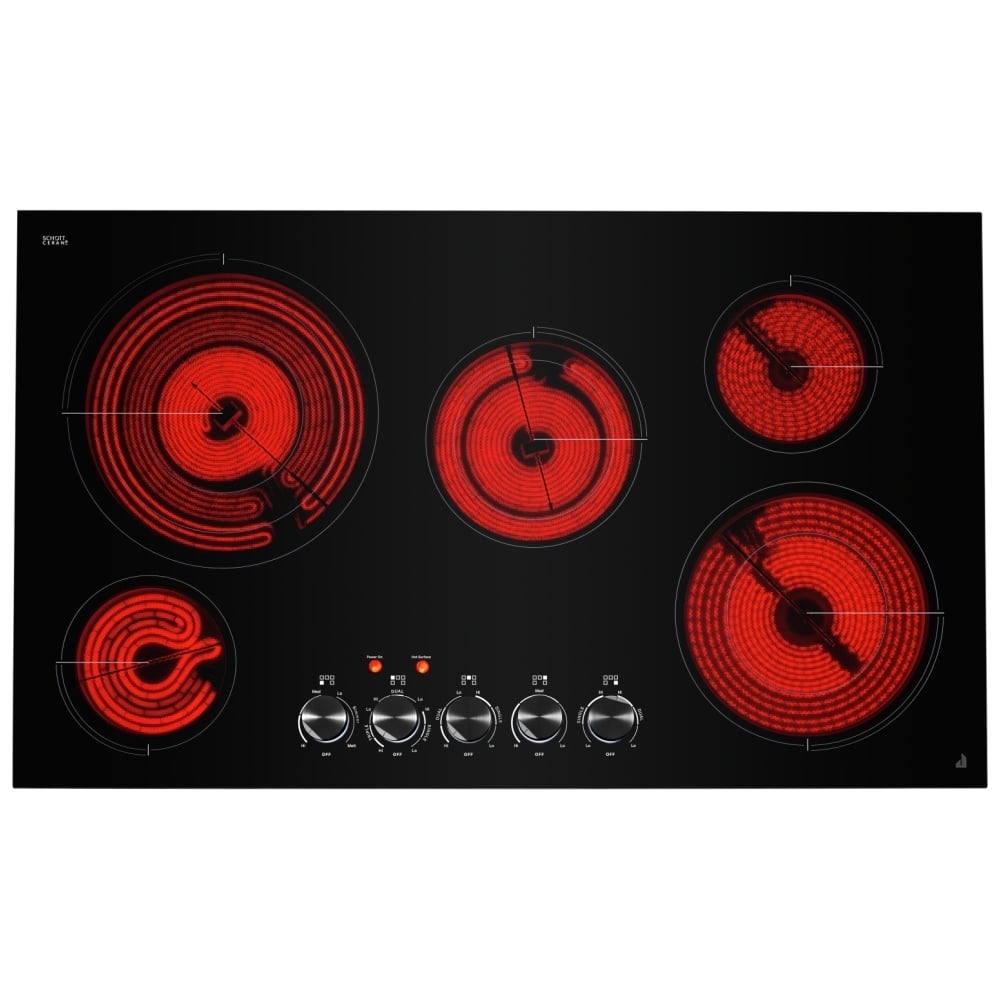

- Beneath the sleek, black cooktop surface, fast-heating elements deliver heat upon command.
- We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
- Provides the optimal temperature for gently cooking delicate sauces and foods.

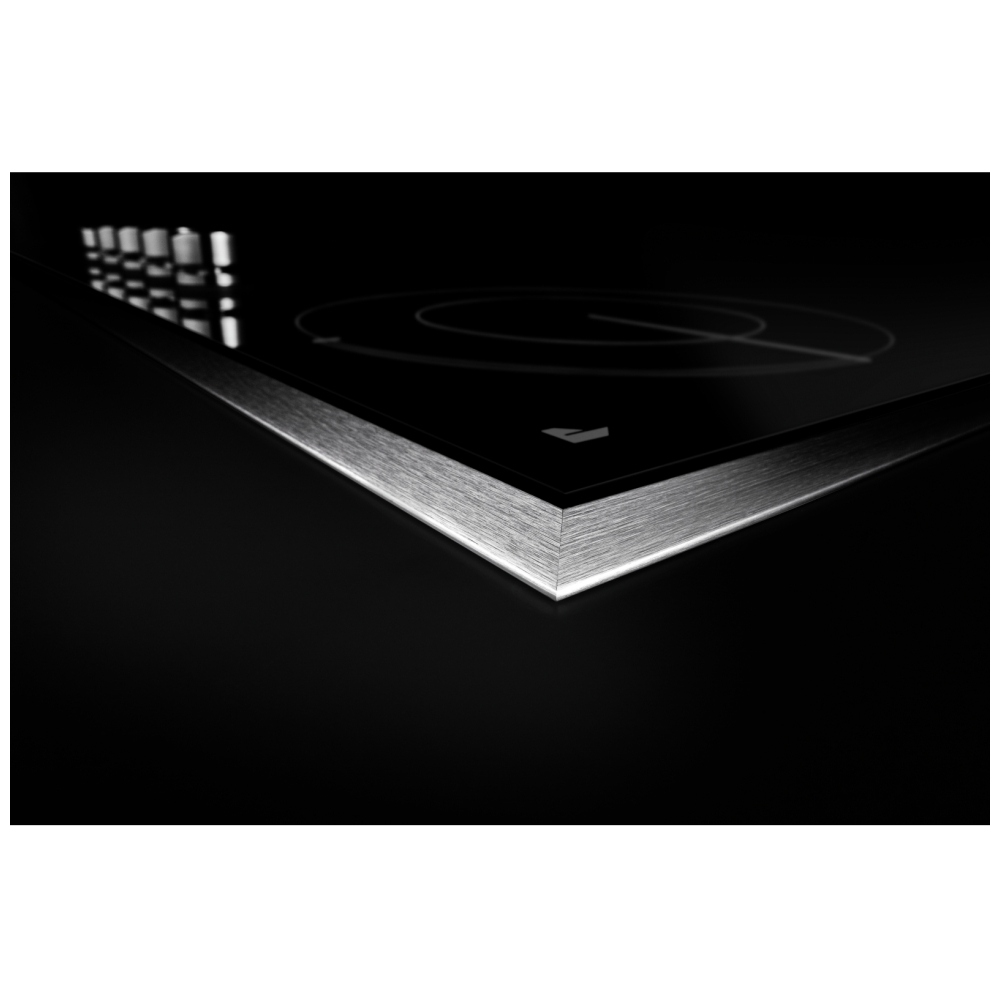

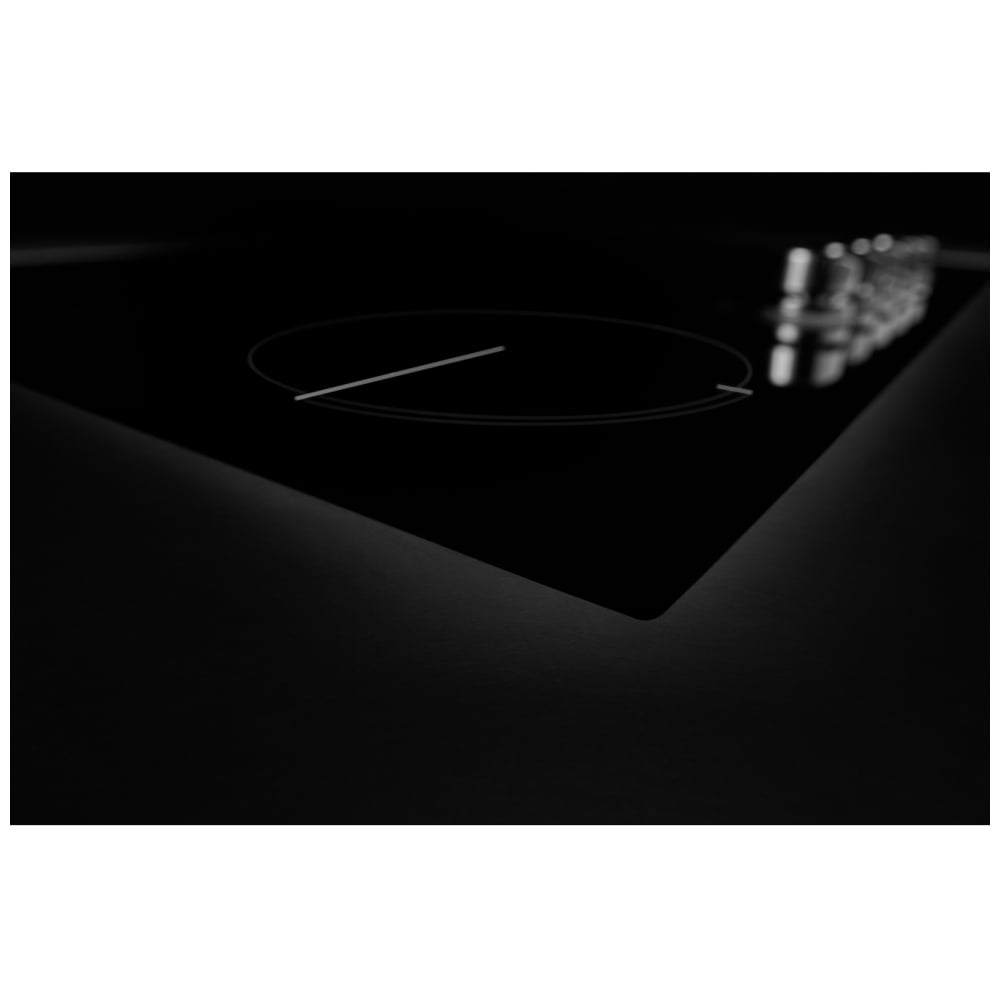

- Pique curiosity. A true flush installation makes the black surface melt into its surroundings, luring you in and creating a seamless sightline throughout your kitchen.

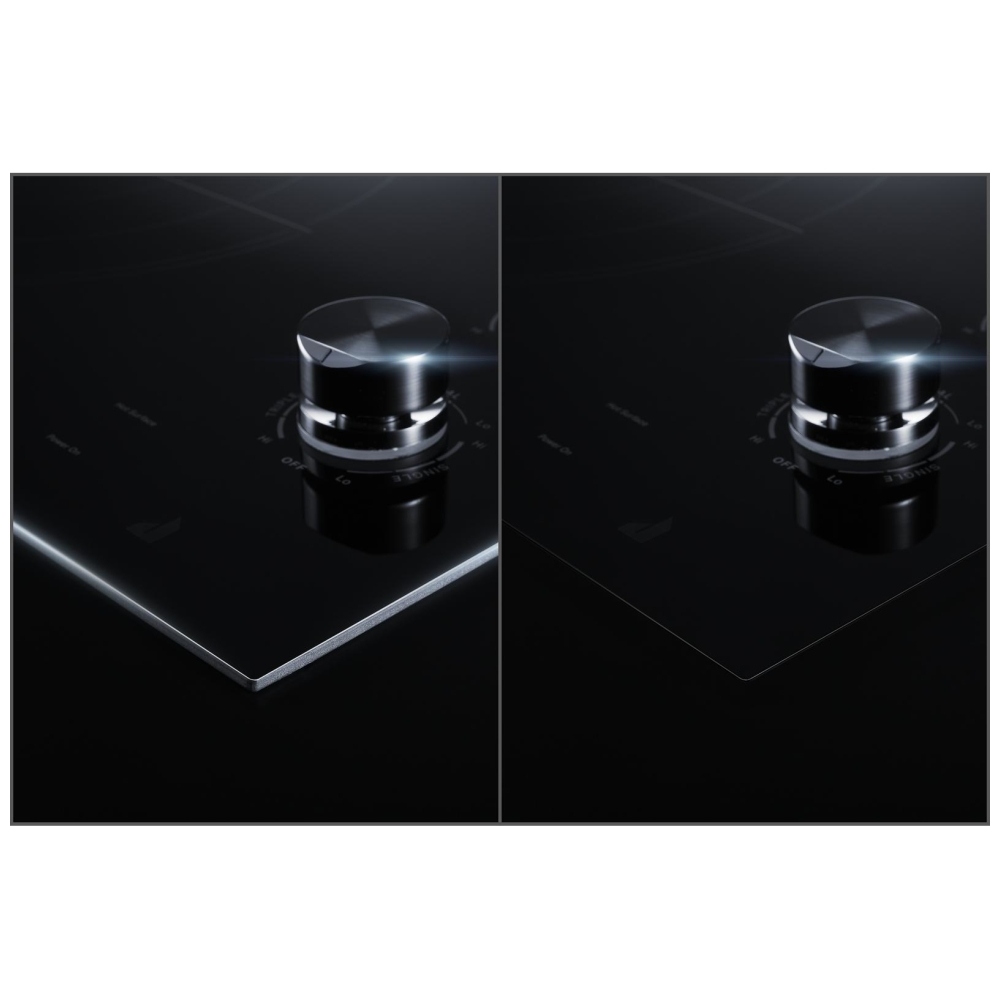

- Install without limits. This JennAir® cooktop can be installed true flush or semi-flush at 3mm above any level countertop, including an island or peninsula.
Manufacturer's Warranty: 2 years
UPC: 883049472874
EAN: 0883049472874
Dimensions | |
---|---|
Depth | 21 3/4 |
Width | 36 5/16 |
Height | 6 1/16 |
Carton Depth | 25 |
Carton Height | 10 1/4 |
Carton Width | 40 3/4 |
Cutout Depth | 20 3/8 |
Cutout Width | 34 9/16 |
Gross Weight | 50 |
Maximum Height | 6 1/16 |
Net Weight | 44.0 |
Certifications | |
Prop 65 | Standard |
ADA Compliant | ADA Height and Operation Compliant |
UL | UL |
Description | |
Combinations with Oven | JJW2427,JJW2430,JJW3430 |
Configuration and Overview | |
Cooktop Type | Traditional |
Fuel Type | Electric Radiant |
Size (IN,inches) | 36 |
Installs Over Built-In Oven | Yes |
LP Convertible | No |
Power Boost | No |
Controls | |
Control Location | Front |
Control Type | Knobs |
Knob Color | Black |
Knob Type | Metal |
Cooktop Details | |
Hot Surface Indicator Light | Yes |
Cooktop Element Style | Radiant |
Automatic Pan Detection | No |
Downdraft Vent | No |
Heating Element On Indicator Light | Yes |
Cooktop Surface Color | Black |
Number of Cooking Element-Burners | 5 |
Left Front Element-Burner Size | 6" |
Cooktop Surface Material | Glass |
Number of Open Bays | NA |
Left Front Element-Burner Power | 1300W |
Center Rear Element-Burner Power | 2000/1000W |
Center Rear Element-Burner Size | 9"/6" |
Left Front Element-Burner Type | Standard |
Right Rear Element-Burner Size | 6" |
Left Rear Element-Burner Power | 3000W/2200W/1100W |
Left Rear Element-Burner Size | 12"/9"/6" |
Left Rear Element-Burner Type | Triple |
Right Front Element-Burner Power | 3000W/1900W |
Right Front Element-Burner Size | 10"/6" |
Right Rear Element-Burner Power | 1200W |
Right Rear Element-Burner Type | Standard |
Cooktop Configuration | All Burners |
Right Front Element-Burner Type | Dual |
Appearance | |
Digital Display | No |
Features | |
Griddle | NA |
Power Outage Compatible | No |
Electrical | |
Amps | 40 |
Power Cord Included | No |
Volts | 240 |
208V Compatible | Yes |
Hz | 60 |
Refinement | |
Style | Cooktops |
Design Type | |
Design Expression | Oblivian Glass |
Energy | |
Annual Energy Usage [kWh] | 258 |
