Description & Features

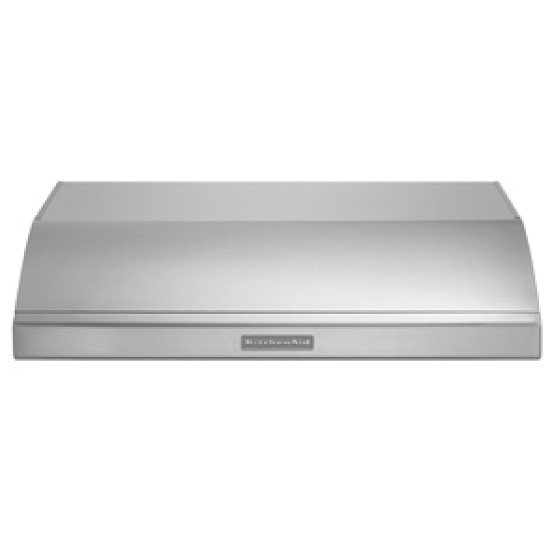

KitchenAid KHTU765SSS Range Hood, Under-Cabinet, Under-Cabinet, 36 inch Exterior Width, 600 CFM, Accepts Both, Halogen, Dishwasher Safe Filters
Architect Series II 36 in. Under-the-Cabinet Hood
At full power, this hood with 3-speed ventilation control can efficiently exhaust 600 CFM, making it ideal for the higher BTU ratings found on our gas and dual fuel ranges. Plus, the grease and charcoal filters help protect your ceiling and remove unwanted odors to keep your kitchen smelling fresh.


  • 3-speed motor exhausts 600 CFM to help release smoke, grease, and odors for a properly vented kitchen
  • Optional interchangeable color front trim accessory
  • Halogen lights over cooking surface
  • Slim undercabinet profile
Specs
Electrical Requirements
Voltage 120 V.
Amperage 15 Amps.
Amp'res de Circuit 120VAC 15
frequence 60 Hz.
Type
VentilationType Updraft
Performance
Duct Outlet Size 6"
Duct Outlet Type Round
CFM (Vertical, Round) 600
Lighting / Controls
Number of Cooktop Lights 2
Cooktop Light Type Halogen
Number of Light Settings 1
Control Type Slider
Number of Speeds 3
Ventilation Features
Grease Filter Dishwasher Safe Aluminum Mesh
Dimensions
Overall Depth 21 Inches (53.34 CM)
Overall Height 10 Inches (25.4 CM)
Overall Width 36 Inches (91.44 CM)
Shipping Weight 30 43/50 LB

Dimensions
Height: 10"
Width: 36"
Depth: 21"
Duct Size: 6 in. round
Weight: 90 lbs.
Dimension
Depth: 21 in.
Height: 10 in.
Width: 36 in.
Features
Charcoal Filter: Optional
Convertible to Re-Circulating Installs: Yes
Duct Type: Convertible
Fan Speeds: 3
Heavy Duty Grease Filters: Yes
Type: Canopy
Variable Speed and ON/OFF Controls: Yes
Venting Style: Top or Rear Convertible
Washable Filters: Yes
Lighting: 2 Halogen
Duct Size: 6 in. round
Controls
Control Type: Infinite Slide
Capacity
Maximum Exhaust Capacity: 600 CFM
Electrical
Details: 15 Ampere, 120 Volts, 60 Hertz (1/second), USE COPPER WIRE ONLY. GROUNDED CIRCUIT IS REQUIRED. A TIME-DELAY FUSE OR CIRCUIT BREAKER AND SEPARATE CIRCUIT IS RECOMMENDED.
