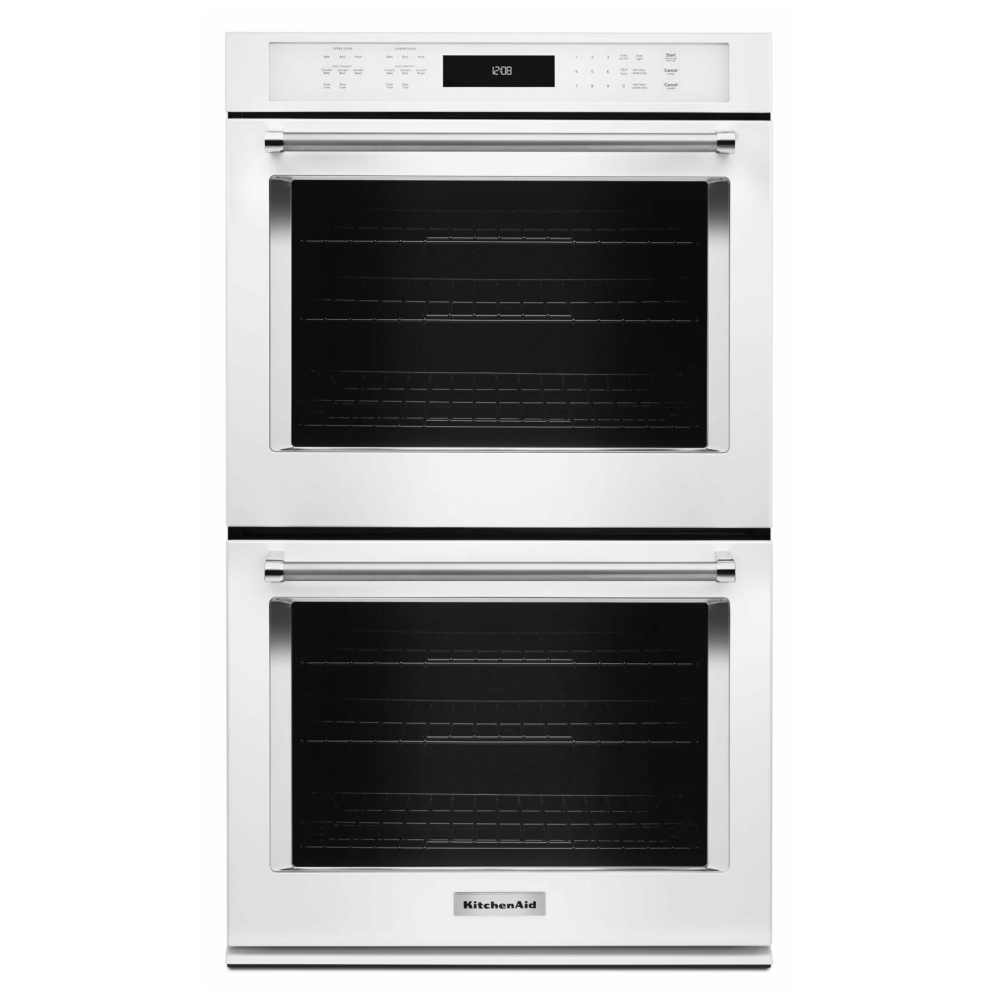

KODE507EWH KitchenAid 27 inch Double Wall Oven Canada Parts

Description & Features

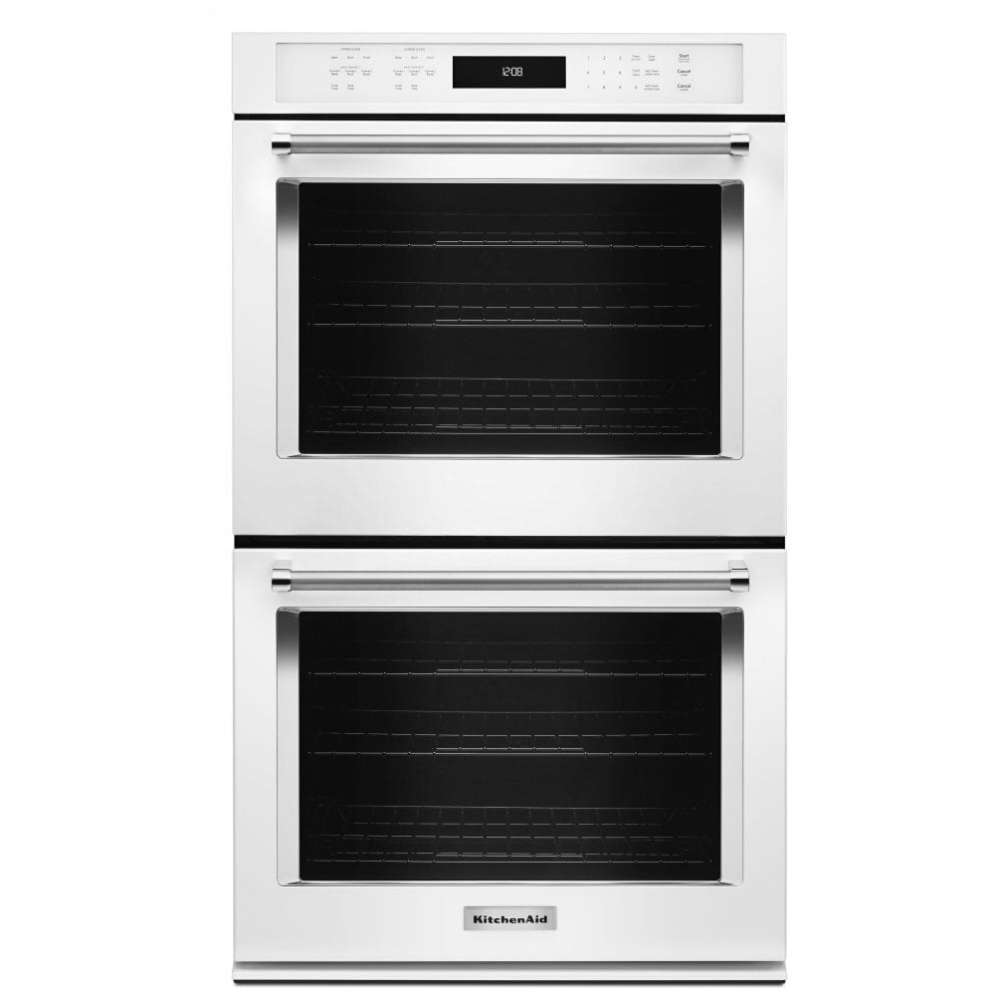

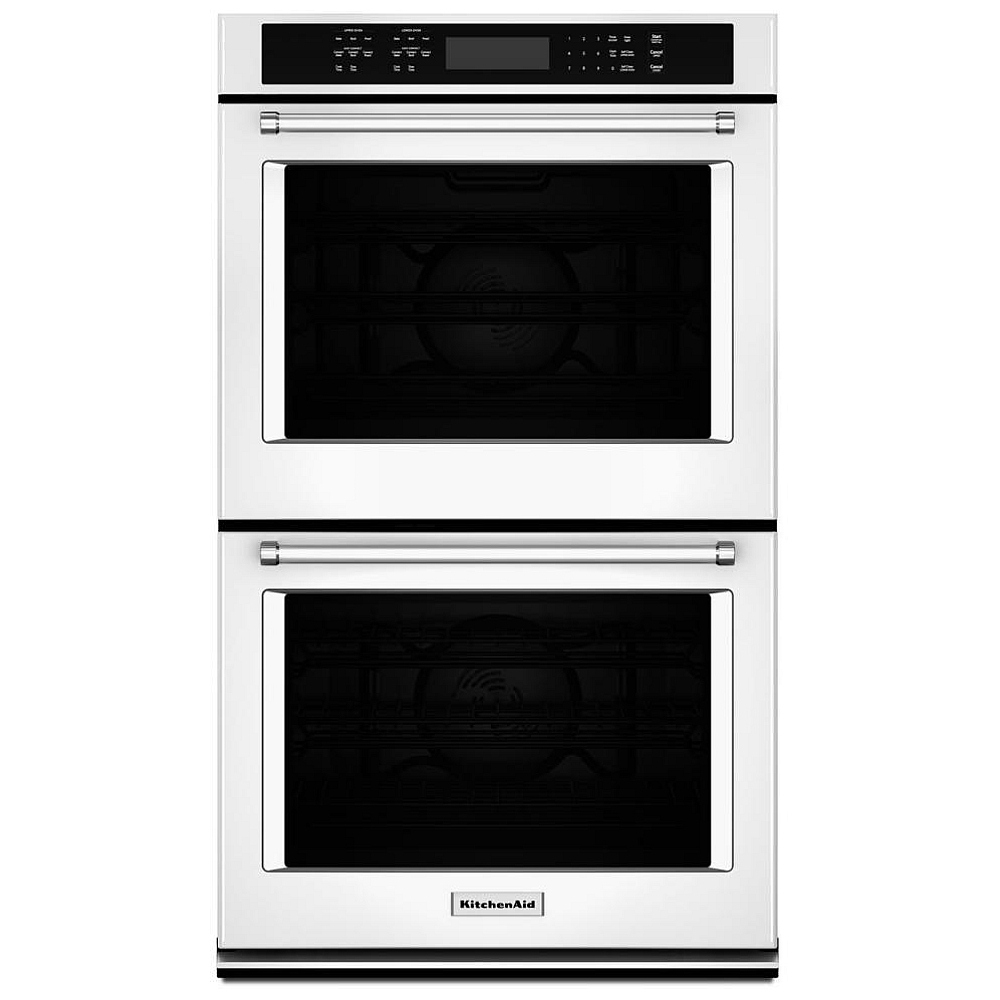

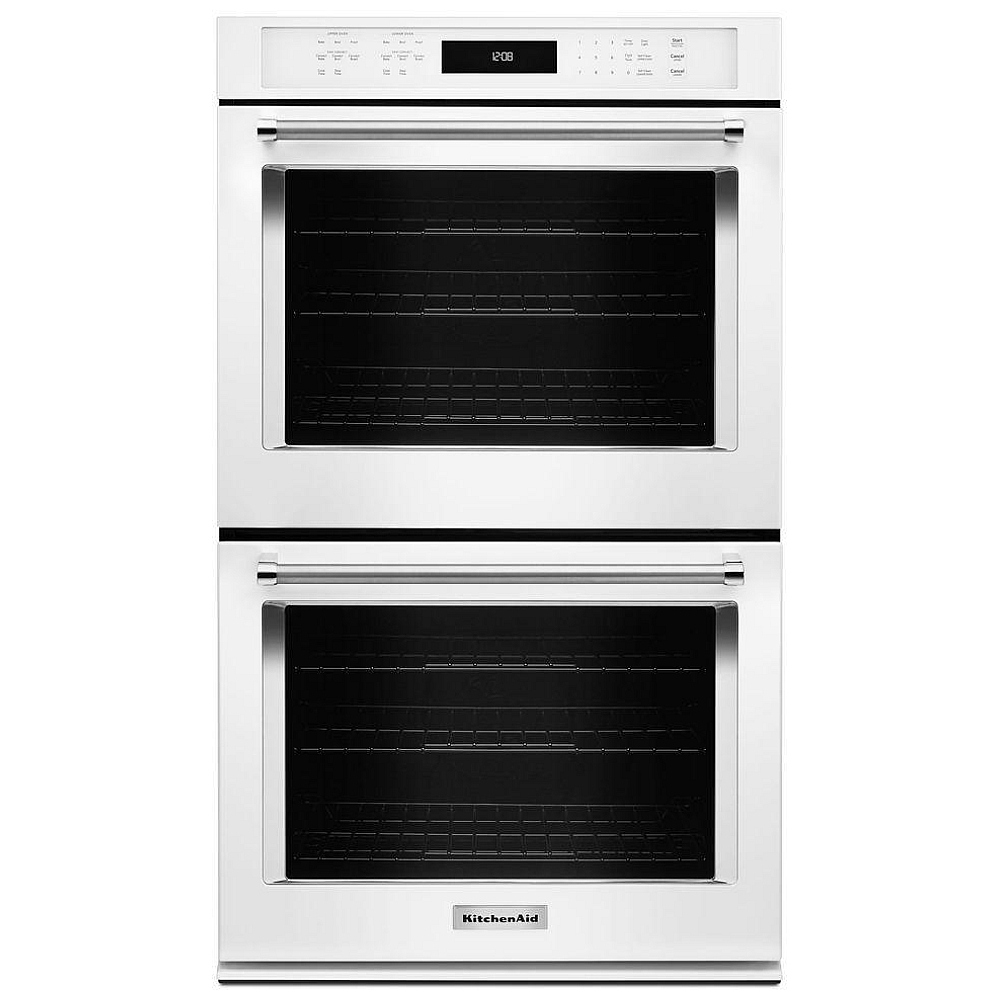

KitchenAid KODE507EWH Double Wall Oven, 27 inch Exterior Width, Both Ovens Convection, Both Ovens Self Clean, 8.6 cu. ft. Capacity, Temperature Probe, White colour

This 27" Double Wall Oven with Even-Heat™ True Convection provides consistent heating and even cooking. A unique bow-tie shaped design and convection fan helps ensure there are no burnt edges or undercooked centers. The Temperature Probe delivers accurate measurement of internal temperatures of meats, poultry, and casseroles without opening the oven. Bold design details are the perfect balance of elegance and functionality.

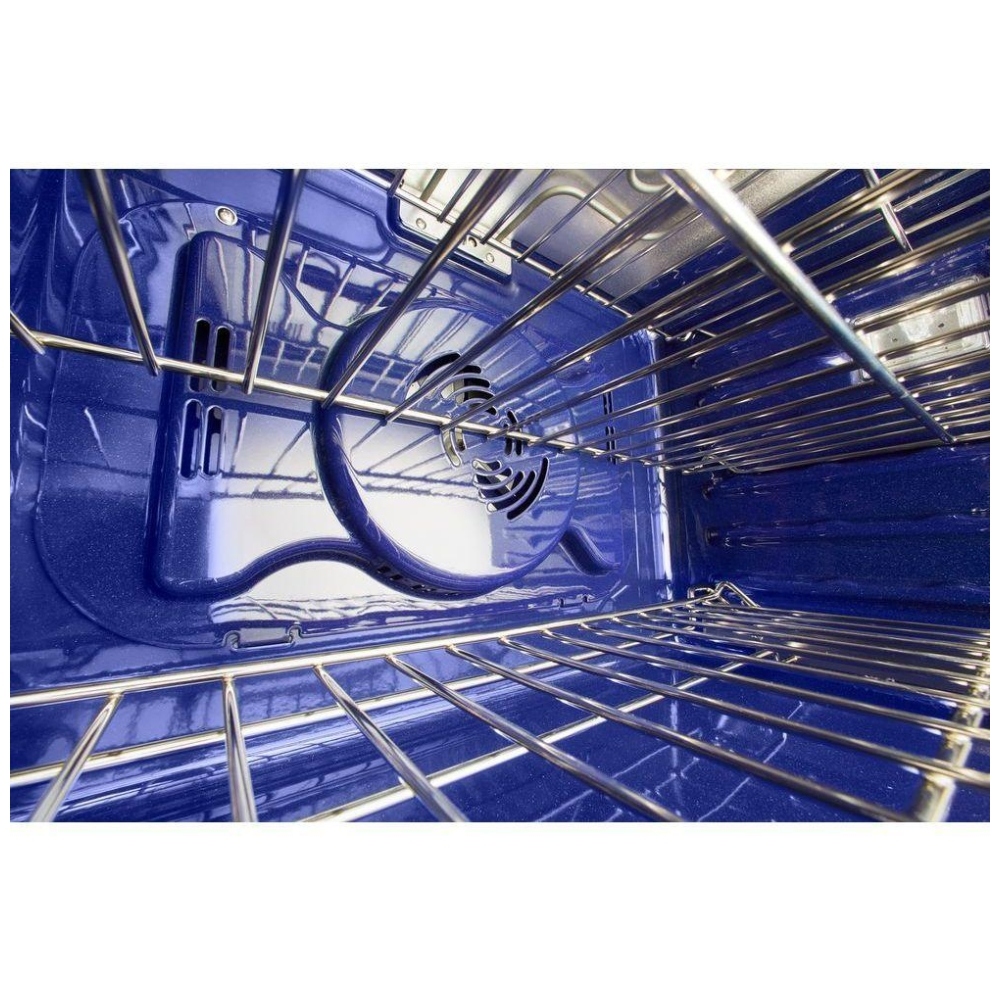

Even-Heat™ True Convection Oven (both ovens)
features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

Temperature Probe (both ovens)
Allows accurate measurement of internal temperature of meats, poultry, and casseroles without having to open the oven door.

EasyConvect™ Conversion System
Takes the guesswork out of convection cooking by ensuring exceptional results when experimenting with new recipes or familiar favorites.

4.3 Cu. Ft. Capacity
The spacious capacity simultaneously accommodates multiple dishes.

Even-Heat™ Preheat
Helps remove cold spots to help ensure even baking because the entire oven, including the walls and racks, are heated to the correct temperature.

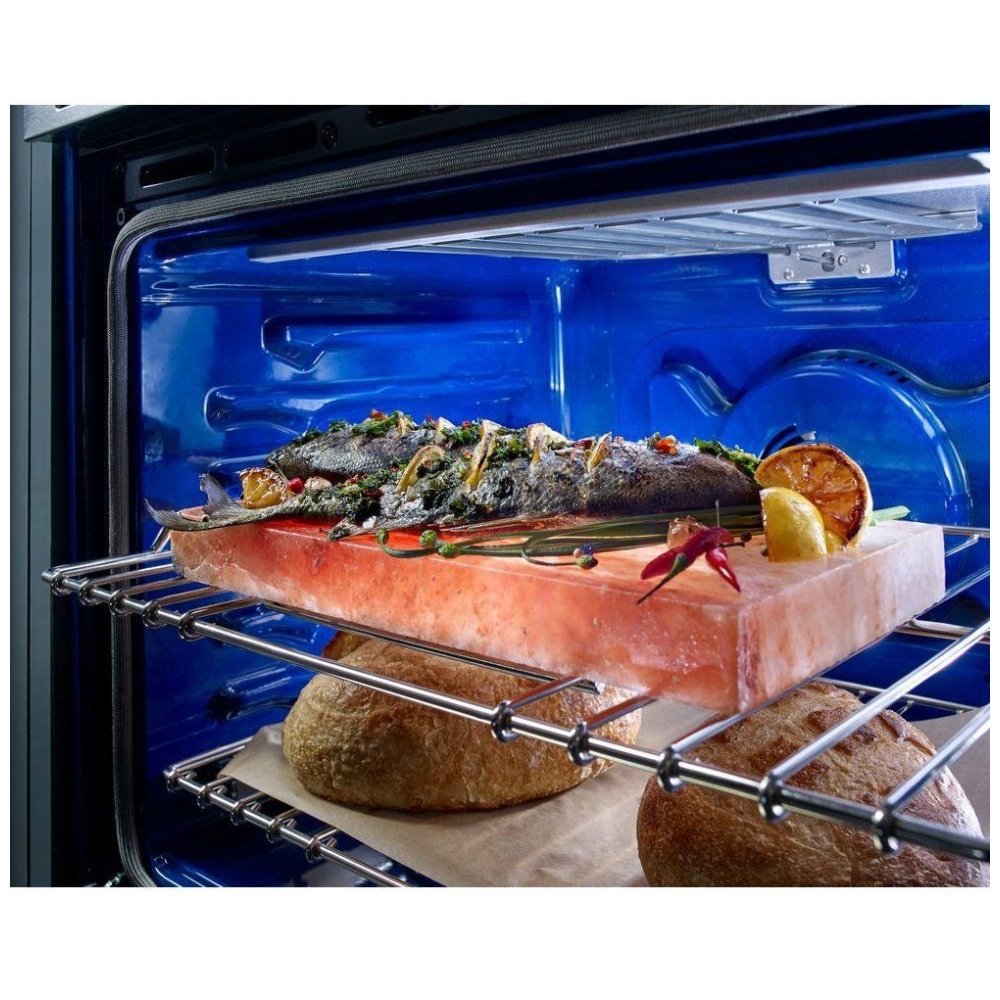

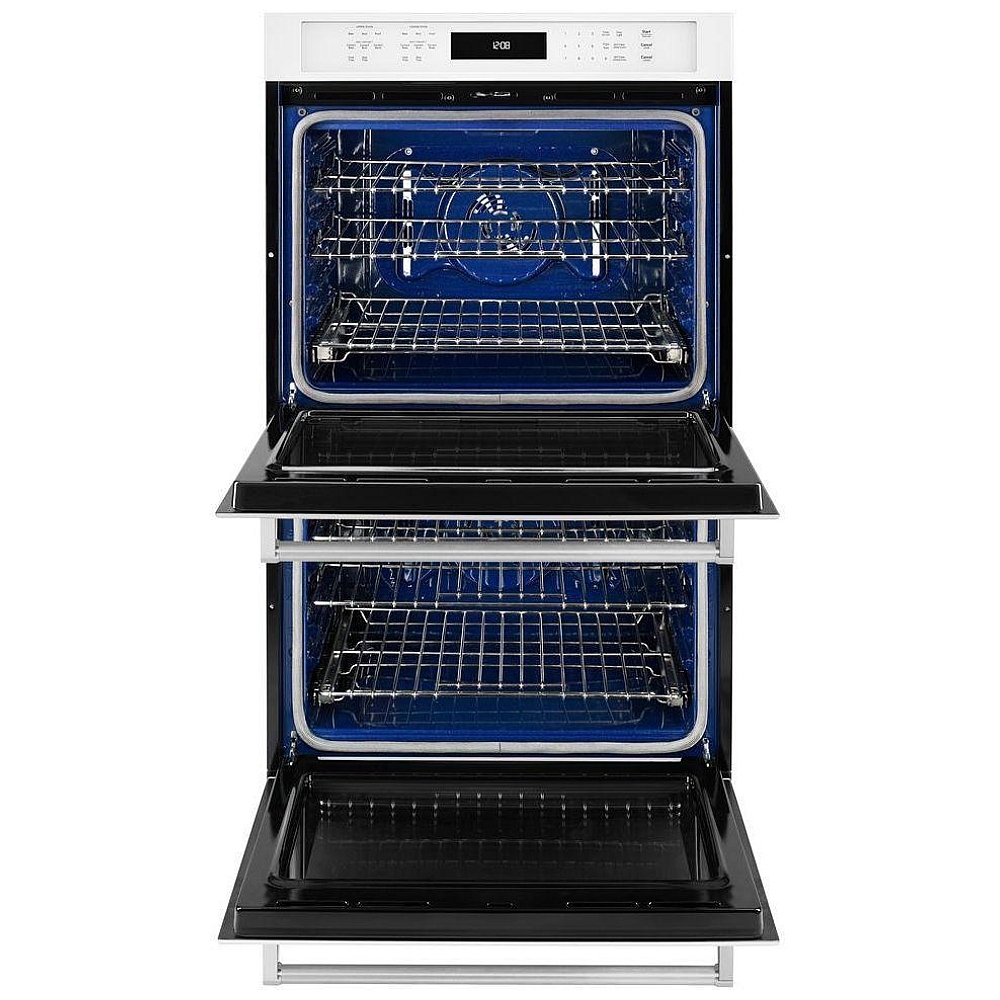

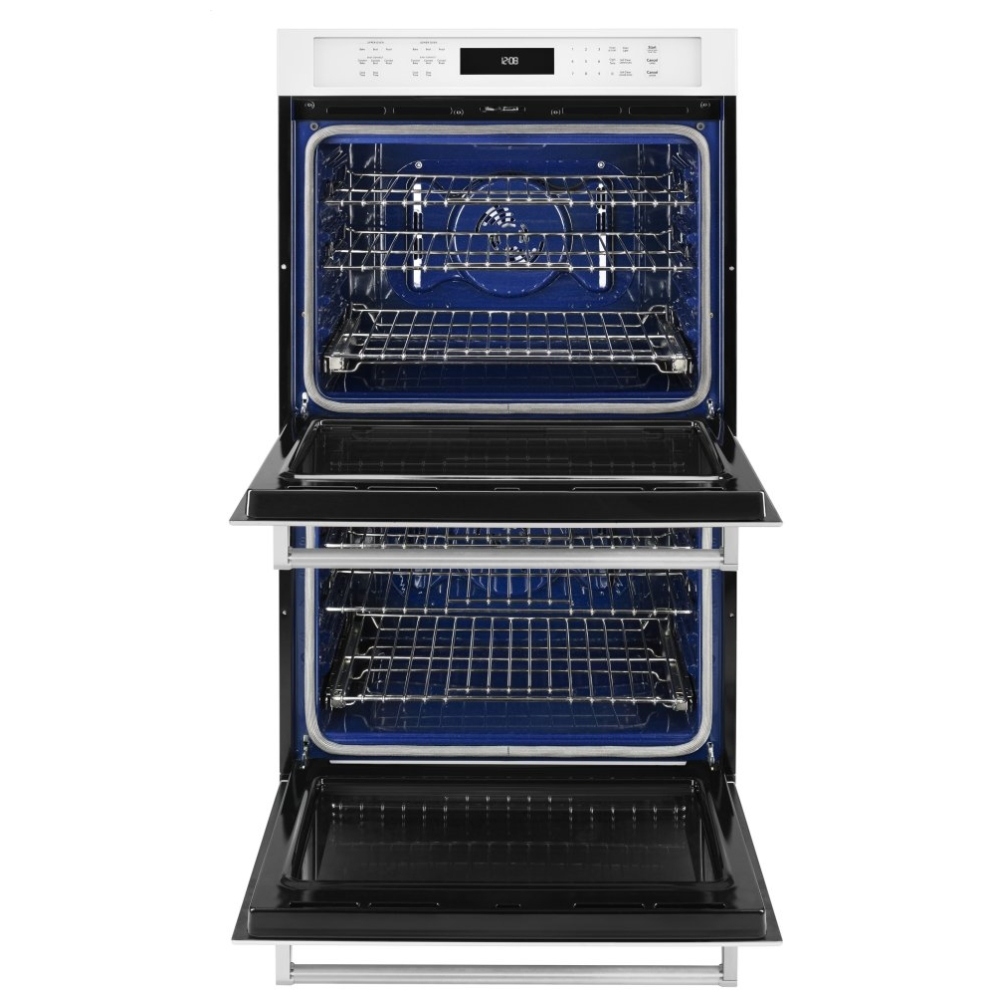

SatinGlide™ Roll-Out Extension Rack (both ovens)
Allows easy loading and features an easy-grip handle, giving you the confidence when cooking with large or heavy dishes.

FIT System Guarantee
Allows for customization of wall oven installation to match the height of existing cabinets through flexible design elements.

Self Cleaning Cycle
Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.

Even-Heat™ True Convection Oven (both ovens)

features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

Temperature Probe (both ovens)

Allows accurate measurement of internal temperature of meats, poultry, and casseroles without having to open the oven door.

EasyConvect™ Conversion System

Takes the guesswork out of convection cooking by ensuring exceptional results when experimenting with new recipes or familiar favorites.

4.3 Cu. Ft. Capacity

The spacious capacity simultaneously accommodates multiple dishes.

Even-Heat™ Preheat

Helps remove cold spots to help ensure even baking because the entire oven, including the walls and racks, are heated to the correct temperature.

SatinGlide™ Roll-Out Extension Rack (both ovens)

Allows easy loading and features an easy-grip handle, giving you the confidence when cooking with large or heavy dishes.

FIT System Guarantee

Allows for customization of wall oven installation to match the height of existing cabinets through flexible design elements.

Self Cleaning Cycle

Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.

Manufacturer's Warranty: 1 year

UPC: 883049363028

EAN: 0883049363028

Specs

Details
Upper Oven Interior Height(IN,inches)	18
Convection Element Power (watts)	3,200
Interior Coating	Porcelain
Delay Clean	Yes
Number of Lower Rack Guides	6
Number of Upper Oven Racks	3
Number of Lower Oven Racks	3
Oven Rack 2 Type	Standard
Interior Color	Black
Lower Oven Number of Oven Lights	2
Upper Oven Interior Depth(IN,inches)	19
Upper Oven Interior Width(IN,inches)	22
Lower Oven Interior Depth(IN,inches)	19
Broiler Location	Top of Oven
Lower Oven Interior Width(IN,inches)	22
Self-Cleaning Oven Racks	No
Oven Cooking System	Convection Both
Oven Rack 1 Type	Standard
Oven Rack 3 Type	Gliding Roll-Out
Light Control	Oven Light Touch Pad
Oven Cleaning Type	Adjustable Self Cleaning
Style	Wall Ovens
Convection Element Type	True
Hidden Bake Element	Yes
Convection Functions	Bake Broil Roast Both
Lower Oven Interior Height(IN,inches)	18
Number of Bake Elements	1
Bake Element Power	2,800 W
Upper Oven Number of Oven Lights	2
Number of Upper Rack Guides	6
Number of Broil Elements	1

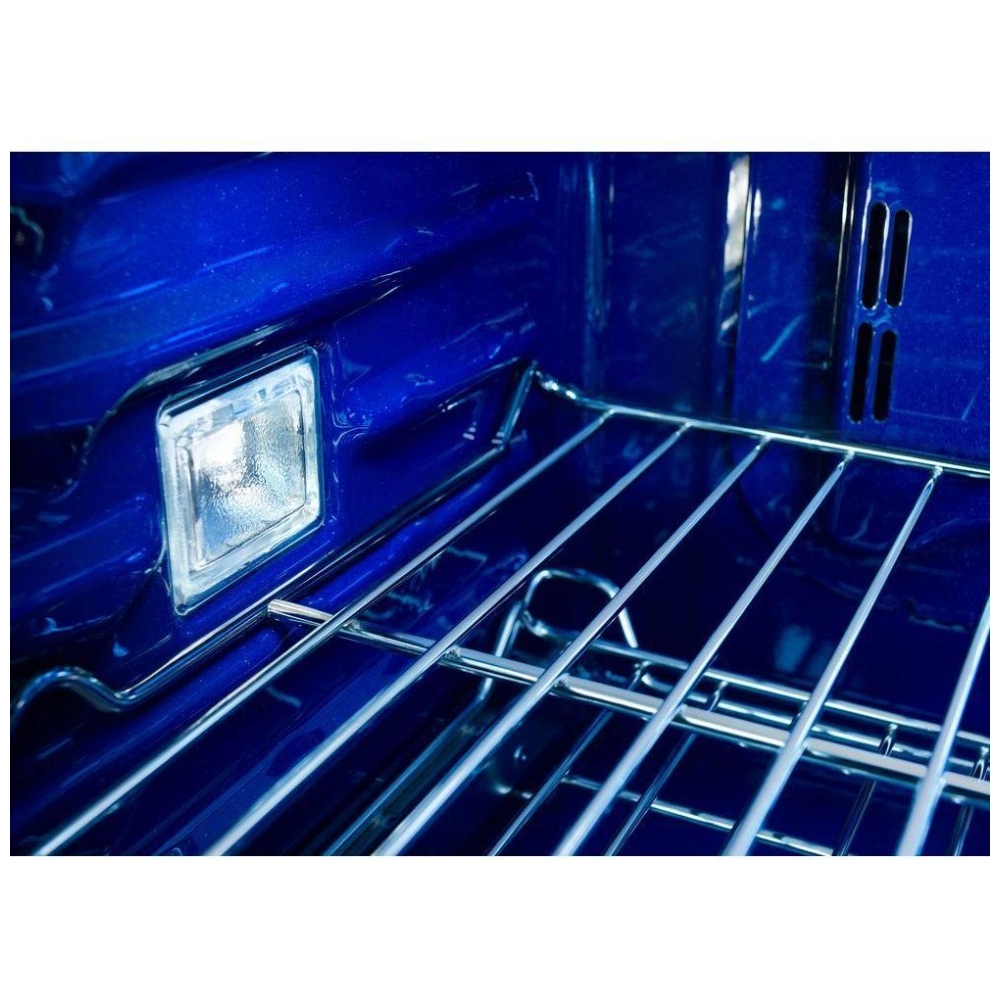

Light Type	Halogen
Automatic Shut-Off	Yes
Broiler Element Power	4,000 W Both
Door Broil Position	Closed
Description
Fuel Type	Electric
Oven Type	Double
Size (in.)	27
Configuration
Oven Configuration	Double Oven
Refinement KAD
Temperature Probe	Temperature Probe
Certifications
CUL	Yes
Energy Rating (kWh/year)	325
Prop 65	Standard
UL	Yes
General
EasyConvect™ Conversion	EasyConvect™ Conversion
Accessory Relationships	Yes
FIT System	FIT System
Self Clean	Self Clean
Even-Heat™ Preheat	Even-Heat™ Preheat
Even-Heat™ True Convection	Even-Heat™ True Convection
Width Doors Open 90 Degrees	46.750
SatinGlide™ Roll Out Extension Rack	SatinGlide™ Roll Out Extension Rack
Controls

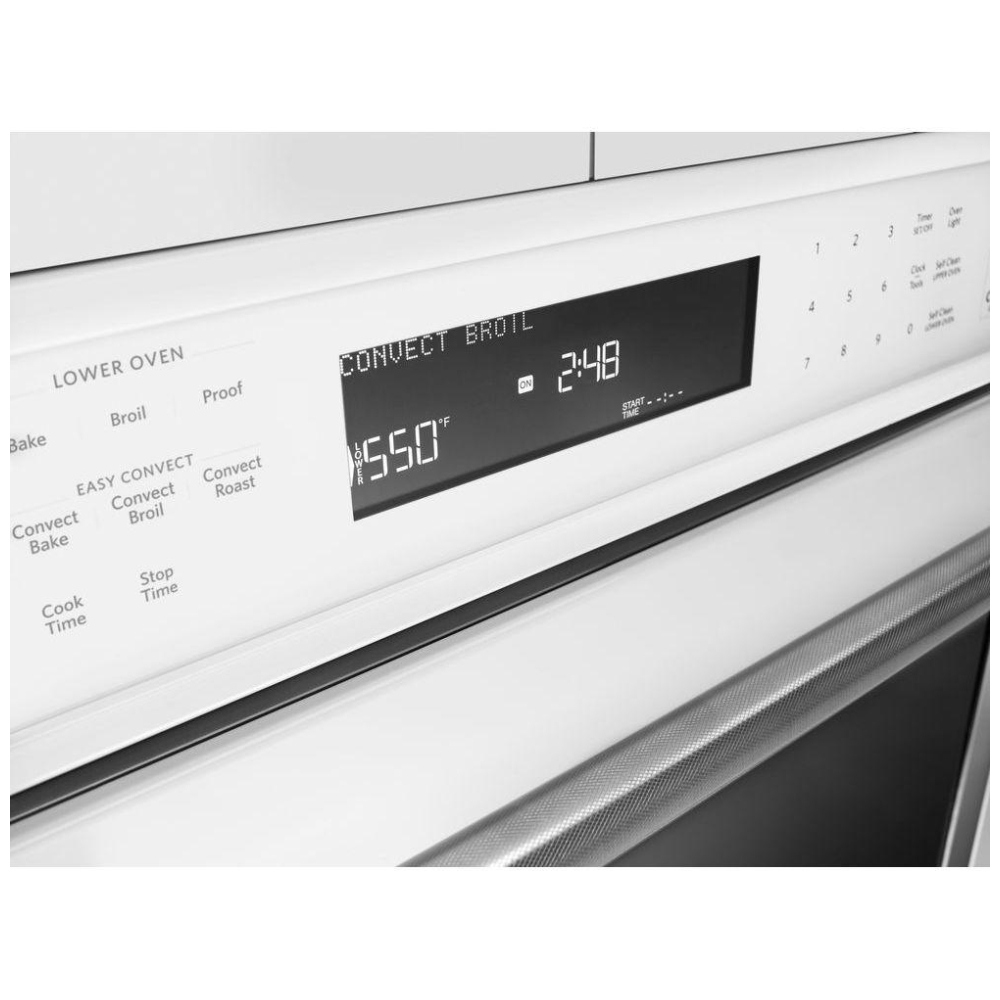

Control Type	Glass Touch Digital Display
Display Color	White
Electronic Display Type	Digital
Dimensions
Carton Width(IN,inches)	31 1/2
Capacity(FT3,cubic feet)	8.60
Lower Oven Capacity (Cu Ft.)	4.3
Upper Oven Capacity (Cu Ft.)	4.3
Carton Depth(IN,inches)	30 13/16
Carton Height(IN,inches)	53 1/2
Cutout Height Min(IN,inches)	50 1/4
Width(IN,inches)	27
Gross Weight(LB,pounds)	240
Features
Oven Selections	Clock,Control Lock,Delay Start,Proofing,Sabbath Mode,Star K,Temperature Probe,Time Bake,Timer
Temperature Conversion	Yes
Language Conversion	English/French
LP Convertible	No
Electrical
Volts	240
Amps	40
Exterior
Door Lock	Yes
Flush Installation Approved	Yes
Installable Under Cooktop	No
Oven Window Size	Extra Large
Door Removable	Yes
Door Type	Metal & Glass
Handle Material	Metal
Handle Color	Stainless Steel

Dimensions
Depth	27 1/8
Width	27
Height	51 1/4
Carton Depth	30 13/16
Carton Height	53 1/2
Carton Width	31 1/2
Cutout Depth	24
Cutout Height	50 1/4
Cutout Width	25 1/2
Depth With Door Open 90 Degree	46 3/4
Gross Weight	240
Net Weight	220.0
Capacity (cubic feet)	8.60

Certifications
Prop 65	Standard
CUL	Yes
UL	UL

Configuration and Overview
Oven Type	Double
Fuel Type	Electric
Size (IN,inches)	27
Installable Under Cooktop	No
LP Convertible	No

Oven Details
Door Removable	Yes
Door Lock	Yes
Language Conversion	English/French
Automatic Shut-Off	Yes
Temperature Conversion	Yes
Interior Color	Black
Number of Bake Elements	1
Door Broil Position	Closed
Number of Broil Elements	1
Hidden Bake Element	Yes
Convection Functions	Bake Broil Roast Both
Broiler Location	Top of Oven
Interior Coating	Porcelain
Oven Cooking System	Convection Both
Light Control	Oven Light Touch Pad
Light Type	Halogen
Lower Oven Number of Oven Lights	2
Upper Oven Number of Oven Lights	2
Number of Lower Oven Racks	3
Number of Lower Rack Guides	6
Number of Upper Oven Racks	3
Number of Upper Rack Guides	6
Delay Clean	Yes
Self-Cleaning Oven Racks	No
Lower Oven Interior Depth(IN,inches)	19
Lower Oven Interior Height(IN,inches)	18
Lower Oven Interior Width(IN,inches)	22
Upper Oven Interior Depth(IN,inches)	19
Upper Oven Interior Height (IN,inches)	18
Upper Oven Interior Width(IN,inches)	22

Exterior
Oven Door	Metal & Glass
Oven Window Size	Extra Large
Handle Color	Stainless Steel

Controls
Display Color	White
Control Type	Glass Touch Digital Display
Electronic Display Type	Digital

Appearance
Flush Installation Approved	Yes
Handle Material	Metal

Details
Convection Element Type	True
Broiler Element Power	4000W Both
Convection Element Power (watts)	3200
Bake Element Power	2800W
Oven Rack 1 Type	Standard
Oven Rack 2 Type	Standard
Oven Rack 3 Type	Gliding Roll-Out
Oven Cleaning Type	Adjustable Self Cleaning

Features
Selection	Control Lock,Proofing,Delay Start,Sabbath Mode,Clock,Temperature Probe,Star K,Timer,Time Bake

Electrical
Amps	40
Volts	240

Configuration
Oven Configuration	Double Oven

Refinements
KAD Wall Ovens	EasyConvect™ Conversion,Even-Heat™ True Convection,FIT System,SatinGlide™ Roll Out Extension Rack,Self Clean

Energy
Annual Energy Usage [kWh]	410

Refinement
Style	Wall Ovens

Refinement KAD
Even-Heat™ Preheat	Even-Heat™ Preheat
FIT System	FIT System
SatinGlide™ Roll Out Extension Rack	SatinGlide™ Roll Out Extension Rack
Self Clean	Self Clean
Temperature Probe	Temperature Probe
EasyConvect™ Conversion	EasyConvect™ Conversion
Even-Heat™ True Convection	Even-Heat™ True Convection
