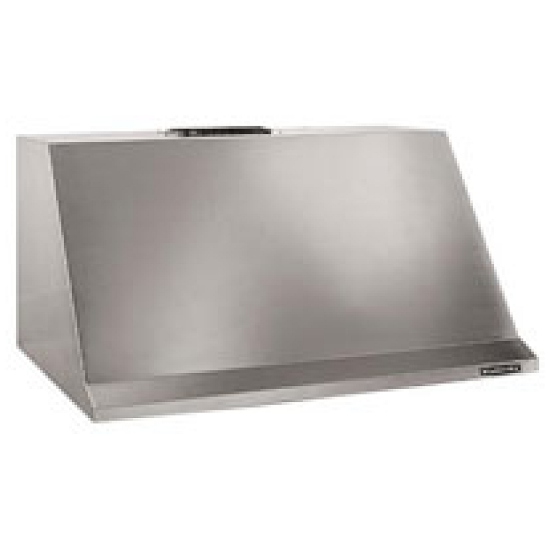

KitchenAid KWCU300LSS
Discontinued
>> View & Compare KitchenAid Built In Cooking Line Up << >> View & Compare KitchenAid Built In Cooking Line Up <<
>> View & Compare KitchenAid Ventilation Line Up << >> View & Compare KitchenAid Ventilation Line Up <<
3YF8QQ
Why Buy This at CAS?
In Home Delivery
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Price Match & Beat Guarantee: We beat any competitor’s price!*
3YF8QQ
When will I get this?

Why Buy This at CAS?
In Home Delivery
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Price Match & Beat Guarantee: We beat any competitor’s price!*
Description & Features
This Architect® Series classic commercial-style canopy hood offers a professional look and unmatchable performance, including your choice of top or direct rear venting.
  • 600 CFM Internal Blower
  • Three-Speed Control
  • Hidden Control Panel Under Canopy with 3 Slide Switches
  • Top or Rear Ducting
  • 3 Halogen Lights
  • Heavy-Duty Baffle Grease Filters - Dishwasher Safe
  • Optional Stainless Steel Backsplash
  • Optional Chimney Extension Kit Available
  • Optional Full-Width Duct Cover
  • Optional Full-Width Duct Cover

Manufacturer's Warranty: 1 year

Specs
Electrical Requirements
Amperage 15 Amps.
Frequency 60 Hz.
Voltage 120 V.
Wire Connection Use copper wire only.
Comment Text A grounded circuit is required.
Comment Text 2 A time-delay fuse or circuit breaker and separate circuit is recommended.
Type
VentilationType Top or Rear Vented
Performance
Blower Type All Metal Pro Motor
Duct Outlet Size 3 1/4" X 10"
Duct Outlet Type Rectangular
CFM (Horizontal, Rectangular) 600
CFM (Vertical, Rectangular) 600
Lighting / Controls
Number of Speeds 3
Number of Cooktop Lights 3
Cooktop Light Type Halogen
Control Type Slider
Number of Light Settings 1
Ventilation Features
Grease Filter Hvy. Duty Baffle Filters (DW S
Dimensions
Product Depth 25 Inches
Product Height 18 3/16 Inches
Product Width 30 Inches
Shipping Weight 48 LB
Cutout Width 30 Inches
Canopy Height 18 3/16 Inches
Dimensions
Duct Size: 3-1/4 in. x 10 in. Rectangular
Weight: 46 lbs.
Depth: 25 3/16 in
Height: 18 3/16 in.
Width: 30 in.
Canopy Height: 18 3/16 in.
Features
Covered Light: Yes
Duct Type: Convertible
Fan Speeds: 3
Heavy Duty Grease Filters: Yes
Twin Blower: Yes
Type: Canopy
Variable Speed and ON/OFF Controls: Yes
Venting Style: Top or Rear Convertible
Washable Filters: Yes
Lighting: 3 Halogen
Duct Size: 3-1/4 in. x 10 in. Rectangular
Controls
Control Type: Hidden
Capacity
Maximum Exhaust Capacity: 600 CFM
Electrical
Details: 15 Ampere, 120 Volts, 60 Hertz (1/second), USE COPPER WIRE ONLY. GROUNDED CIRCUIT REQUIRED. A TIME-DELAY FUSE OR CIRCUIT BREAKER AND SEPARATE CIRCUIT IS RECOMMENDED.
