Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).
- We back these Maytag® cooktops for cooking you can count on year after year with a 10-year limited parts warranty on the glass cooktop and elements.
- The 12/9-inch Dual-Choice™ element gives you the ability to cook with the pan you want and the power you need. Control a slow, even saut(eback) and then intensify the heat for searing.
- As a long-standing American company, we pack over a century of knowledge, experience and dependability into every product.
- Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
- When making the flip between grill and griddle, two built-in handles provide hassle-free movement to and from the cooktop.
- Built with heavy-duty, die-cast metal knobs to give you dependable and responsive power control.
- Illuminates when the cooktop surface is hot to the touch, even after the heating element has been turned off.

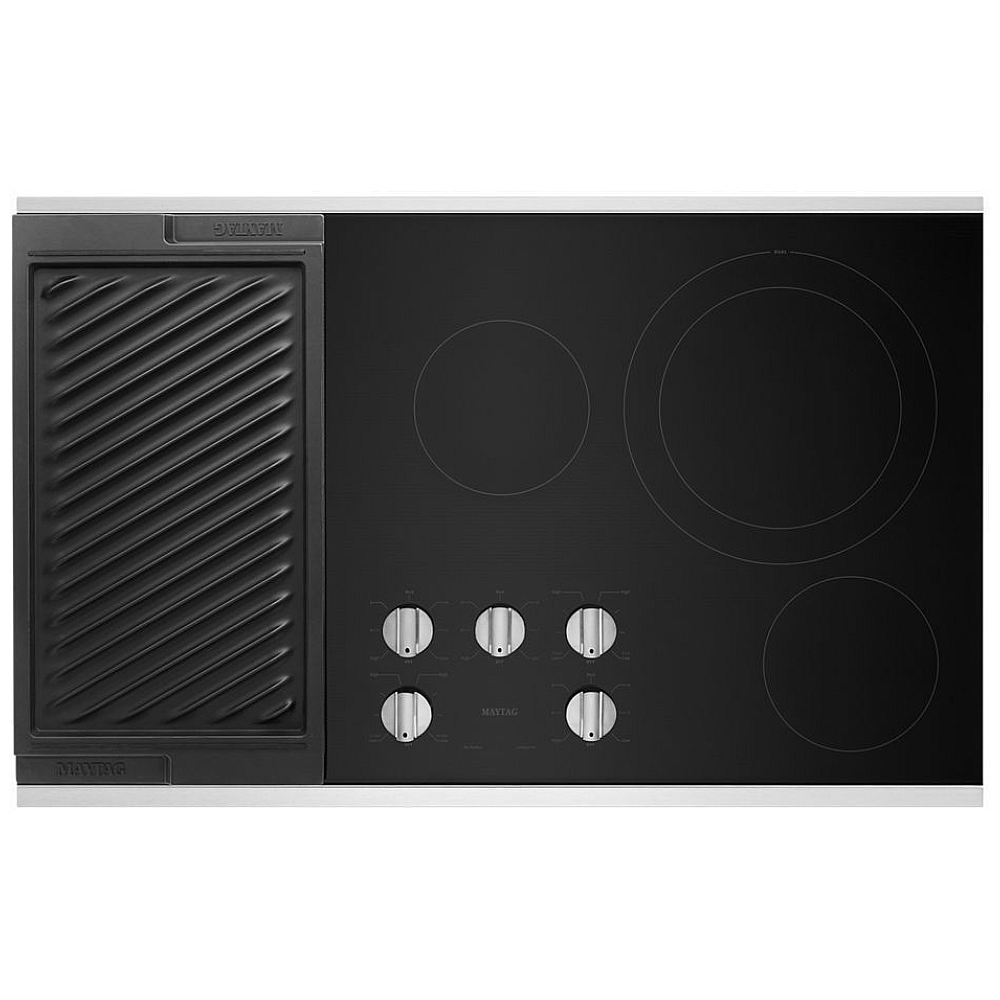

- Boil, pan fry, grill, sear, flip and griddle. No matter what you're bringing to the table, Maytag brings the heat with an exclusive electric cooktop with the reversible grill and griddle.

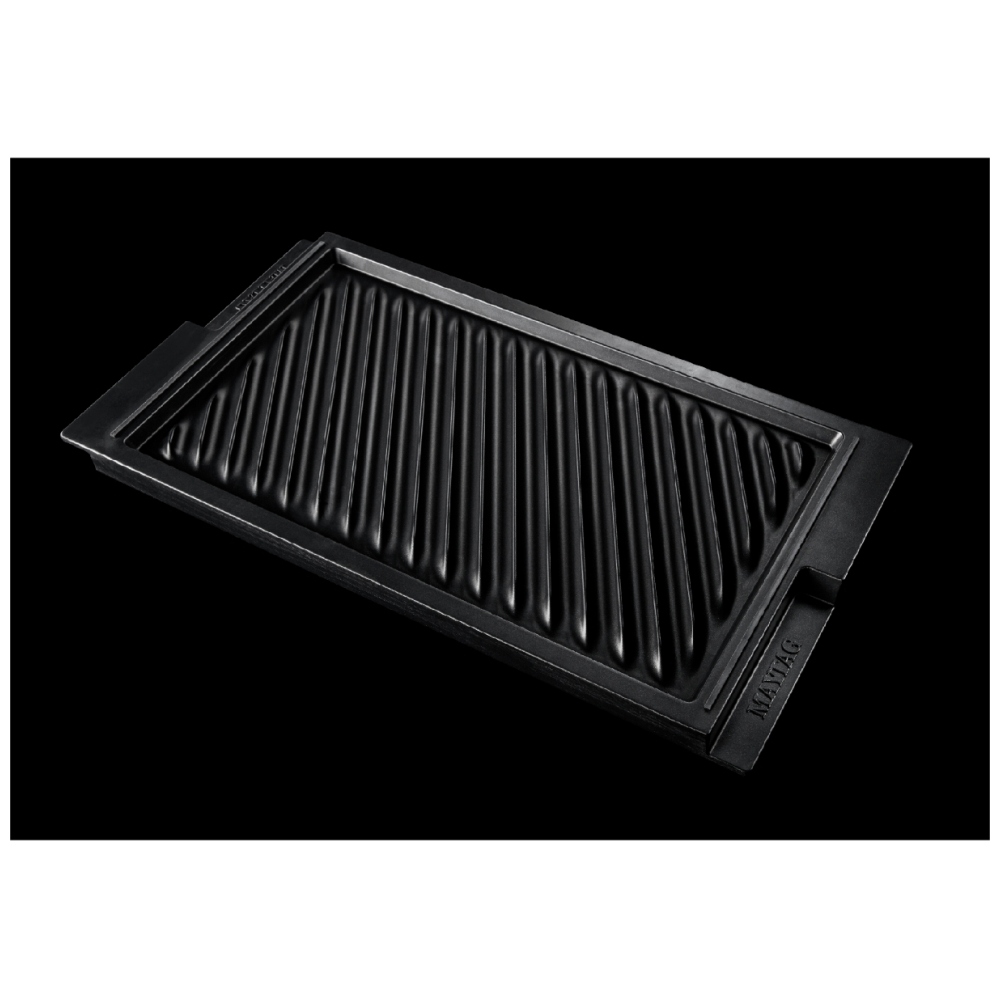

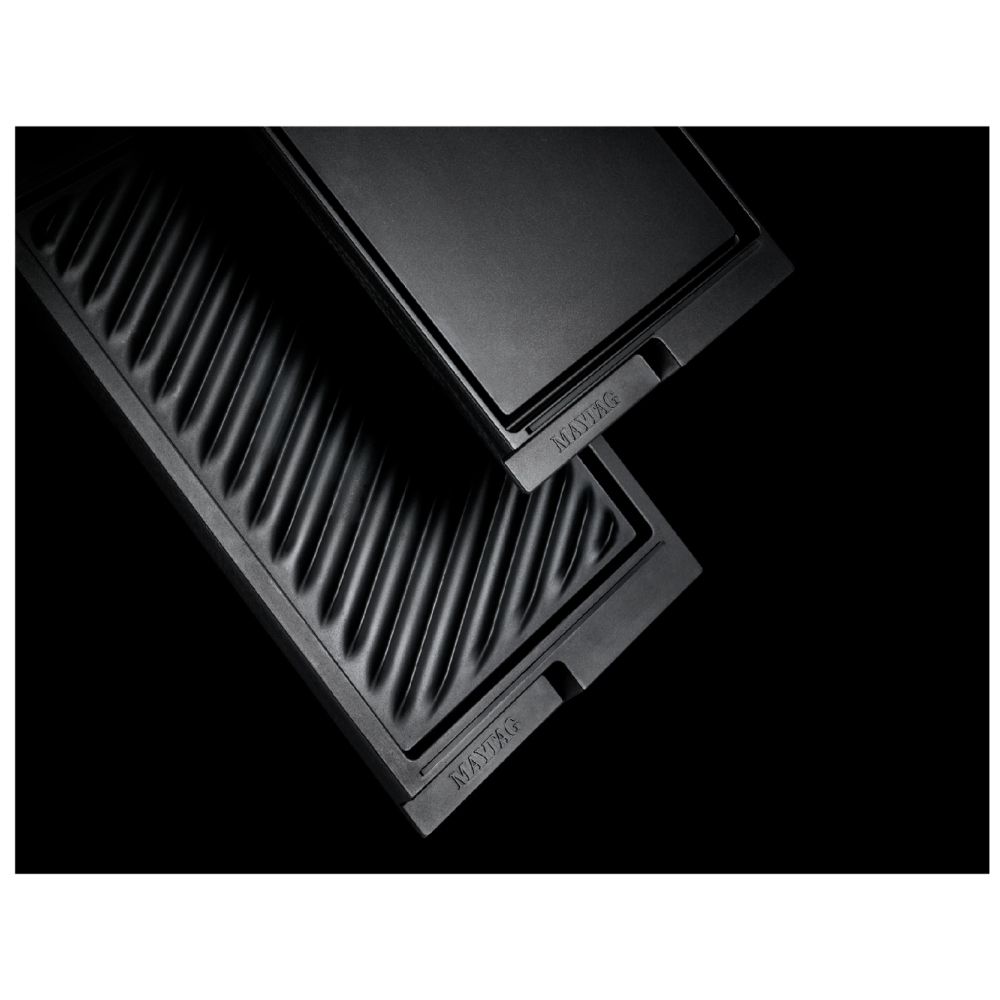

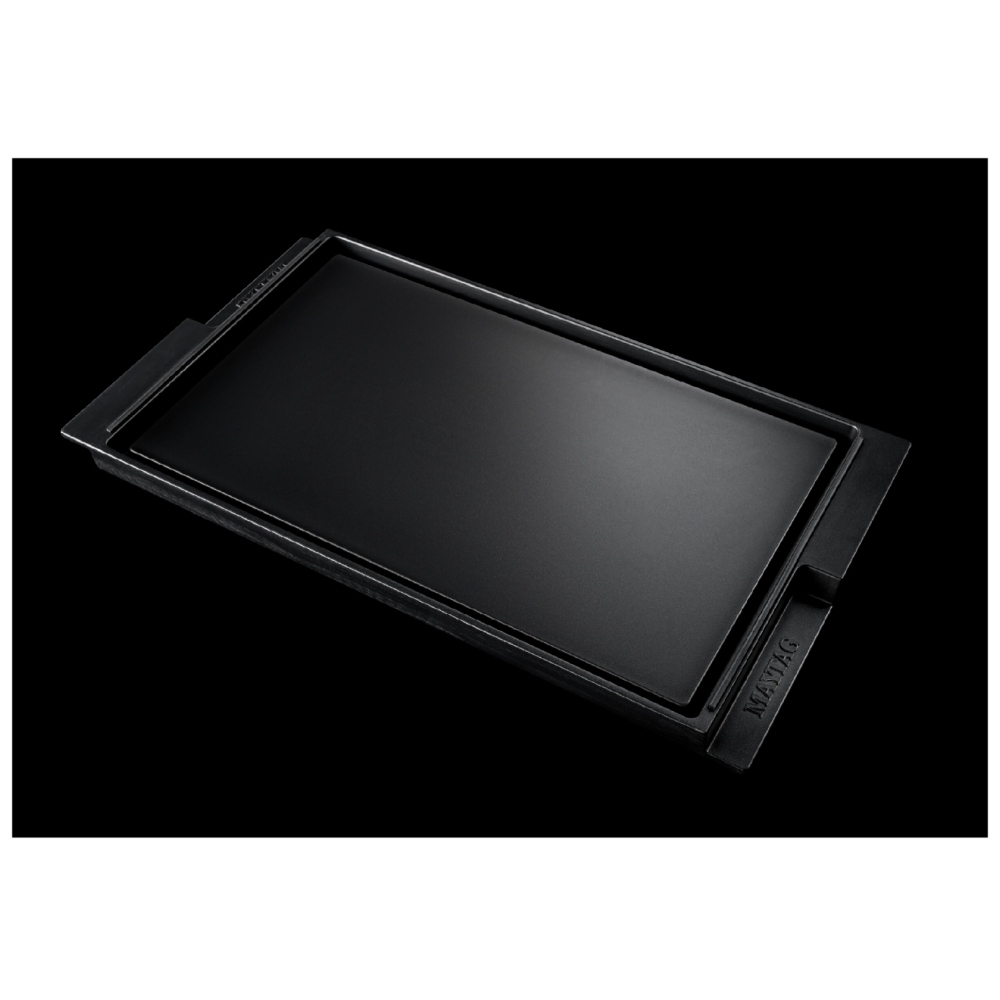

- The reversible grill and griddle evenly distributes heat across a large surface. It preheats to 350 F quickly for meals that hit the table fast.

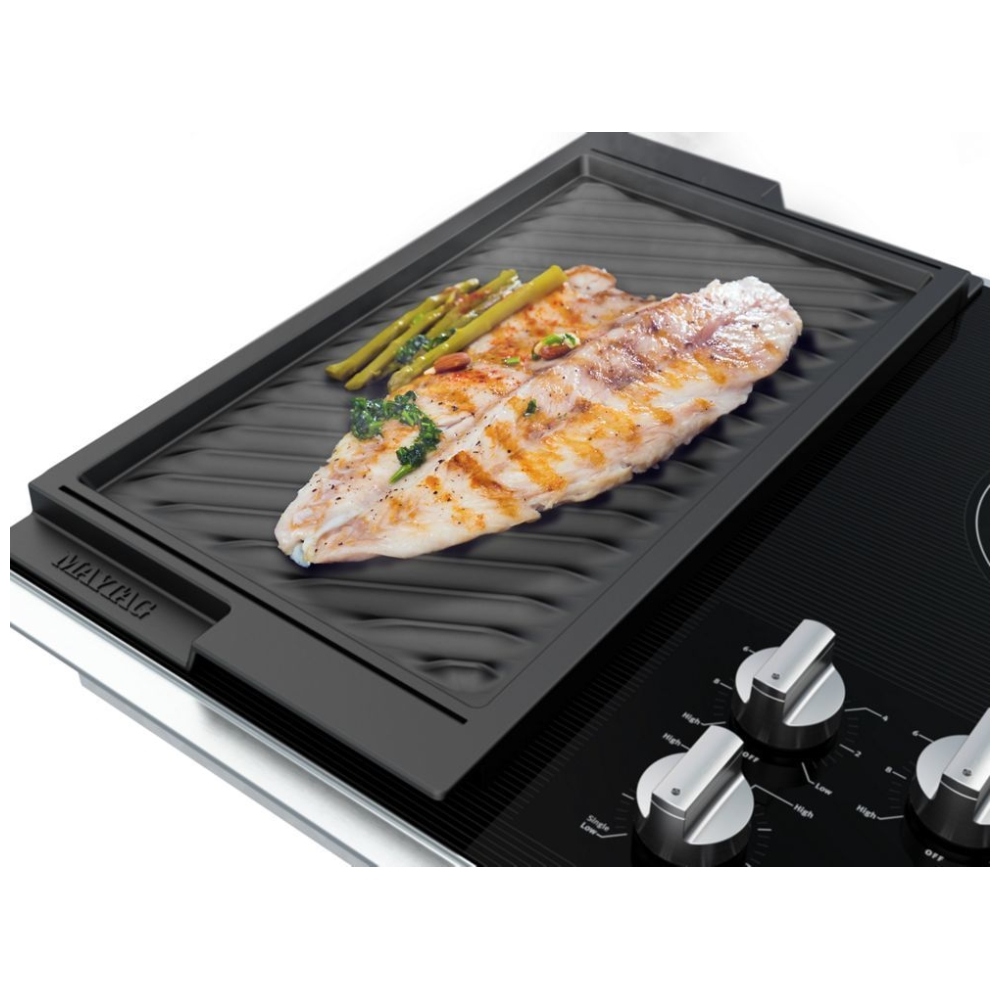

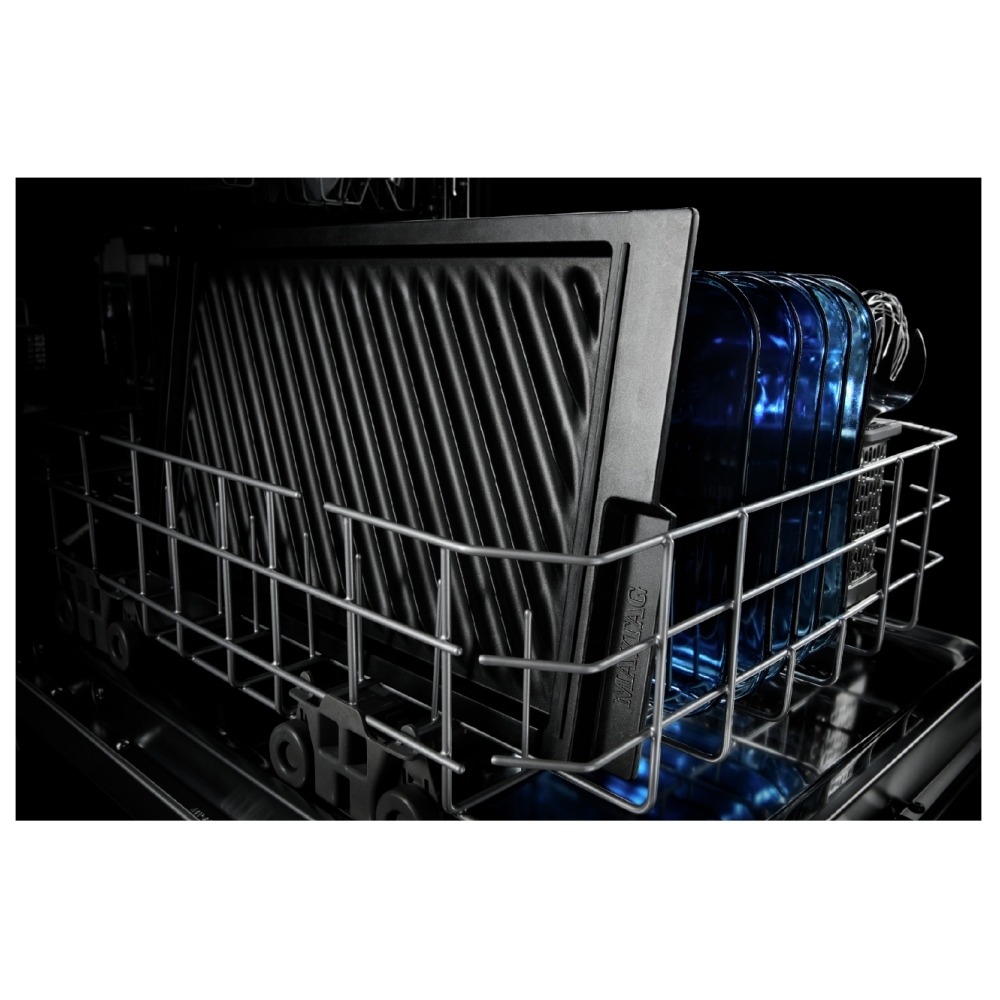

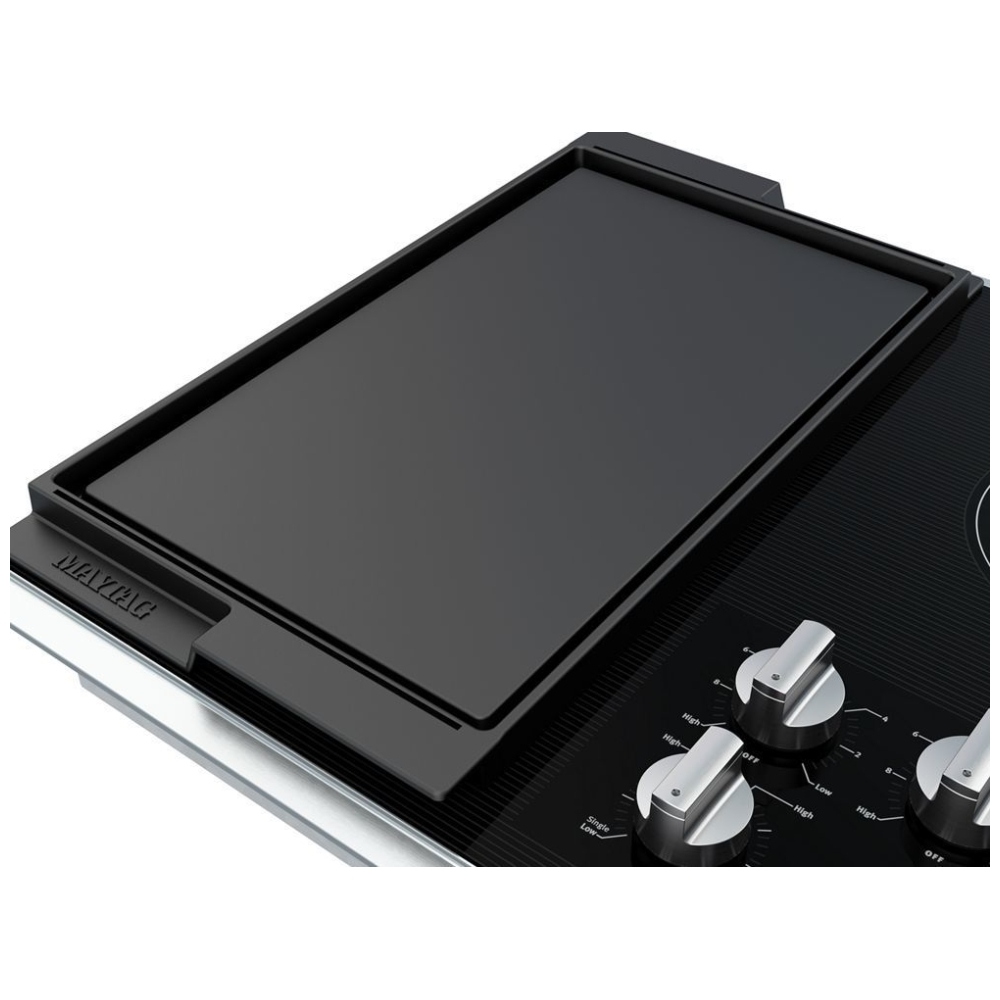

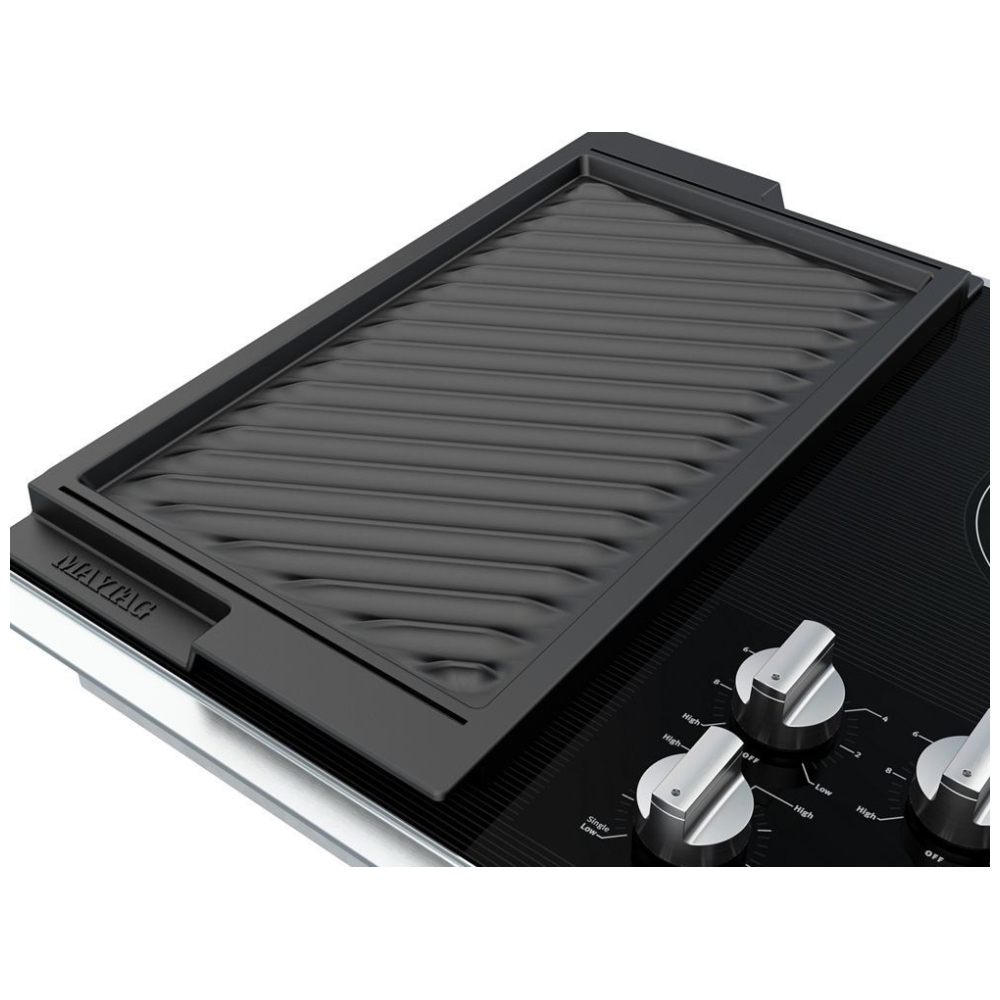

- Crank up the bridge element with the reversible grill and griddle for grilling burgers and flipping stacks of pancakes. Throw the pan into the dishwasher for easy cleanup. Rubber grips reduce slipping and scratching to ensure safe placement on the cooktop.
Manufacturer's Warranty: 1 year
UPC: 883049472997
EAN: 0883049472997
Certifications | |
Ada Compliant | ADA Height and Operation Compliant |
Prop65 | Standard |
Controls | |
Control Location | Front |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Digital Display | No |
Griddle Included | Included |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Combinations With Oven | MEW9527; MEW9530 |
Cooktop Configuration | Burners with Integrated Grill and Griddle |
Fuel Type | Electric |
Installs Over Built-in Oven | Yes |
Lp Convertible | No |
Power Outage Compatible | No |
Dimensions | |
Product Height | 5.25 |
Carton Height | 9.25 |
Gross Weight | 54 |
Carton Width | 40.75 |
Product Depth | 5.25 |
Cutout Depth Max | 20.563 |
Cutout Width Min | 34.563 |
Cutout Depth | 20.375 |
Carton Depth | 25 |
Cutout Width | 34.563 |
Cutout Depth Min | 20.375 |
Cutout Width Max | 35.563 |
Net Weight | 48 |
Product Width | 36.0625 |
Electrical | |
208v Compatible | Yes |
Power Cord Included | No |
Element/burner Details | |
Center Rear Element-burner Power | 1,200W |
Center Rear Element-burner Size | 6in. |
Center Rear Element-burner Type | Standard |
Cooktop Element Style | Radiant |
Cooktop Type | Standard |
Left Front Element-burner Power | 1,800W |
Left Front Element-burner Size | 8in. |
Left Front Element-burner Type | Bridge |
Left Rear Element-burner Power | 1,800W |
Left Rear Element-burner Size | 8in. |
Left Rear Element-burner Type | Bridge |

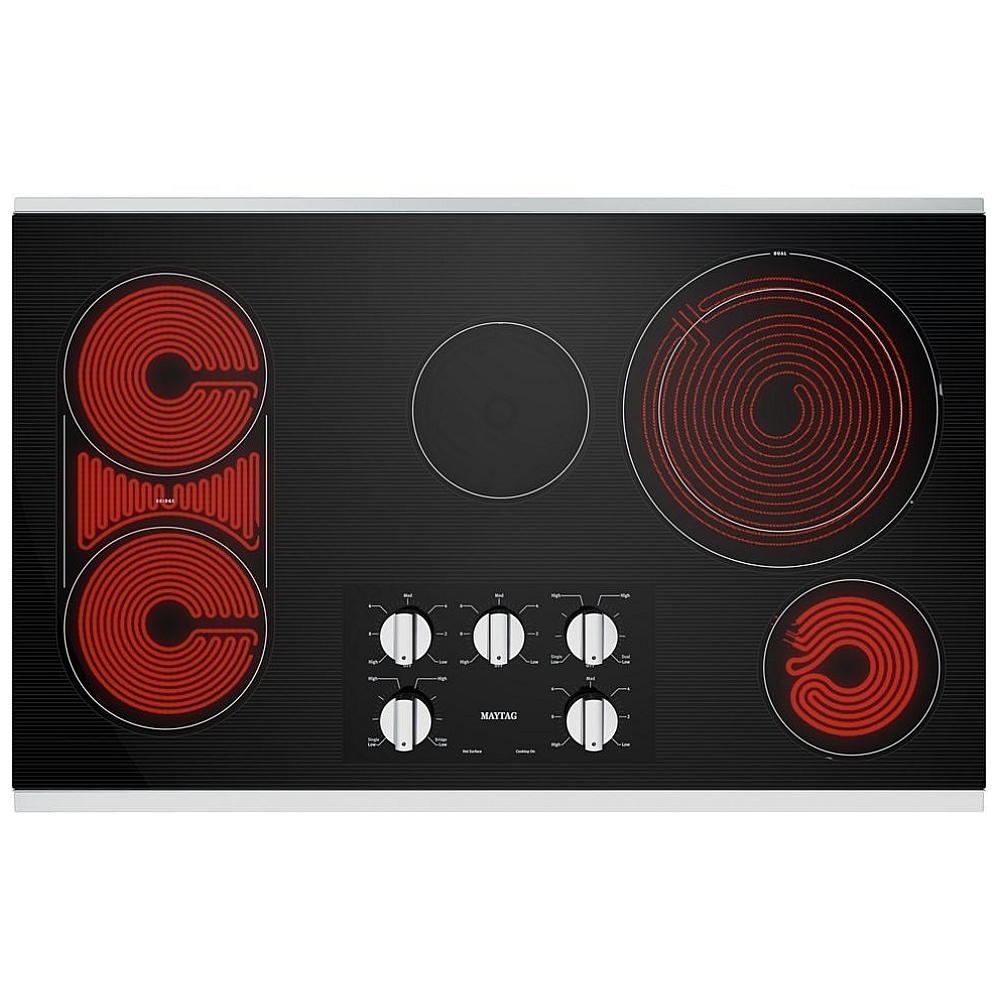

Number of Cooking Element-burners | 5 |
Power Boost | No |
Right Front Element-burner Power | 1,300W |
Right Front Element-burner Size | 6in. |
Right Front Element-burner Type | Simmer |
Right Rear Element-burner Power | 3000W/1900W |
Right Rear Element-burner Size | 12in./9in. |
Right Rear Element-burner Type | Dual-Stacked Burner |
Exterior Details | |
Knob Type | Metal |
General | |
Combination Match With Oven | MEW9527; MEW9530 |
Cooktop Features | ADA Compliant |
Ventilation Details | |
Downdraft Vent | No |
Dimensions | |
---|---|
Depth | 22 7/8 |
Width | 36 1/16 |
Height | 5 1/4 |
Carton Depth | 25 |
Carton Height | 9 1/4 |
Carton Width | 40 3/4 |
Cutout Depth | 20 3/8 |
Cutout Width | 34 9/16 |
Gross Weight | 54 |
Maximum Height | 5 1/4 |
Net Weight | 48.0 |
Certifications | |
Prop 65 | Standard |
ADA Compliant | ADA Height and Operation Compliant |
Description | |
Combinations with Oven | MEW9527,MEW9530 |
Configuration and Overview | |
Cooktop Type | Standard |
Fuel Type | Electric |
Size (IN,inches) | 36 |
Installs Over Built-In Oven | Yes |
LP Convertible | No |
Power Boost | No |
Controls | |
Control Location | Front |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Knob Type | Metal |
Cooktop Details | |
Hot Surface Indicator Light | Yes |
Cooktop Element Style | Radiant |
Automatic Pan Detection | No |
Downdraft Vent | No |
Heating Element On Indicator Light | Yes |
Cooktop Surface Color | Black |
Number of Cooking Element-Burners | 5 |
Center Rear Element-Burner Power | 1200W |
Center Rear Element-Burner Size | 6" |
Cooktop Surface Material | Glass |
Left Rear Element-Burner Size | 8" |
Left Front Element-Burner Type | Bridge |
Number of Open Bays | NA |
Left Front Element-Burner Size | 8" |
Left Front Element-Burner Power | 1800W |
Right Front Element-Burner Size | 6" |
Left Rear Element-Burner Type | Bridge |
Center Rear Element-Burner Type | Standard |
Left Rear Element-Burner Power | 1800W |
Right Front Element-Burner Power | 1300W |
Right Front Element-Burner Type | Simmer |
Right Rear Element-Burner Size | 12"/9" |
Right Rear Element-Burner Power | 3000W/1900W |
Cooktop Configuration | Burners with Integrated Grill and Griddle |
Right Rear Element-Burner Type | Dual |
Appearance | |
Digital Display | No |
Features | |
Griddle | Included |
Power Outage Compatible | No |
Electrical | |
Amps | 40 |
Power Cord Included | No |
Volts | 240 |
208V Compatible | Yes |
Hz | 60 |
Refinement | |
Style | Cooktops |
Energy | |
Annual Energy Usage [kWh] | 258 |
Refinements | |
MAY Cooktop | ADA Compliant |
