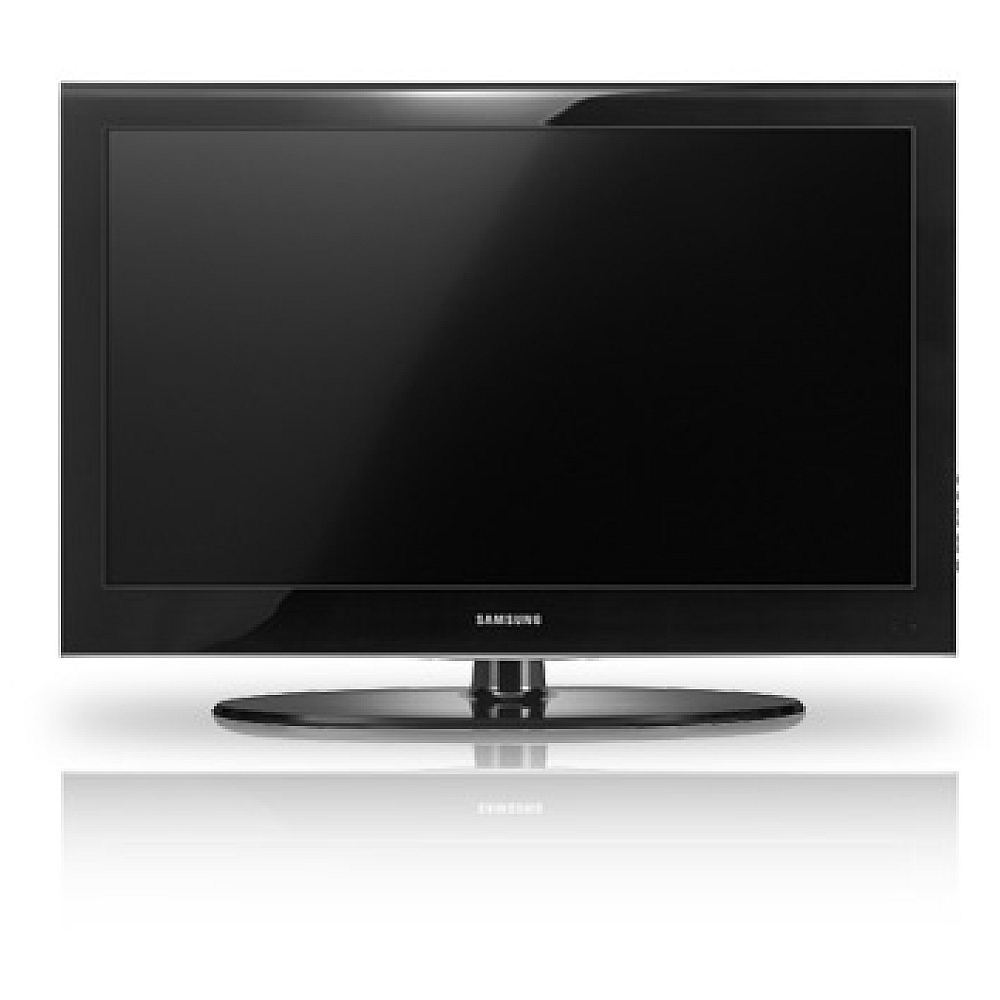

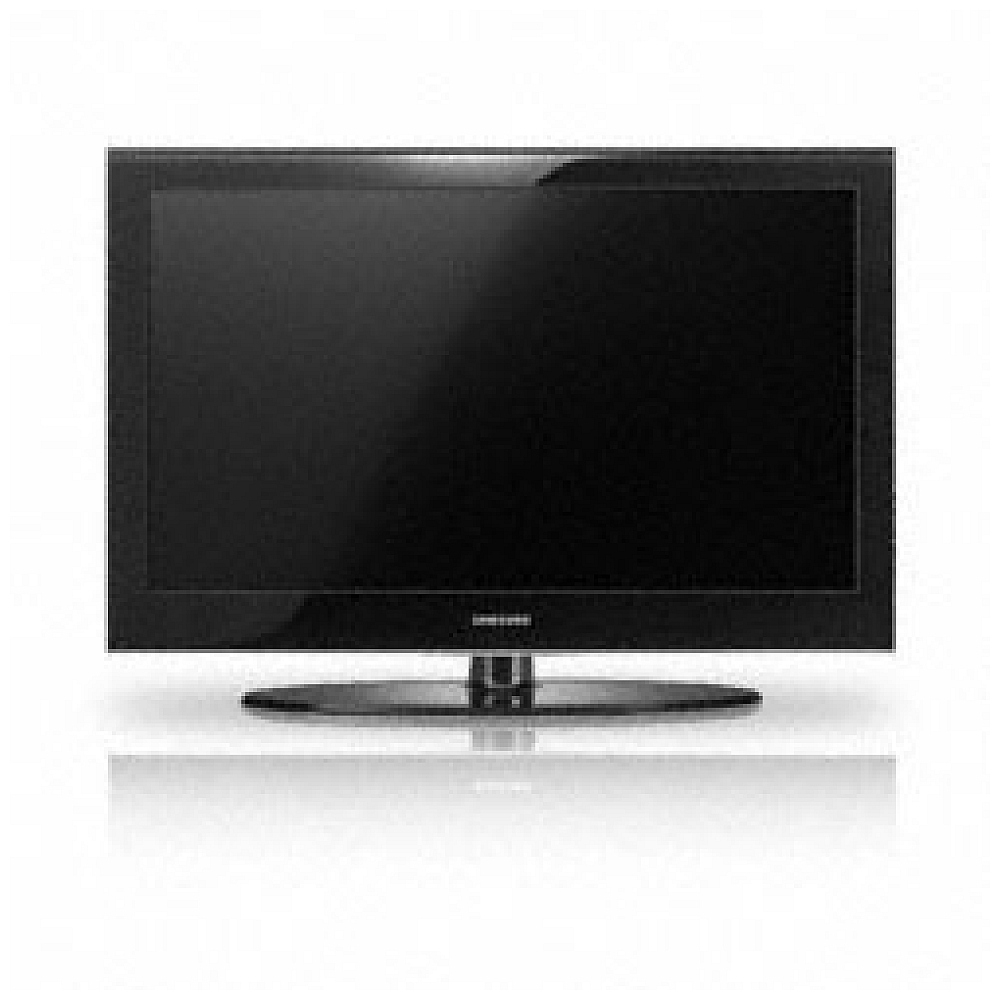

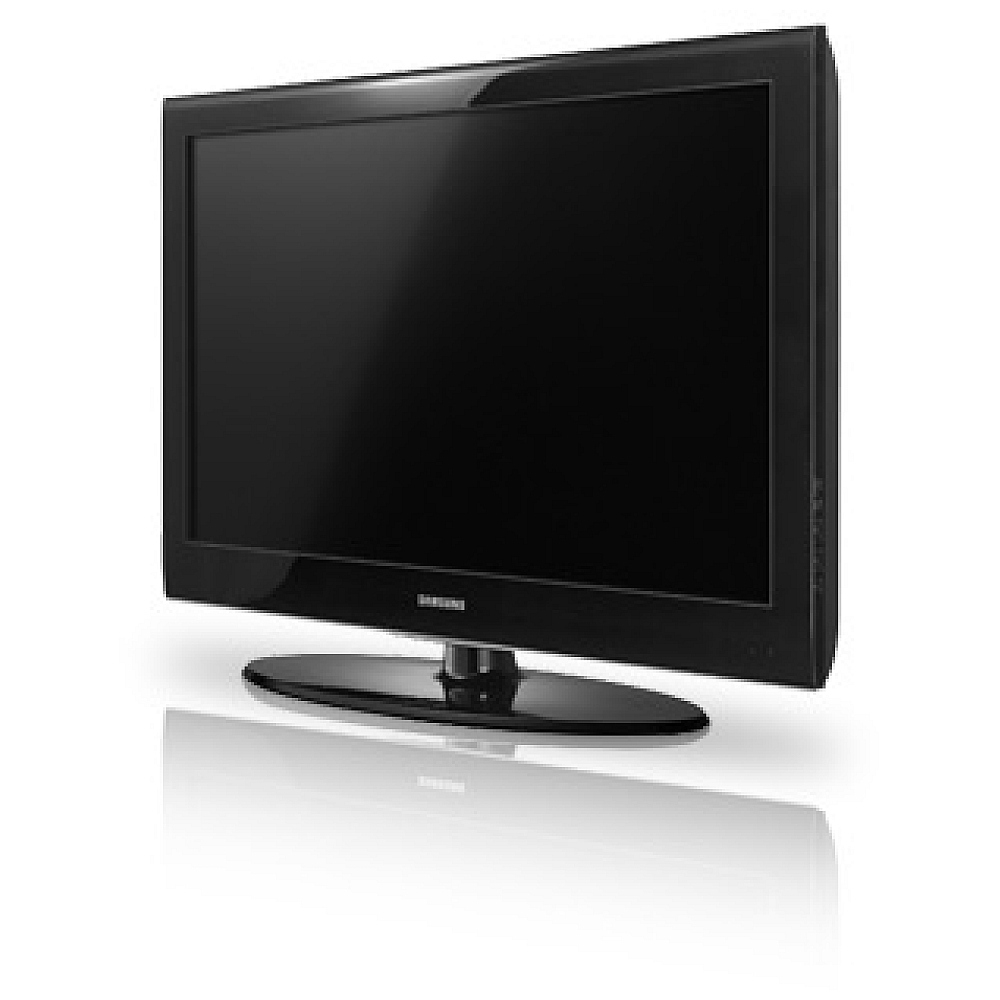

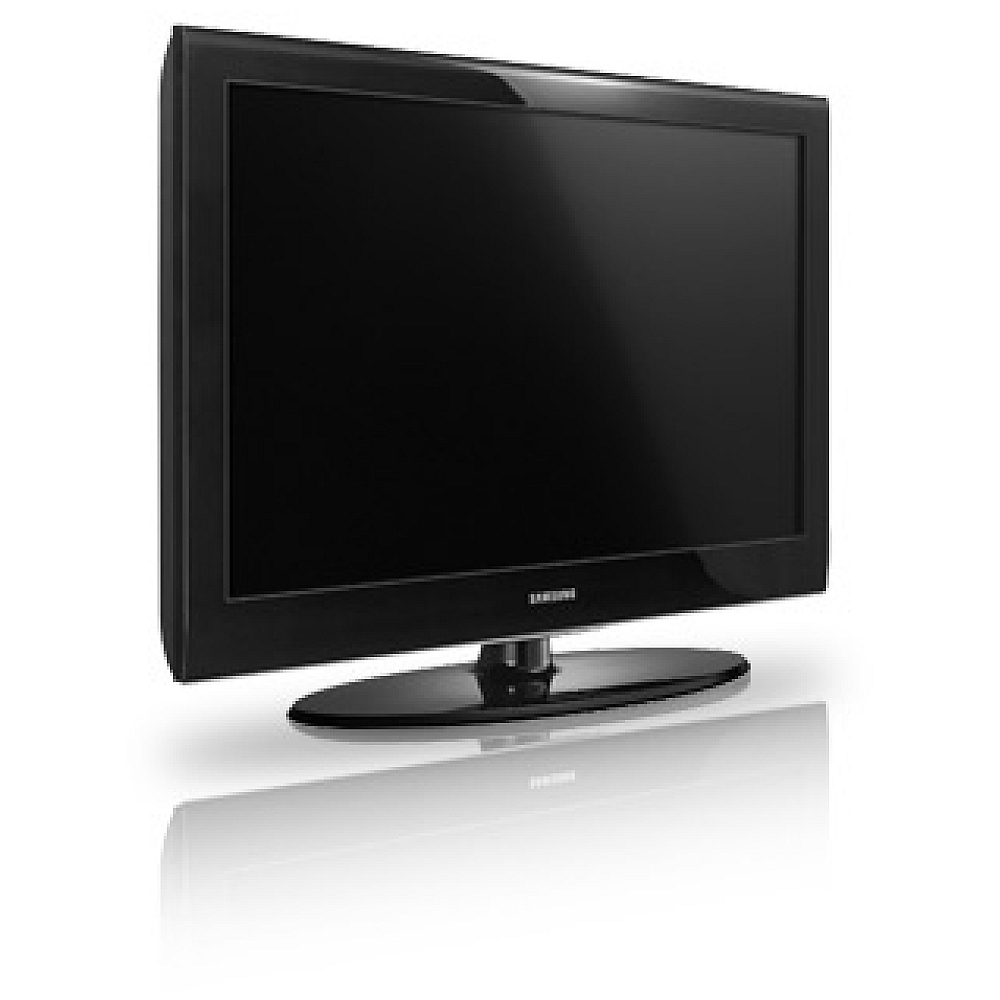

The SAMSUNG LN40A550 has an incredible 30,000:1 contrast ratio that delivers the sharpest, most realistic picture quality you’ve ever seen. Want to get more entertainment out of your TV than movies and shows? With our Wiselink® USB connection, you can easily and quickly hook up your MP3 player or digital camera and entertain family and friends with a photo slideshow set to music. SAMSUNG LCD TVs make your high-definition dreams a reality.
Manufacturer's Warranty: 1 year
Video | ||
Screen Size Diagonal length of TV screen |
39.9" (1) | 39.9" (1) |
Resolution The more number of vertical and horizontal pixels, the better sharpness of images. |
1920 x 1080 | 1920 x 1080 |
Dynamic Contrast Ratio Contrast ratio of TV is fixed, measured by the difference between the brightest whites and the darkest blacks a display can show. |
30,000:1 | 30,000:1 |
Viewing Angle The maximum usable viewing range of a screen from when viewing from left to right. |
178? / 178? | 178? / 178? |
Response Time The amount of time it takes for a single pixel in LCD screen to switch from active to non-active |
5 ms | 5 ms |
DNIe™ Digital Natural Image Engine : Samsung's innovative DNIe technology delivers a crisp, lifelike picture that is closer to film. (Both analog/digital) |
Yes | Yes |
LCD 120Hz | No | No |
Native Resolution | 1080p | 1080p |
Audio | ||
Sound Effect System The sound effect system produces 5.1ch streophonic sound with the left and right speakers |
SRS TruSurround XT™ | SRS TruSurround XT™ |
Sound Output(RMS) Volume level of sound from TV speakers |
10 W x 2 | 10 W x 2 |

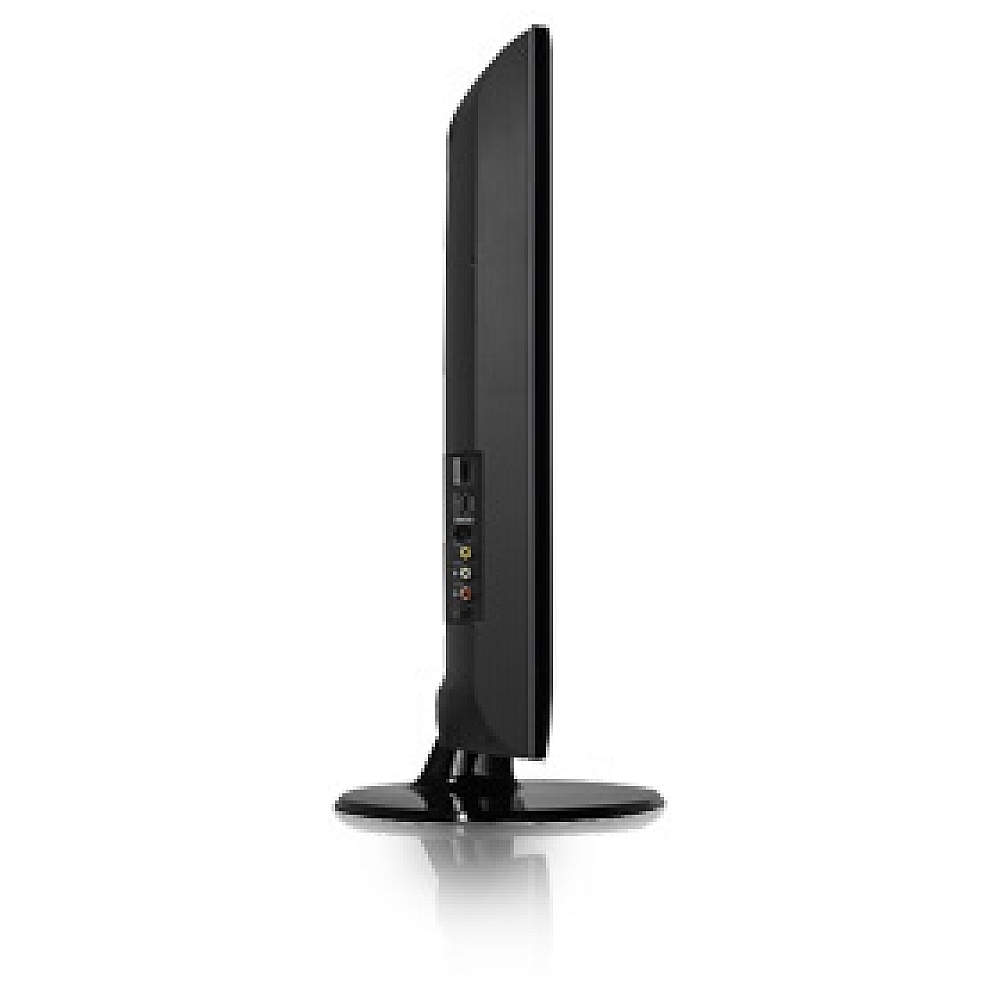

Input & Output(Side) | ||
HDMI Digital connector that is used for displaying high quality games and the movies. |
1 | 1 |
composite (AV) Analog image connector that is used to connect VCR to display images on TV |
1 | 1 |
S-Video Analog image connector that is used to connect VCR to display images on TV |
1 | 1 |
Headphone Headphone can be connected to TV and the audio from TV speakers will be eliminated. |
1 | 1 |

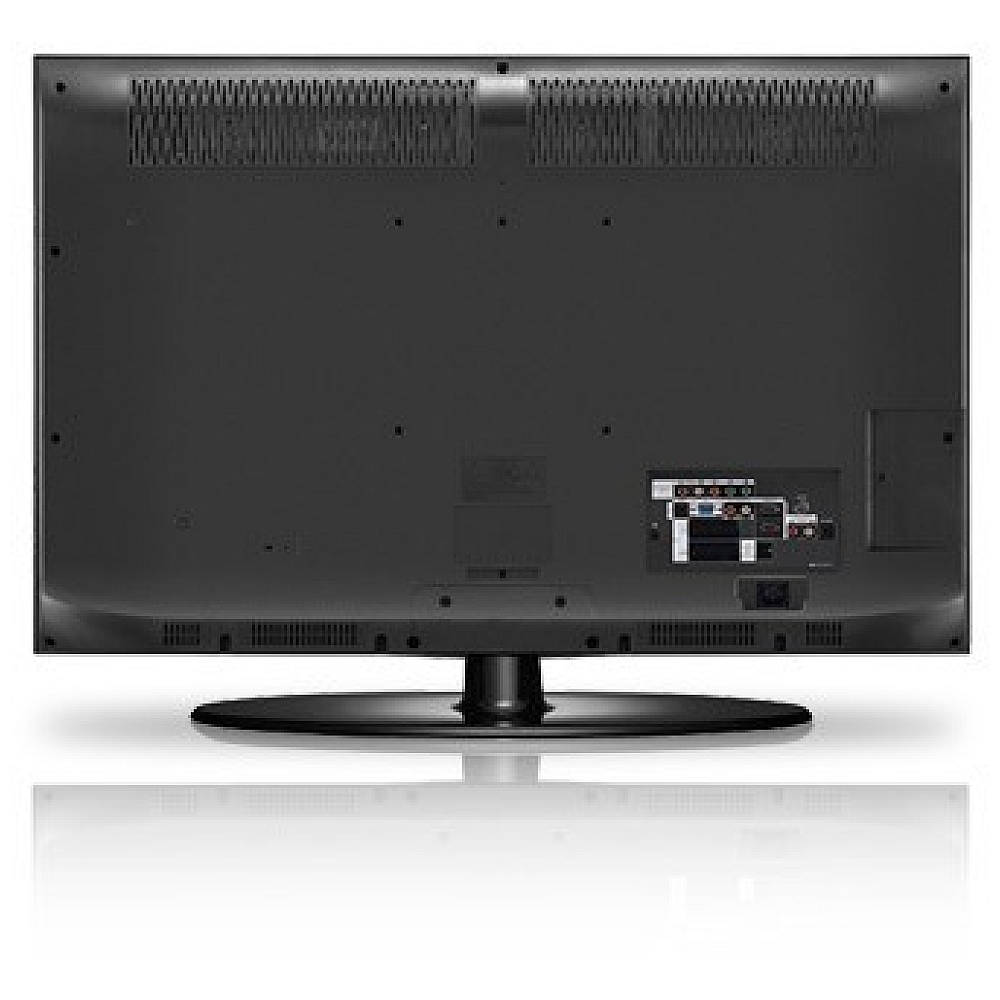

Input & Output(Back) | ||
HDMI Digital connector that is used for displaying high quality games and the movies. |
2 | 2 |
composite (AV) Analog image connector that is used to connect VCR to display images on TV |
1 | 1 |
PC input (D-sub) Connector that is used to display internet pages and motion clips on the large screen of TV |
1 | 1 |
Component(Y/Pb/Pr) Analog image connector, used to connect with DVD player |
2 | 2 |
Features | ||
Picture-in-Picture | Yes | Yes |
HDMI-CEC | Yes | Yes |
Price | $1,099.99 | $1,099.99 |
Ultra Clear Panel | No | No |
Wide Color Enhancer | Yes | Yes |
Flash Memory | No | No |
DCM | No | No |
DLNA | No | No |
USB 2.0 (MPEG Support) | No | No |
Optical Link | No | No |
System | ||
Tuners | ATSC / Clear QAM | ATSC / Clear QAM |
Dimension | ||
Set size(WXHXD) with stand | 39.2" x 27.0" x 11.8" | 39.2" x 27.0" x 11.8" |
Set size(WXHXD) without stand | 39.2" x 24.7" x 3.6" | 39.2" x 24.7" x 3.6" |
Package size(WXHXD) | 42.8" x 31.7" x 14.9" | 42.8" x 31.7" x 14.9" |
Weight | ||
Set weight with stand | 61.5 lb | 61.5 lb |
Set weight without stand | 54.5 lb | 54.5 lb |
Package weight | 61.5 lb | 61.5 lb |
Video | |
---|---|
Screen Size: | 39.9 (1) |
Resolution: | 1920 x 1080 |
Dynamic Contrast Ratio: | 30,000:1 |
Viewing Angle: | 178º / 178º |
Response Time: | 5 ms |
Audio | |
Sound Effect System: | SRS TruSurround XTâ„¢ |
Sound Output(RMS): | 10 W x 2 |
Input & Output(Side) | |
HDMI: | 1 |
composite (AV): | 1 |
S-Video: | 1 |
Headphone: | 1 |
System | |
Tuners: | ATSC / Clear QAM |
Dimension | |
Set size(WXHXD) with stand: | 39.2 x 27.0 x 11.8 |
Set size(WXHXD) without stand: | 39.2 x 24.7 x 3.6 |
Package size(WXHXD): | 42.8 x 31.7 x 14.9 |
Weight | |
Set weight with stand: | 61.5 lb |
Set weight without stand: | 54.5 lb |
Package weight: | 61.5 lb |
Input & Output(Back) | |
RF Input: | 1 |
Component(Y/Pb/Pr): | 2 |
Composite(AV): | 1 |
HDMI: | 2 |
PC input (D-sub): | 1 |
