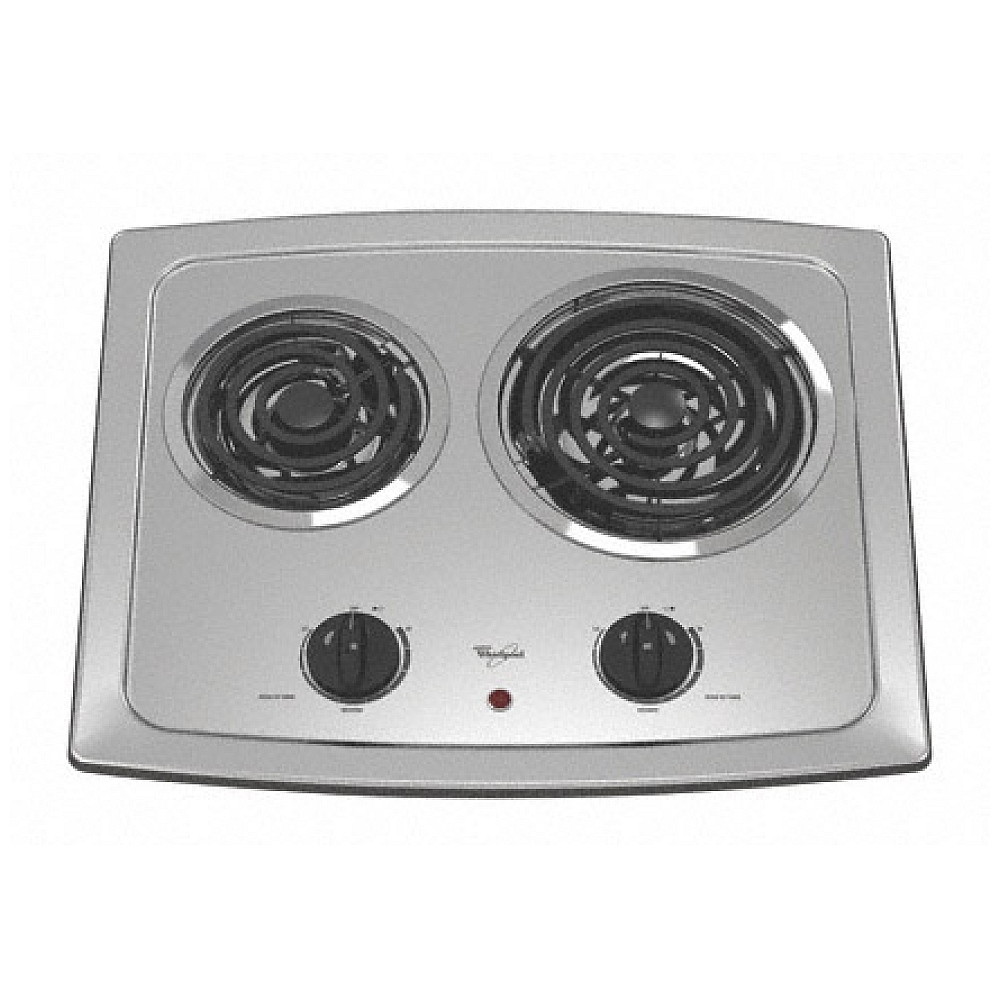

The SpillGuard™ cooktop design features raised edges to help prevent spills from running over. The surface unit 'ON' indicator light glows when one of the burners has been turned on.
- Cooktop controls allow you to select a heat output ranging from low to high with many intermediate settings.
Manufacturer's Warranty: 1 year
Performance |
Fuel Type: Electric |
Cooktop Type: Coil |
Left Front Element Type: Coil |
Left Front Element Size (in): 6 |
Left Front Element Power (Watts): 900 |
Right Front Element Type: Coil |
Right Front Element Size (in): 8 |
Right Front Element Power (Watts): 1500 |
Features |
Burner Indicator Light |
Appearance |
Cooktop Material: Stainless Steel |
Dimensions |
Overall Height: 2 7/8 Inches |
Overall Width: 21 Inches |
Dimensions | |
---|---|
Exterior Width: | 21 |
Cutout Width: | 1 |
Cutout Depth: | 1 |
Space Required Below Cooktop: | 1 |
Weight: | 40 lbs. |
DIMENSIONS: | |
Depth: | 18 in. |
Height: | 3 3/8 in. |
Width: | 21 in. |
FEATURES | |
Built-In Downdraft Vent System: | No |
Burner Bowl: | Chrome |
Burner Indicator Light: | Yes |
Burner Type: | Standard Coil |
Cooktop Surface: | Porcelain-on-Steel |
Fuel Type: | Electric |
Hot Surface Indicator Lights: | No |
Infinite Position Control Knobs: | Yes |
Number of Burners: | 2 |
Optional Griddle Accessory: | No |
Oval Dual Circuit: | No |
Over Oven Installation: | Yes |
Round Dual Circuit: | No |
Simmer Burner: | No |
Ventilation System: | No |
Number of Elements: | 2 |
Power-On Light: | Yes |
Electronic Ignition: | No |
PERFORMANCE | |
Burner Configuration: | ONE 6 IN.; ONE 8 IN. |
Custom Control Temp Management System: | No |
CONTROLS | |
Control Type: | Dial |
Electronic Touch Controls: | No |
ELECTRICAL | |
Specifications: | 20 Ampere, 120 Volts, 60 Hertz (1/second), AC-ONLY. USE COPPER WIRE ONLY. A FOUR-WIRE OR THREE-WIRE, SINGLE PHASE ELECTRICAL SUPPLY REQUIRED. A TIME-DELAY FUSE OR CIRCUIT BREAKER AND SEPARATE CIRCUIT IS RECOMMENDED. |
