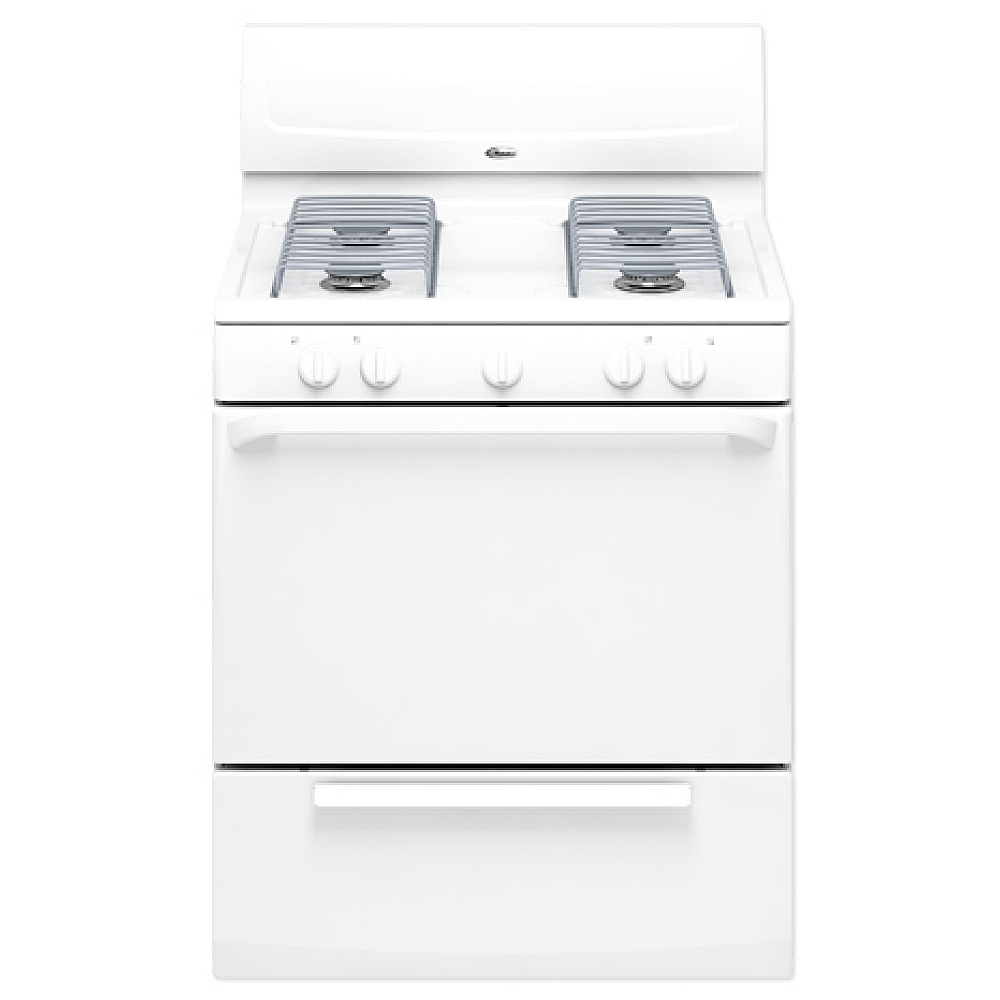

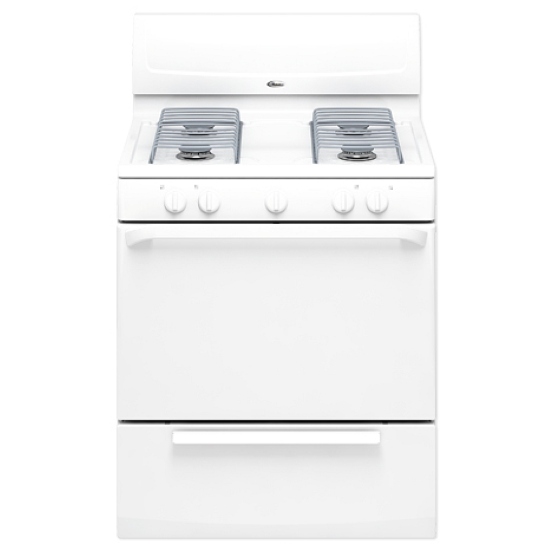

The porcelain SpillGuard™ cooktop on this 4.4 cu. ft. freestanding gas range helps prevent occasional spills from running over the edge.
Manufacturer's Warranty: 1 year
Appearance |
Porcelain-on-Steel Door Style |
WIRE-COATED PORCELAIN Grate Finish |
Freestanding Installation Design |
Capacity |
4.4 Cubic foot Oven Capacity |
Construction |
Burner Configuration: 4 - 9,500 BTU |
Upswept Porcelain Cooktop Style |
Porcelain Cooktop Surface |
2 Oven Racks |
Controls |
Mechanical Thermostat Controls |
Dimensions |
Depth: 26 3/4 in. |
Height: 46 1/4 in. |
Width: 29 7/8 in. |
Performance |
Drop Down Broiler |
BTU Range: 9,500 ALL |
Semi-Sealed Burners |
Maximum BTU: 9,500 |
Minimum BTU: 9,500 |
Pilotless Electronic Ignition |
Gas Power |
Standard Temperature Management System |
Warranty |
View warranty details (159.84 KB PDF) |
Dimensions |
Height: 46 1/4 in. |
Dimensions shown are for planning purposes only. For complete information, see Installation Instructions packed with product. |
Electrical Requirements |
SPECIFICATIONS | |
---|---|
DIMENSIONS | |
Height : | 46 1/4 in. |
Width : | 29 7/8 in. |
Depth : | 26 3/4 in. |
Depth Including Handles : | 26 3/4 in. |
SPECIFICATIONS | |
Cooktop Features | |
AccuSimmer® Burner : | No |
Burner Type : | Semi-Sealed |
Cooktop Style : | Upswept Porcelain |
Cooktop Surface : | Porcelain |
Grate Finish : | WIRE-COATED PORCELAIN |
Keep Warm 5th Element : | No |
Simmer Burner : | No |
Dual Element Burner : | No |
Powerâ„¢ Burner : | No |
Oven Features | |
Bread Proofing and Dehydration Functions : | No |
CleanBakeâ„¢ Hidden Element : | No |
Cleaning Type : | Standard Clean |
Closed-Door Convection Broiling : | No |
Delay Bake : | No |
Number of Racks : | 2 |
Oven Hold Warm : | No |
Oven Light : | No |
Oven window : | No |
Sabbath Mode Functions : | No |
Temperature Probe : | No |
Window Size : | Not Applicable |
Automatic Door Latch : | No |
Cleaning System : | Standard Clean |
Convection Bake/Broil/Roast : | No |
Oven Light : | Not Applicable |
Features | |
Broil and Serve Drawer : | No |
Broiler Type : | Drop Down |
Control Lock Out Function : | No |
Door Style : | Porcelain-on-Steel |
Flush with Cabinet Design : | No |
Fuel Type : | Gas |
Installation Design : | Freestanding |
Pilotless Electronic Ignition : | Yes |
Storage Drawer : | No |
Time of Day Clock : | No |
Warming Drawer : | No |
Self-Cleaning : | No |
Performance | |
Burner Configuration : | 4 - 9,500 BTU |
Temperature Management System : | Standard |
Bake Burner Rating : | 16,500 BTU |
Broil Burner Rating : | 16,500 BTU |
Left Front Burner Rating : | 9,500 BTU |
Left Rear Burner Rating : | 9,500 BTU |
Right Front Burner Rating : | 9,500 BTU |
Right Rear Burner Rating : | 9,500 BTU |
Controls | |
Control Style : | Mechanical Thermostat |
Capacity | |
Oven Size : | Super Capacity |
Oven Capacity : | 4.4 Cubic foot |
ELECTRICAL: | 15 Ampere, 120 Volts, 60 Hertz |
