Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).
- Properly install with either a 30 or 40 amp hookup, so there's no need to rewire.
- Cook small dishes like sides and sauces on the 6" Extra Element.
- Cook small dishes like sides and sauces on the 8" Extra Element.
- This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
- Wiping up spills is simple with the easy-to-clean cooktop.
- ENERGY STAR® Certified models exceed government standards to help save money on your utility bills.

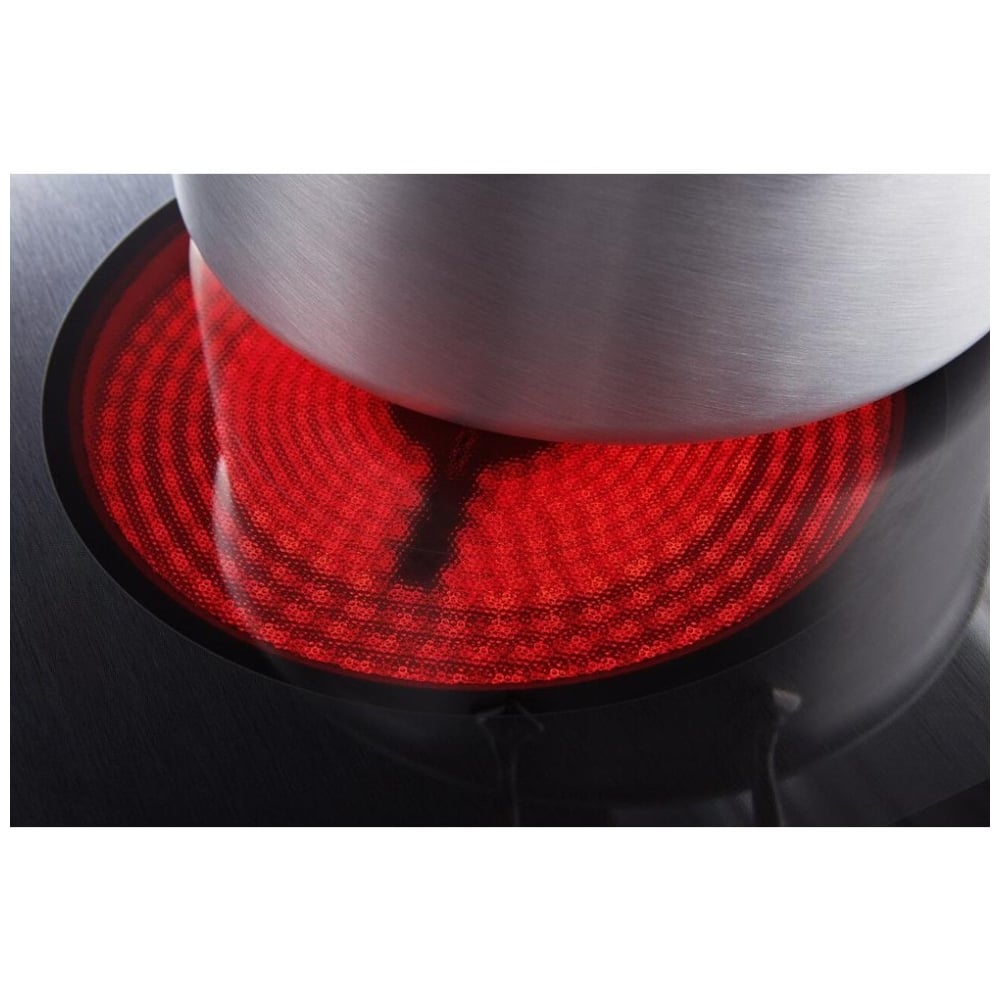

- Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
- See when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.
- Install this cooktop to work with a wall oven or on its own for more flexibility.
Manufacturer's Warranty: 1 year
UPC: 883049472782
EAN: 0883049472782
Certifications | |
Ada Compliant | ADA Height and Operation Compliant |
Prop65 | Standard |
Controls | |
Control Location | Right |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Digital Display | No |
Griddle Included | N/A |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Combinations With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
Cooktop Configuration | All Burners |
Fuel Type | Electric |
Installs Over Built-in Oven | Yes |
Lp Convertible | No |
Power Outage Compatible | No |
Dimensions | |
Product Height | 5.25 |
Carton Height | 9.25 |
Gross Weight | 46 |
Carton Width | 35 |
Product Depth | 22.875 |
Cutout Depth Max | 20.563 |
Cutout Width Min | 29.063 |
Cutout Depth | 20.375 |
Carton Depth | 25 |
Cutout Width | 29.063 |
Cutout Depth Min | 20.375 |
Cutout Width Max | 29.563 |
Net Weight | 41 |
Product Width | 30.8125 |
Electrical | |
208v Compatible | Yes |
Power Cord Included | No |
Element/burner Details | |
Cooktop Element Style | Radiant |
Cooktop Type | Standard |
Left Front Element-burner Power | 1,200W |
Left Front Element-burner Size | 6in. |
Left Front Element-burner Type | Standard |
Left Rear Element-burner Power | 1,800W |
Left Rear Element-burner Size | 8in. |
Left Rear Element-burner Type | Standard |
Number of Cooking Element-burners | 4 |
Power Boost | No |
Right Front Element-burner Power | 2500W/1800W |
Right Front Element-burner Size | 10in./6in. |
Right Front Element-burner Type | Dual |
Right Rear Element-burner Power | 1,200W |
Right Rear Element-burner Size | 6in. |
Right Rear Element-burner Type | Standard |
Exterior Details | |
Knob Color | Stainless Steel |
Knob Type | Dishwasher-Safe Plastic |
General | |
Combination Match With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
Cooktop Features | ADA Compliant |
Ventilation Details | |
Downdraft Vent | No |
Dimensions | |
---|---|
Depth | 22 7/8 |
Width | 30 13/16 |
Height | 5 1/4 |
Carton Depth | 25 |
Carton Height | 9 1/4 |
Carton Width | 35 |
Cutout Depth | 20 3/8 |
Cutout Width | 29 1/16 |
Gross Weight | 42 |
Maximum Height | 5 1/4 |
Net Weight | 41.0 |
Certifications | |
Prop 65 | Standard |
ADA Compliant | ADA Height and Operation Compliant |
Description | |
Combinations with Oven | WOS11EM4,WOS51EC0,WOS51EC7,WOS51ES4,WOS72EC0,WOS72EC7,WOS92EC0,WOS92EC7,WOS97EC0,WOS97ES0,WOSA2EC0 |
Configuration and Overview | |
Cooktop Type | Standard |
Fuel Type | Electric |
Size (IN,inches) | 30 |
Installs Over Built-In Oven | Yes |
LP Convertible | No |
Power Boost | No |
Cooktop Details | |
Hot Surface Indicator Light | Yes |
Cooktop Element Style | Radiant |
Automatic Pan Detection | No |
Downdraft Vent | No |
Heating Element On Indicator Light | Yes |
Cooktop Surface Color | Black |
Number of Cooking Element-Burners | 4 |
Left Front Element-Burner Size | 6" |
Left Front Element-Burner Power | 1200W |
Cooktop Surface Material | Glass |
Left Rear Element-Burner Size | 8" |
Number of Open Bays | NA |
Left Front Element-Burner Type | Standard |
Right Rear Element-Burner Size | 6" |
Right Front Element-Burner Power | 2500W/1800W |
Left Rear Element-Burner Type | Standard |
Left Rear Element-Burner Power | 1800W |
Right Front Element-Burner Size | 10"/6" |
Right Rear Element-Burner Power | 1200W |
Right Rear Element-Burner Type | Standard |
Cooktop Configuration | All Burners |
Right Front Element-Burner Type | Dual |
Controls | |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Knob Color | Stainless Steel |
Knob Type | Dishwasher-Safe Plastic |
Control Location | Right |
Appearance | |
Digital Display | No |
Features | |
Griddle | NA |
Power Outage Compatible | No |
Electrical | |
Power Cord Included | No |
Amps | 30 |
Volts | 240 |
208V Compatible | Yes |
Hz | 60 |
Refinement | |
Style | Cooktops |
Energy | |
Annual Energy Usage [kWh] | 258 |
Refinements | |
WHR Cooktop | ADA Compliant |
