- Easily maintain low, even heat when cooking sauces and soups with the AccuSimmer® Burner, which reduces power for better control at lower temperatures.

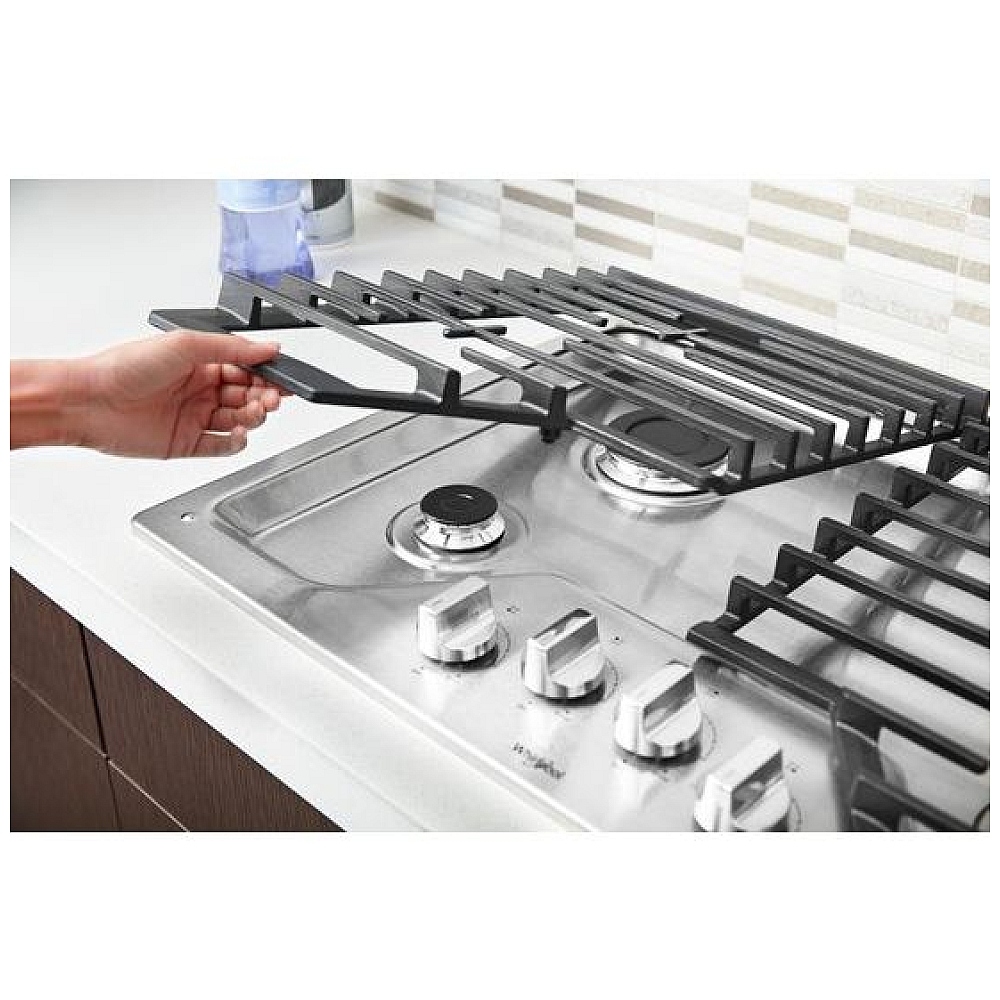

- Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without removing them. For a more thorough clean, the grates are also dishwasher safe.
- Maximize space with cast-iron grates that extend across the entire cooktop, giving you the flexibility to place pots and pans anywhere.

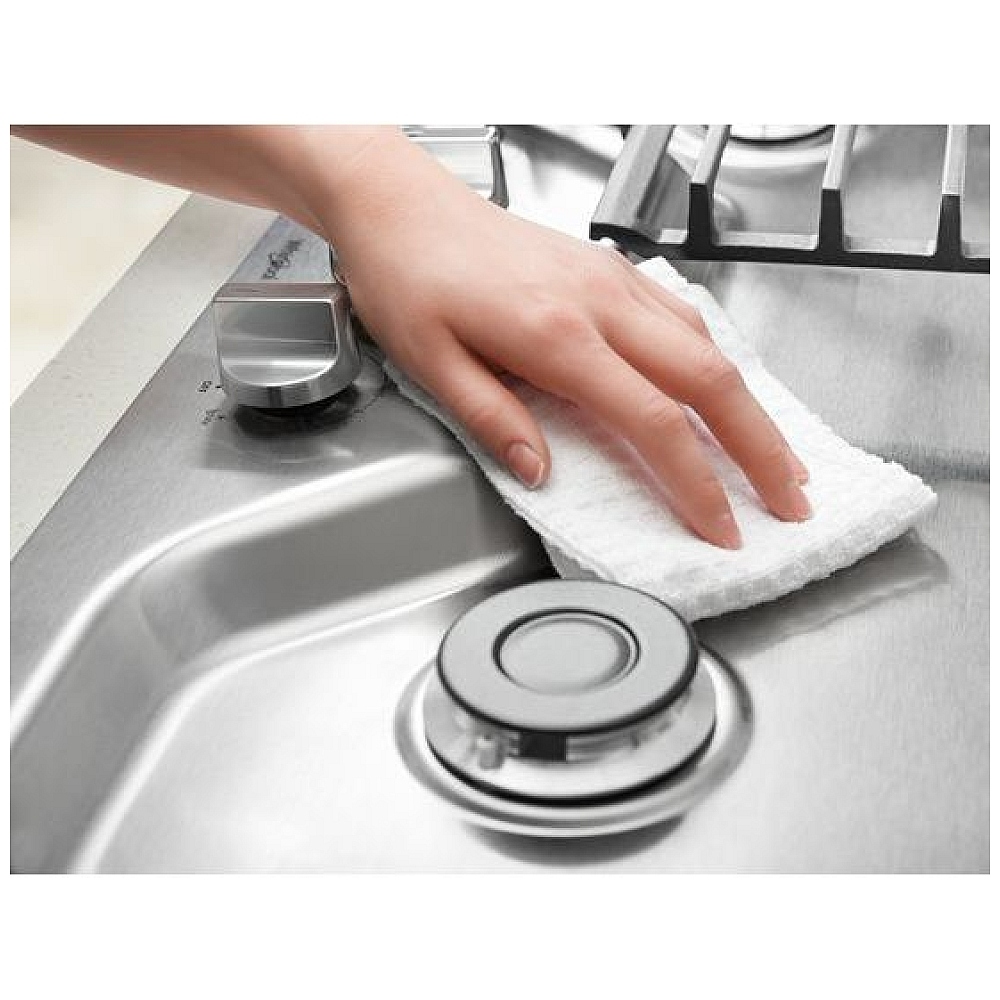

- Cut down on cleanup with burners that are sealed to prevent food from falling into them.

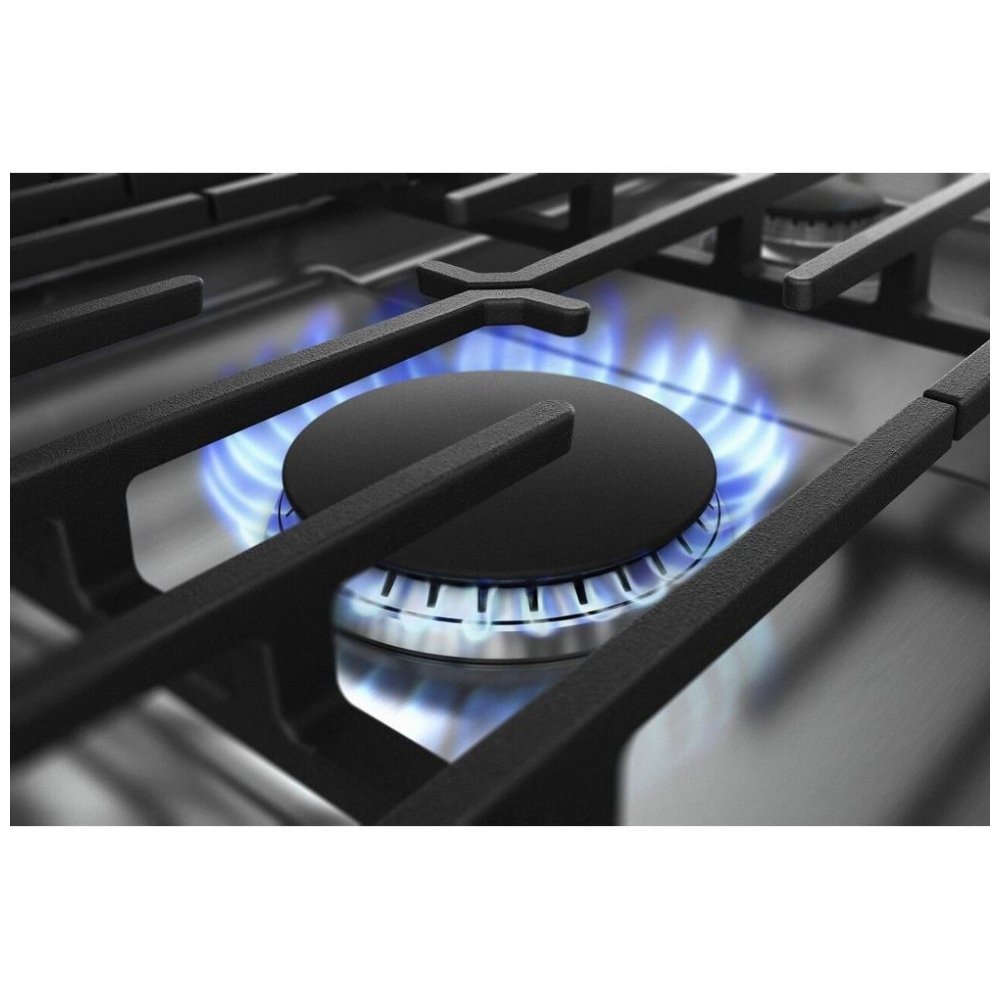

- Get dinner to the table fast with this burner that generates the high heat needed to sear and boil quickly.
- Clean up faster with a cooktop that has raised edges to help contain spills.
- Install this cooktop to work with a wall oven or on its own for more flexibility.
UPC: 883049467054
Certifications | |
Ada Compliant | ADA Height and Side Reach Compliant |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Front |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Color Coordinated |
Cooktop Surface Material | Stainless/Porcelain Coated Steel |
Digital Display | No |
Griddle Included | Optional Accessory |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Ignition Type | Direct Spark Ignition |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Automatic Pan Size Adjustment | No |
Combinations With Oven | WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS52EM4; WOS72EC0; WOS72EC7H |
Fuel Type | Gas |
Installs Over Built-in Oven | Yes |
Lp Convertible | Yes - Kit Included |
Power Outage Compatible | Yes |
Dimensions | |
Product Height | 4.125 |
Cutout Depth | 19 |
Carton Height | 12.5 |
Gross Weight | 52.5 |
Carton Depth | 34.5 |
Carton Width | 25 |
Cutout Width | 28.5 |
Product Depth | 21.0 |
Net Weight | 42.8 |
Product Width | 30.0 |
Electrical | |
Power Cord Included | Yes |
Element/burner Details | |
Cooktop Type | Standard |
Left Front Element-burner Power | 5,000 BTU |
Left Front Element-burner Type | Simmer |
Left Rear Element-burner Power | 15,000 BTU |
Number of Cooking Element-burners | 4 |
Power Boost | No |
Right Front Element-burner Power | 9,100 BTU |
Right Rear Element-burner Power | 12,000 BTU |
Exterior Details | |
Knob Color | Color Coordinated |
Knob Type | Dishwasher-Safe Plastic |
Grate Details | |
Grate Details | Cast Iron Grates; Continuous with Hinge; Dishwasher Safe; Matte Finish |
Number of Grates | 2 |
Ventilation Details | |
Downdraft Vent | No |
Dimensions | |
---|---|
Depth | 21 |
Width | 30 |
Height | 4 1/8 |
Carton Depth | 34 1/2 |
Carton Height | 12 1/2 |
Carton Width | 25 |
Cutout Depth | 19 |
Cutout Width | 28 1/2 |
Gross Weight | 52 |
Maximum Height | 4 1/8 |
Minimum Height | 3 3/8 |
Net Weight | 42.8 |
Certifications | |
Prop 65 | Standard |
ADA Compliant | ADA Height and Side Reach Compliant |
UL | UL |
Configuration and Overview | |
Fuel Type | Gas |
Cooktop Type | Standard |
Size (IN,inches) | 30 |
Installs Over Built-In Oven | Yes |
LP Convertible | Yes - Kit Included |
Power Boost | No |
Controls | |
Control Location | Front |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Knob Color | Color Coordinated |
Knob Type | Dishwasher-Safe Plastic |
Appearance | |
Digital Display | No |
Cooktop Details | |
Automatic Pan Detection | No |
Downdraft Vent | No |
Hot Surface Indicator Light | No |
Heating Element On Indicator Light | No |
Cooktop Surface Color | Color Coordinated |
Number of Cooking Element-Burners | 4 |
Cooktop Surface Material | Stainless/Porcelain Coated Steel |
Ignition Type | Direct Spark Ignition |
Number of Open Bays | NA |
Left Rear Element-Burner Power | 15,000 BTU |
Left Front Element-Burner Power | 5000 BTU |
Left Front Element-Burner Type | Simmer |
Left Rear Element-Burner Type | SpeedHeat™ |
Right Rear Element-Burner Type | SpeedHeat™ |
Right Front Element-Burner Power | 9100 BTU |
Grate Details | Cast Iron Grates,Continuous with Hinge,Dishwasher Safe,Matte Finish |
Right Front Element-Burner Type | Burner |
Right Rear Element-Burner Power | 12,000 BTU |
Cooktop Element Style | Sealed Burner |
Number of Grates | 2 |
Features | |
Griddle | Optional Accessory |
Power Outage Compatible | Yes |
Selection | White/Black Ice Kit Available as Accessory |
Electrical | |
Amps | 15 |
Hz | 60 |
Volts | 120 |
Power Cord Included | Yes |
Refinement | |
Style | Cooktops |
Refinements | |
WHR Cooktop | ADA Compliant |
