MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).

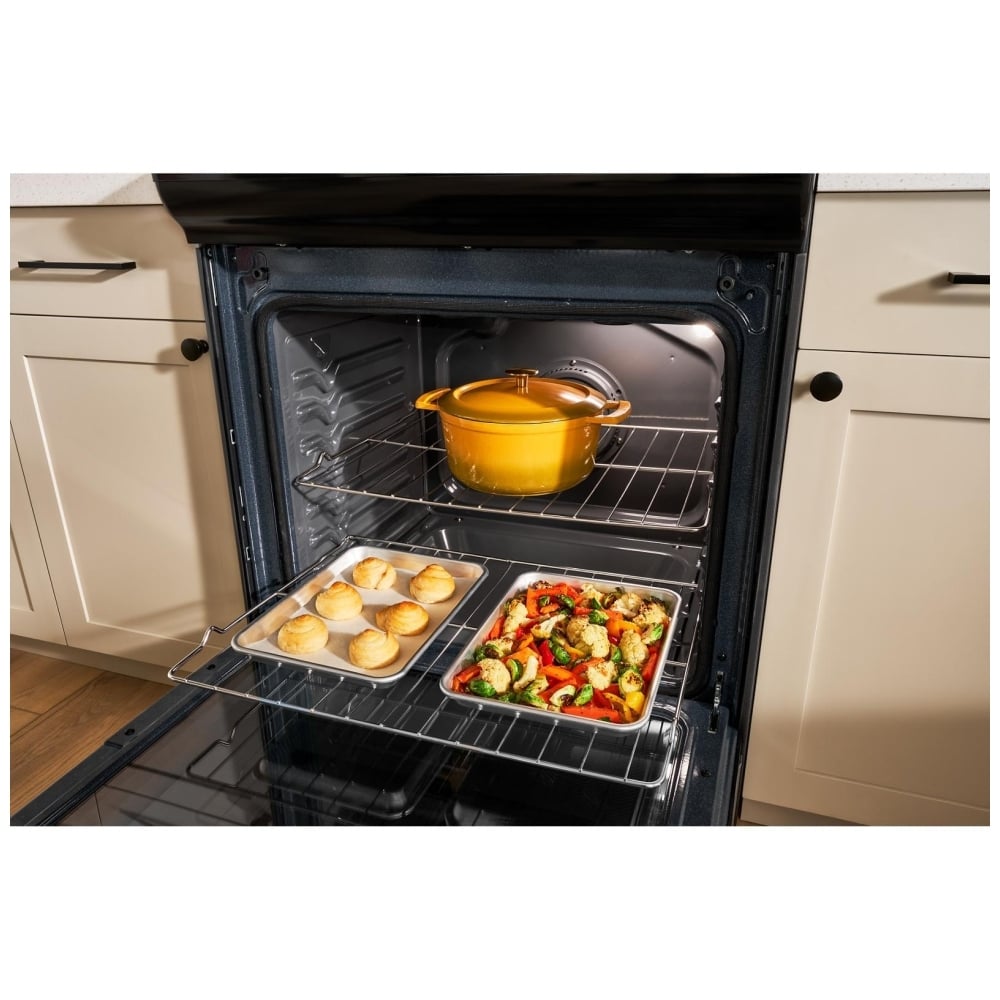

- Easily cook a whole meal with 6.4 Cu. Ft. capacity.
- This range meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.(U.S. Only)
- Heat food fast with Air Baking. The oven fan circulates hot air from three heating elements around the oven so you can cook foods fast and don t have to move dishes around as you cook
- Go beyond Air Fry with All In One Air Cooking Technology including Air Baking, Air Roast, and Air Broil for fast, delicious cooking.

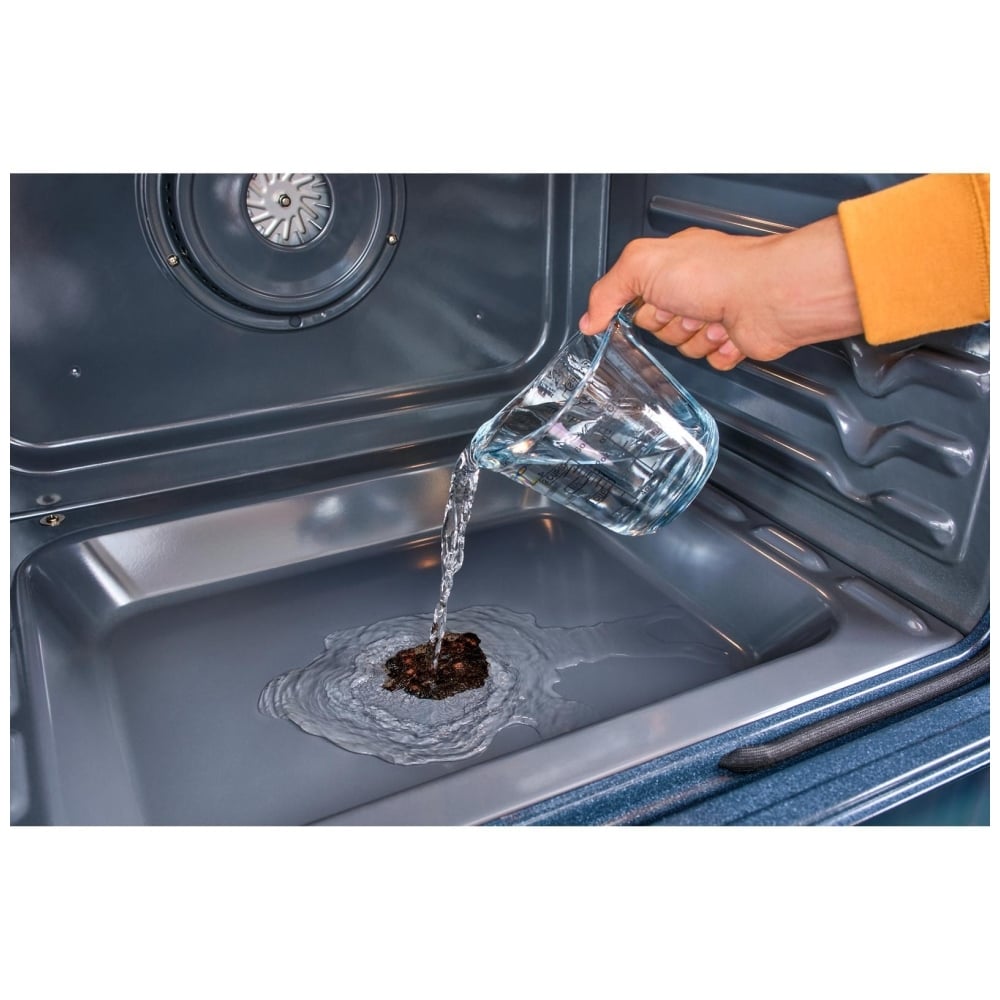

- Clean your oven without harsh chemicals in only 40 minutes with AquaLift® Self-Cleaning Technology. Add water, run the cycle and then wipe away any remaining soils once the cycle is done.
*Unlike the traditional Adjustable Self-Clean Cycle which burns off soils, when using AquaLift® Self-Cleaning Technology, add water, run the cycle and then manually remove the water and soils with a wet sponge when the cycle is finished.

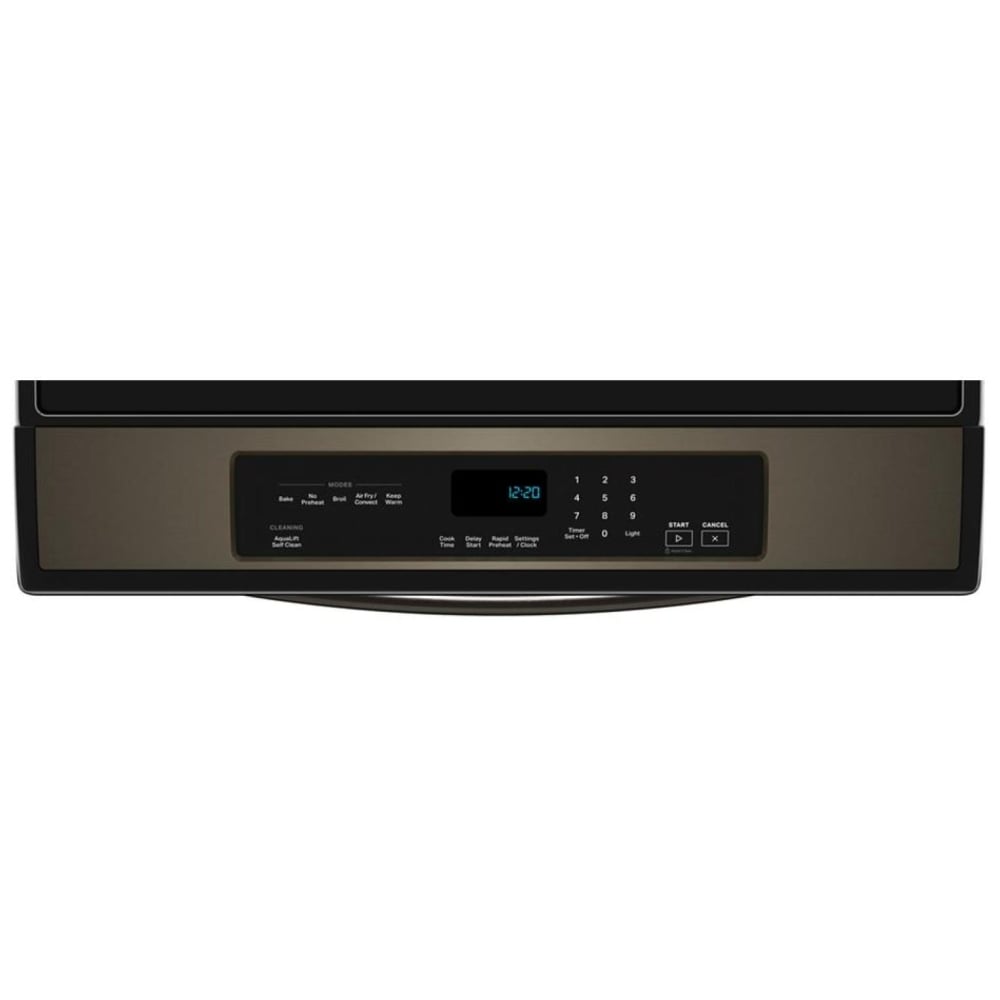

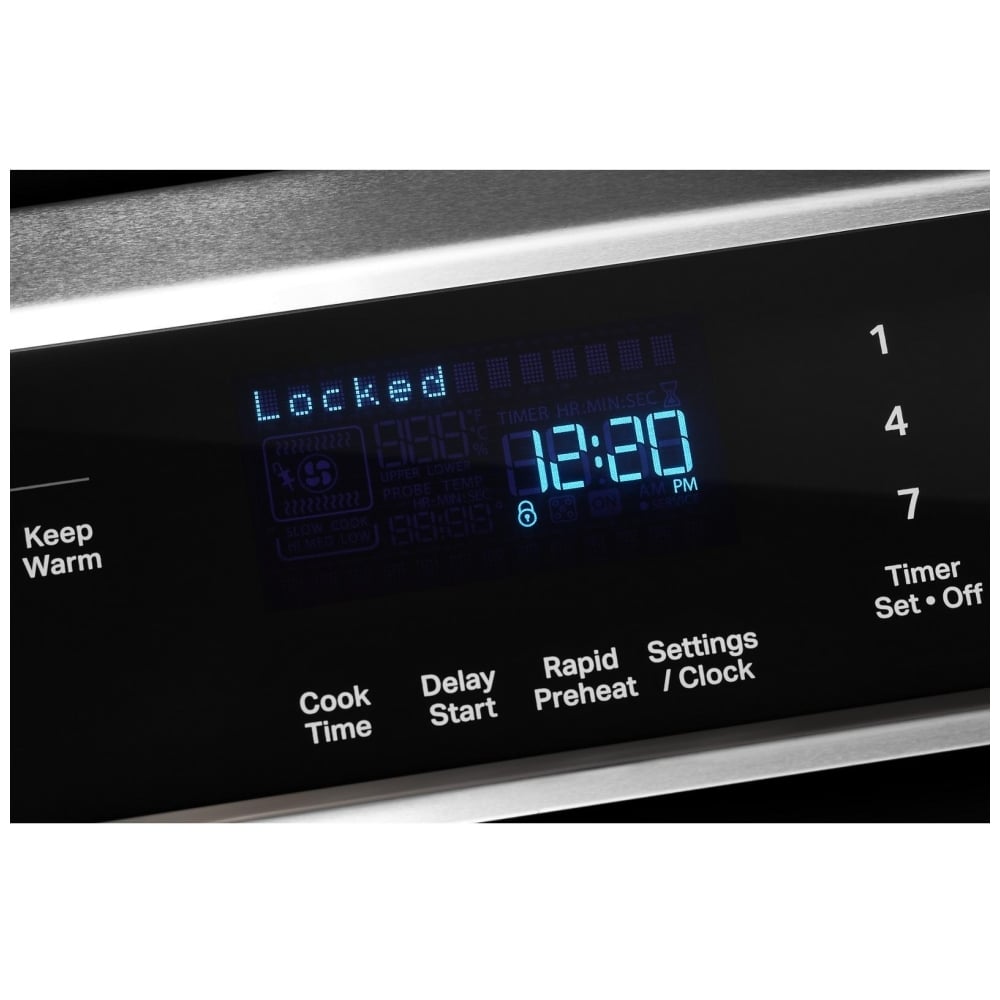

- Disable the control panel to avoid unintended use and easily clean controls.

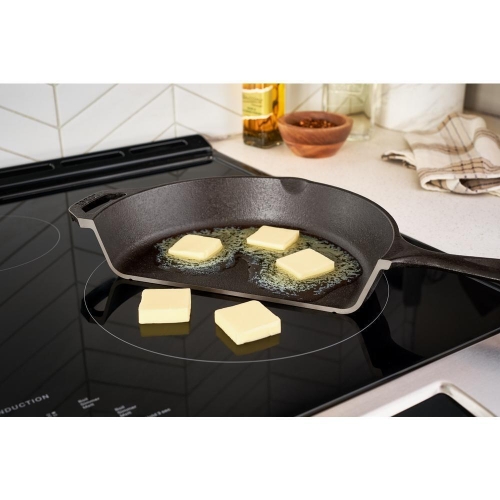

- Compatible with cookware that is multi-ply stainless steel, enamelled steel or cast iron. Use pans marked "Works with Induction" or test to see if a magnet will stick to the bottom.
- For easy cleaning, put the Dishwasher-Safe Air Fry Basket (Sold Separately) right in the dishwasher when it gets messy. Part number W11692811.
- ENERGY STAR® Certified models exceed government standards to help save money on your utility bills.
- Available in a stainless finish that s easy to clean and resists fingerprints and smudges.

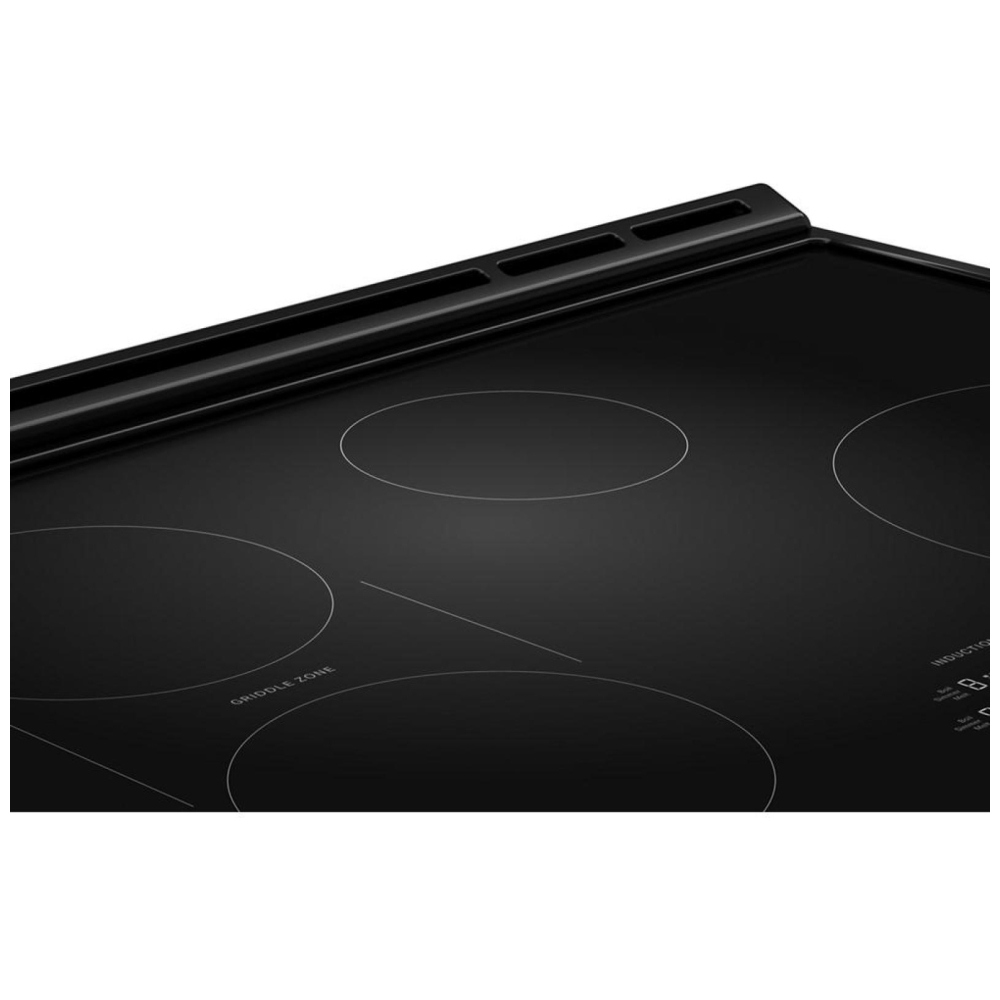

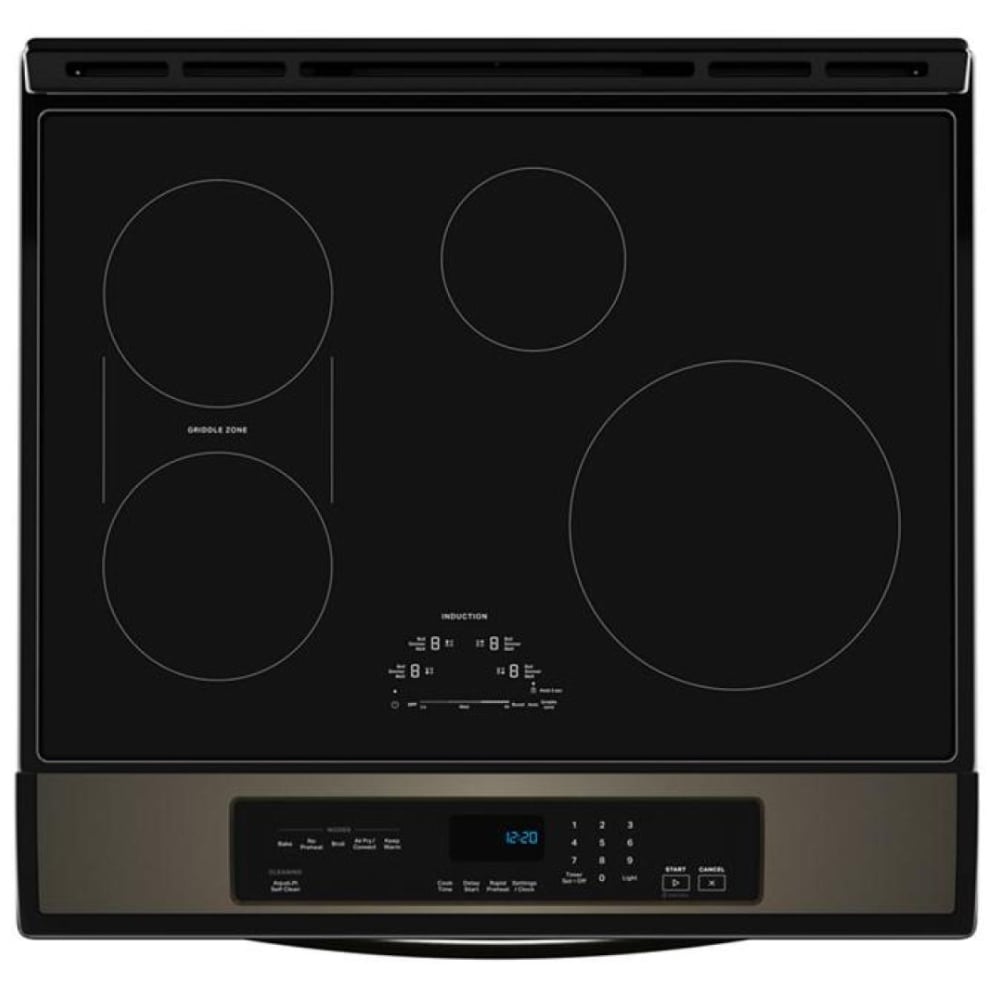

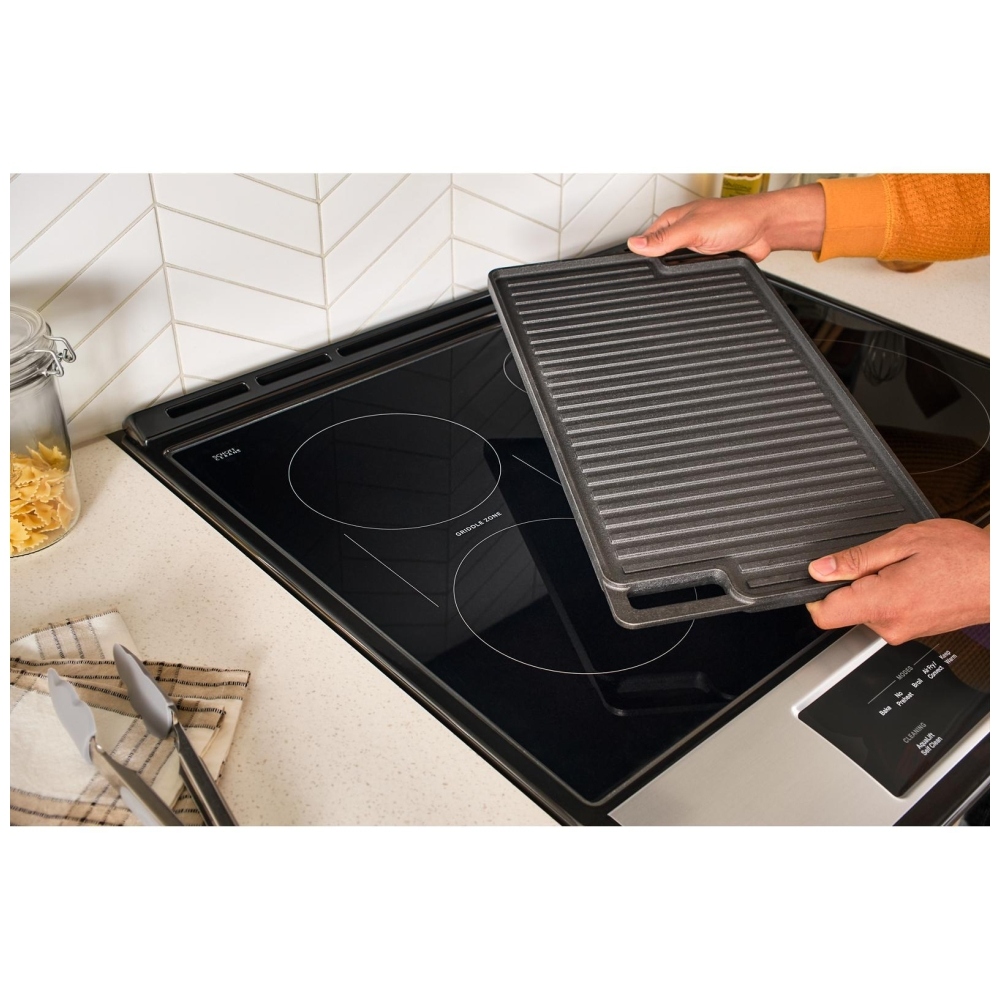

- Griddle Zone delivers new cooking capabilities by connecting two individual heating elements to form one larger one, making it easy to cook different foods at once.

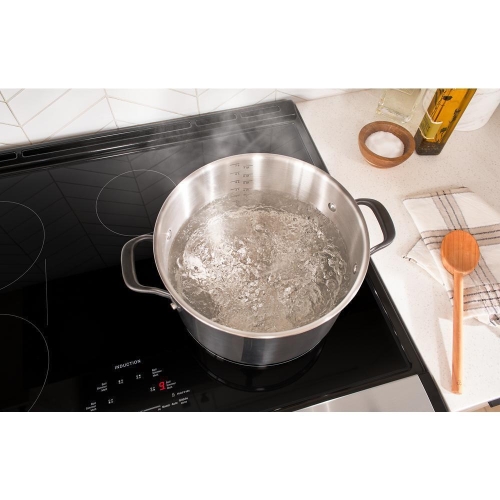

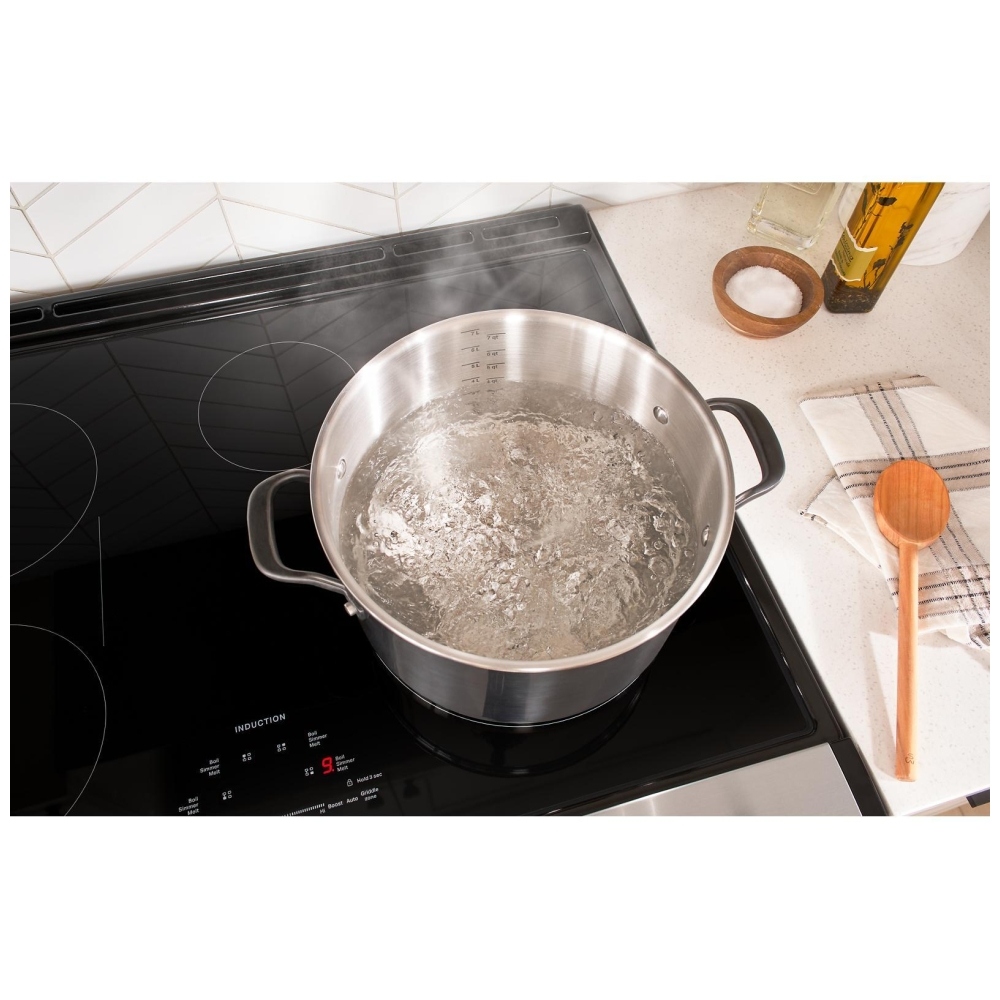

- Induction Technology makes cooking and cleaning fast by transferring heat to the pot, not the cooking surface. This makes cooking and cleaning spills simple.

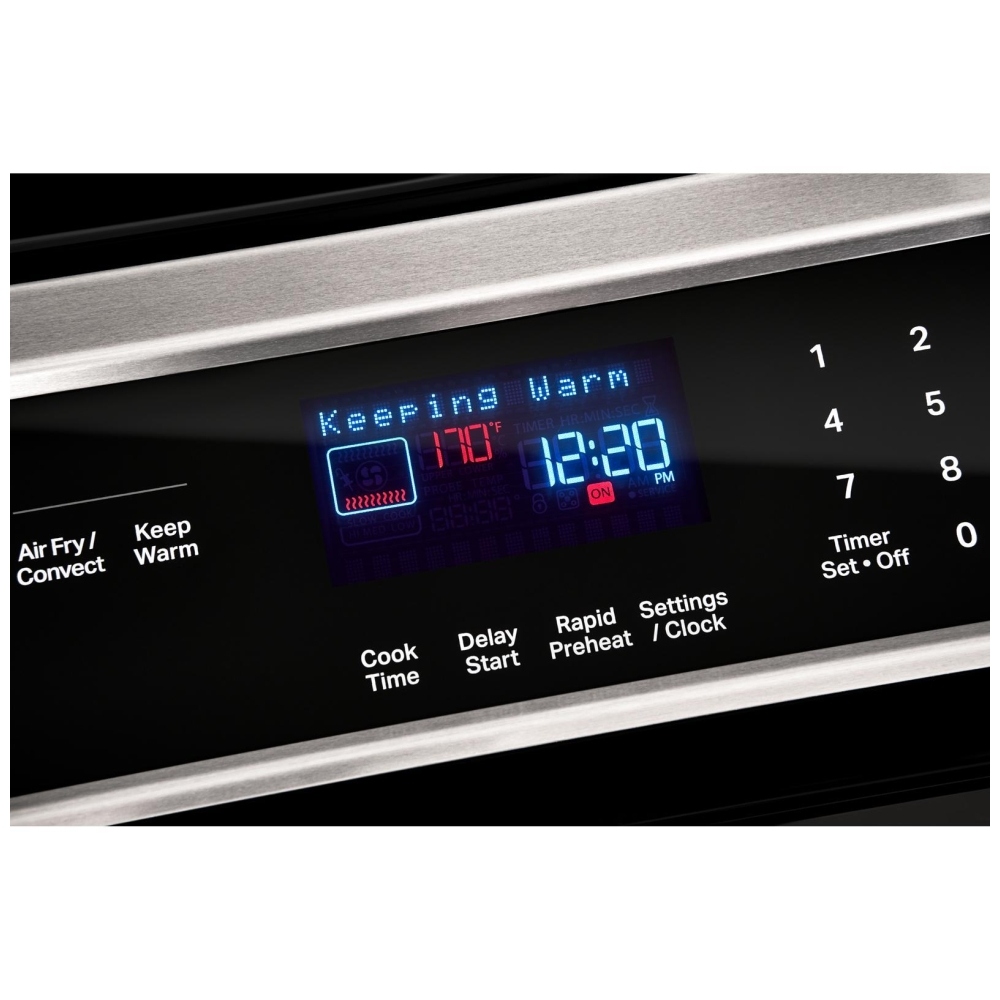

- Use the Keep Warm setting in the oven to help your dishes stay warm until your family is ready to dig in.

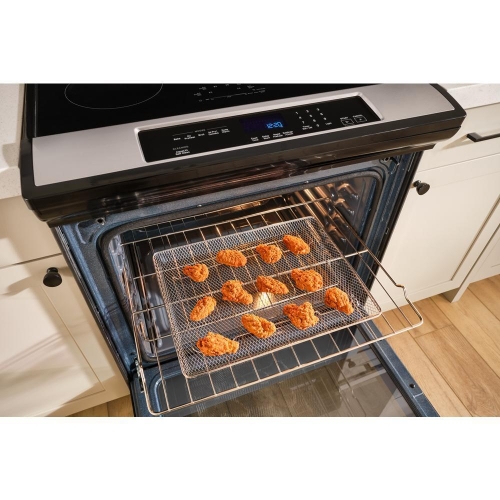

- Start air frying without the wait with No Preheat Air Fry.
- Take preheating off your plate with No Preheat Mode. Simply place your food in the oven and start baking. The oven will adjust the cook time for frozen pizzas and more.

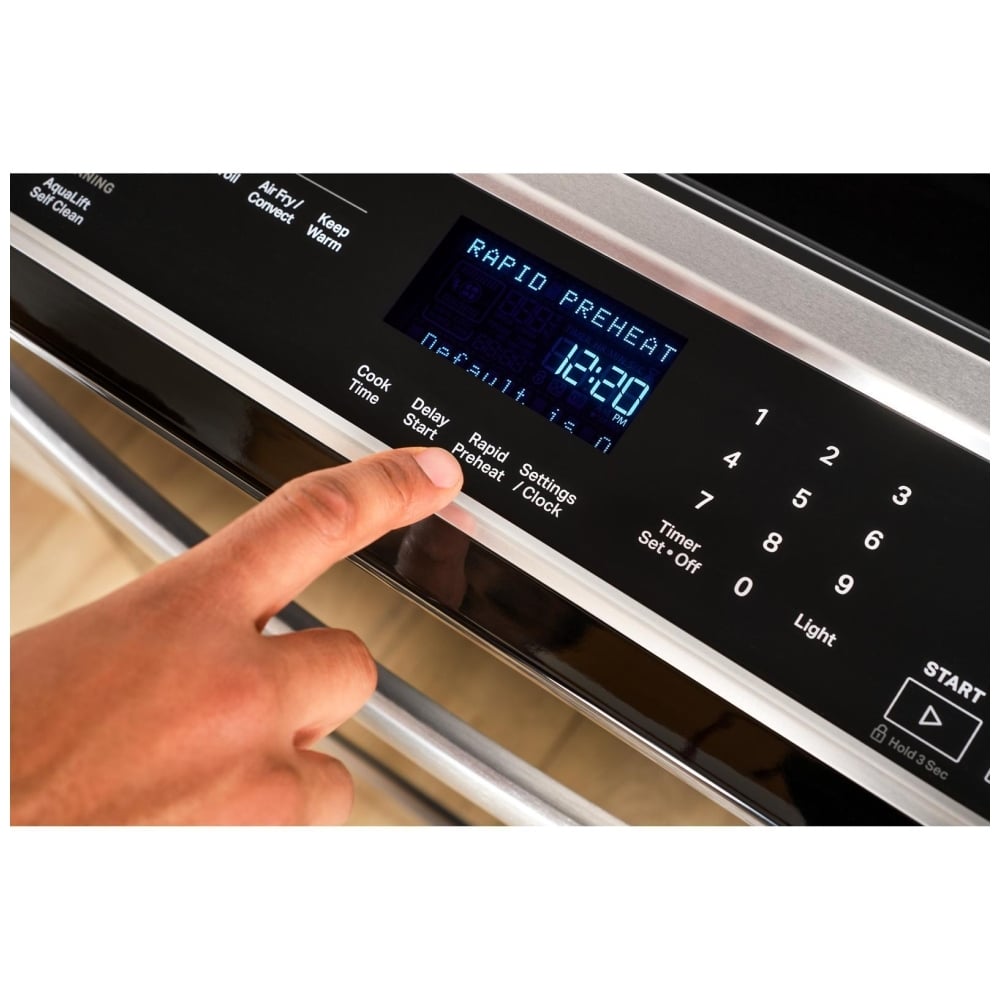

- Rapid Preheat helps you save time with a fast preheating mode. A rear fan combined with the use of all of the elements helps heat the oven quickly.
Manufacturer's Warranty: 1 year
UPC: 883049686844
EAN: 0883049686844
Certifications | |
Ada Compliant | Yes |
Cul | Yes |
Prop65 | Standard |
Ul | Yes |
Controls | |
Display Color | Blue |
Electronic Display Type | LED |
Cooktop Details | |
Cooktop Control Location | Front |
Cooktop Control Type | Electronic Touch |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Griddle Included | No |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Details | |
Air Fry | Yes |
Automatic Convection Conversion Temperature Adjust | Yes |
Cooktop Configuration | All Burners |
Fuel Type | Electric |
Installation Configuration | Freestanding |
Oven Automatic Shut-off | Yes |
Oven Light Switch Location | Top of Console |
Oven Selections | Air Fry; Audible Signal; Bake; Bake-No Preheat; Broil; Cancel/Off; Clock; Control Lock; Convect Modes; Cook Time Indicator; Delay Start; Frozen Bake; Keep Warm Setting; No Preheat - Frozen Lasagna; No Preheat - Frozen Pizza; Rapid Preheat; Sabbath Mode; Stop Time; Timer |
Power On Indicator Light | Yes |
Power Outage Compatible | No |
Range Configuration | Slide-In |
Range Drawer Type | Storage Drawer |
Range Type | Slide-in |
Dimensions | |
Product Height | 36.0 |
Carton Height | 43 |
Gross Weight | 229 |
Oven Interior Height | 22.125 |
Carton Width | 32 |
Product Depth | 28.5 |
Oven Interior Depth | 20.625 |
Depth With Door Open 90 Degree | 48.5 |
Cutout Depth | 24 |
Cutout Height | 36 |
Depth Closed Excluding Handles | 27.875 |
Depth Closed Including Handles | 28.875 |
Carton Depth | 31 |
Cutout Width | 30 |
Oven Interior Width | 24.125 |
Net Weight | 211 |
Product Width | 29.875 |
Electrical | |
Power Cord Included | Yes |
Element/burner Details | |
Cooktop Element Style | Induction |
Left Front Element-burner Power | 3,000W |
Left Front Element-burner Size | 7in. |
Left Front Element-burner Type | Induction Bridge |
Left Rear Element-burner Power | 3000W/1400W |
Left Rear Element-burner Size | 7in. |
Left Rear Element-burner Type | Induction Bridge |
Number of Cooking Element-burners | 4 |
Right Front Element-burner Power | 3700W |
Right Front Element-burner Size | 10in. |
Right Front Element-burner Type | Power |
Right Rear Element-burner Power | 2200W |
Right Rear Element-burner Size | 5 1/2 in. |
Right Rear Element-burner Type | Standard |
Exterior Details | |
Door Type | Glass |
Handle Color | Black Stainless |
Handle Material | Metal |
Handle Type | Reach Through Handle |
Oven Control Location | Front |
Oven Control Type | Electronic Touch |
Oven Window Size | Extra Large |
General | |
Console Language | English |
Energy Rating(s) (kwh/year) | 195 (US), 377 (Canada - oven portion only) |
Energy Ratings (kwh/year) | 195 (US), 377 (Canada - oven portion only) |
Literature Language | English |
Oven Details | |
Bake Element Power | 3,600 W |
Broiler Element Power | 4,000 W |
Broiler Location | Top of Oven |
Convection Element Power | 925 |
Convection Element Type | True Bow Tie |
Convection Functions | Air Fry; Bake; Broil |
Door Removable | Yes |
Hidden Bake Element | Yes |
Interior Color | Grey |
Number of Oven Lights | 1 |
Number of Oven Racks | 2 |
Number of Rack Guides | 7 |
Oven Cleaning Type | AquaLift® Self Clean |
Oven Cooking System | True Convection |
Oven Light Type | Incandescent |
Oven Rack Guide Type | Molded |
Oven Rack Type | 2 Standard |
Smart Compatibility | |
Connectivity | No |
Works With | No |
