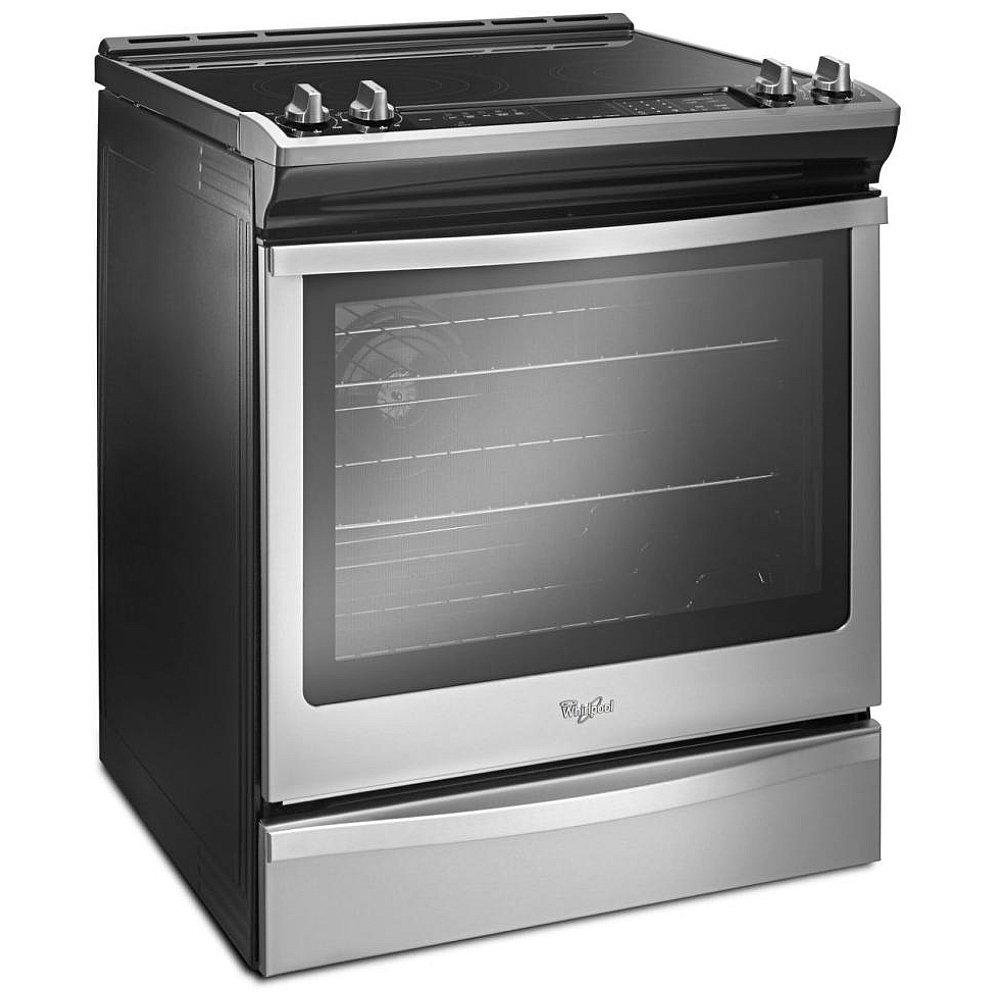

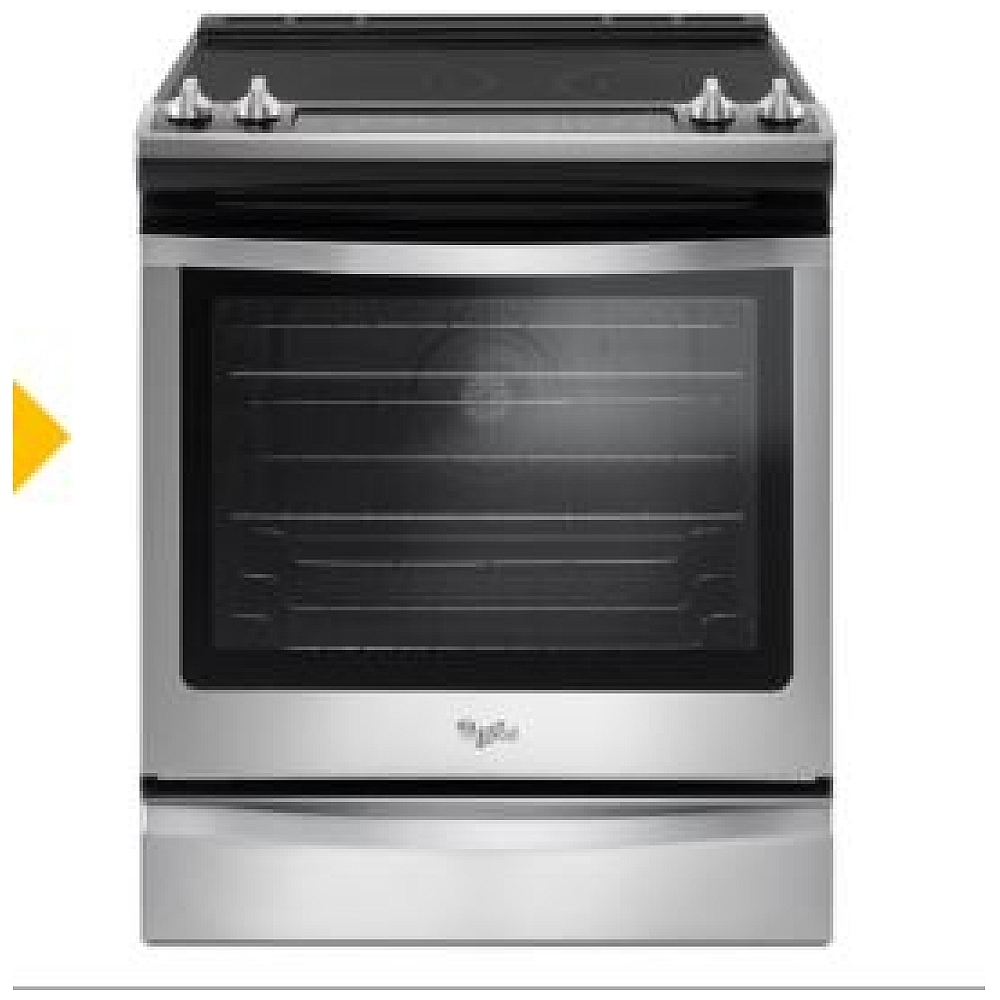

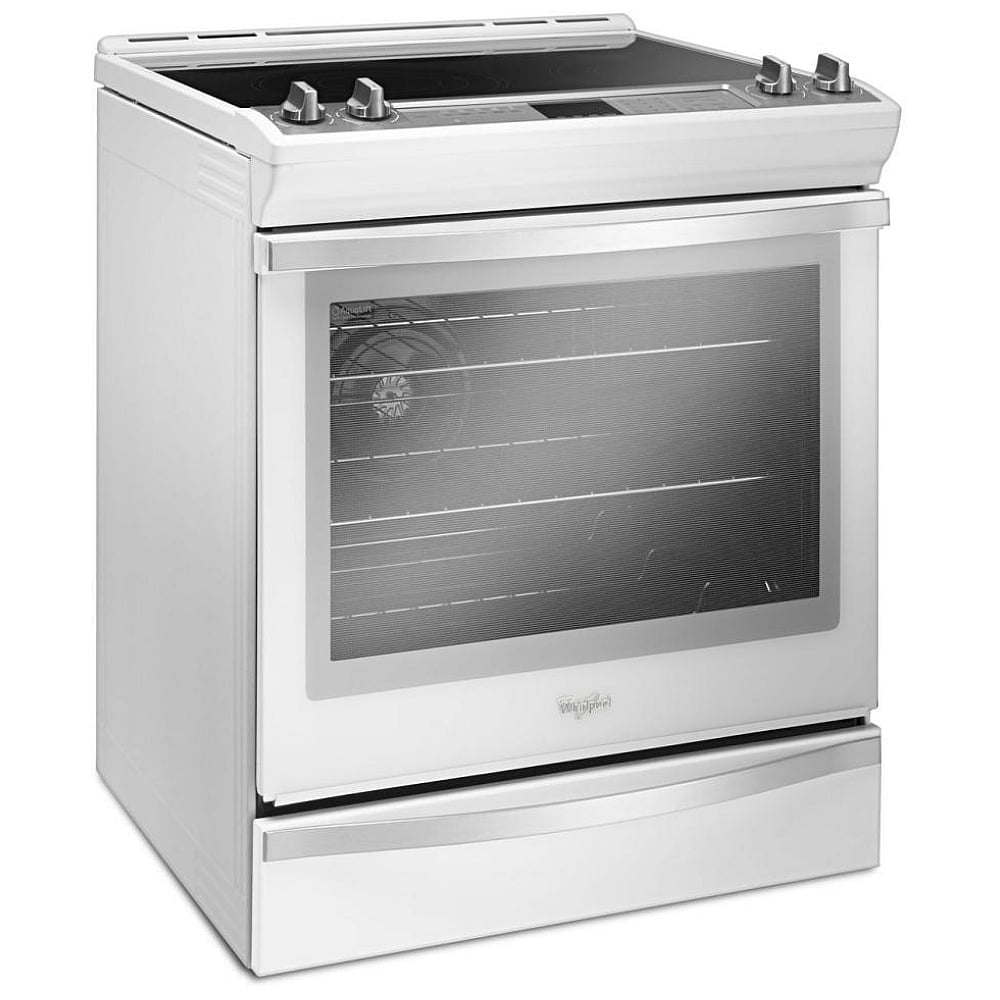

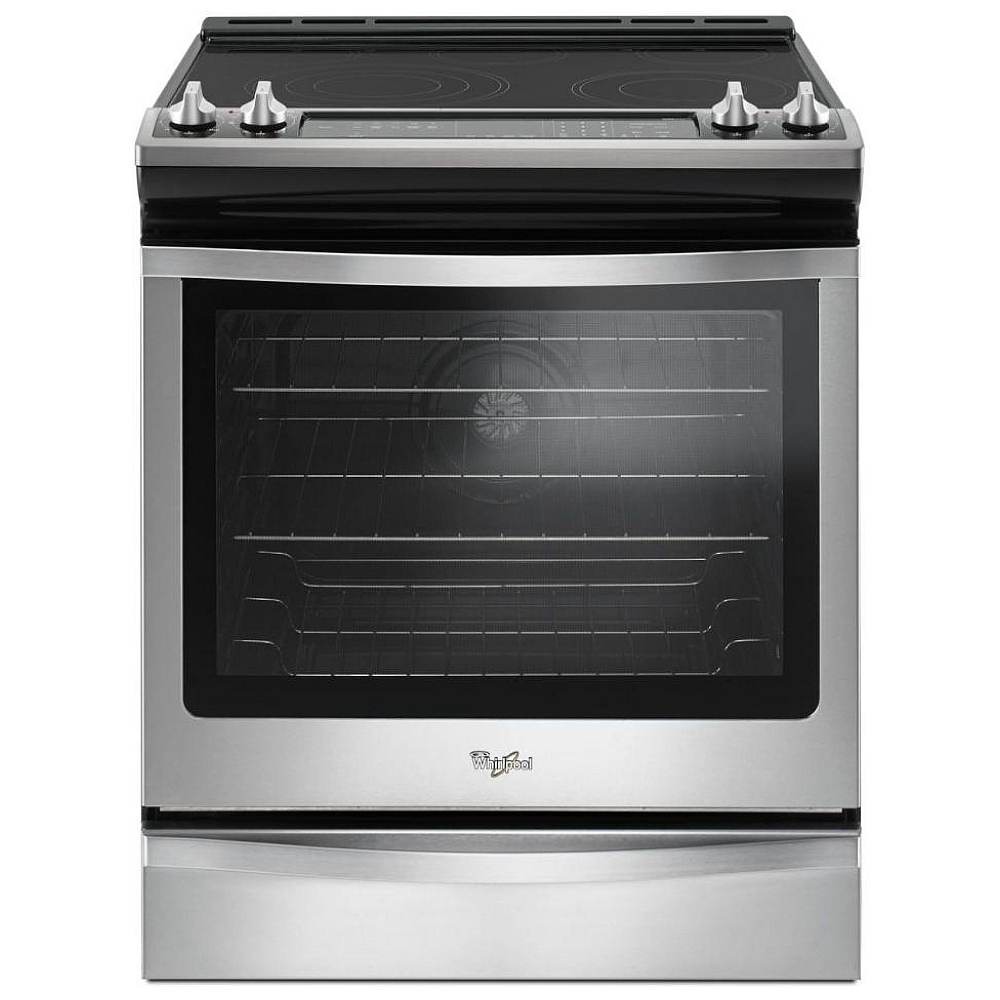

YWEE745H0FS Whirlpool Electric Range 30 inch Canada Parts

Take on family favorites with this front control electric range designed to fit your kitchen and your cooking. Frozen Bake™ technology lets you skip preheating for frozen dishes like pizza, lasagna, chicken nuggets, fries or pies. Cook food faster* with the kitchen range's true convection cooking. Convection Conversion will do themath for you to adjust cooking times and temperatures. The FlexHeat™ triple radiant element is like having three elements in one to fit small pots and pans and make room for larger cookware on the range stove. Plus, when it's time to clean up, AquaLift® self-cleaning technology provides odor-free cleaning without harsh chemicals inonly 50 minutes.**

Convection Conversion

Your oven will do the math for you when you need to convert traditional recipes for convection cooking, automatically adjusting cooking times and temperatures.

Temperature Sensor

A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.

Rapid Preheat

Save time with this fast preheating mode. A rear fan combined with the use of all of the elements helps to heat the oven quickly.

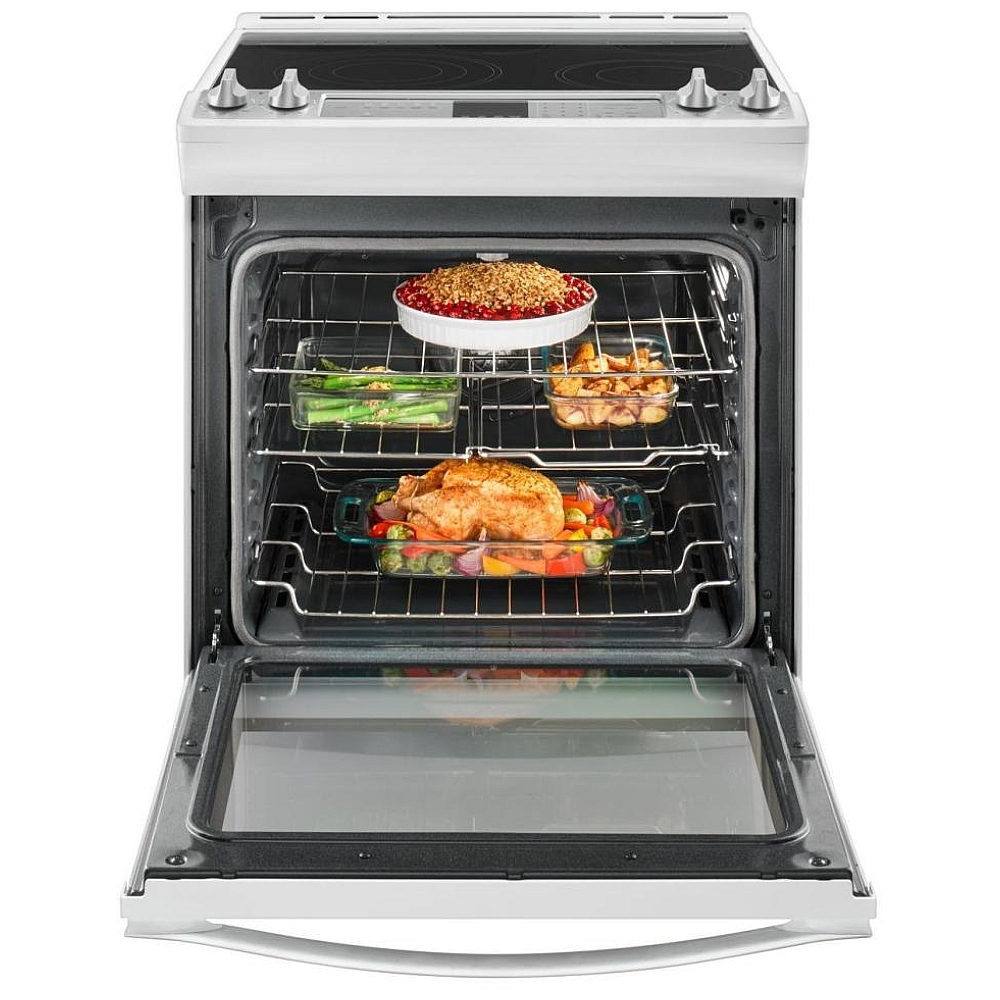

6.4 Cu. Ft. Capacity

Easily cook a whole meal with 6.4 Cu. Ft. Capacity.

Easy-Wipe Ceramic Glass Cooktop
Large Oven Window

Top 3 Features

Frozen Bake™ Technology

Frozen Bake™ technology cooks frozen foods faster⁴ by eliminating the need to preheat the oven. Just select the food type, temperature and cook time listed on the frozen item's package and the oven will start customizing. Now you can cook frozen pizza 31% faster³, and even lasagna, chicken nuggets, fries and pies can get from the oven to the table in less time.

True Convection Cooking

True convection cooking helps you cook foods faster² by using a third element plus a fan to distribute hot air evenly over, under and around food.

FlexHeat™ Triple Radiant Element

The FlexHeat™ triple radiant element is like having three elements in one. A 6"inner ring is great for smaller pots and pans, while 9"and 12"outer rings make room to heat larger cookware.

Additional Features

Convection Conversion

Your oven will do the math for you when you need to convert traditional recipes for convection cooking, automatically adjusting cooking times and temperatures.

AquaLift® Self-Cleaning Technology

AquaLift® self-cleaning technology delivers odour-free oven cleaning without chemicals in only 50 minutes.

Temperature Sensor

A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.

Rapid Preheat

Save time when you only need to bake on one rack. Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly.

6.4 Cu. Ft. Capacity

Easy-Wipe Ceramic Glass Cooktop

Large Oven Window

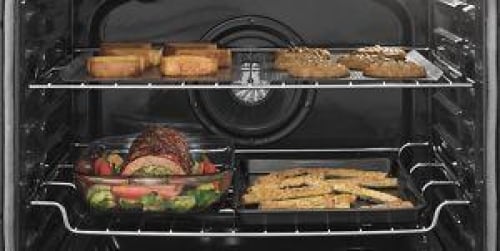

Max Capacity Rack

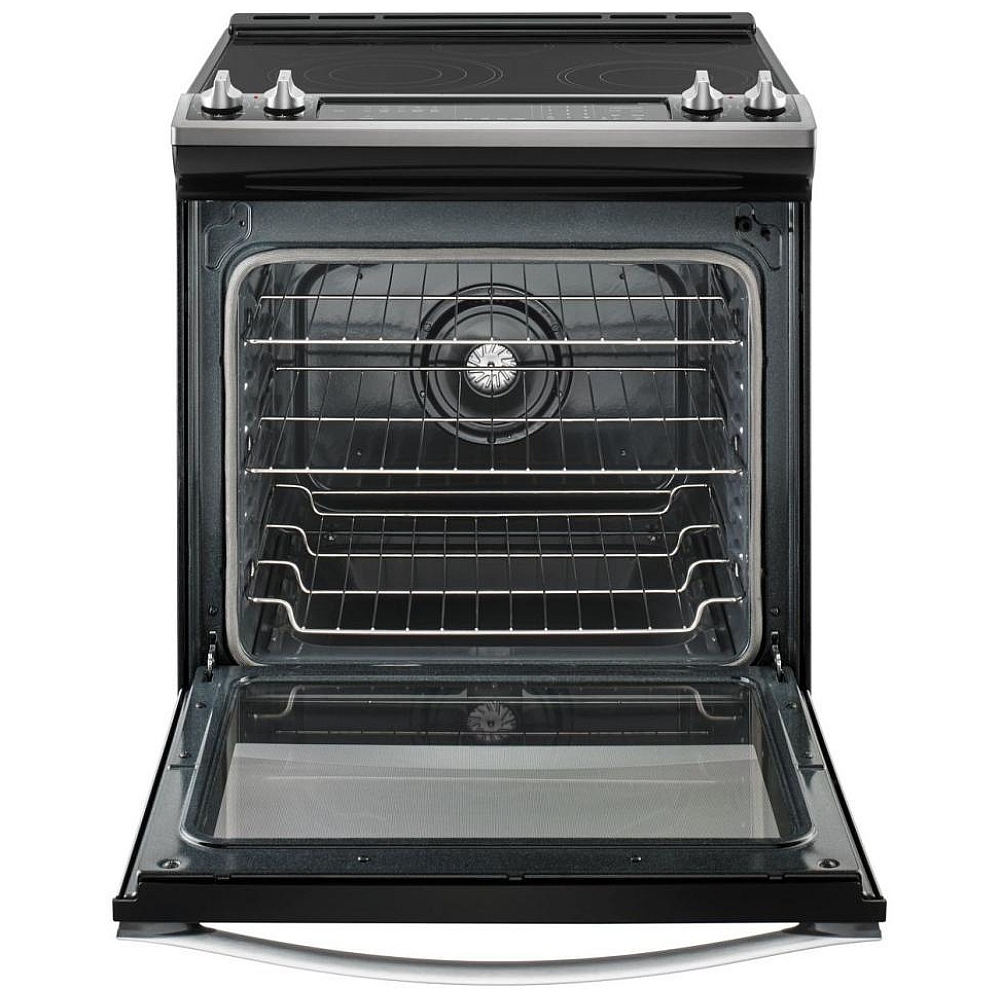

Hidden Bake Element

Easily clean your oven without an exposed bake element in the way.

Dishwasher-Safe Knobs

Manufacturer's Warranty: 1 year

UPC: 883049397641

EAN: 0883049397641

Frozen Bake™ Technology
YWEE745H0FS - Frozen Bake™ Technology
Frozen Bake™ technology cooks frozen foods faster by eliminating the need to preheat the oven. Just select the food type, temperature and cook time listed on the frozen item's package and the oven will start customizing. Now you can cook frozen pizza 31% faster, and even lasagna, chicken nuggets, fries and pies can get from the oven to the table in less time.

True Convection Cooking
YWEE745H0FS - True Convection Cooking
True convection cooking helps you cook foods faster by using a third element plus a fan to distribute hot air evenly over, under and around food.

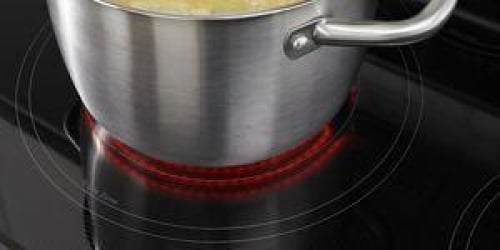

FlexHeat™ Triple Radiant Element
YWEE745H0FS - FlexHeat™ Triple Radiant Element
The FlexHeat™ triple radiant element is like having three elements in one. A 6"inner ring is great for smaller pots and pans, while 9"and 12"outer rings make room to heat larger cookware.

AquaLift® Self-Cleaning Technology
YWEE745H0FS - AquaLift® Self-Cleaning Technology
AquaLift® self-cleaning technology delivers odour-free oven cleaning without chemicals in only 50 minutes.

Specs

Dimensions
Capacity	6-2/5
Depth Closed Including Handles	28-7/8 in
Height	36.0 in
Width	29-7/8 in
Configuration and Overview
Fuel Type	Electric
Range Type	Slide-in
Size	30 in
Appearance
Handle Material	Metal
Features
Automatic Convection Conversion Temperature Adjust	Yes
Automatic Shut-Off	No
Broiler Location	Top of Oven
Convection Functions	Bake, Broil, Roast
Drawer Type	Storage Drawer
Hidden Bake Element	Yes
Interior Color	Grey
Oven Cooking System	Convection
Power On Indicator Light	Yes
Cooktop Details
Center Rear Element-Burner Size	6""
Cooktop Element Style	Radiant
Cooktop Surface Color	Black
Heating Element On Indicator Light	Yes
Hot Surface Indicator Light	Yes
Left Front Element-Burner Power	3000W
Left Front Element-Burner Size	12""/9""/6""
Left Rear Element-Burner Size	6""
Number of Cooking Element-Burners	5
Right Front Element-Burner Size	9""/6""
Right Front Element-Burner Type	Dual
Right Rear Element-Burner Size	6""
Details
Bake Element Power	3600W
Convection Element Type	Single-Fan
Cooktop Surface Material	Ceramic Glass
Number of Oven Lights	1
Number of Oven Racks	3
Number of Rack Guides	7
Oven Cleaning Type	AquaLift® Self Clean
Oven Light Type	Incandescent
Oven Rack Type	2 Standard and 1 Max Capacity
Certifications
Electrical
Power Cord Included	Yes
Refinements
Features	FlexHeat™ Dual Element, FlexHeat™ Triple Radiant Element, Frozen Bake™ Technology, Sabbath Mode/Star-K Certification, Self-Cleaning, Whirlpool Handle, Bladed Knob

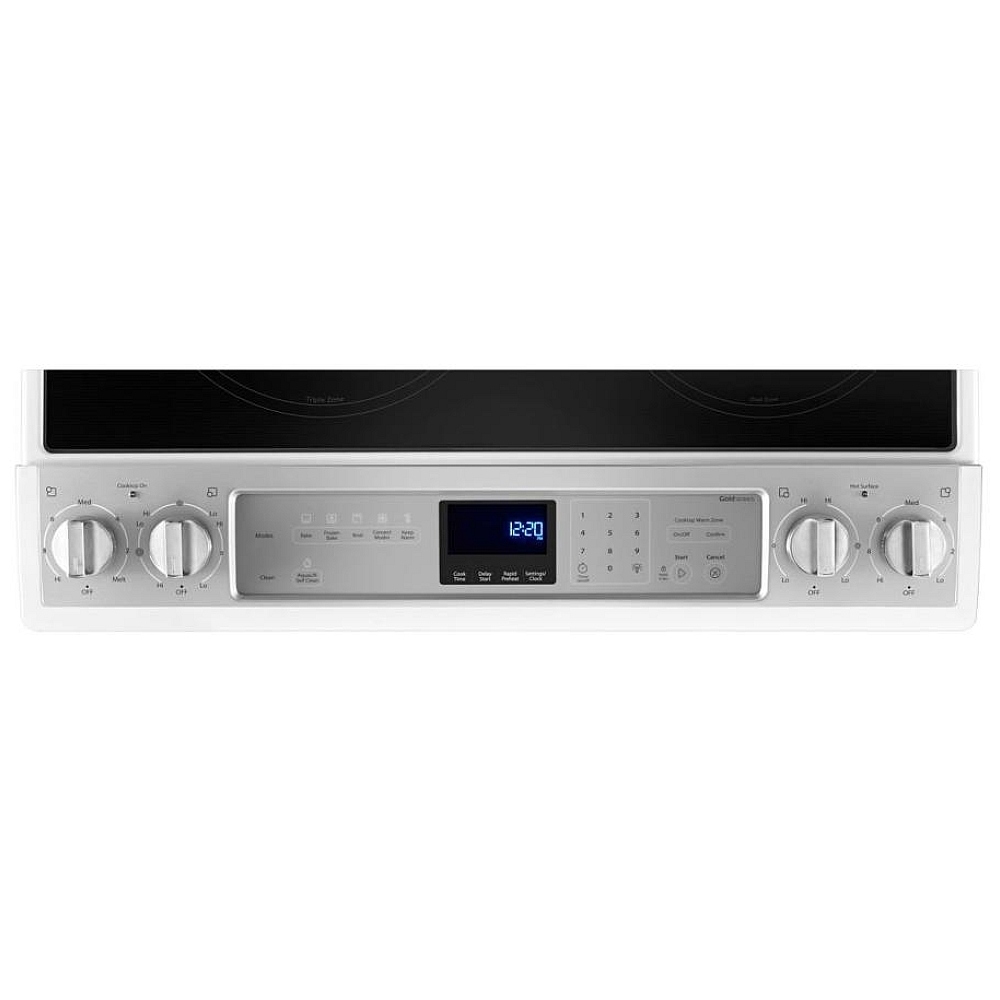

Controls
Display Color	Blue
Knob Color	Color Coordinated/Black on Stainless
Knob Type	Dishwasher-Safe Weighted
Exterior
Handle Type	Towel Bar
Oven Window Size	Extra Large
Configuration
Oven Configuration	Single Oven
Range Configuration	Slide-In
EndecaProps
ProductOutletCategories	Cooking

Configuration and Overview
Fuel Type	Electric
Range Type	Slide-in

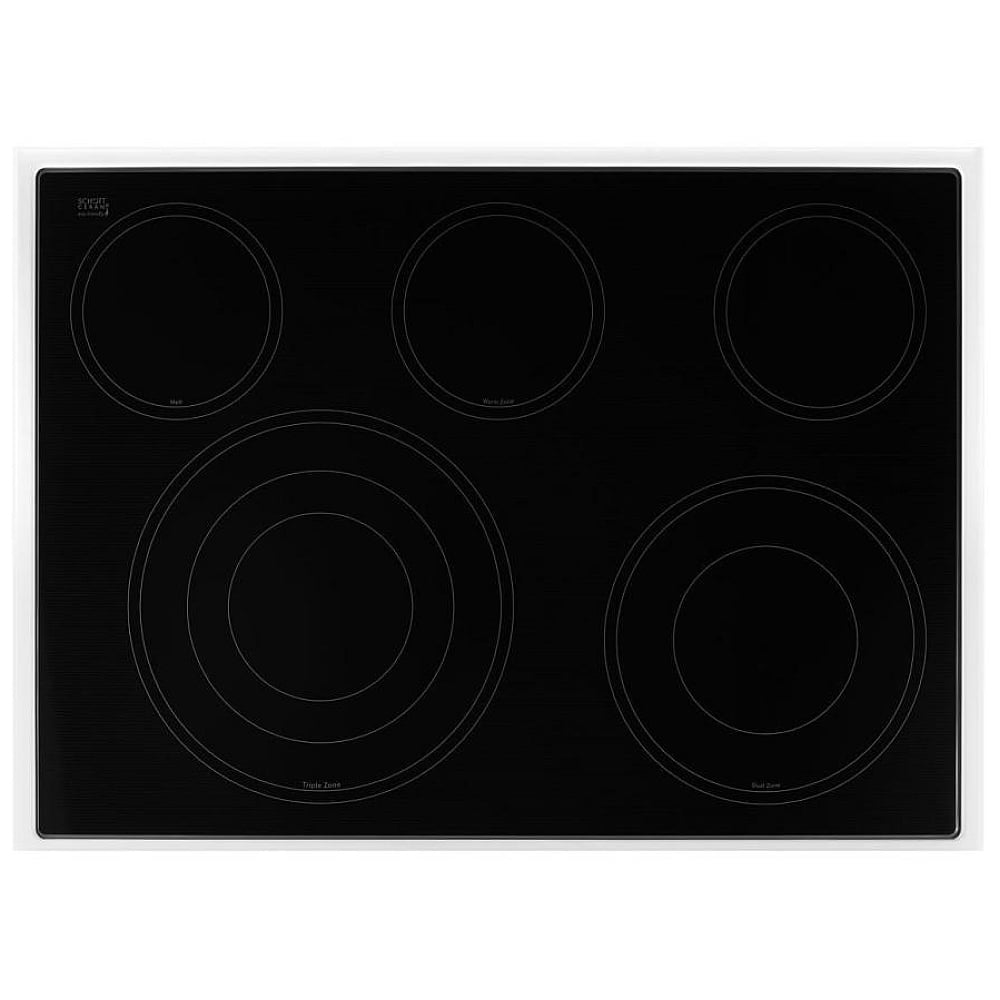

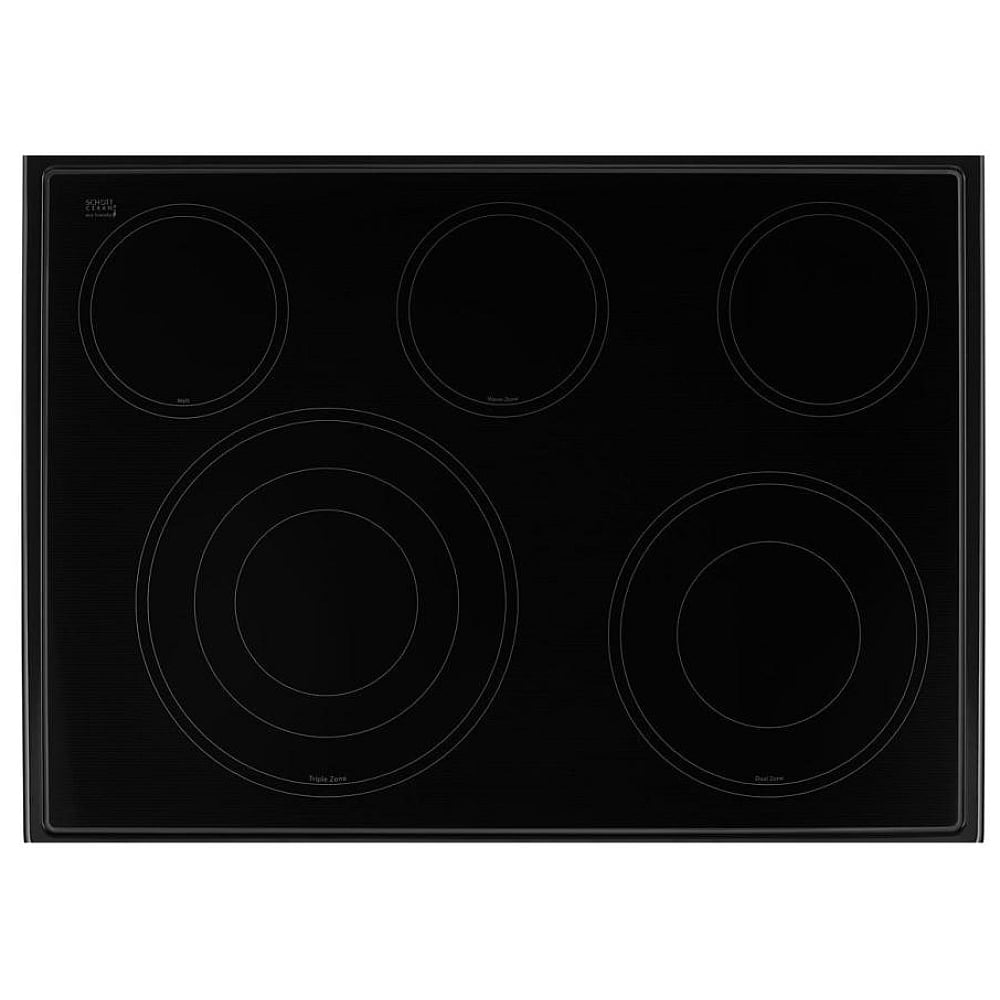

Cooktop Features
Cooktop Element Style	Radiant
Cooktop Surface Color	Black
Cooktop Surface Material	Ceramic Glass
Number of Cooking Element-Burners	5
Center Rear Element-Burner Power	100W
Center Rear Element-Burner Size	6"
Center Rear Element-Burner Type	Warming
Left Front Element-Burner Power	3000W
Left Front Element-Burner Size	12"/9"/6"
Left Front Element-Burner Type	Triple
Left Rear Element-Burner Power	300W/1300W
Left Rear Element-Burner Size	6"
Left Rear Element-Burner Type	Radiant Melt
Right Front Element-Burner Power	3000W
Right Front Element-Burner Size	9"/6"
Right Front Element-Burner Type	Dual
Right Rear Element-Burner Power	1200W
Right Rear Element-Burner Size	6"
Right Rear Element-Burner Type	Radiant

Oven Features
Number of Oven Lights	1
Automatic Convection Conversion Temperature Adjust	Yes
Heating Element On Indicator Light	Yes
Hot Surface Indicator Light	Yes
Power On Indicator Light	Yes
Light Type	Incandescent
Oven Rack Type	2 Standard and 1 Max Capacity
Self-Cleaning	AquaLift® Self Clean

Controls
Drawer Type	Storage Drawer
Handle Material	Metal
Handle Type	Towel Bar
Selections	Keep Warm Setting, Settings, Control Lock, Frozen Bake, Cook Time Indicator, Delay Start, Sabbath Mode, Convect Modes, Rapid Preheat
ADA Compliant	ADA Height and Operation Compliant
UL	UL

Dimensions
Height	36
Width	29 7/8

Manuals

Energy Guide (YWEE745H0FS-energy-guide-canada.pdf)

Warranty Information (YWEE745H0FS-warranty-information-canada.pdf)

Use & Care Guide (YWEE745H0FS-use-care-guide-canada.pdf)

Energy Guide (YWEE745H0FS-energy-guide-1.pdf)

Use & Care Guide (YWEE745H0FS-use-care-guide-1.pdf)
