Garantie du fabricant: 1 an

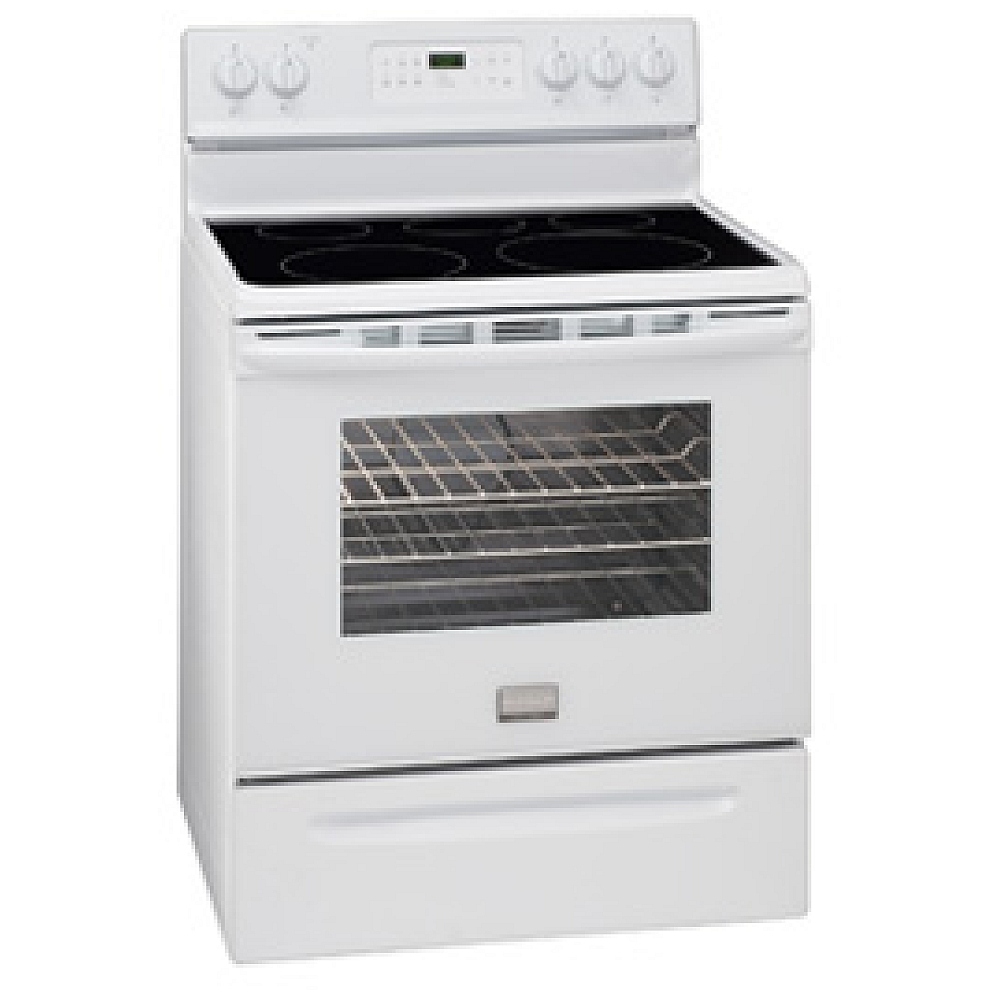

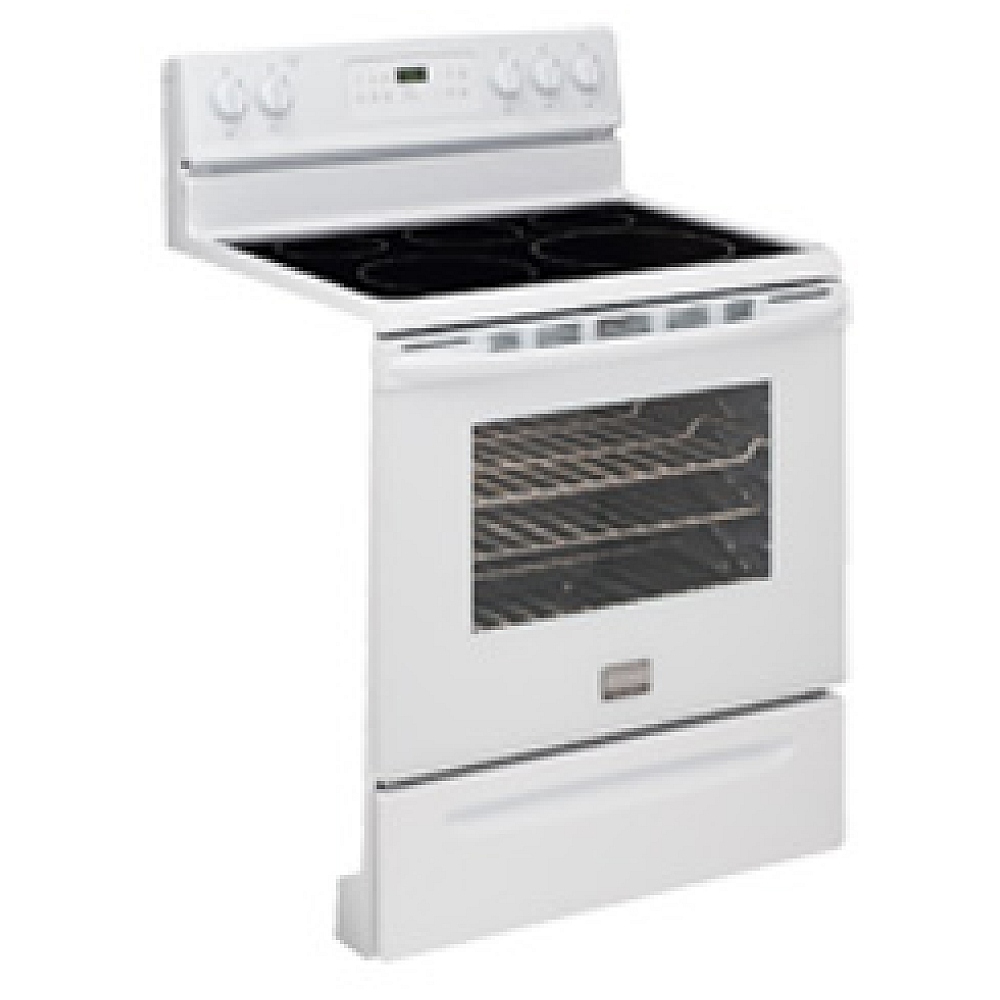

Base_Model | CGEF3031K |
Installation Type | Free-Standing |
Power Type | Electric |
Colour | White |
Exterior Finish | Painted |
Exterior Door Finish | Glass |
Control Panel | |
Interface | Membrane |
Knobs | Plastic |
Delay Bake | Yes |
Broil | Low and High |
Preheat | Integrated with Bake |
Self-Clean | 2, 3 Hours (Scroll thru) |
Delay Clean | Yes |
Delay Start | Yes |
Timed Shut-off | 12 hrs. |
Timer Function | Yes |
Oven Lock-out | Yes |
Timer Lock-out | Yes |
Cooktop Configuration | |
Surface Type | Upswept Black Smoothtop |
Front Right Element | 12" 2700 watts |
Front Left Element | 9" 3000 watts |
Rear Right Element | 6" 1200 watts |
Rear Left Element | 6" 1200 watts |
Centre Element | Warming Zone |
Oven Features | |
Capacity (Cu. Ft.) | 5.4 Cu. Ft. |
Bake Element (Watts) | 3500 |
Baking System | Even Baking Technology |
Broil Element (Watts) | 3600 |
Broiling System | Vari Broil High/Low |
Hidden Bake Element | Yes |
Rack Configuration | 2 std with 1 off set |
Light Type | Standard |
Light (No.) | 1 |
Cleaning System | Self-Clean |
Self-Cleaning Time | 2, 3 Hours (Scroll thru) |
Window | Extra-Large |
Drawer Features | |
Lower Drawer Controls | Storage |
Drawer Functionality | Storage |
Handle | Integrated |
Oven Interior Dimensions | |
Interior Width | 24-3/8" |
Interior Depth | 19-1/8" |
Interior Height | 21" |
Exterior Dimensions | |
Exterior Width | 29-7/8" |
Exterior Depth | 28-1/2" |
Exterior Depth (to Center of Arc) | 28-1/2" |
Exterior Depth (with 90° Door Open) | 48-3/8" |
Exterior Height | 47" |
Power Supply Connection Location | Centreline Lower Rear |
Connected Load (kW Rating) @ 240 / 208 Volts | 12.5 / 9.5 kW |
Voltage Rating | 240 / 208 V |
Minimum Circuit Required (Amps) | 40 |
Product Weight | 185 lbs |
Shipping Weight (Approx.) | 205 lbs |
Cut-Out Height | 0 |
Size | 30" |
UPC Code | 0-12505-50210-1 |
