- Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
- Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking
- Matte-finish, connected cooktop grates provide a sturdy, uninterrupted surface that allows pots and pans to move easily
- Deep recessed cooktop keeps spills, and everything else, contained in one area that's easy to wipe clean
- Ideal for pancakes, bacon, sandwiches and more, the large non-stick griddle is convenient and easy to clean
- This powerful element instantly supplies the intense heat need for boiling, saute ing and stir frying
Garantie du fabricant: 1 an

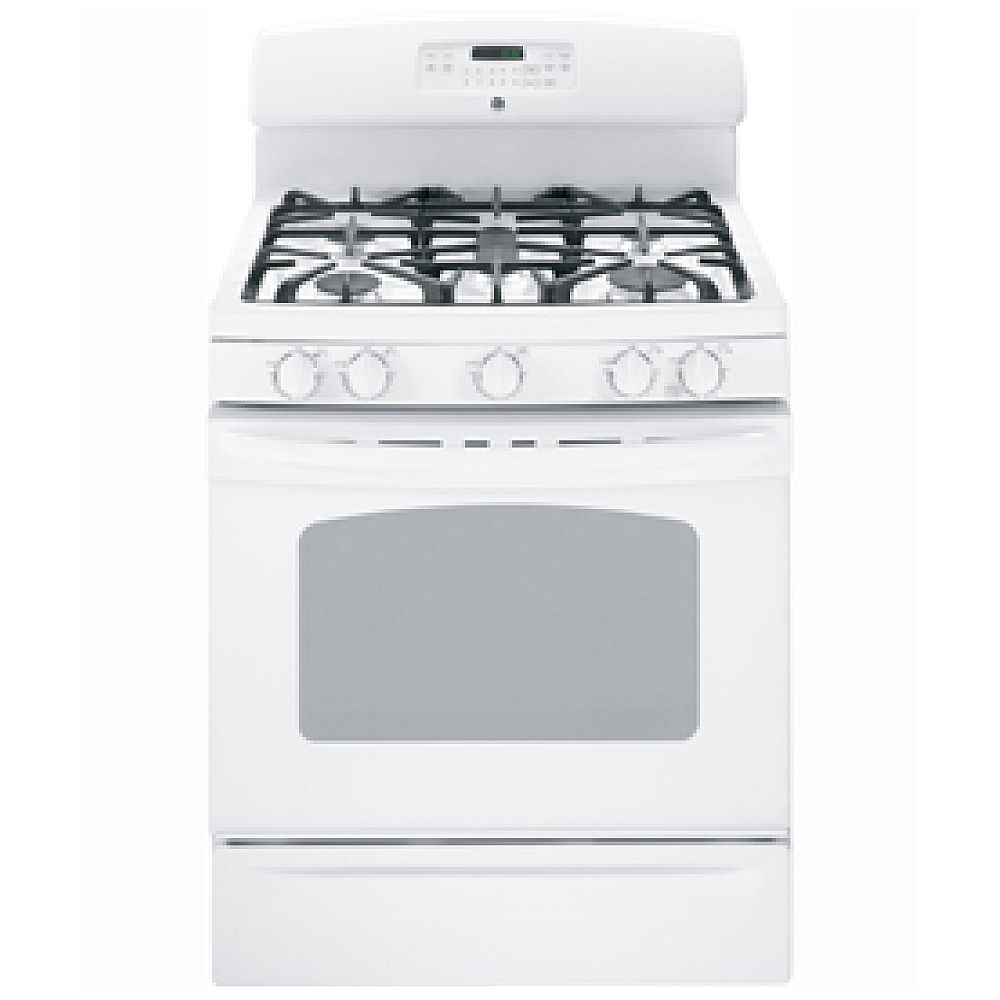

Modèle canadien: JGB500DEPWW
| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean |
| Temperature Management System | TrueTemp™ System |
| Cleaning Time | Variable |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Color-Matched Deep Recessed One-Piece Upswept Porcelain-Enamel |
| All-Purpose Burners | (1) 9,100 BTU/850 BTU |
| Center Oval Burner | (1) 6,000 BTU |
| Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe |
| Cooktop Burner Grate Material | Heavy Cast |
| High Output Burner | (1) 11,000 BTU/150F degree simmer |
| Power Boil Burner | (1) 17,000 BTU |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Valves (Degree of Turn) | 270 |
| Control Type | Digital Temperature Display Electronic Oven Controls QuickSet IV |
| Oven Control Features | Audible Preheat Signal Automatic Oven Timer (Time Bake) Auto Oven Shut-Off Auto Self Clean Certified Sabbath Mode Delay Bake Option (Time Bake) Delay Clean Option Electronic Clock and Timer Hi / Low Broil In-Oven Broiling Oven Cycle Light Oven "ON" Light Self-Clean Cool Down Time Display |
| Cooking Technology | Traditional |
| Fuel Type | Natural Gas (factory set) |
| Leveling System | 4 Leveling Legs |
| Oven Rack Features | 2 Oven Racks 6 Embossed Rack Positions |
| Scratch-Resistant Backguard | Porcelain-Enameled |
| Oven Interior | Oven Interior Light |
| Griddle | Non-Stick |
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 cu ft |
| APPEARANCE | |
| Color Appearance | White on White |
| Control Knobs | Designer-Style |
| Cooktop Burner Grate Color | Black Matte |
| Frameless Oven Door(s) | White Glass |
| Handle | Color-Matched Sculptured |
| Oven Door Features | Big Hearth Oven Window |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 220 lb |
| Cabinet Width | 30 in |
| Net Weight | 200 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Depth | 26 5/8 in |
| Overall Height | 47 in |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Overall Width | 30 in |
| Depth with Door Open 90° | 46 3/8 in |
| POWER / RATINGS | |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.0 Oven / 12.0 Broiler |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Oven / 13.5 Broiler |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 17.0; (1) 11.0, (1) 9.1; (1) 6.0; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
