Rack Features |
Maximum capacity 3-piece Silverware Basket with ExtraBasket ExtraBasket Cutlery Tray 4 Knife Capacity 3 Pearlescent Utility Shelves with StemSafe Upper CleanTip Tines 4 Fold-Down Tines with 2 Multi-Position Upper 100% Fold-Down Tines Lower Adaptable Bowl Tines Upper Rack Handle Lower Rack Handle Easy-Glide Roller System |
Style |
Built-In |
Water Filtration System |
100% Triple Filtration |
Exterior Style |
Traditional |
Tub and Door Liner |
Stainless Steel |
Dishwasher Cycles |
Normal Wash with scroll pad Rinse Only with scroll pad Cookware with scroll pad Anti-Bacteria (NSF Certified) with scroll pad Plastics with scroll pad Single Rack Wash with scroll pad SpeedCycle (Wash and Dry) with scroll pad |
Dishwasher Drying Features |
Multi-Wattage Calrod Heater Convection Dry with Fan Assist |
Sensor |
CleanSensor |
Leveling System |
Leveling Screws |

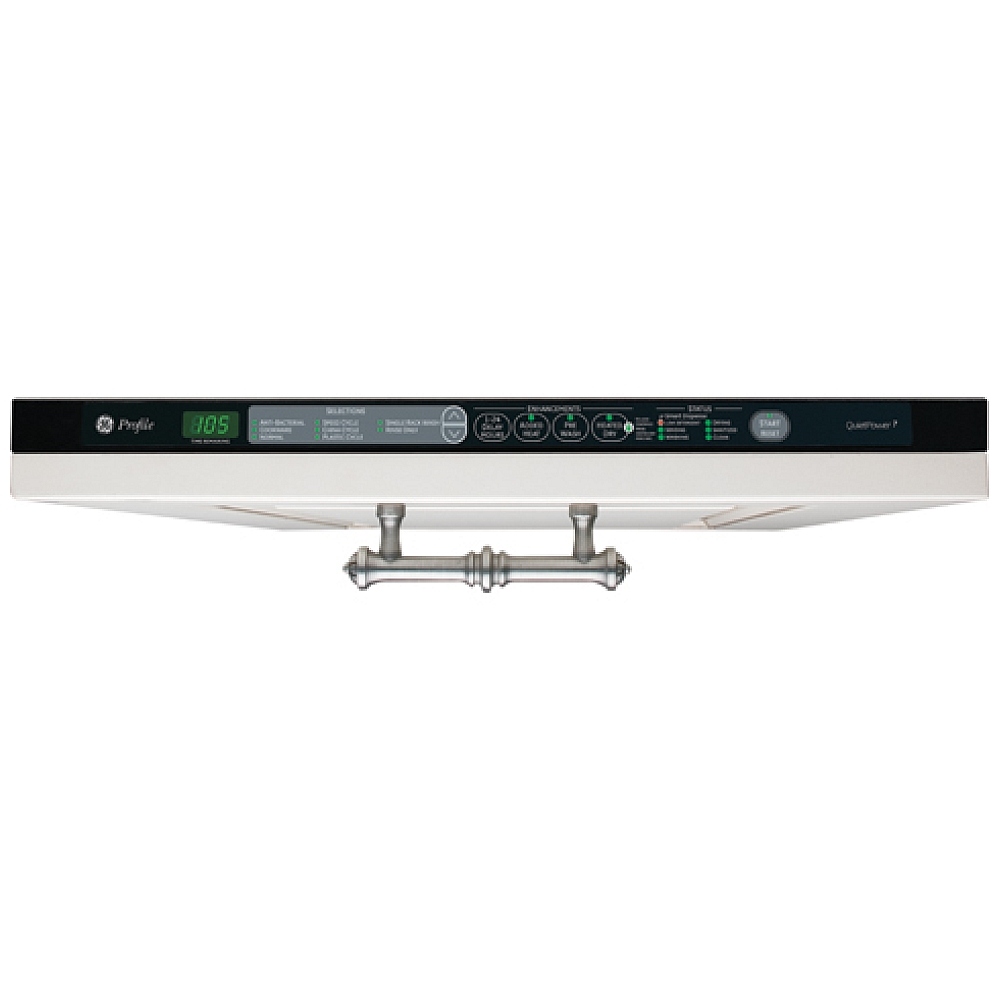

Dishwasher Control Features |
3 Digit Display Cycle Countdown 3 Digit Countdown Display with 6 Cycle Progress Indicator Status Lights Start / Cancel / Reset Pad Last Cycle Memory Audible End-of-Cycle Signal Child Lock |
Wash System |
6-Level BrilliantClean |
Lower Rack |
Towerless |
Number of Options |
Variable |
Number of Cycles |
Variable |
Upper Rack |
Removable 4-Position Adjustable Deep Tiered Angled Rack Dry System |
Number of Place Settings |
Up to 16 |
Tub Type |
Tall Tub |
Dispenser |
SmartDispense Technology Bulk Detergent Dispenser with Refill Light Rinse Aid with Indicator and Adjustment |
Wash System Features |
Dual Pumps and Motors Piranha Hard Food Disposer Automatic Temperature Control Automatic Temperature Sensing Drain Hose |
Racking System |
Nylon Towerless Pearlescent Racks |
Wash Arms |
3-Direct Feed Lower Middle Upper |
Steel Door |
Yes |
Dishwasher Options |
Delay Start 1-24 Hr. with Countdown Automatic HotStart Heated Dry On/Off Hi-Temp Wash Automatic Hi-Temp Rinse with Hi-Temp Wash PreWash |
Control Type |
Fully Integrated Electronic Light Touch Top Controls |
Quiet Package |
QuietPower 7 47 dBA |
Door Insulation |
Insulation Mastic Bitumen |
Motor Type |
QuietPower Motor |
Quiet Features |
Sealed Toe Kick Quiet Water Valve Quiet Detergent Cup Tub Collar Trim Active Vent System |
Outer Wrap |
Full-wrap Blanket Bitumen |
Handle |
Required |

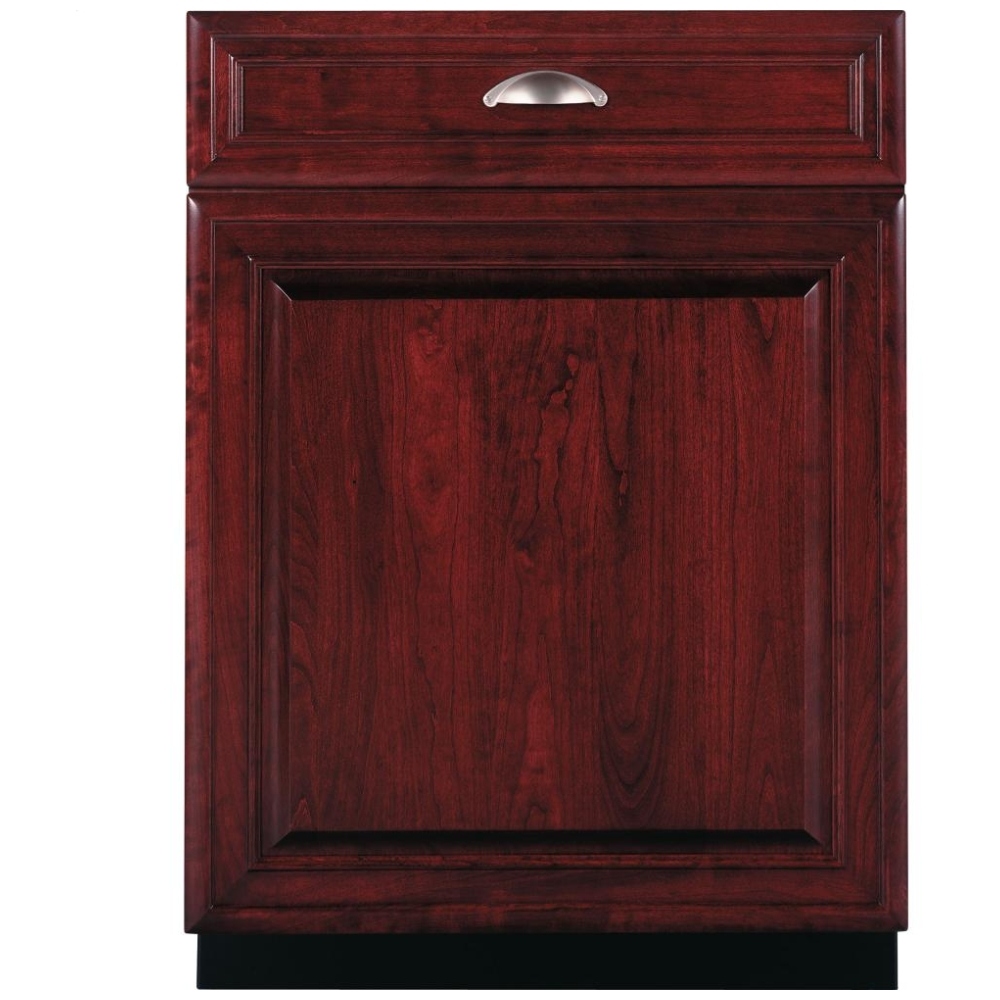

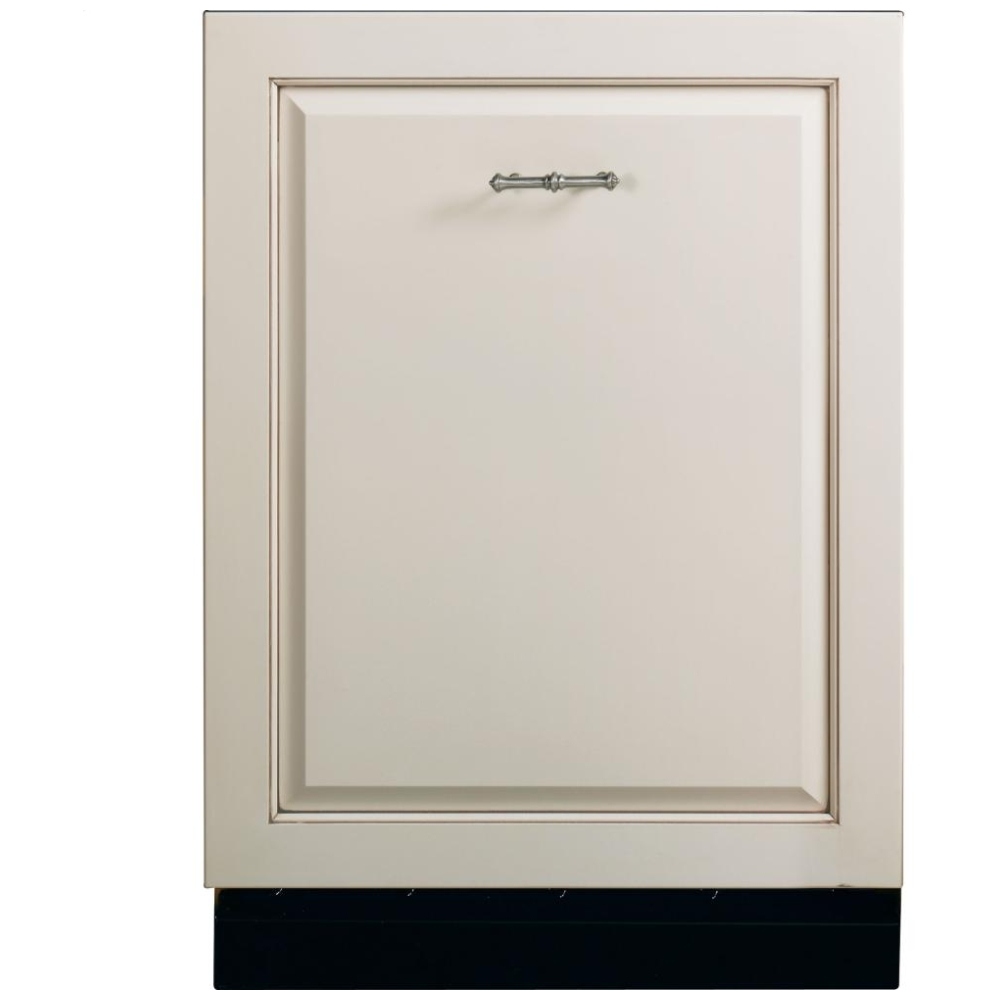

Door Appearance |
Fully integrated door for custom panels |
Color Appearance |
Custom Panel and Handle Required |
Installation |
Hard Countertop Ready Upscale Flush Design |
Door Panel Color |
3/4" Custom Panel Required |
Door Style |
Long Door |
Approximate Shipping Weight |
115 lb |
Height w/Legs Extended (in.) |
35 |
Net Weight (lbs.) |
110 lb |
Overall Height |
34 in |
Overall Width |
24 in |
Overall Depth |
24 3/4 in |
Volts/Hertz/Amps |
120V ; 60 Hz ; 9.1 A |
Calrod Heater Watts |
875 Max. |
Requires Kit for 1/4" Panel Capability (w/Trim) |
N/A |
Requires Kit for 3/4" Panel Capability (Trimless) |
N/A |
Warranty Notes |
For models produced on or after January 1, 2006 See written warranty for full details |
Labor Warranty |
Limited 1-year entire appliance Limited lifetime of product tub/door liner |
Parts Warranty |
Limited 1-year entire appliance Limited 5-year racks/electronic control board Limited lifetime of product tub/door liner |
