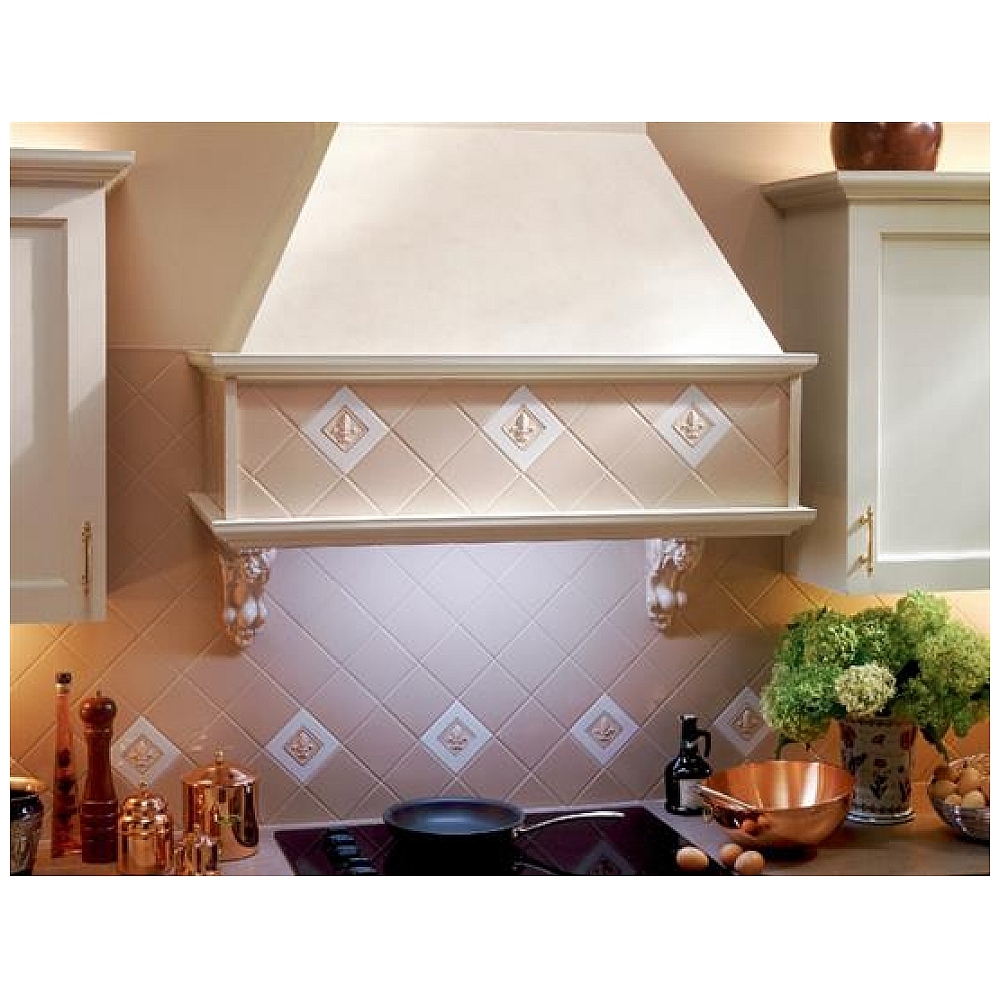

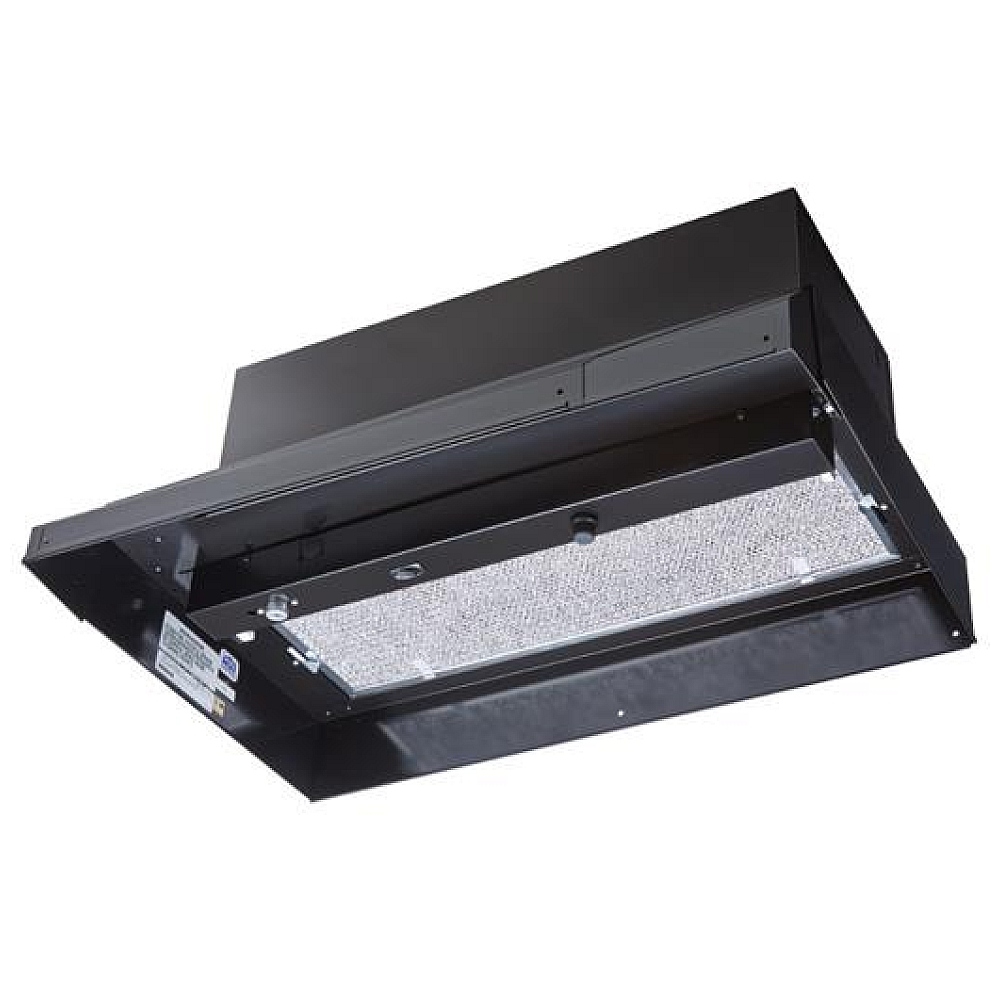

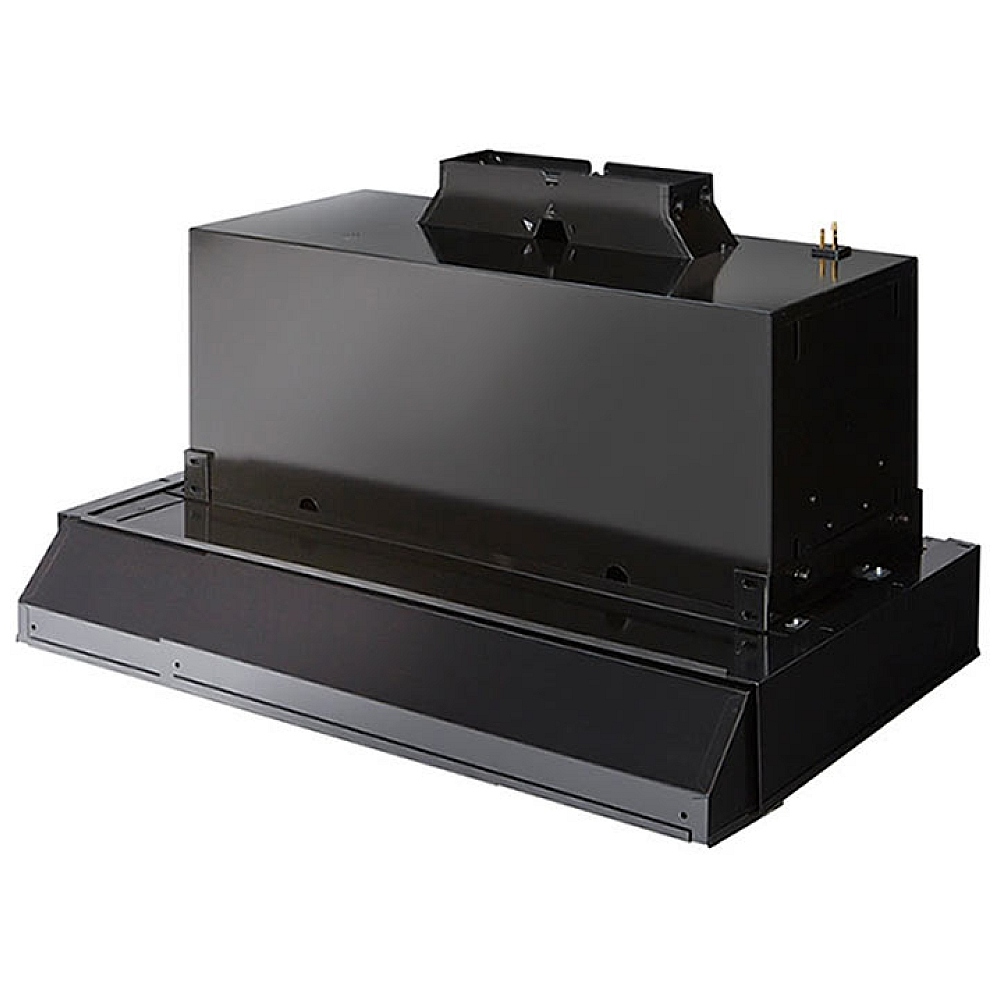

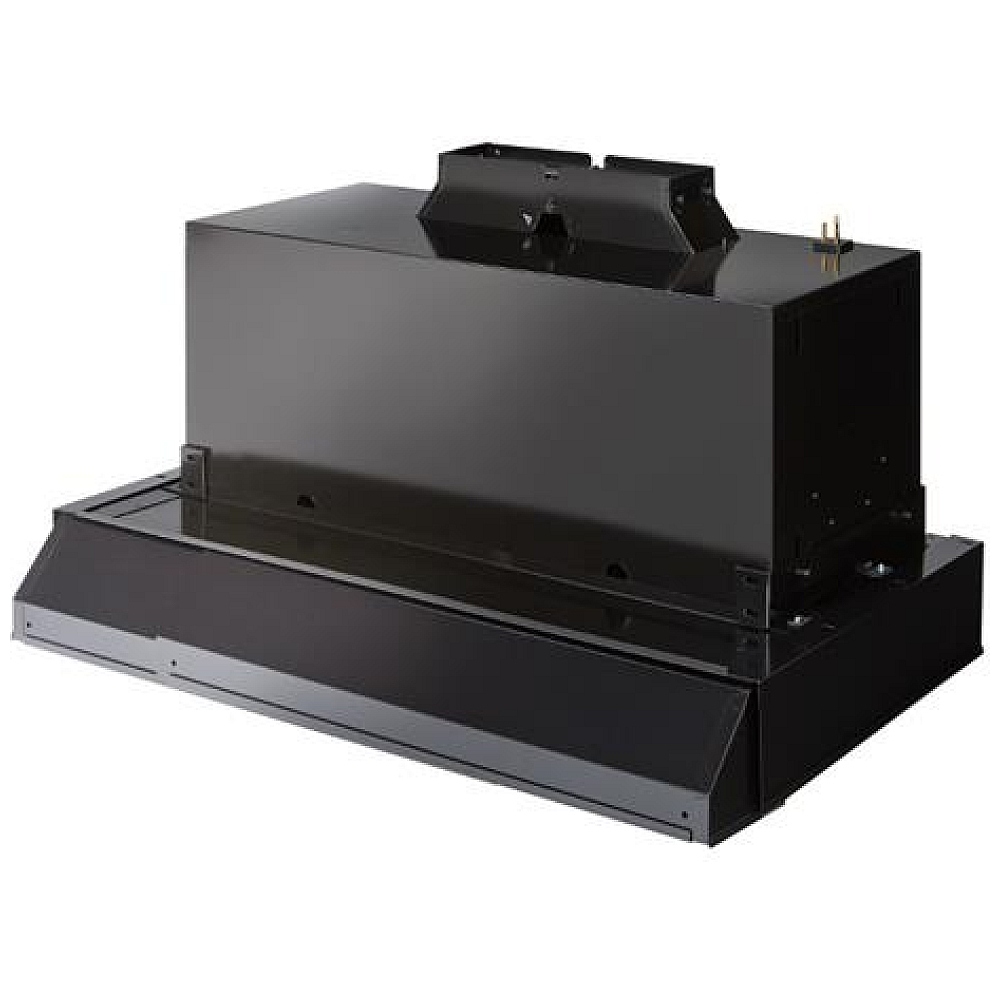

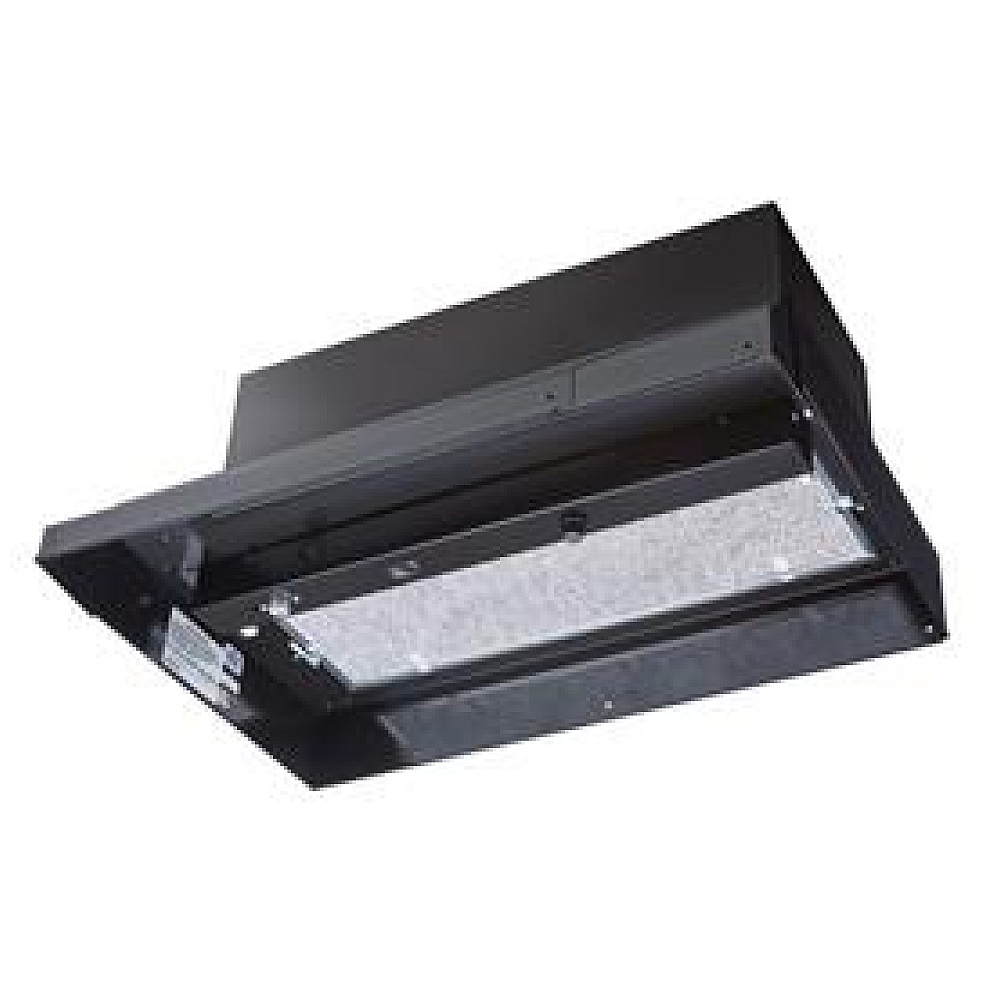

Custom Hood Kit The 10000 Series Custom Hood Kit is the perfect match of high performance ventilation and adjustable construction. The complete package for your custom design.
Features & Benefits
Features & Benefits
- Fits into wood hoods from 30" to 42" wide
- Powerful, quiet 360 CFM/5.0 Sone (vertical discharge) performance (HVI Certified)
- Exclusive Heat Sentry automatically turns blower to High speed when excess heat is detected
- Dishwasher safe aluminum mesh filter (8-7/8" x 23-7/8")
- 24" fluorescent tube lighting. Bulb not included
- For ducted installations, includes damper/adapter for 3-1/4" x 10" duct
- Must order model 103123 rough-in kit
Garantie du fabricant: 1 an
Modèle canadien: 103023
| Color Finish | Flat Black |
| CFM | 360 |
| Sones | 4.5 |
| Product Depth | 19-1/4" |
| Product Height | 14" |
| Product Width | 30-42" |
| Light Number Of Levels | 1 |
| Light Type | 24" Fluorescent |
| Nightlight Or Nightlight Setting | Yes |
| Light Bulb Recommended Type | 24" Fluorescent |
| Light Bulbs Included | No |
| Light Bulb Quantity | 1 |
| Filter Quantity | 1 |
| Boost Mode | No |
| Heat Sentry® - Temperature Sensor | Yes |
| Filter Type | Aluminum |
| Motor Number Of Speeds | Variable |
| Built In Timer | No |
| Damper Included | Yes |
| Amperage | 3.7 |
| Rated Voltage | 120 |
| Wattage | 444 |
| Switch Control Type | Rotary Dial |
| Warranty | 1 Year |
| UL Listed | Yes |
| Duct Connector Size | 3-1/4" x 10" |
| Duct Direction | Horizontal/Vertical |
| Duct Shape | Rectangular |
| Duct Height Rectangular | 3-1/4" |
| Duct Width Rectangular | 10" |
| HVI Certified | Yes |
| ENERGY STAR® certified product | No |
| Width: | 28 7/8 |
| Depth: | 19 1/4 |
| Height: | 14 |
| Power/Ratings | |
|---|---|
| Volts: | 120 |
| Amps: | 3.7 |
| Sones: | 5.0 |
| Features | |
| Description: | Custom Hood Kit |
| Finishes: | Black |
| Lighting: | 24 |
| Control Type: | Rotary |
| Filters Included: | Aluminum |
Guide d'installation (103023-installation-guide-canada.pdf)
