- When you need to cool down quickly or warm up faster, use the quick cool/warm mode to speed up the fan.
- Customize times to fit your schedule for immediate comfort when you get home. The built in timer allows you to preset the unit to turn on and off in half hour increments.
- Our air conditioners maintain the preset room temperature, so you will remain comfortable at all times.
- Maximum comfort throughout the evening hours with the added benefit of energy savings. With Sleep Mode, the temperature gradually increases a few degrees over the evening.
- Use less energy than standard air conditioners reducing your energy usage, and ultimately lowering your utility bills.
- Features three different fan speeds, for more cooling flexibility.
- Automatically resumes operating at its previous settings when power is restored to your unit.
- Our antibacterial filter reduces bacteria, room odors and other airborne particles for a healthier, more comfortable environment.
- Easily select options with the touch of a button.
- Allow you to set the comfort level to your preference, while a convenient temperature readout displays the set temperature.
Garantie du fabricant: 1 an
Modèle canadien: FRS12PYS1
| General Specifications | |
| Warranty | 5 Year Parts Only |
| Refrigerant | R410a |
| Max Wall Thickness | 18" |
| Product Weight (lbs) | 24 |
| Unit Weight - indoor AC | 24 |
| Unit Weight (lbs) - Outdoor Unit | 88 |
| Shipping Wt - indoor AC | 31 |
| Shipping Wt - outdoor AC | 97 |
| BrandFamilyFrigidaire | No |
| ProductLaunch | NA |
| Power Type | Electric |
| Size | N/A |
| Installation Type | Built-In |
| Collection | Frigidaire |
| Electrical Specifications | |
| Voltage Rating | 115V 60Hz |
| Watts (Cool) | 980 |
| Watts (Heat) | 1180 |
| Fuse Type | 40 |
| Circuit Amps | 23.0 |
| Dimensions: Cut-Out | |
| Height | N/A |
| Width | N/A |
| AC | |
| Indoor Unit Part Number | FRS123LW1 |
| Outdoor Unit Part Number | FRS123LC1 |
| Indoor Unit UPC | 0-12505-27494-7 |
| Outdoor Unit UPC | 0-12505-27495-4 |
| Application | Heating & Cooling |
| Air Volume (CFM) (Max/Med/Min) | 173/147/129 |
| Fan Speeds - Cool/Fan/Heat | 2003-03-03 |
| Air Direction Control-Horizontal | Manual |
| Air Direction Control-Vertical | Autoswing |
| Noise Level dB (H/M/L) - indoor | 36/32/26 |
| Noise Level dB (H/M/L) - outdoor | 55 |
| Turbo Fan | Yes |
| Compressor Type | Inverter (variable speed) |
| Low Voltage Start-up | Yes |
| Energy Saver | Yes |
| Filter Access | Slide-Out |

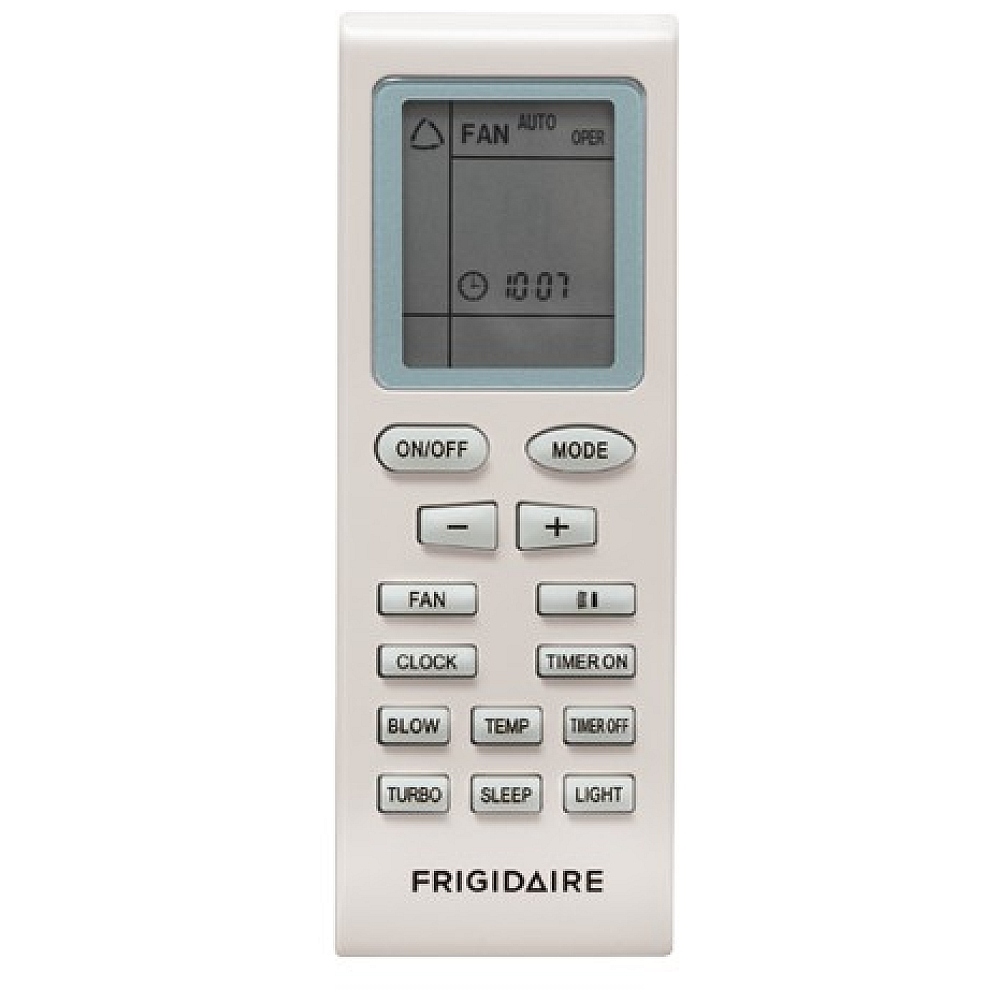

| Remote Control | Full Function |
| Liquid Line Diameter | 1/4" |
| Suction Line Diameter | 3/8" |
| 24-Hour On/Off Timer | Yes |
| Filter Type | Anti-Bacterial Mesh |
| Filter Check | No |
| Controls | |
| Sleep Mode | Yes |
| Control Type | Electronic |
| Dimensions | |
| Cabinet Height - outdoor AC | 21-1/4" |
| Cabinet Depth -outdoor AC | 12-5/8" |
| Cabinet Width - indoor AC | 33-1/4" |
| Cabinet Depth - IndoorAC | 7-1/8" |
| Cabinet Height - indoor AC | 10-7/8" |
| Cabinet Wdth - outdoorAC | 33-3/8" |
| AC Specifications | |
| Motor RPM (High/Med/Low) | 1270/1100/1000 |
| Auto Fan | Yes |
| Accessories | |
| Included Accessory | Remote control with batteries and holder; 16 ft. insulated and flared copper line set; Condensation hose; Drain drip funnel; Neoprene (2 packs); Lid for exterior wall hole; 2 rolls of plastic wrap |
| Performance | |
| BTU (Cool) | 12000 |
| BTU (Heat) | 13000 |
| Dehumidification - Pints/Hr | 1.2 |
| Cool Area (Sq. Ft.) | 640 |
| SEER | 18 |
| HSPF | 9.6 |
| Performance Certification | AHRI |
| COP (Heat Pump) | 3.21 |
| Certifications & Approvals | |
| ENERGY STAR® Certified | No |
| Safety Certification | ETL/cETL |
