Garantie du fabricant: 1 an
CAPACITY | |
CFM Indoor Fan Low | 260 |
Vent CFM | 75/45 |
CFM Indoor Fan High | 310 |
Cooling E.E.R. (BTUH / Watt) | 10.2/10.2 |
Dehumidification (pts./hr.) | 4.5 |
Cooling BTUH | 14600 Btu |
Sensible Heat Ratio at 230 Volts | 65% |
FEATURES | |
Auto Frost Control Monitor | Yes |
Vent Control | 3-position |

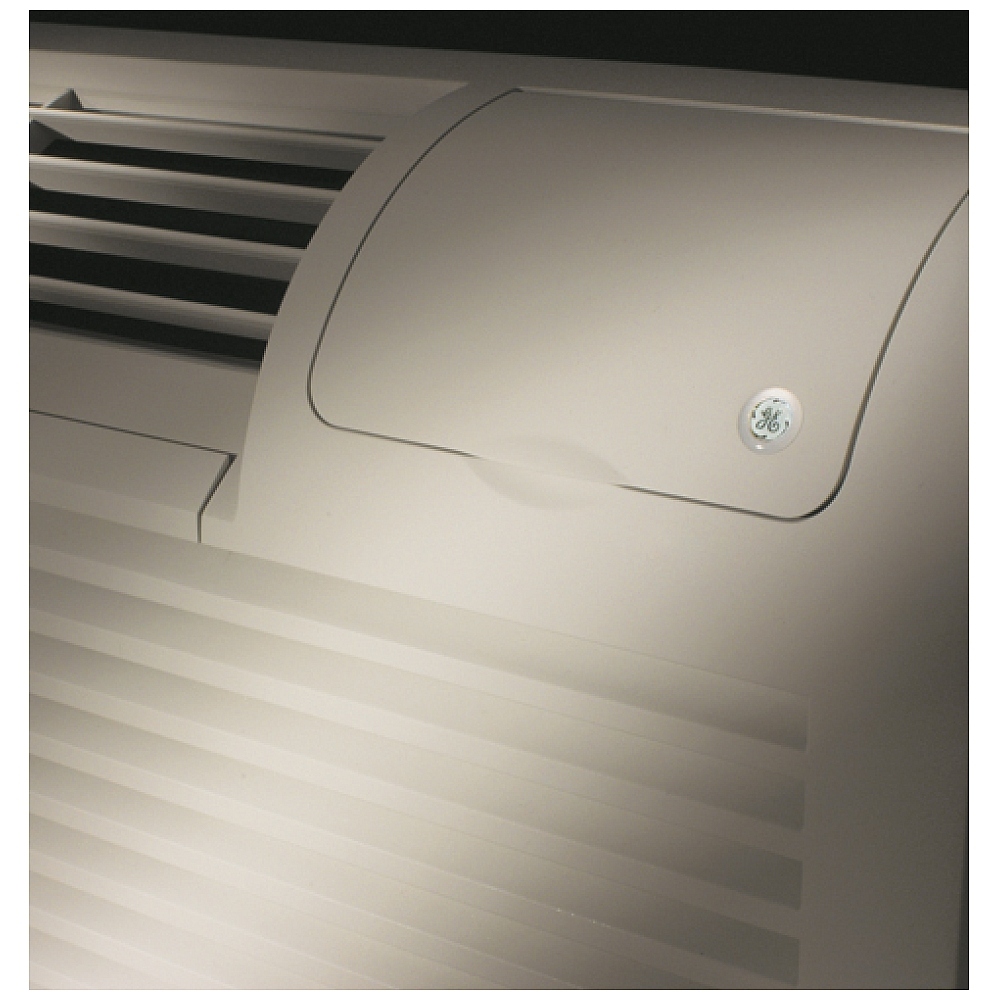

Control Panel Door | Yes |
Temperature Limiting | Electronic 7-Step |
Weather Protected Electrical Components | Yes |
Universal Heaters | Yes |
Central Desk Control Compatibility | Yes |
Rotary Compressor | Yes |
Fan Motor | 2 |

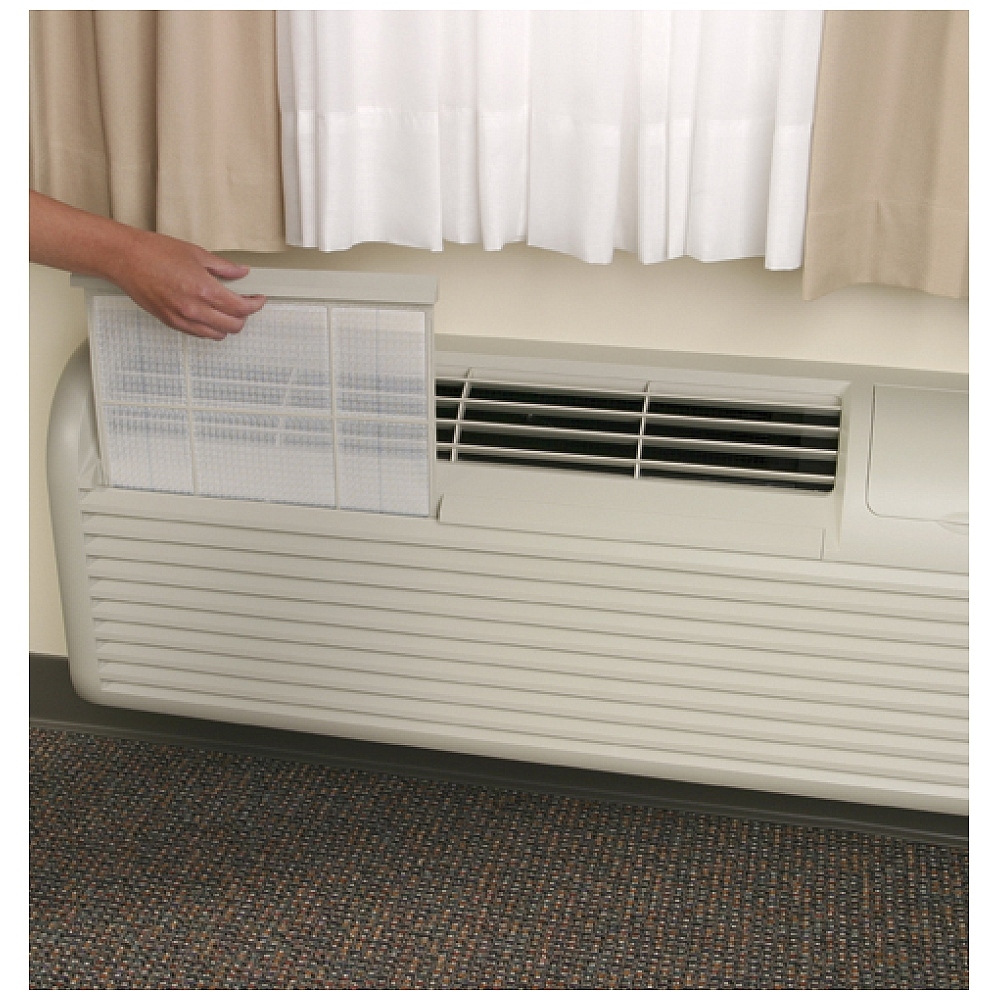

Upfront Filter | Yes |
Fan Speed Selections | Hi/Low Cooling 2 Fan Only Hi/Low Heating |
Freeze Sentinel | Yes |
Heat Sentinel | Yes |
Louver Style | Reversible |
Auto Power Recovery | Yes |

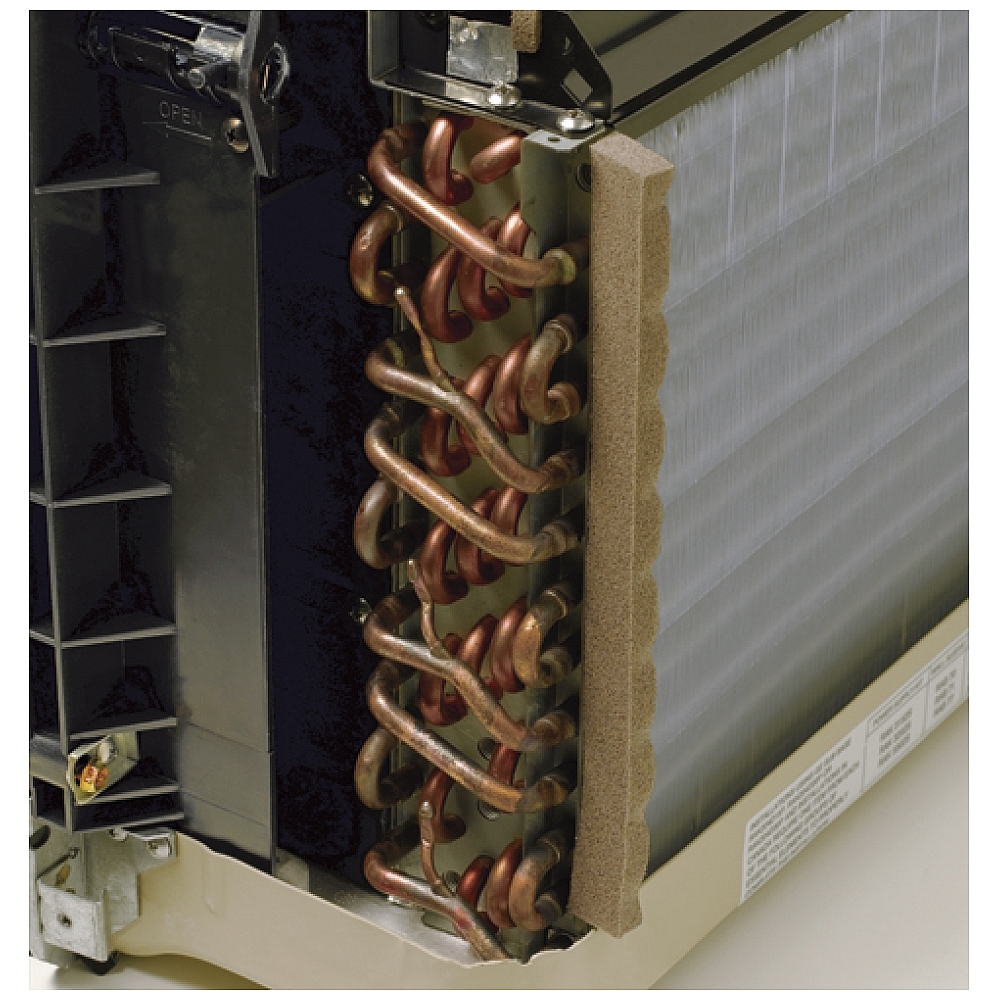

Corrosion Treated | Yes |
Solid State Thermostat Control | Yes |
Discharge Grille | 2-position |
Remote Control | Compatible |
Room Occupancy Sensor | Compatible |
Sound Transmission Class (STC) | 29 |
"SmartFan" Fan Cycle | Yes |
Control Type | Standard Microcomputer; Rotary Knobs |
APPEARANCE | |
Color Appearance | Warm Gray Beige |
WEIGHTS & DIMENSIONS | |
Approximate Shipping Weight | 130 lb |
Net Weight (lbs.) | 115 lb |
Overall Height | 16 in |
Overall Width | 42 in |
Overall Depth | 13 3/4 in |
POWER / RATINGS | |
Cooling - Watts | 1430/1400 |
Cooling - Amperes; L.R. | 38.0 |
Voltage | 230 V |
Power Factor | 89/90 |
Cooling - Amperes; F.L. - Cooling | 7.0/7.5 |
ACCESSORIES | |
Extruded Aluminum | RAG67 |
SMC Wall Case | RAB77 |
Duct Adaptor | RAK6052 |
Duct Extension | RAK601 |
Power Connection Kit | RAK3153/3203/3303 |
Insulated Wall Case | RAB71 |
Exterior Architectural Louvers | RAG61(Beige); RAG62(Maple); RAG63(Bittersweet) |
Stamped Aluminum Exterior Rear Grille | RAG60 |
WARRANTY | |
Warranty Notes | For models produced on or after January 1, 2006 See written warranty for full details |
Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
Dimensions | |
---|---|
Sleeve Width: | 42 |
Sleeve Height: | 16 |
Minimum Window Opening Width (in.): | 1 |
Maximum Window Opening Width (in.): | 1 |
Minimum Window Opening Height (in.): | 1 |
Depth to Louvers (in.): | 1 |
Interior Unit Height (Mini-split systems only): | 1 |
Interior Unit Width (Mini-split systems only): | 1 |
Interior Unit Depth (Mini-split systems only): | 1 |
Weight: | 130 lbs. |
Capacity | |
CFM Indoor Fan High: | 310 |
CFM Indoor Fan Low: | 260 |
Cooling E.E.R. (BTUH / Watt): | 10.2/10.2 |
Dehumidification (pts./hr.): | 4.5 |
Sensible Heat Ratio at 230 Volts: | 65% |
Vent CFM: | 75/45 |
Features | |
Cooling BTUH: | 14600/14300 |
Control Panel Door: | Yes |
Control Type: | Standard Microcomputer; Rotary Knobs |
Auto Power Recovery: | Yes |
Corrosion Treated: | Yes |
Freeze Sentinelâ„¢: | Yes |
Heat Sentinel: | Yes |
Louver Style: | Reversible |
Upfront Filter: | Yes |
Auto Frost Control Monitor: | Yes |
Central Desk Control Compatibility: | Yes |
Remote Control: | Compatible |
Room Occupancy Sensor: | Compatible |
Rotary Compressor: | Yes |
Solid State Thermostat Control: | Yes |
Temperature Limiting: | Electronic 7-Step |
Weather Protected Electrical Components: | Yes |
Vent Control: | 3-position |
Smart Fan Fan Cycle: | Yes |
Fan Motor: | 2 |
Fan Speed Selections - Cooling: | Hi/Low |
Fan Speed Selections - Fan Only: | 2 |
Fan Speed Selections - Heating: | Hi/Low |
Universal Heaters: | Yes |
Discharge Grille: | 2-position |
Sound Transmission Class (STC): | 29 |
Power/Ratings | |
Power Factor: | 89/90 |
Voltage: | 230/208 |
Cooling - Amperes; F.L. - Cooling: | 7.0/7.5 |
Cooling - Amperes; L.R.: | 38.0 |
Cooling - Watts: | 1430/1400 |
