- Smooth surface and rounded corners make clean-up quick and easy
- Enough room to cook an entire meal at once
- Deep recessed cooktop keeps spills, and everything else, contained in one area that's easy to wipe clean
- Oval fifth burner in the center of the cooktop is large to accommodate odd-sized cookware or griddles
- Ideal for pancakes, bacon, sandwiches and more, the large non-stick griddle is convenient and easy to clean
- This powerful element instantly supplies the intense heat need for boiling, saute ing and stir frying
Garantie du fabricant: 1 an

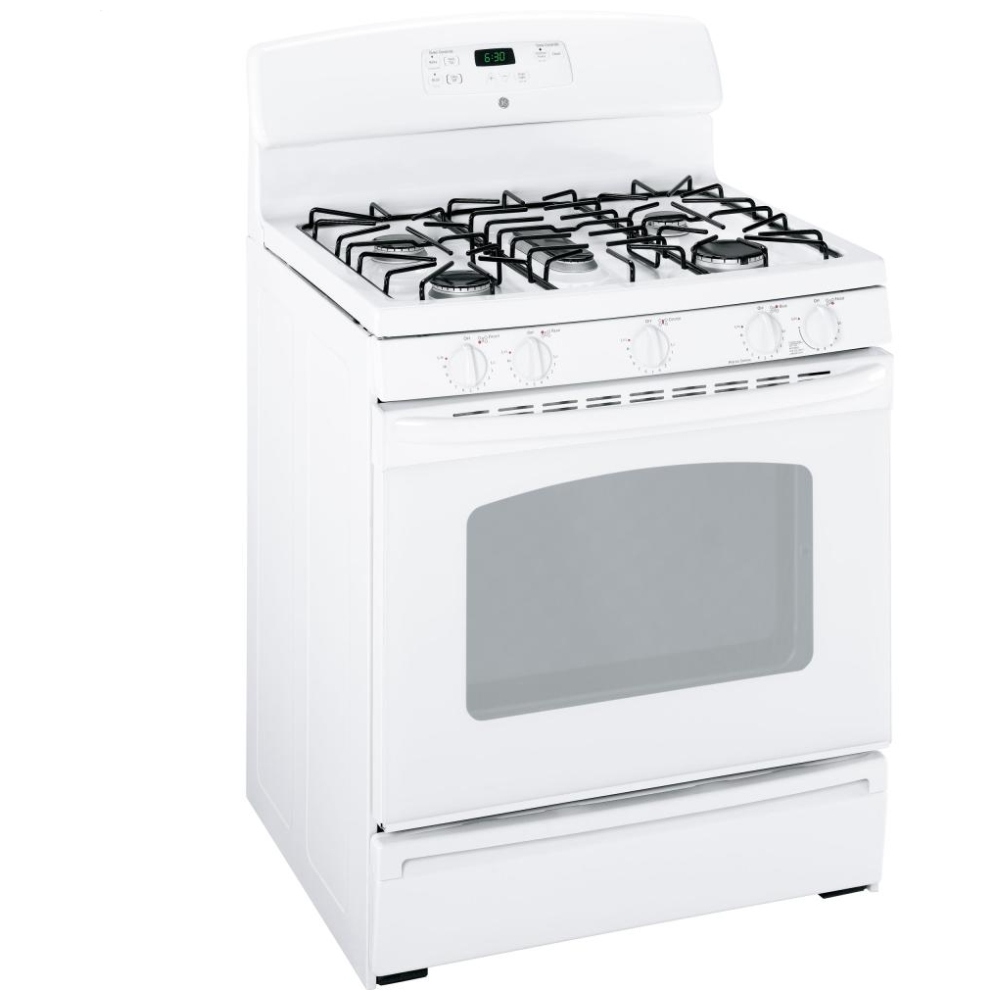

Modèle canadien: JGBS80DEMWW
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 cu ft |
| Unit Capacity | Extra Large Oven |
| FEATURES | |
| Ignition System | Electronic |
| Oven Cleaning Type | Standard Clean |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Porcelain-Enamel |
| All-Purpose Burners | (1) 9,100/1,200 BTU |
| Center Oval Burner | (1) 6,000 BTU |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Material | Wire |
| High Output Burner | (1) 11,000/1,150 BTU |
| Power Boil Burner | (1) 15,000/1,350 BTU |
| Precise Simmer Burner | (1) 5,000/600 BTU |
| Valves (Degree of Turn) | 270 |
| Oven Control Features | Electronic Clock |
| Broiler Drawer | Drop Down Door |
| Broiler Pan and Grid | Yes |
| Fuel Type | Natural Gas (factory set) |
| Interior Oven Light | Yes |
| Leveling System | 4 Leveling Legs |
| Oven Rack Features | 2 Oven Racks 6 Embossed Rack Positions |
| Scratch-Resistant Backguard | Glass |
| Slide - Out Broiler Drawer | Yes |
| Griddle | Non-Stick |
| APPEARANCE | |
| Color Appearance | White on White |
| Control Knobs | Designer-Style |
| Handle | High-Gloss Color-Matched Sculptured |
| Oven Door Features | Big Hearth Oven Window |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 165 lb |
| Cabinet Width | 30 in |
| Net Weight | 145 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Overall Depth | 26 1/4 in |
| Overall Height | 47 1/2 in |
| Overall Width | 30 in |
| POWER / RATINGS | |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 8.0; (3) 7.0; (2) 6.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 8.0; (3) 7.0; (2) 6.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | For models produced on or after January 1, 2006 See written warranty for full details |
