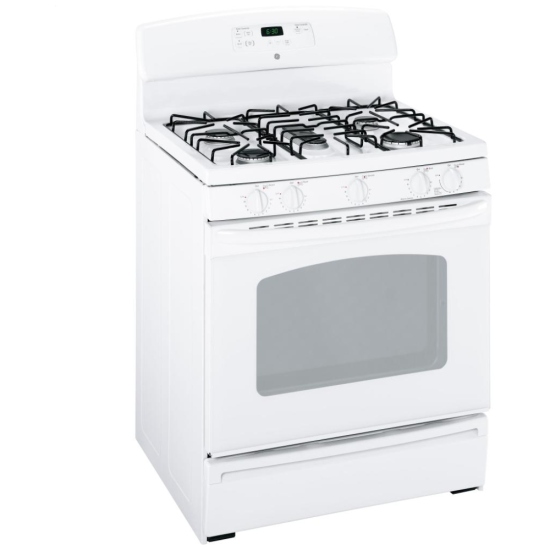

JGBS80DEMWW GE Gas Range 30 inch Canada Parts - Sale! Best Price, Reviews and Specs

GE is one of the largest manufacturers of major appliances in the world. Since 1907, they have been introducing advanced appliances to improve peoples’ lives and conserve electricity. They continue that legacy today with innovations like the Advantium® oven, the Harmony™ clothes care system, and more.

The super-large 5.0 cu. ft. standard-clean oven provides a large oven interior for cooking more dishes and large meals at one time.

Standard clean oven

Smooth surface and rounded corners make clean-up quick and easy

Extra-large oven capacity

Enough room to cook an entire meal at once

Deep-recessed cooktop

Deep recessed cooktop keeps spills, and everything else, contained in one area that's easy to wipe clean

Center oval burner

Oval fifth burner in the center of the cooktop is large to accommodate odd-sized cookware or griddles

Non-stick griddle

Ideal for pancakes, bacon, sandwiches and more, the large non-stick griddle is convenient and easy to clean

PowerBoil™ 15,000 BTU burner

This powerful element instantly supplies the intense heat need for boiling, saute ing and stir frying

Standard Clean Oven — Offers a traditional oven design that requires hand cleaning
Extra-Large Oven Capacity — Provides a large oven interior ideal for cooking more items at once
Deep Recessed Cooktop — Designed with a recessed surface to help contain spills and make cleaning easy
Center Oval Burner — Adds a fifth element to the center of the cooktop, ideal for griddle or odd-size cookware
Non-Stick Griddle — Offers a flat cooking surface, placed over the center oval burner, for cooking multiple foods at once
PowerBoil™ Burner — Delivers 15,000 BTUs of forceful heat for rapid boiling
Broiler Drawer — Supplies a concentrated heat for crisping and browning

Manufacturer's Warranty: 1 year

Canadian model: JGBS80DEMWW

Specs

CAPACITY
Total Capacity (cubic feet)	5.0 cu ft
Unit Capacity	Extra Large Oven
FEATURES
Ignition System	Electronic
Oven Cleaning Type	Standard Clean
Cooktop Burner Type	Sealed
Cooktop Surface	Porcelain-Enamel
All-Purpose Burners	(1) 9,100/1,200 BTU
Center Oval Burner	(1) 6,000 BTU
Cooktop Burner Grate Features	Continuous Grates
Cooktop Burner Grate Material	Wire
High Output Burner	(1) 11,000/1,150 BTU
Power Boil Burner	(1) 15,000/1,350 BTU
Precise Simmer Burner	(1) 5,000/600 BTU
Valves (Degree of Turn)	270
Oven Control Features	Electronic Clock
Broiler Drawer	Drop Down Door
Broiler Pan and Grid	Yes
Fuel Type	Natural Gas (factory set)
Interior Oven Light	Yes
Leveling System	4 Leveling Legs
Oven Rack Features	2 Oven Racks 6 Embossed Rack Positions
Scratch-Resistant Backguard	Glass
Slide - Out Broiler Drawer	Yes
Griddle	Non-Stick
APPEARANCE
Color Appearance	White on White
Control Knobs	Designer-Style
Handle	High-Gloss Color-Matched Sculptured
Oven Door Features	Big Hearth Oven Window
WEIGHTS & DIMENSIONS
Approximate Shipping Weight	165 lb
Cabinet Width	30 in
Net Weight	145 lb
Oven Interior Dimensions (W x H x D) (in.)	24 x 18-1/2 x 19
Overall Depth	26 1/4 in
Overall Height	47 1/2 in
Overall Width	30 in
POWER / RATINGS
Oven/Broiler BTU Rating - LP (000's BTU's)	16.5
Oven/Broiler BTU Rating - Nat. Gas (000's BTU's)	18.0
Top Burner BTU Rating - LP (000's BTU's)	(1) 8.0; (3) 7.0; (2) 6.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 8.0; (3) 7.0; (2) 6.0
Volts/Hertz/Amps	120V; 60Hz; 5A
ACCESSORIES
LP Conversion Kit	Included
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	For models produced on or after January 1, 2006 See written warranty for full details

Manuals

GE & Profile Electric Range 2024

GE & Profile Gas Range 2024

Quick Specs (JGBS80DEMWW-quick-specs-canada.pdf)

Use and Care Manual (JGBS80DEMWW-use-and-care-manual-canada.pdf)
