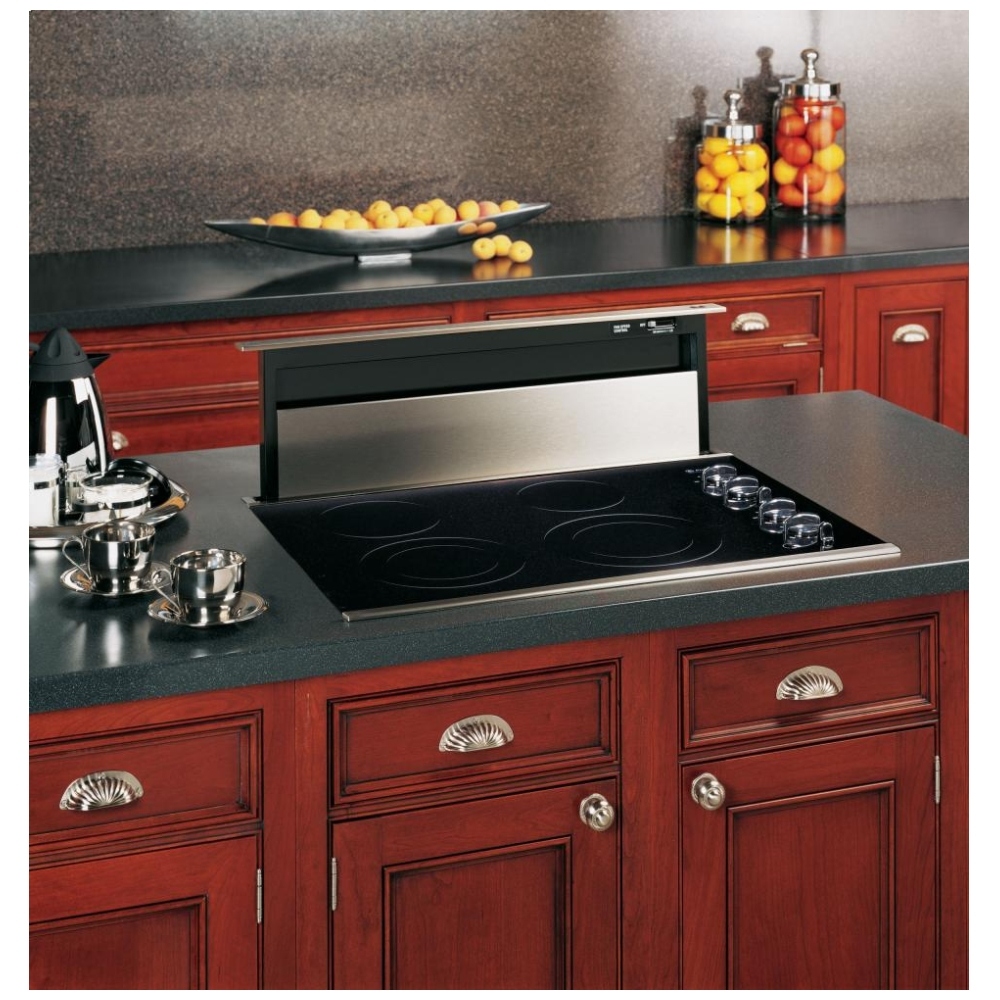

- Hood raises over cooktop surface and retracts when not in use
- Powerful 390 CFM performance removes smoke and vapors from the cooking area
- The powerful variable speed exhaust system effectively pulls smoke and vapors out of the kitchen
- Durable filters can be removed for easy cleaning and maintenance
Garantie du fabricant: 1 an
Cover Plate | Stainless Steel |
Downdraft Exhaust (CFM) | 390 |
Exhaust Options | 3-1/4" x 10" Rectangular Duct |
Fan Speed Control | Variable |
Telescopic Assembly | Black / Stainless Steel |
APPEARANCE | |
Color Appearance | Stainless Steel |
WEIGHTS & DIMENSIONS | |
Approximate Shipping Weight | 72 lb |
Cabinet Width | 30 in |
Net Weight | 57 lb |
Overall Depth | 2 1/4 in |
Overall Height | 27 in |
Overall Width | 30 in |
POWER / RATINGS | |
Amp Rating at 120V | 4.0 |
WARRANTY | |
Labor Warranty | Limited 1-year entire appliance |
Parts Warranty | Limited 1-year entire appliance |
Warranty Notes | For models produced on or after January 1, 2006 See written warranty for full details |
Dimensions | |
---|---|
Duct Size: | 3-1/4 x 10 in. Rectangular |
Weight: | 72 lbs. |
WEIGHTS & DIMENSIONS | |
Cabinet Width: | 30 in. |
Overall Depth: | 2 1/4 in. |
Overall Height: | 27 in. |
Overall Width: | 30 in. |
Approximate Shipping Weight: | 72 lbs |
FEATURES | |
Downdraft Exhaust (CFM): | 500 |
Fan Speed Control: | Variable |
3-1/4 x 10 in. Rectangular Duct: | Yes |
