JGD3536WW Surface de cuisson au gaz JennAir 36 pouce Canada Pièces

Overview

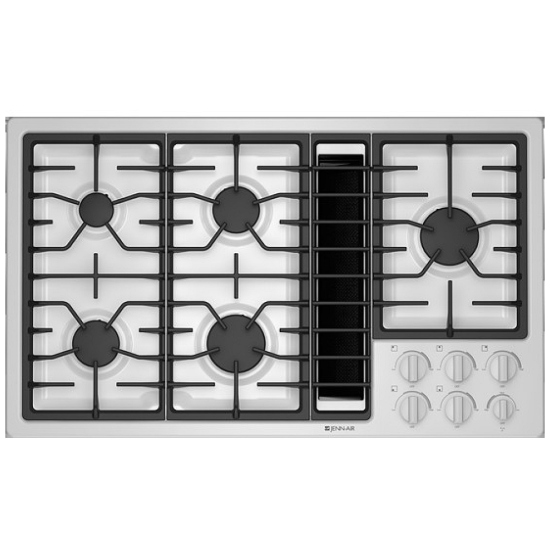

This Jenn-Air® luxury gas downdraft cooktop features five burners, including a 17,000 BTU ultra-high output burner. It also offers the impressive JX3 downdraft ventilation system, which quickly and efficiently clears the air without a hood.

Specifications
Configuration and Overview

Cooktop Type: Downdraft
Size: 36
Fuel Type: Gas
Cooktop Surface Finish: None
Surface Material: Stainless/Porcelain Coated Steel
Burner or Element Style: Gas Burner
Number of Burners: 5
Number of Open Bays: NA
Installs Over Built-In Oven: No

Cooktop Features

Left Front Power: 9200 BTU
Left Front Type: Sealed Burner
Left Rear Power: 5000 BTU
Left Rear Type: Sealed Burner
Center Rear Power: 12500 BTU
Center Rear Type: Sealed Burner
Center Front Size: NA
Center Front Power: 15000 BTU
Center Front Type: NA
Right Front Type: NA
Right Rear Power: 17000 BTU
Right Rear Type: Sealed Burner

Dimensions

Depth: 21 1/2
Width: 36
Cutout Depth: 19 15/16
Cutout Width: 34 3/4

Style and Extras

Controls: Knobs
Control Lockout: No
Digital Display: No
Downdraft Vent: Yes
Heating Element On Indicator Light: No
Hot Surface Indicator Light: No
Keep Warm Setting: No
Power Boost: No
Precise Power: No
Sensor Boil: No
Simmer: Yes

Signature Features

Industry's Best Performing Ventilation System

JX3™ Downdraft Ventilation System with 3-Speed Fan

Convertible to Duct-Free Ventilation

Control Features

Infinite Burner Control Settings

Color-Coordinating Cast Metal Knobs

Dishwasher-Safe Knobs

Electronic Ignition and Flame-Sensing™ Re-ignition

Cooking Surface Features

Convertible to LP

5,000 BTU Burner

12,500 BTU Burner

15,000 BTU Ultra-High Output Burner

5 Sealed Burners

9,200 BTU Burner

425 CFM Rating

Dishwasher-Safe Air Grill

Dishwasher-Safe Burner Grates and Caps

Easy-to-Clean Short Plenum

17,000 BTU Ultra-High Output Burner

Exterior Design Features

Porcelain-on-Cast-Iron Continuous Grates

Porcelain-Enamel/Stainless Steel Surface

Optional Accessories

Duct-Free Filter

Duct-Free Kit

Garantie du fabricant: 2 ans

Modèle canadien: JGD3536WW

Spécifications

Configuration and Overview
Type	Downdraft
Size	36
Installs Over Built-In Oven	No
ADA Compliant	No
Fuel Type	Gas
Cooktop Features
CFM Rating	425
Number of Speeds	3
Controls
Digital Display	No
Downdraft Vent	Yes
Hot Surface Indicator Light	No
Dimensions
Depth	21 1/2
Height	4
Width	36
Cutout Depth	19 15/16
Cutout Height	4
Cutout Width	34 3/4

Manuels

>> View 2020 JennAir Parts & Accessories Guide <<

Guide des dimensions (JGD3536WW-guide-des-dimensions-canada.pdf)

Instructions d'installation (JGD3536WW-instructions-dinstallation-canada.pdf)

Utilisation et entretien (JGD3536WW-utilisation-et-entretien-canada.pdf)

Garantie (JGD3536WW-garantie-canada.pdf)

CAD (JGD3536WW-cad-canada.pdf)
