- Flexible elements expand to your cooking needs.
- Easily go from warm to boil.
- For a more beautiful cooktop that s easy to clean.

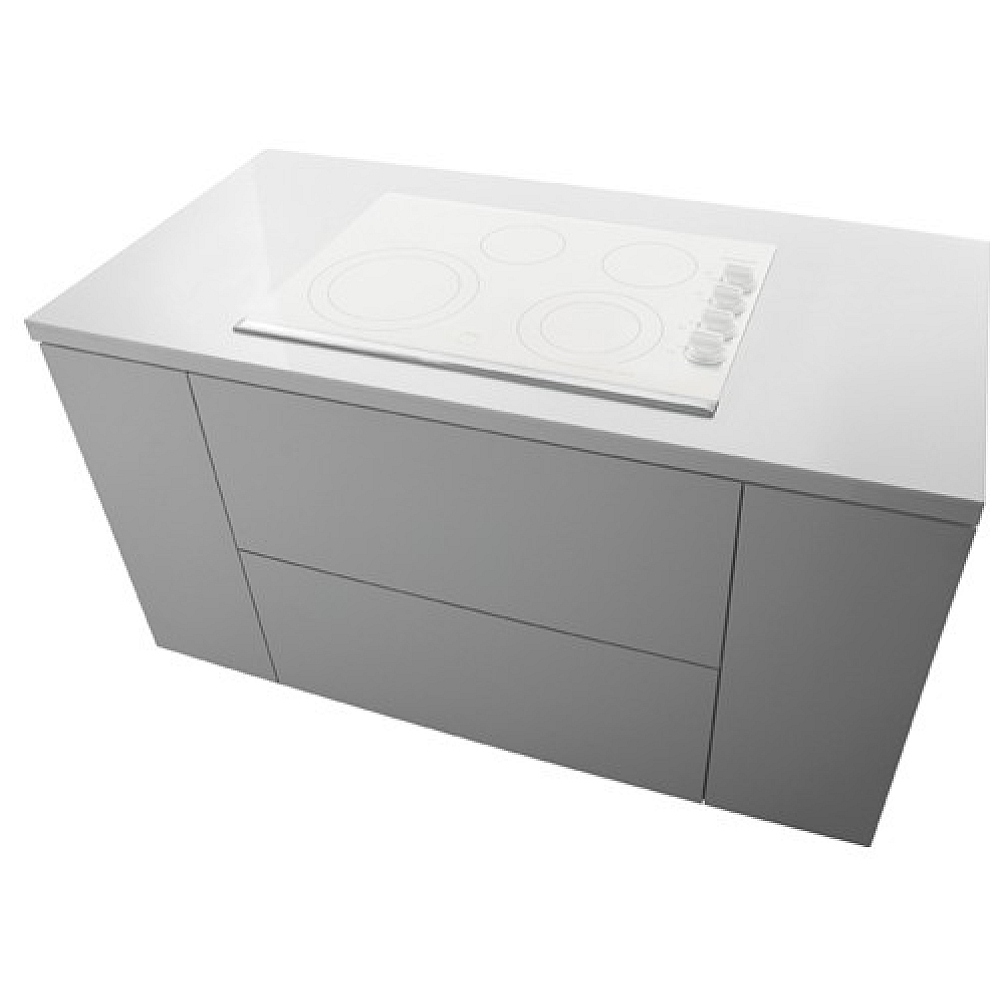

- Cooktops are approved for installation above any of our Single Electric Wall Ovens.
Garantie du fabricant: 1 an
General Specifications | |
Product Weight (lbs) | 55 |
Power Type | Electric |
Size | 30'' |
Installation Type | Drop-In |
Collection | Frigidaire Gallery |
Exterior Dimensions | |
Depth | 21-3/8" |
Height | 2-5/8" |
Width | 30-3/8" |
Certifications & Approvals | |
ADA Compliant | No |
Electrical Specifications | |
Amps @ 240 Volts | 35.0 / 30.3 |
Connected Load (kW Rating) @ 240V | 8.4 / 6.3 |
Minimum Circuit Required (Amps) | 40A |
Power Supply Connection Location | Right Rear |
Voltage Rating | 240V / 208V, 60Hz |
Controls | |
Control Location | Right Side |
Controls | Mechanical |
Cooktop Specifications | |
Cooking Surface | Color-Coordinated Ceramic Glass |
Hot-Surface Indicator Light | Yes |
Knob Color | Color-Coordinated |

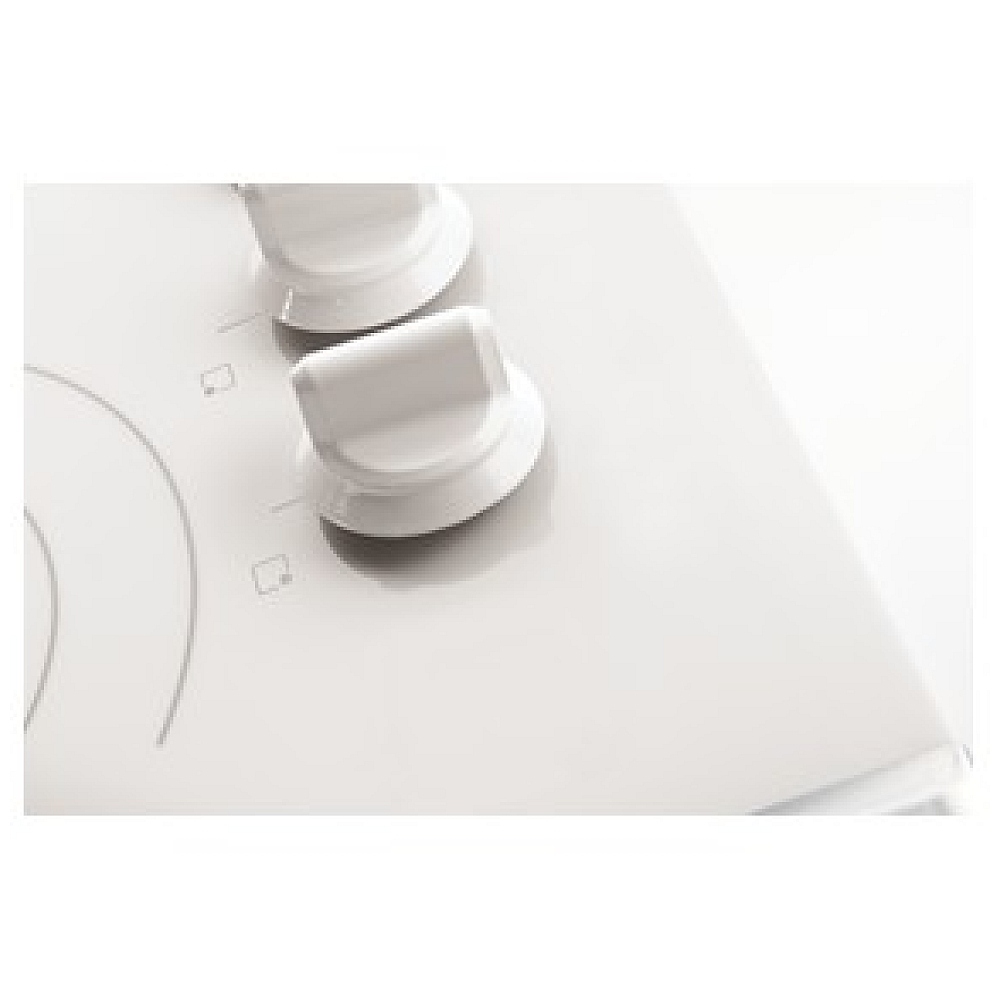

Knob Type | Weighted Plastic |
Left Front | 9/12" - 1,700/2,700 Watts |
Left Rear | 6" - 1,200 Watts |
Right Front | 6/9" - 1,600/3,000 Watts |
Right Rear | 7" - 1,500 Watts |
