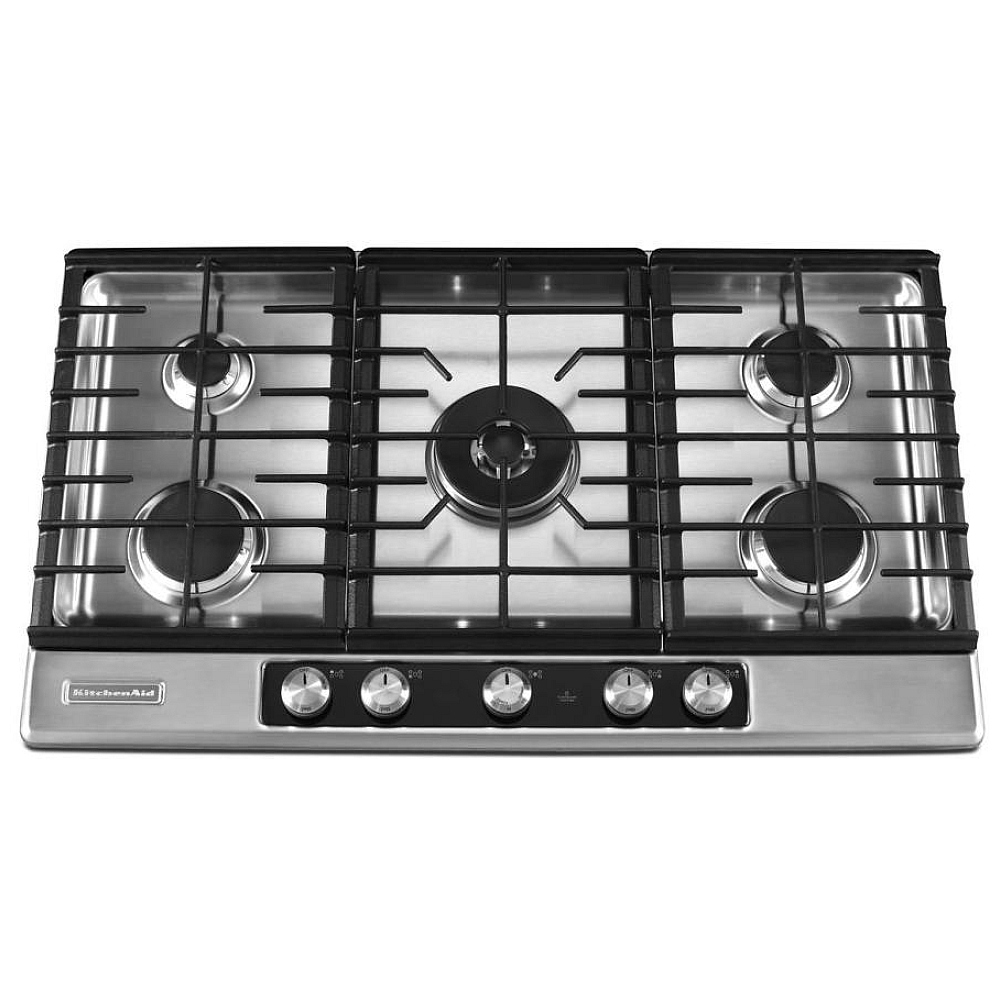

The flush design of this stainless steel gas cooktop features low profile grates that integrate into the countertop. Durable clear coat protection helps keep the stainless steel surface looking like new. The sleek design complements powerful and versatile performance with features like a 20K BTU professional dual-tier burner that can go from a low simmer to a rapid boil.
Works as an all-purpose professional burner, providing the ability to use both high- and low-temperature cooking methods so you can go from a boil to a simmer without changing burners.
Allows more accurate simmer control at the lowest setting, and is ideal for cooking smaller quantities of food, using smaller pots and pans.
Lights burners with an electric spark instead of a pilot light for more reliable performance and relights the burner if the flame is blown out.
Helps prevent the discoloration, scaling, and staining that commonly occur over time. The finish is scratch-resistant to maintain its look over time.
Helps prevent unintended use and makes it easier to clean the control panel.
Provides a clear indication that lets you know if any cooking surface is on or still hot.
Integrates with the countertop, creating a more streamlined look.
Allows you to convert the cooktop so it can be used with LP gas.
Garantie du fabricant: 1 an
SPECIFICATIONS | |
Configuration and Overview | |
Cooktop Type | Standard |
Size | 36 |
Surface Material | Stainless Steel |
Number of Elements-Burners | 5 |
Surface Material | Stainless Steel |
Burner or Element Style | Sealed Gas |
Installs Over Built-In Oven | Yes |
Cooktop Features | |
Center Front Type | Professional Dual Tier Burner |
Left Front Power | 12000 BTU |
Right Rear Power | 7000 BTU |
Right Front Power | 10000 BTU |
Left Rear Type | Simmer |
Left Rear Power | 6000 BTU |
Center Front Power | 20000 BTU |
Style and Extras | |
Hot Surface Indicator Light | Yes |
Downdraft Vent | No |
Controls | Knobs |
Dimensions | |
Height | 3 |
Depth | 21 |
Cutout Width | 35 1/4 |
Cutout Height | 3 |
Width | 36 1/4 |
Cutout Depth | 20 |
Dimensions | |
---|---|
Height: | 2 7/8" |
Exterior Width: | 36 |
Depth: | 21" |
Cutout Width: | 35 1/4 |
Cutout Depth: | 20 |
Space Required Below Cooktop: | 1 |
Weight: | 60 lbs. |
FEATURES | |
Burner Indicator Light: | Yes |
Oval Dual Circuit: | No |
Round Dual Circuit: | No |
Simmer Burner: | Yes |
Ventilation System: | No |
Number of Elements: | 0 |
Power-On Light: | No |
Infinite Position Control Knobs : | Yes |
Built-In Downdraft Vent System : | No |
Burner Type : | Sealed Gas |
Cooktop Surface : | Stainless Steel |
Fuel Type : | Gas |
Grate Finish: | Matte black cast iron |
Hot Surface Indicator Lights : | Yes |
Number of Burners : | 5 |
Optional Griddle Accessory : | Yes |
Over Oven Installation : | Yes |
Electronic Ignition : | Yes |
ELECTRICAL | |
Amps: | 10 |
Watts: | 120 |
Hertz: | 60 |
DIMENSIONS | |
Width: | 36 7/32 |
Height: | 2 7/8 |
Depth: | 21 |
Cutout Width: | 35 1/4 |
Cutout Depth: | 20 |
Minimum Clearance Between Top of Cooktop Platform and Bottom of Cabinet: | 30 |
Recommended Upper Cabinet Depth: | 13 |
Minimum Distance from Cooktop to Front of Countertop: | 1 1/8 |
PERFORMANCE | |
Burner Configuration : | 1-6,000 BTU 1-7,000 BTU 1-10,000 BTU 1-12,000 BTU 1-20,000 BTU |
Left Front Burner/Element Output : | 12,000 BTU |
Left Rear Burner/Element Output : | 6,000 BTU |
Right Front Burner/Element Output : | 10,000 BTU |
Right Rear Burner/Element Output : | 7,000 BTU |
Center Burner/Element Output: | 20,000 BTU |
Custom Control Temp Management System : | No |
CONTROLS | |
Control Type : | Knobs |
Electronic Touch Controls : | Yes |
