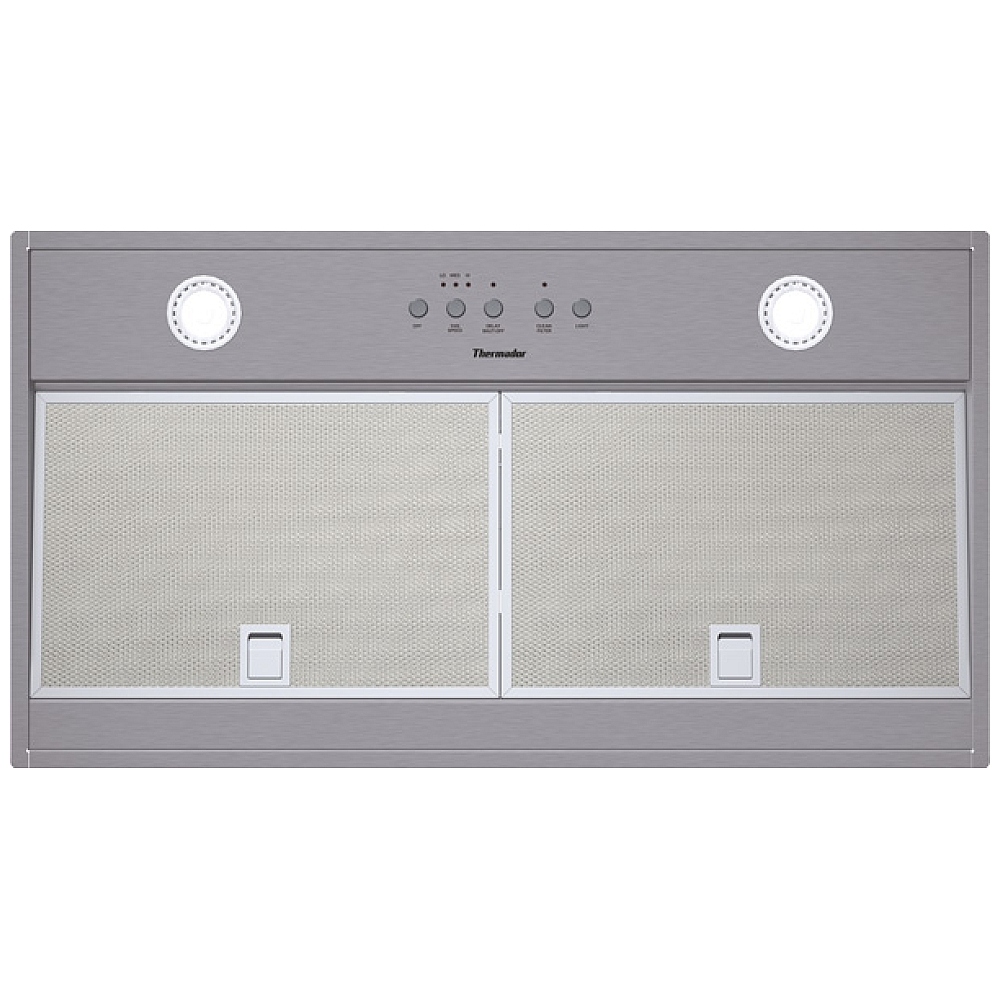

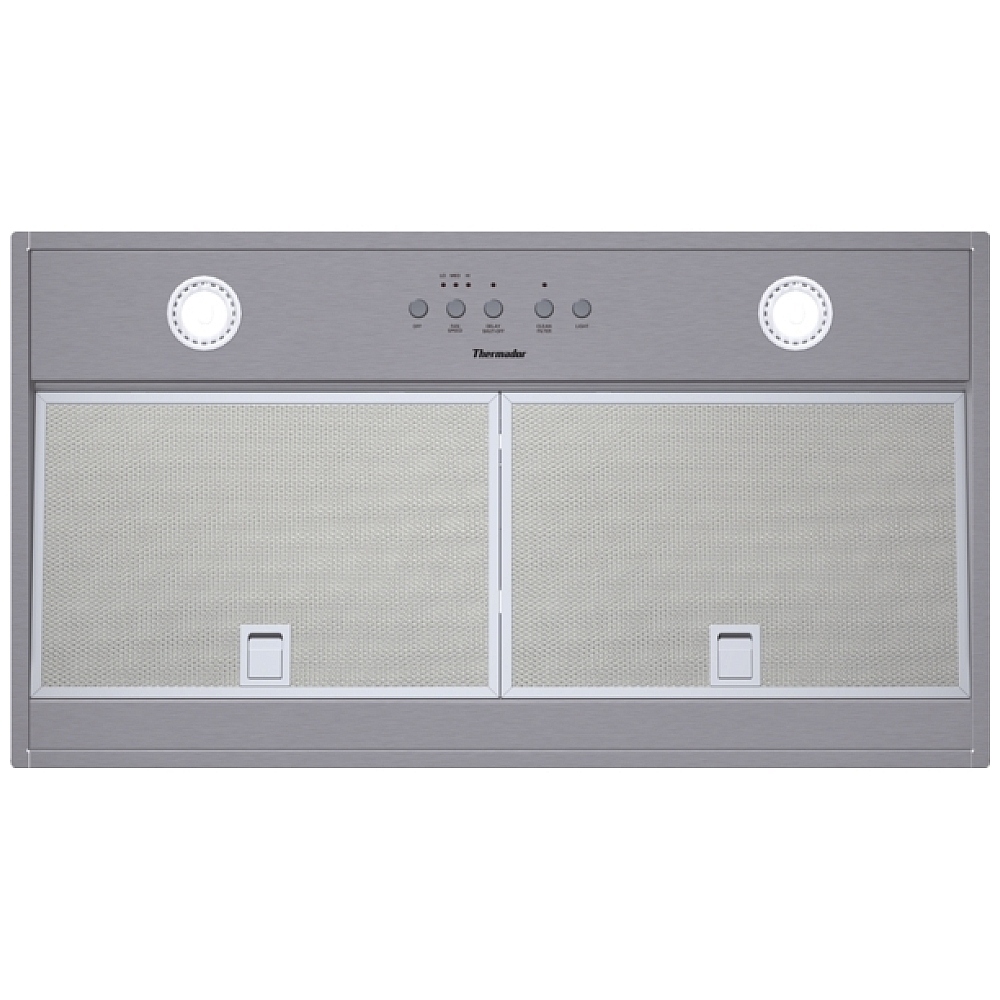

Have a custom ventilation hood planned? Our Custom Ventilation Insert will remove smoke or lingering odors quickly and quietly.
- Suitable for wall or island applications
- Three fan speeds
- Delayed shut off tackles lingering odors for up to 10 minutes
- Built-in 'Clean Filter' reminder light illuminates after 40 hours of operation
- Dishwasher safe aluminum mesh filters
- Filter systems are highly efficient at capturing grease
- Deep capture area allows for efficient capture of smoke and steam
- Powerfully Quiet ventilation systems
- 10" Round duct size
- Vertical ducting direction
- Blowers sold separately
- Choose from Inline, Remote or Integrated Blowers
- Accessories include: Liner, Remote Control and Stainless Steel Baffle Filters
- Halogen lighting spotlights your best recipes
- Stainless steel button controls
Garantie du fabricant: 2 ans
UPC: 825225850533
EAN: 0825225850533
Technical Specifications | |
Installation type | Built-in |
Air circulation | Ducted |
Type of control | LED, Low-lift pushbuttons |
Construction type | |
Color body | Stainless Steel |
Grease filter material | Washable aluminium |
Grease filter type | Multilayer cassette |
Installation Type | Built-in |
Material | Stainless steel |
Motor location | without motor |
Number of motors | 0 |
Air circulation | Ducted |
Typology | Traditional |
Connection | |
Watts (W) | 40 W |
Power Cord Length | 51 1/8 '' |
Frequency (Hz) | 60 Hz |
Total power of the lamps (W) | 40 W |
Volts (V) | 120 V |

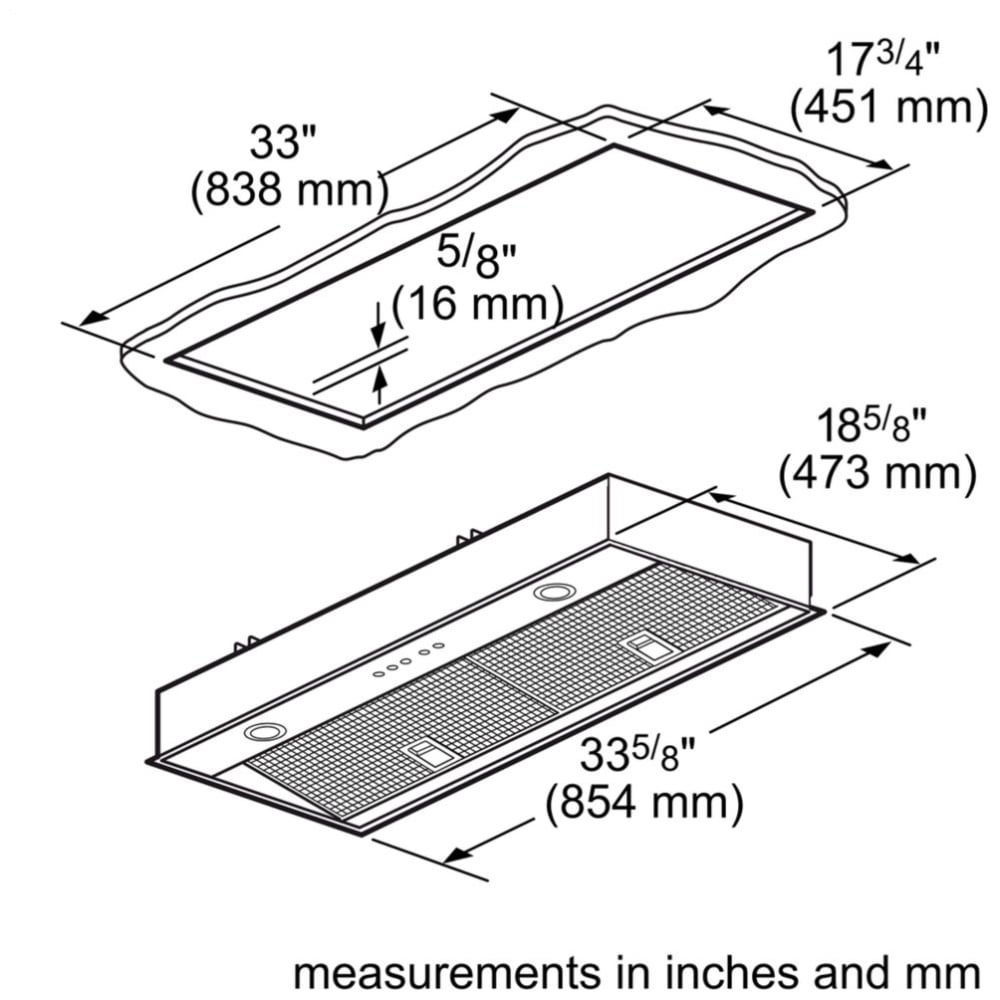

en: Type of appliance width (cm) | 85 cm |
---|---|
Profondeur du produit | 471 mm |
Type d'installation | Encastré |
Circulation d'air | Évacuation d'air |
Type de commandes | DEL, Touches à course courte |
Couleur ou matière de la carrosserie | Acier inox |
---|---|
Matériau du filtre à graisses | Washable aluminium |
Type de filtre à graisses | Cyclone |
Type d'installation | Encastrable dans le meuble |
Matériau | Acier inox |
Emplacement du moteur | sans moteur |
Nombre de moteurs | 0 |
Circulation d'air | Évacuation d'air |
Typologie | Traditional |
Puissance (W) | 40 W |
---|---|
Longueur du cordon d'alimentation (cm) | 150 cm |
Fréquence (Hz) | 60 Hz |
Puissance totale des lampes (W) | 40 W |
Tension (V) | 120 V |
