Manufacturer's Warranty: 1 year
Canadian model: SHE3AEM5N
Canadian UPC: 825225968122
EAN: 4242005353484
| Specification | Value |
|---|---|
| Type | Built-in dishwasher |
| Series | 100 Series |
| Model | SHE3AEM5N |
| Color / Finish | Stainless Steel Anti-fingerprint (Brushed steel anti-fingerprint) |
| Capacity | 14 place settings |
| Width | 23 9/16 inches (23.54–23.56" nominal / 598 mm) |
| Height | 33 7/8 inches (33.86–33.88" / 860 mm) |
| Depth | 22 9/16 inches (22.56–22.75" without handle / ~573 mm) |
| Required Cutout – Width | 24 inches |
| Required Cutout – Height | 33 7/8 inches |
| Required Cutout – Depth | 24 inches |
| Overall Appliance Dimensions (HxWxD) | 33 7/8" x 23 9/16" x 22 9/16" (860 x 598 x 573 mm) |
| Net Weight | Approx. 71–76 lb (32.2–34.5 kg) |
| Sound Level | 50 dBA |
| Installation Type | Built-under, built-in |
| Door Panel Type | Solid front control (fully visible front panel) |
| Control Type | Electronic / digital, front control |
| Display | Yes |
| Tub Material | Stainless steel with Polinox / polypropylene base |
| Tall Tub | No |
| Racks | 2 racks (no 3rd rack) |
| Rack Material | Nylon |
| Adjustable Upper Rack | No |
| Cutlery Holder / Basket | Yes (basket; no cutlery tray / 3rd rack) |
| Interior Light | No |
| Drying System | PureDry® (inherent heat, condensation drying) |
| Leak Protection | 24/7 Overflow Protection System® (leak protection) |
| NSF® Certified Sanitize Option | Yes |
| Water Softener | No |
| Maximum Water Inlet Temperature | 140 °F (60 °C) |
| Number of Place Settings (EU / IEC) | 14 |
| Number of Programs / Cycles | 5 main cycles (Heavy, Auto, Normal, Speed60, Favorite) plus downloadable cycles via Home Connect |
| List of Programs (onboard) | Heavy, Auto, Normal, Speed60 (1 hr), Favorite / MyCycle |
| Downloadable / Connected Cycles | Delicate, Rinse / Rinse & Hold, Machine Care, Eco, Half Load (via Home Connect) |
| Number of Wash Temperatures | 4 |
| Options (onboard) | Sanitize, ExtraDry, Remote Start |
| Additional Options via Home Connect | Half Load, Eco and other downloadable options |
| Special Functions / Technologies | PrecisionWash® sensor wash, Extra Dry, HygienePlus (sanitize), Remote Start, leak sensor, concealed heating element |
| Cleaning System | PrecisionWash® with multiple spray levels, EcoSilence Drive, Aquasensor |
| Detergent Tray | Dedicated detergent tray for tabs |
| Status Indicator | End-of-program audible signal; time remaining indicator on front (on some regional variants) |
| Control Lock / Child Lock | Yes (button suspension) |
| ENERGY STAR® Certified | No |
| Estimated Annual Energy Consumption | 269 kWh/year |
| Total Annual Water Consumption | 753 gallons/year (typical) |
| Water Consumption (per cycle, typical ranges) | Approx. 2.4–6.4 gallons depending on program |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Amps | 12 A |
| Connected Load | 1,440 W |
| Power Cord Length | 67 inches (170 cm); 3-prong cord included |
| Drain Hose Length | 90 1/2 inches (with optional extension available) |
| Adjustable Feet / Leveling Legs | Yes – all feet adjustable |
| Panel Ready | No |
| Removable Top | No |
| Variable Hinge | No |
| Home Connect™ (Wi‑Fi) | Yes – Remote Monitoring and Control, downloadable cycles, notifications |
| Smart Home Compatibility | Works with Bosch Home Connect app; some retailers list Alexa / Google compatibility via Home Connect |
| Voice Control | Not natively; may be available via Home Connect integrations (varies by region) |
| Safety Listings / Certifications | CSA safety listing (Canada); NSF® sanitize |

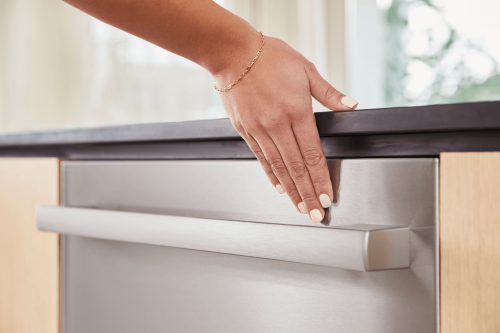

| Fingerprint Resistant | Yes (anti-fingerprint stainless steel) |
| UPC | 825225968122 |
| Typical Included Accessories | 3-prong power cord; drain hose |
| Optional Accessories | Junction box (SMZPCJB1UC) for hardwire, supply hose kit with elbow (SMZSH1ABUC), drain hose extension (SGZ1010UC), accessory kit (SMZ5000), DoubleFlex silverware basket (SMZ4000UC), edge protector + power cord clip kit (SMZEPCC1UC) |
| Warranty (typical Bosch Canada / US) | 1 year parts & labour on entire appliance; 2nd–5th year parts only on microprocessor / printed circuit board and racks (excluding rack components); lifetime parts on rust-through of inner tub liner (terms may vary by region) |
