Manufacturer's Warranty: 1 year
Canadian model: SHP65DM5N
Canadian UPC: 825225973225
EAN: 4242005460649
| Specification | Value |
|---|---|
| Brand | Bosch |
| Series | 500 Series |

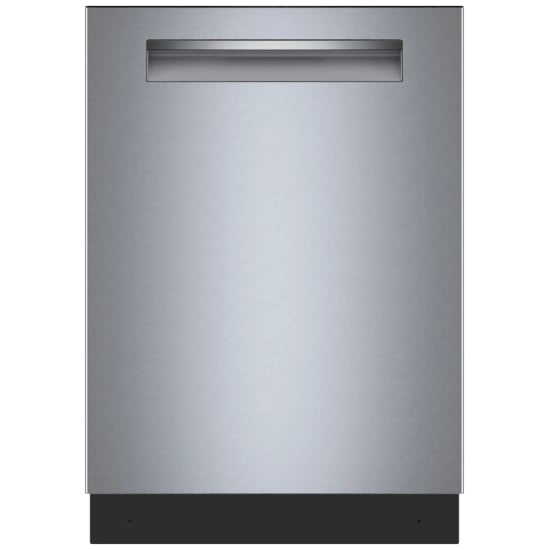

| Model | SHP65DM5N |
| Type | Built-in dishwasher |
| Design | Built-under |
| Appliance Color/Finish | Stainless Steel Anti-fingerprint |

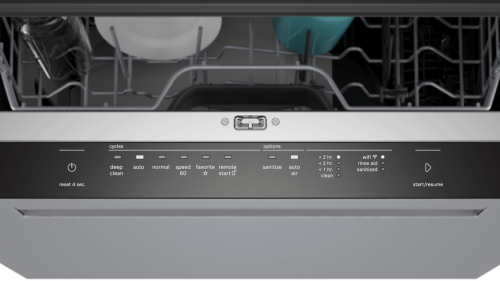

| Control Panel Style | Hidden (Top) |
| Control Type | Electronic |
| Handle Design | Pocket handle |
| Panel Ready | Not possible |
| ADA Compliant | No |
| Common Dishwasher Size | 24 in |
| Number of Place Settings | 16 |
| Tub Material | Stainless Steel |

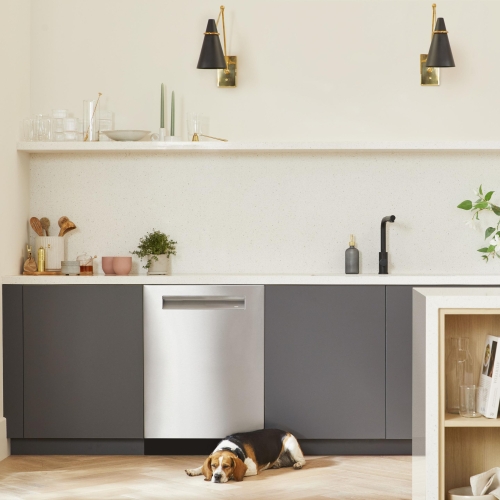

| Silence Level | 44 dBA |
| Decibel Level | 44.0 dB |
| Energy Star Certified | Yes |
| CEE Tier Qualified | CEE Tier I |

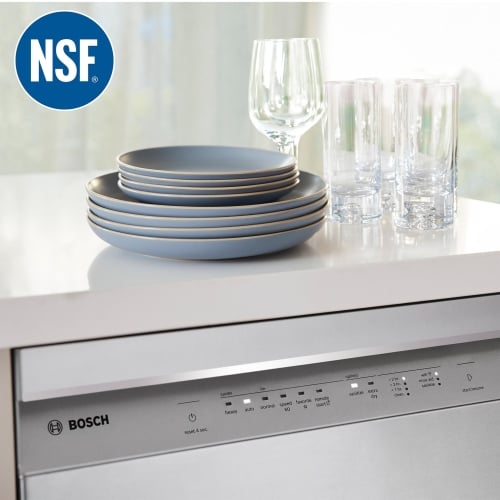

| NSF Certified Sanitize Option | Yes |
| NSF Certified | Yes |
| Drying System | AutoAir, condensation dry, inherent heat + drying assist |
| Washing System / Technologies | PrecisionWash, Zone Wash, five-level wash |
| Leak Protection | 24/7 AquaStop leak protection system |
| Water Management System | No |
| Water Softener | No |
| Detergent Detection | No |
| Number of Cycles | 9 (5 + 4 additional in Home Connect) |
| List of Programs (on-board) | Auto, Normal, Speed 60, Favorite (plus others depending on retailer listing) |
| Programs & Options Exclusive to Home Connect | Hand Wash, Energy Save, Fixed Zone, Half Load, Machine Care, Rinse |
| Options (on-board) | Remote Start, Sanitize, EfficientDry |
| Additional Options via Home Connect | 3 additional options (varies by cycle set) |

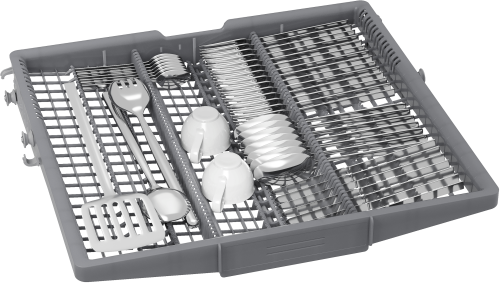

| 3rd Rack System | Yes (Flexible 3rd rack on closely related Canadian spec; SHP65DM5N marketed with 3rd rack) |

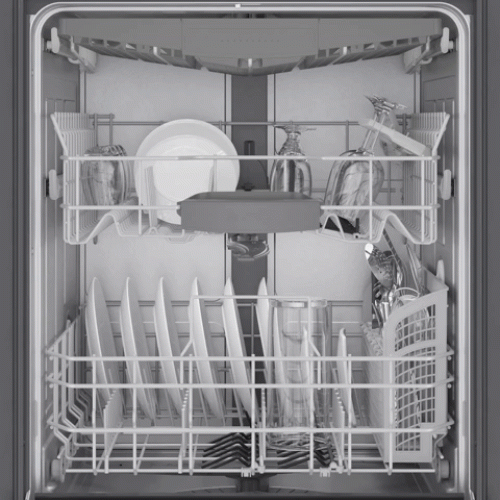

| Adjustable Upper Rack | RackMatic (height-adjustable upper rack) |
| Maximum Temperature for Water Intake | 140 °F (60 °C) |
| Status Indicator | End of program audible |
| Cycle Status Lights | Yes |
| InfoLight | Red floor beam |
| TimeLight | No |
| Interior Light | No |
| Delay Start | Yes, up to 24 hours |
| Home Connect (Wi‑Fi) | Yes |
| Home Connect Features | Remote Monitoring and Control, Smart Cycle, additional wash cycles, cycle tracking, app customization |
| Smart Features via Home Connect | Remote start, cycle tracking, app customization, Smart Cycle |
| Child Safety Locks / ChildLock | No |
| AquaStop | No (AquaStop with warranty not specified; 24/7 AquaStop leak protection system listed in CA specs) |
| Country of Origin | US - United States of America |
| Automatic Temperature Control | Yes |
| Bluetooth Compatibility | No |
| Wi‑Fi | Yes (via Home Connect) |
| Energy Consumption (Annual) | 240 kWh |
| Total Annual Water Consumption | 688 gallons (approx., as listed on related 500 Series models) |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Connection Rating | 1440 W |
| Fuse Protection | 12 A |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 67 in |
| Length Outlet Hose | 78 3/4 in |
| Appliance Dimensions (H x W x D) | 33 7/8 in x 23 9/16 in x 23 3/4 in |
| Actual Width | 23.5625 in (approx. 23 9/16 in) |
| Actual Depth Excluding Handle | 23.75 in |
| Actual Depth Including Handle | 23.75 in (pocket handle does not add depth) |
| Actual Depth with Door Open | 48.4 in |
| Height (Min.) | 33.86 in (approx. 33 7/8 in) |
| Class Width | 24 in |
| Required Cutout Size (H x W x D) | 33 7/8 in x 24 in x 24 in |
| Adjustable Feet | Yes, all adjustable from front |
| Net Weight | Approx. 92 lb (41.7 kg) |
| Weight (Canadian listing) | Approx. 85.0 lb (38.6 kg) |
| Fingerprint-Resistant | Yes |
| Cycle Status Indication | Red InfoLight on floor, audible end-of-program signal |
| 1/2-Rack Wash Option | Yes (Half Load via Home Connect) |
| Delay Wash | Yes |
| Delay Wash Time | Up to 24 hours |
| Direct Feed | Yes |
| Condensation Dry | Yes |
| Fan Assisted Dry | No (drying via AutoAir and condensation) |
| EcoSilence Drive | Yes |
| AquaSensor | Yes |
| Cycle Status Lights | Yes (InfoLight and panel indicators) |
| Accessories (Optional) | Junction Box SMZPCJB1UC; Junction Box + Supply Hose Kit SMZ3IN1UC; Bosch Dishwasher Water Supply Hose SMZSH1ABUC; Drain Hose Extension Kit SGZ1010UC; Silverware Basket SMZ4000UC; Dishwasher Accessory Kit SMZ5000; Anti-Tarnish Silverware Cassette SMZ5002UC; Edge Protector + Power Cord Clip Install Kit SMZEPCC1UC |
