Specification	Value

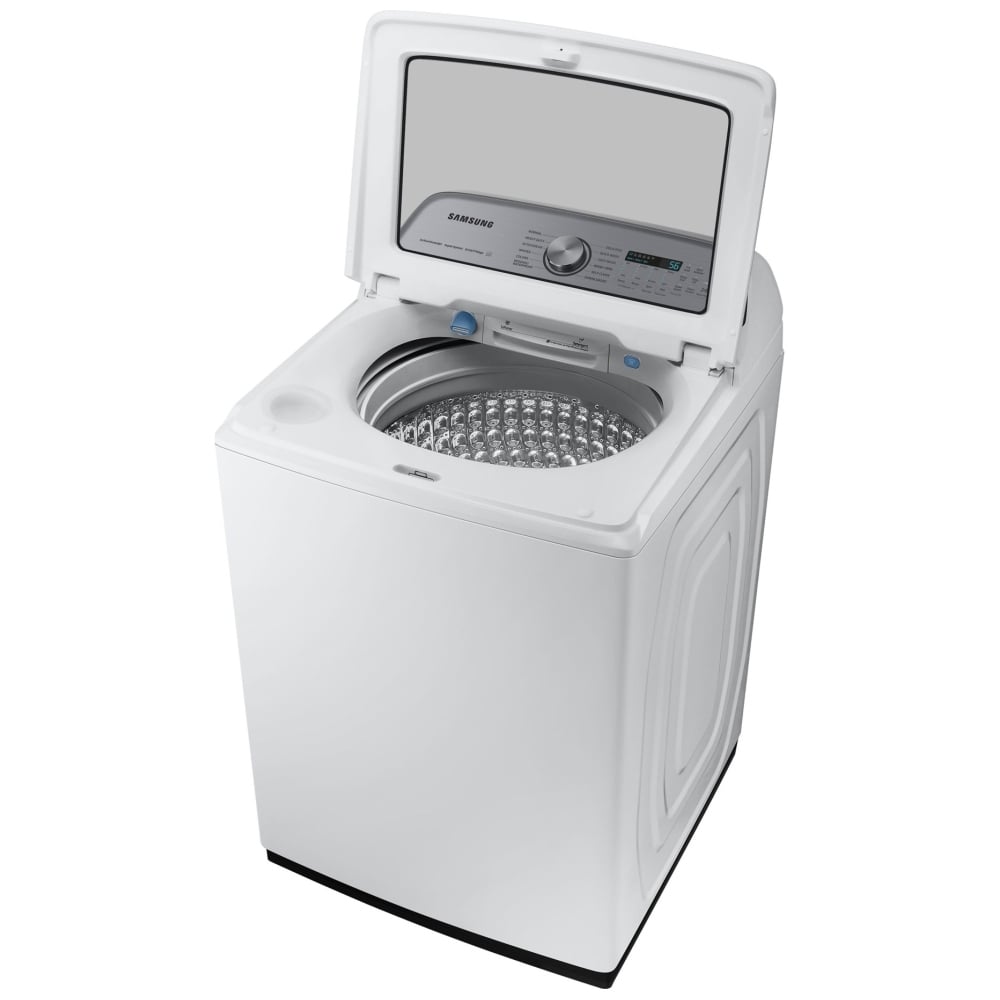

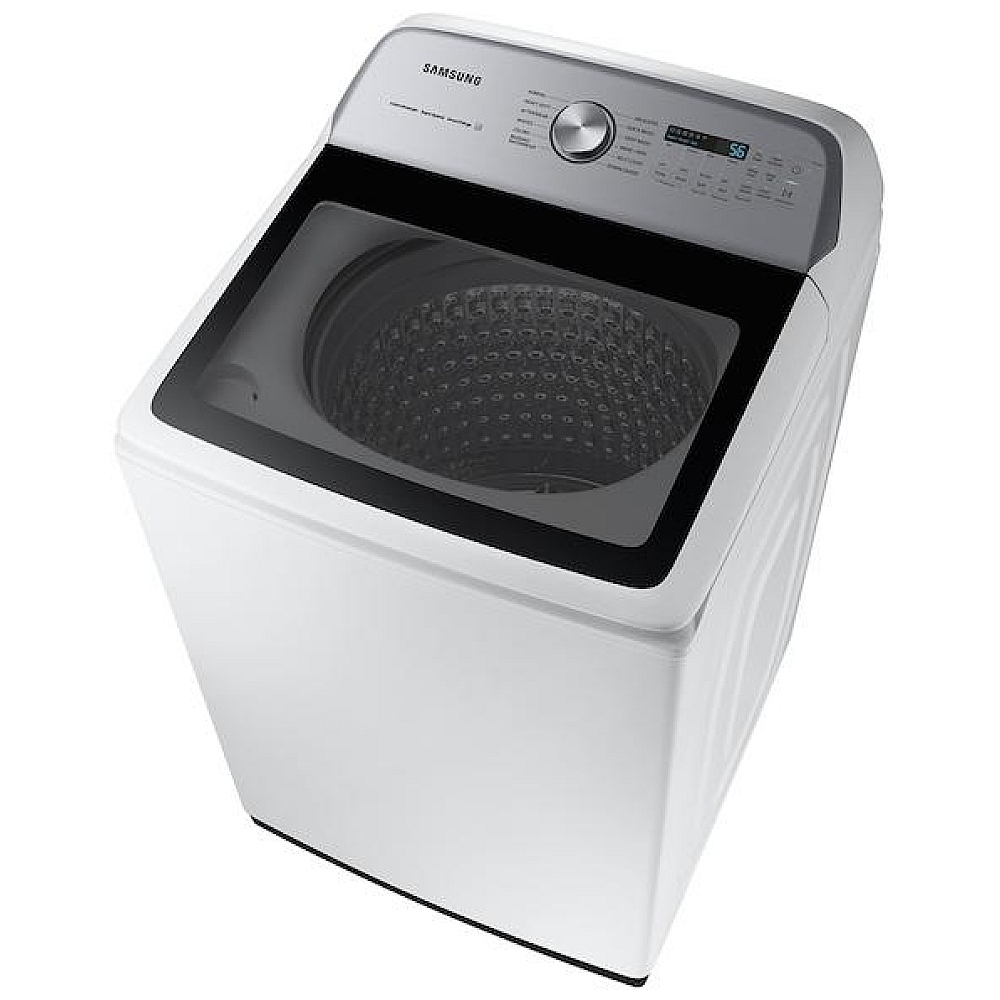

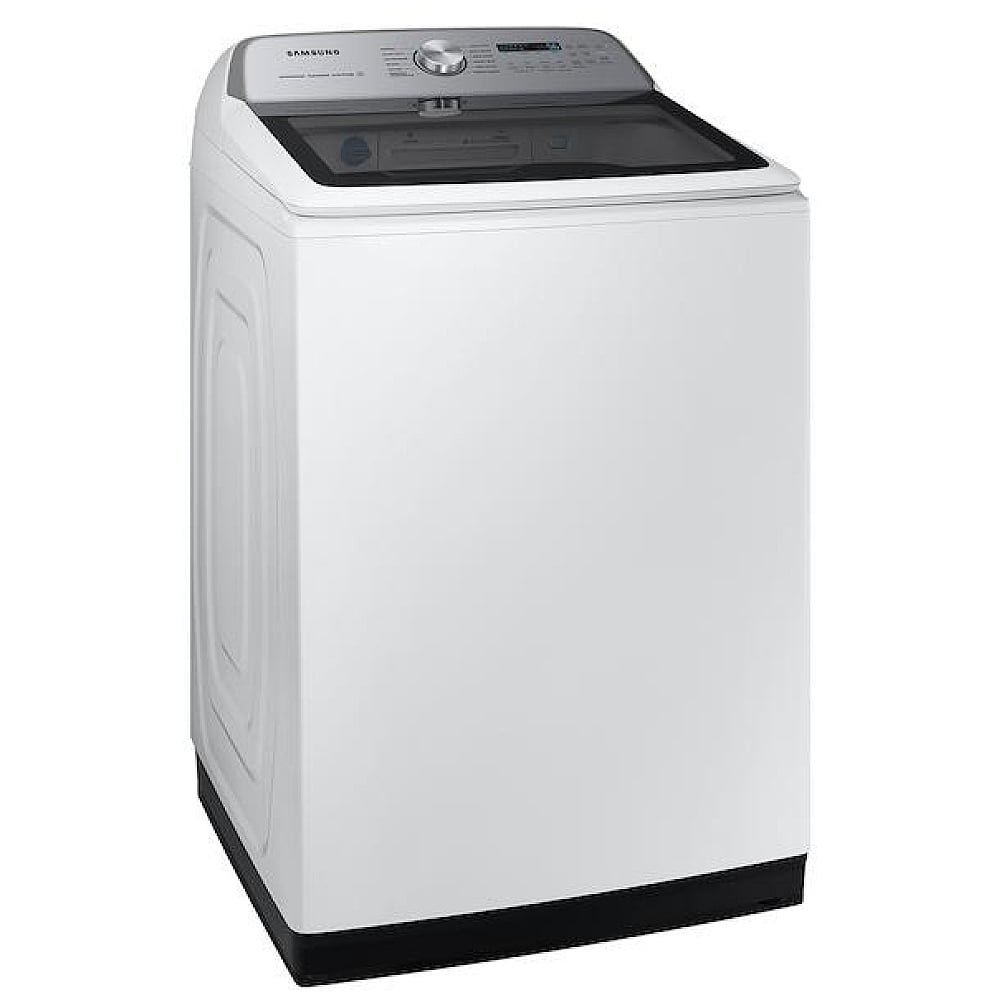

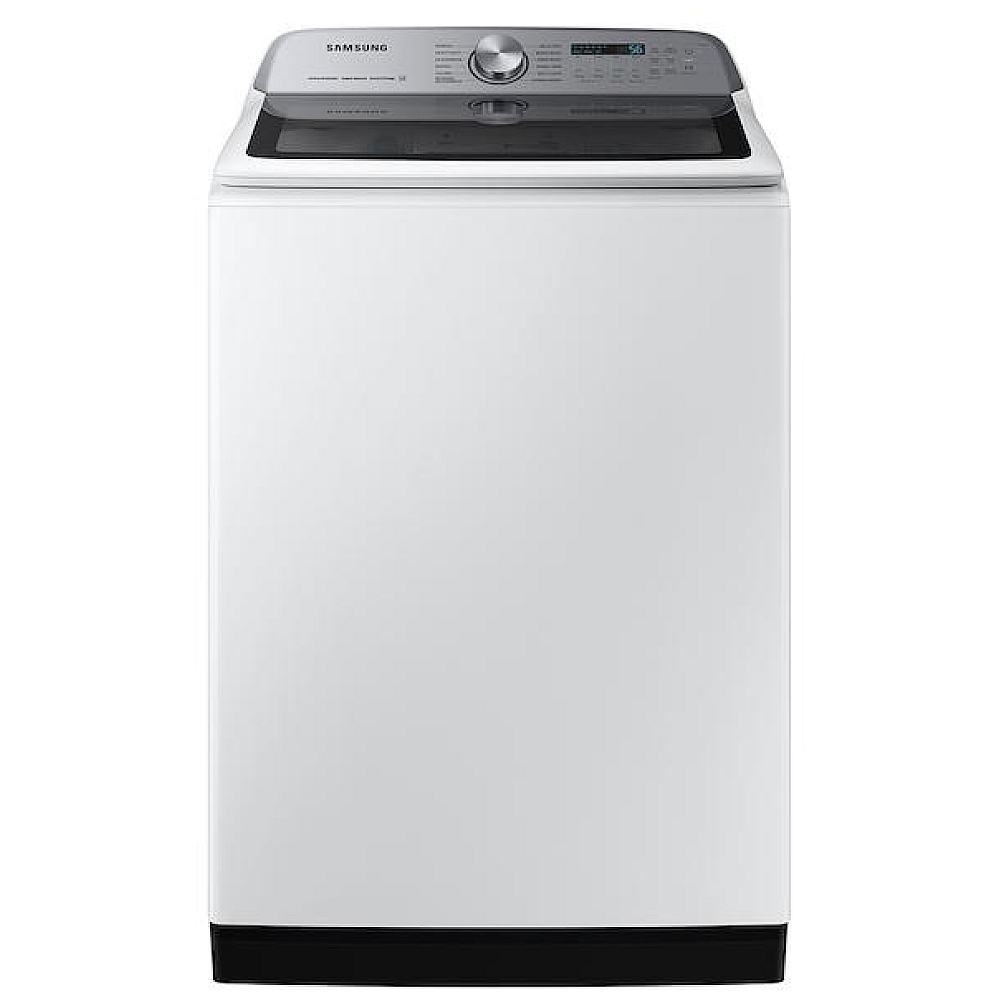

Model	WA52DG5500AWUS
Capacity	6.0 cu ft
US Listed Capacity	5.2 cu ft
Washer Type	High Efficiency Top Load Washer
Configuration	Top Load

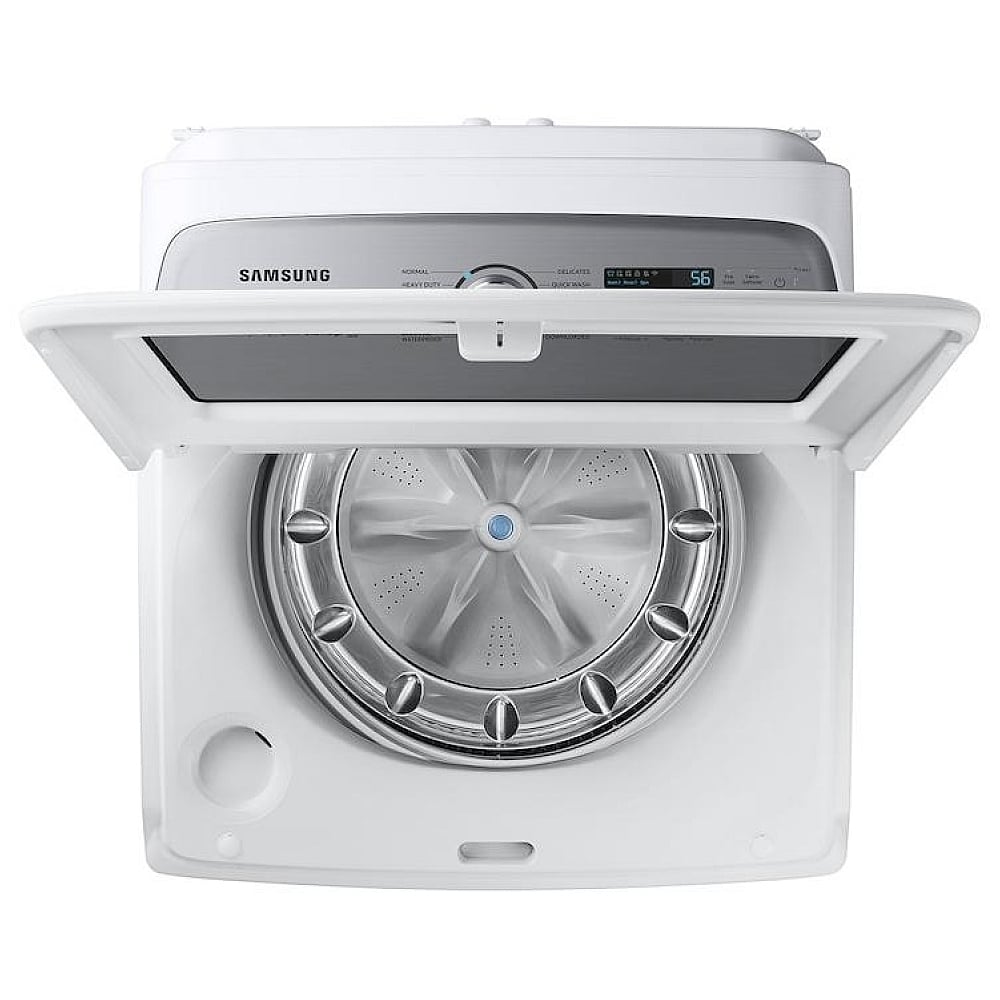

Impeller / Agitator	Impeller

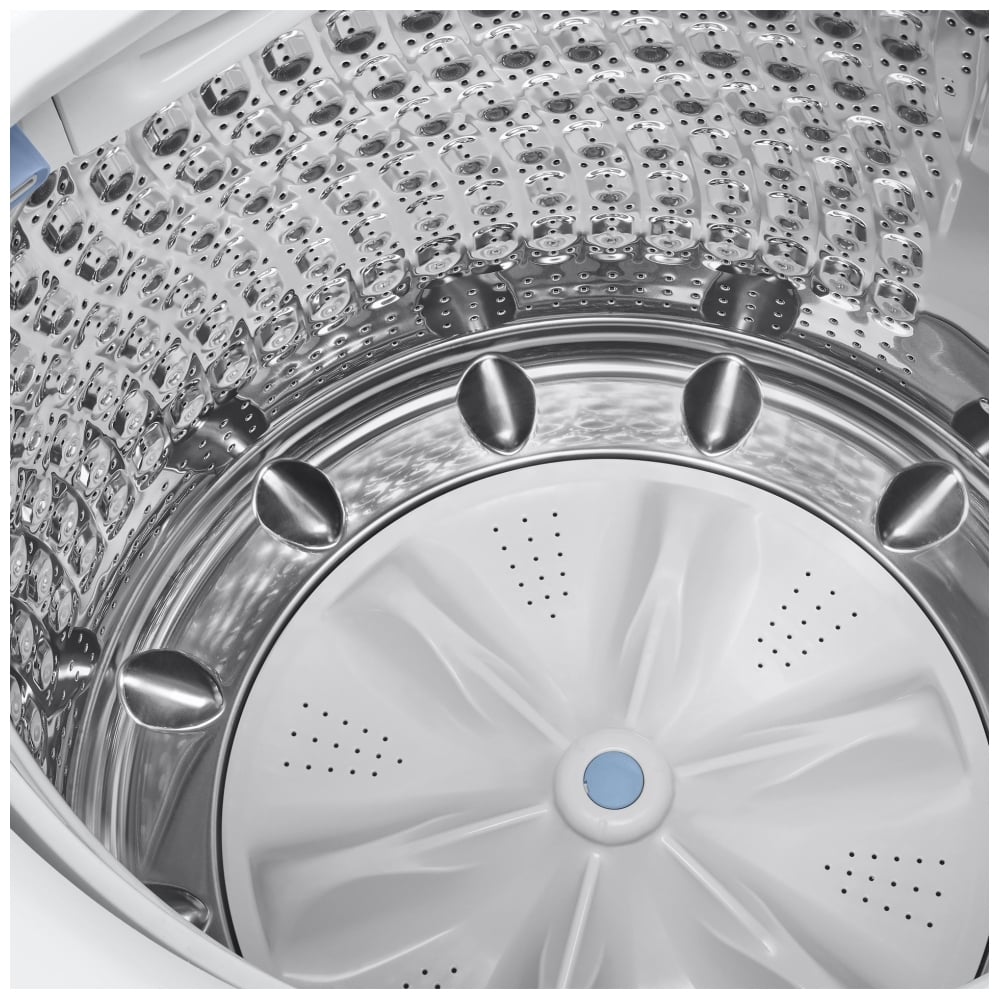

Drum Type	Swirl+
Drum Material	Stainless Steel
Body Color	White
Top Cover	Plastic
Lid Material	Glass
Soft Close Lid	Yes
Panel Display	LED (18:88 style)

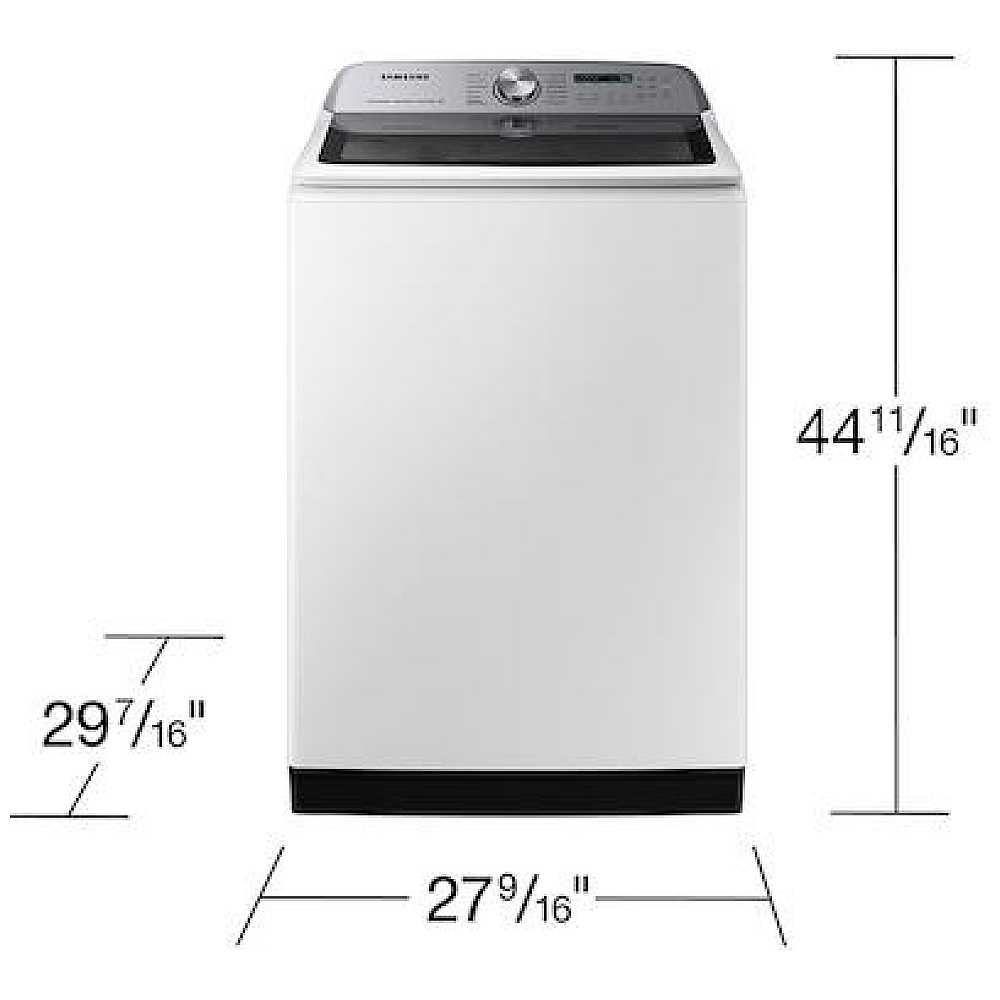

Dimensions & Weight
Width	27.5 inches
Depth	29.4 inches
Height	44.6 inches
Samsung US Width	27.56 inches
Samsung US Depth	29.44 inches
Samsung US Height	44.69 inches
Canadian Net Dimensions (W x H x D)	699 x 1134 x 747 mm
Canadian Net Dimensions (W x H x D, inches approx.)	27.5 x 44.6 x 29.4 inches
Gross Dimensions (W x H x D)	764 x 1210 x 793 mm
Net Weight	59 kg (approx. 130.1 lbs)
Gross Weight	63 kg (approx. 138.9 lbs)
Performance & Ratings
ENERGY STAR Certified	Yes
Annual Energy Consumption	120 kWh/year
IMEF	2.06
IWF	4.3
Maximum Spin Speed	750 RPM
Cycle Time (Normal, approx.)	56 minutes
Super Speed Wash Time	28 minutes (full load, Normal cycle)
Electrical
Voltage / Frequency	120V / 60Hz
Amps	15 A
Power Source	Electric
Smart & Connectivity
Smart Appliance	Yes
Wi‑Fi Connectivity	Yes
SmartThings Compatible	Yes
Smart Control / Remote Monitoring	Yes
Remote Diagnostics (Smart Care)	Yes
Voice Assistant Compatibility	Bixby, Amazon Alexa, Google Assistant
Motor & Mechanical
Motor Type	Digital Inverter Motor (DD)

Standard Warranty	1 Year Parts and Labor
Drum Warranty	3 Years Parts on Drum
Vibration Reduction	VRT Plus
Noise / Vibration Reduction	Yes (Quiet / Low Noise design)

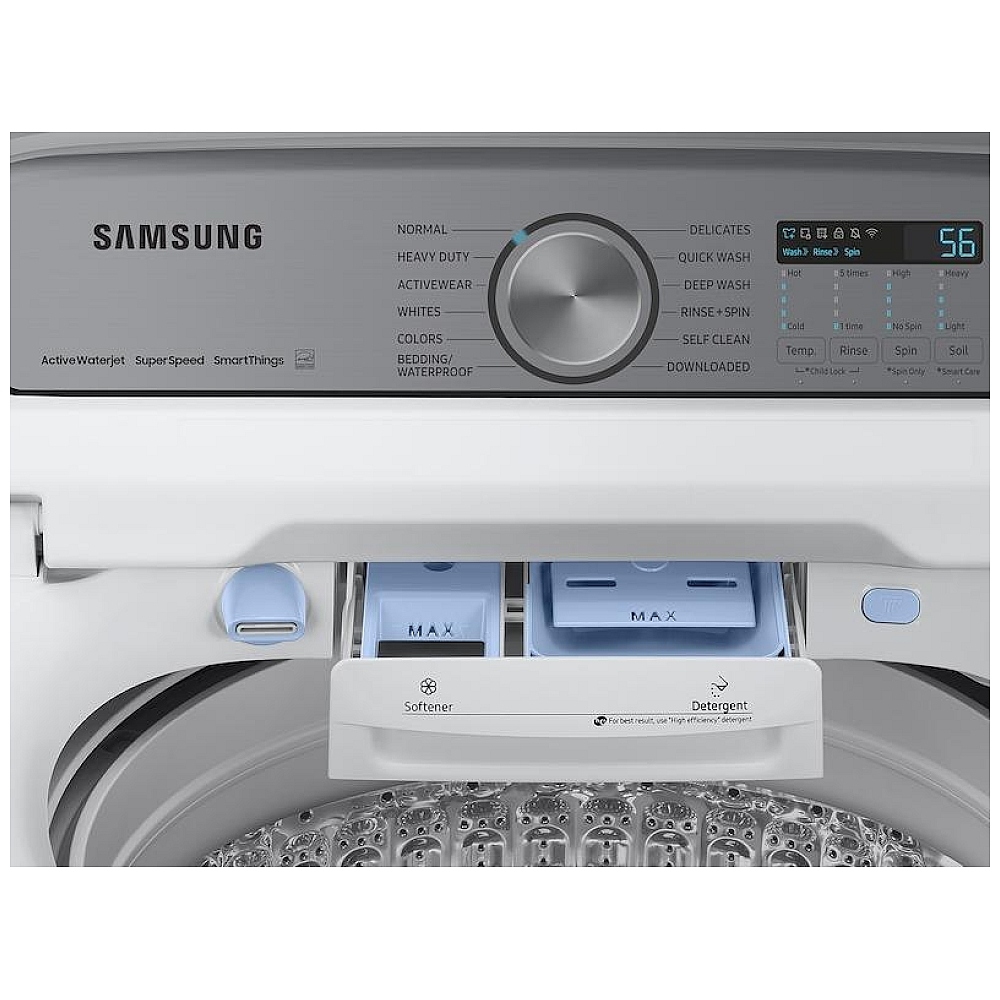

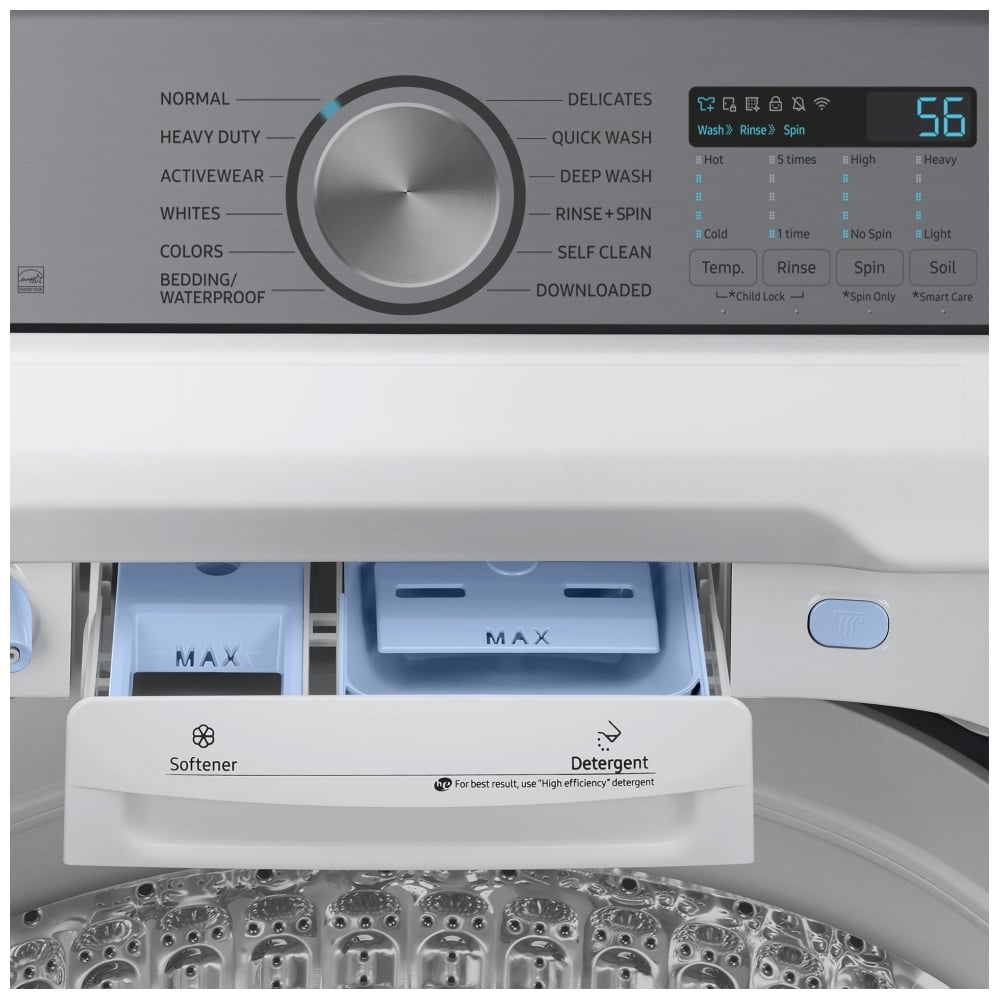

Controls & Indicators
Control Style	Digital and Knobs
Progress Indicator	Yes
Remaining Time Display	Yes
End of Cycle Signal	Yes
Sound On/Off Option	Yes (long key)
Door / Lid Safety	Yes
Child Lock	Yes (dual key)
Accessibility (Audio UI & Braille)	Yes (audio feedback and braille on control panel)
Wash Cycles & Options
Number of Preset Wash Cycles (US)	12
Number of Cycles (Canada)	12
Cycle List	Normal, Bedding/Waterproof, Heavy Duty, Colours, Whites, Activewear, Delicates, Quick Wash, Self Clean, Rinse+Spin, Deep Wash, Downloaded
Number of Wash Options	10
Option List	Pre Soak, Fabric Softener, Delay End, Deep Fill, Super Speed, Smart Control, Sound On/Off (Long key), Spin Only (Long key), Smart Care (Long key), Child Lock (Dual key)
Number of Soil Levels	5
Number of Spin Levels	5
Number of Temperature Levels	5
Temperature Settings	5
Deep Fill	Yes
Deep Wash Cycle	Yes
Water Level Settings	Automatic (0 manual levels)
Features
Super Speed	Yes (Super Speed 2.0)
Active WaterJet	Yes (built‑in water faucet for pretreating)

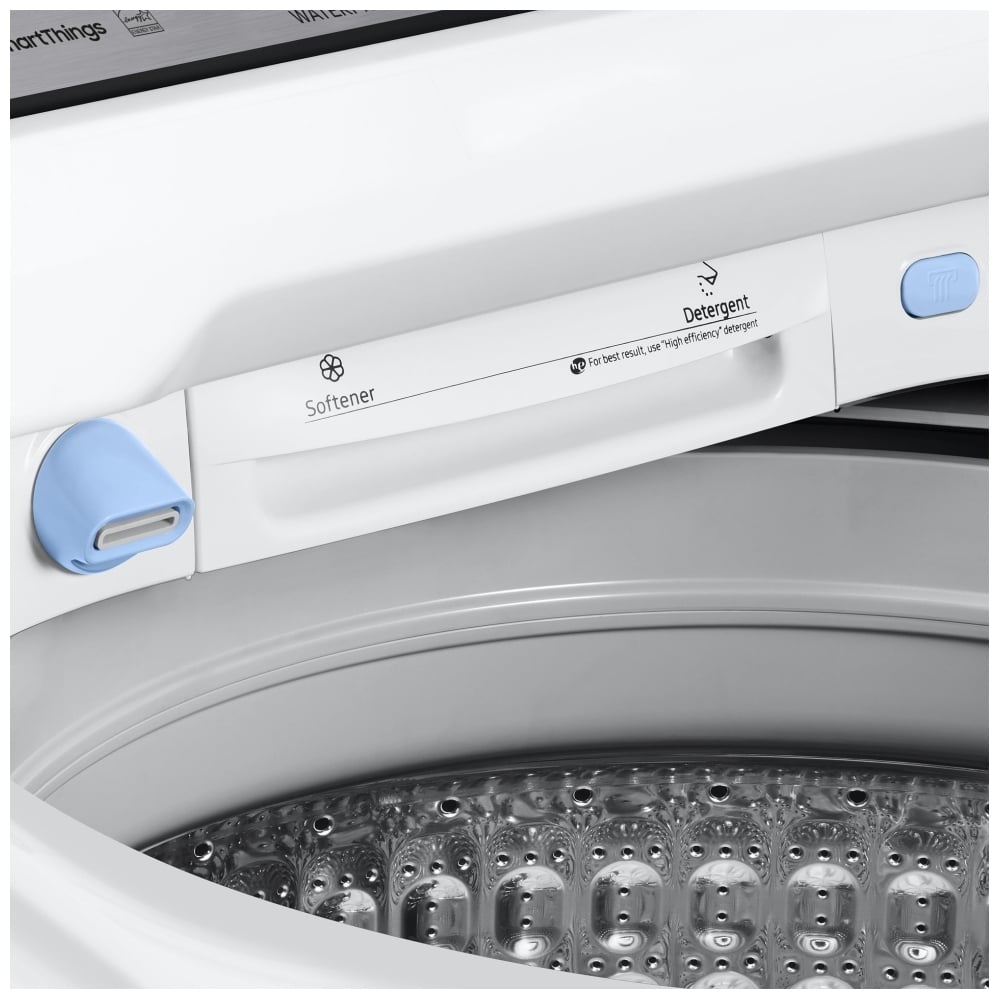

EZ Drawer Dispenser	Yes
Self Clean	Yes
Smart Care	Yes
SmartThings Energy Support	Yes (energy monitoring and tips)
ADA Compliant	No
Stackable	No
Usage	Residential
Size Class	Full Size
Clearance / Installation Notes
Additional Clearance for Door/Lid (Front)	+3 inches recommended (Samsung US)
Additional Clearance for Ventilation (Rear/Top)	+2 inches recommended (Samsung US)

Specification	Value
Model	DVE52DG5505WAC
Series	5500 Series
Appliance Type	Electric Dryer
Capacity	7.4 cu ft
Dryer Capacity (L)	209.5 L
Width	27 in (68.6 cm)
Height	44.6–44.75 in (≈113.3–113.4 cm)
Depth (cabinet, door closed)	30.2–30.25 in (≈76.7–77.0 cm)
Depth (door open)	58.1 in (147.6 cm)
Net Dimensions (W x H x D)	686 x 1134 x 768 mm
Gross Dimensions (W x H x D)	750 x 1207 x 791 mm
Net Weight	54 kg (≈119 lb)
Gross Weight	57 kg (≈126 lb)
Drum Material	Powder coat (Gray)
Colour / Finish	White
Door Type	Reversible side-swing
Door Panel Type	Glass
Control Type	LED display with electro-mechanical controls
Panel Display	LED
Dryer Fuel Type	Electric
Voltage / Frequency	120 / 240 V, 60 Hz
Vent Type	Vented
Vent Exhaust	4-way venting
Country of Origin	Mexico
Stackable	No
ADA Compliant	No
Smart Compatible	Yes
Connectivity	Wi‑Fi enabled, SmartThings compatible
App Compatibility	SmartThings app (Android / iOS)
Energy Star Certified	Yes
Annual Energy Consumption	≈608–609 kWh/year
DOE Energy Factor	3.93 lb/kWh
Cycle Time (Normal, min)	39 minutes
Number of Dry Cycles	12
Number of Options	10
Dry Cycles	Normal, Eco Normal (where available), Heavy Duty, Towels (where listed), Permanent Press, Bedding, Delicates, Activewear, Shirts/Denim (retailer dependent), Time Dry, Air Fluff, Quick Dry (Small Load), Refresh (Steam Refresh), Steam Sanitize+, Wrinkle Away (naming varies by retailer; core 12 cycles per Samsung spec)
Steam Cycles	Refresh (Steam Refresh), Steam Sanitize+
Temperature Levels	5 (High, Medium, Medium Low, Low, Extra Low)
Drying Levels	5 (Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry)
Time Levels	5
Key Options	Damp Alert (Mixed Load Bell), Wrinkle Prevent, Adjust Time (Up/Down), Child Lock (dual key), Sound On/Off (long key), Eco Dry, Smart Care (long key), Drum Light, Smart Control
Interior Drum Light	Yes
Smart Control	Yes
Smart Care	Yes (smart diagnostics)
CleanGuard	Yes (antimicrobial treatment on high‑touch areas)
Steam Function	Yes (Multi‑Steam, Steam Sanitize+)
Multi‑Steam	Yes (helps reduce wrinkles, odours, static)
Steam Sanitize+	Yes (sanitizing cycle for germs, bacteria, pollen, mites)
Wrinkle Prevent	Yes
Moisture Sensor	Yes (Sensor Dry)
Dual Heater	Yes
Filter Check Indicator	Yes (Check Lint Screen light)
Mixed Load Bell / Damp Alert	Yes
Progress Indicator	Yes (cycle status lights / digital countdown)
End‑of‑Cycle Signal	Yes
Dryer Rack	No
Child Lock	Yes
Control Lock	Yes (via Child Lock)
Cycle Status Lights	Yes
Custom Program Cycle	Yes (Downloaded cycle via SmartThings)
Quick Dry	Yes (Small Load)
Heavy Duty Cycle	Yes
Delicate Cycle	Yes
Air Dry / Air Fluff	Yes
Timed Dry	Yes
Sanitize Option	Yes (Steam Sanitize+)
Eco Dry / Energy Efficient Cycle	Yes
Interior Lighting	Yes
Hub Required	No (connects directly to Wi‑Fi)
Washer Pair (matching model)	WA52DG5500AWUS
Dryer Size Category	Large (7.1 – 8.0 cu ft)
UPC (example from retailer)	887276904313
Warranty (Canada – typical)	1 year parts and labour (some retailers list 2nd‑year coverage or extended options)

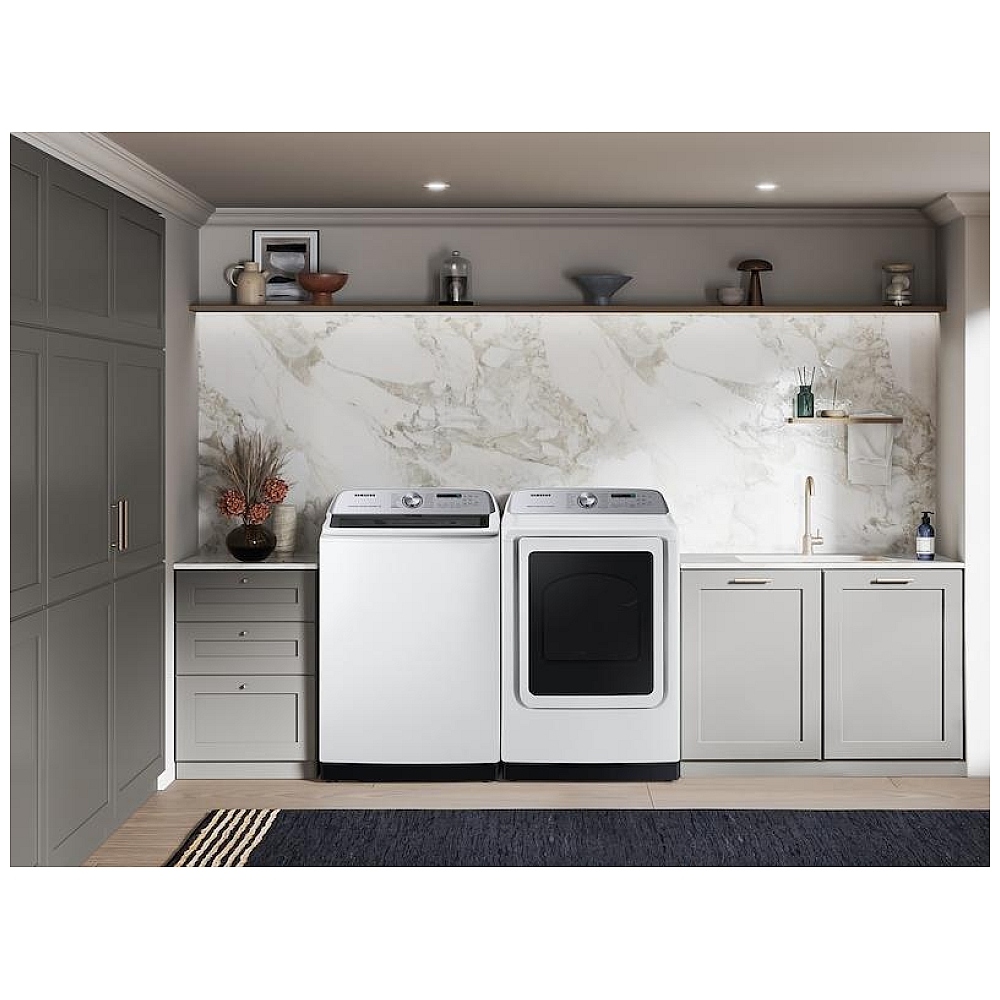

Samsung Washer & Dryer Set

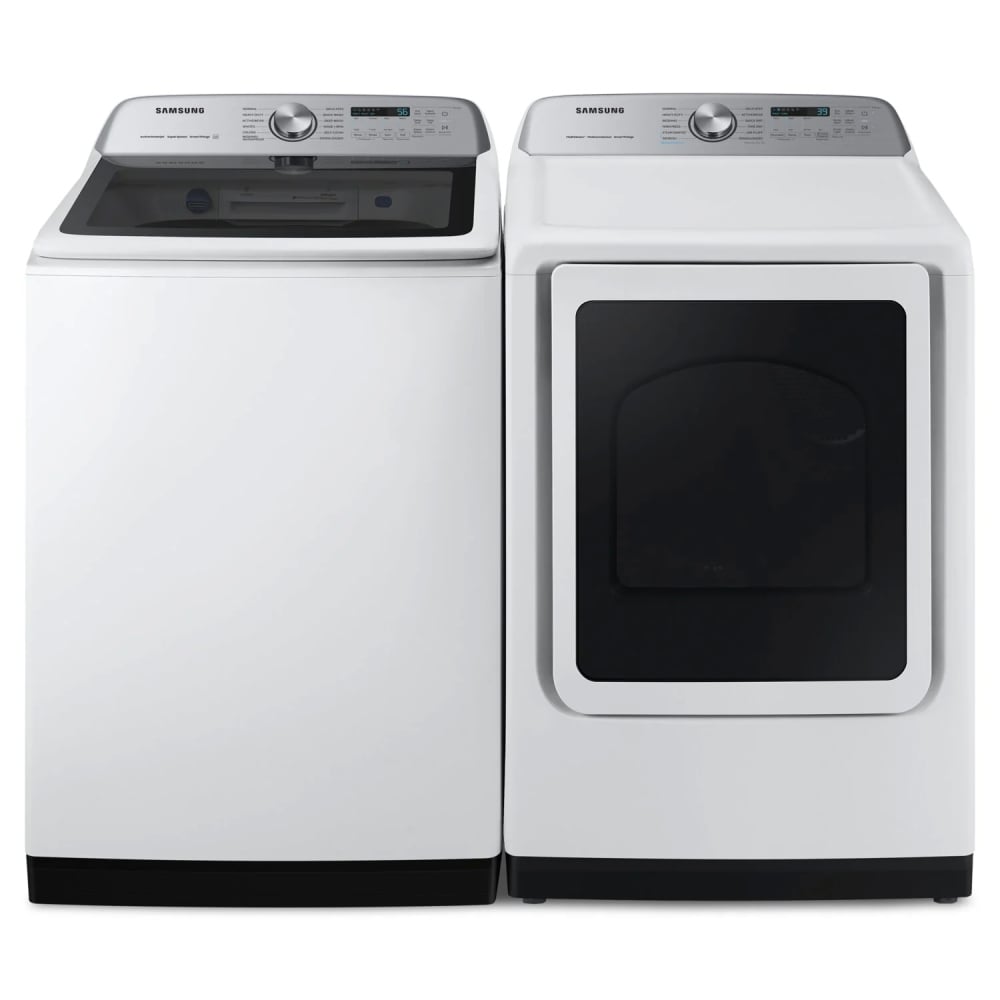

Samsung WA52DG5500AWUS Washer Samsung DVE52DG5505WAC Electric Dryer Combo
