Configuration and Overview
Hz	60
Volts	120/240
Cooktop Features
Cooktop Element Style	Coil
Cooktop Surface Color	White
Cooktop Surface Material	Porcelain Coated Steel
Number of Cooking Element-Burners	4
Left Front Element-Burner Power	2600W
Left Front Element-Burner Type	Coil
Left Rear Element-Burner Power	1500W
Left Rear Element-Burner Size	6"
Left Rear Element-Burner Type	Coil
Right Front Element-Burner Power	1500W
Right Front Element-Burner Size	6"
Right Front Element-Burner Type	Coil
Right Rear Element-Burner Power	2600W
Right Rear Element-Burner Size	8"
Right Rear Element-Burner Type	Coil
Oven Features
Number of Oven Lights	1
Light Type	Incandescent
Oven Rack Type	Standard
Self-Cleaning	Manual Clean
Convection Element Type	None
Broiler Location	Top of Oven
Number of Oven Racks	2
Controls
Drawer Type	Storage Drawer
Selections	Control Lock, Sabbath Mode, Clock, Timer
Dimensions
Depth	27 3/4
Height	46 7/8
Width	29 7/8

GENERAL
Fuel type	Electric
Style	Freestanding
Color	White on White
OVEN
Capacity	4.8 cu. ft.
Number of ovens	Single
Oven rack positions	5
COOKTOP
Cooktop type	Coil
Burners/Elements	4
Burners/Elements Output	N/A
Burner/Element size	6", 6", 8", 8".
MICROWAVE
Capacity	N/A
Power	N/A
Power levels	N/A
Microwave Additional features	N/A
DRAWER
Capacity	N/A
Wattage	N/A
Indicator light	No
Digital temperature control	No
POWER
Amperage	N/A
Required voltage	N/A
SPECIFICATIONS
Clock	Yes
Control lock	Yes
Convection	No
Delay bake	No
Digital temperature display	Yes
Downdraft ventilation	No
Hot surface indicator light	No
Liquid propane conversion compatible	No
Oven light	Yes
Oven window	Yes
Removable door	N/A
Sabbath mode	No
Self-Cleaning	No
Baking drawer	No
Broiler drawer	No
Storage drawer	Yes
Warming drawer	No
Brand specific technology/features	2 Standard oven racks; Extra large oven window; Broil Setting : Low/High; Electric Control.
DIMENSIONS
Height	46.87 inch(es) / 119.06 cm
Width	29.87 inch(es) / 75.88 cm
Width Class	N/A
Depth	27.75 inch(es) / 70.49 cm
Additional dimensions	N/A
Shipping weight	N/A
Net Weight	N/A
WARRANTY
Warranty	1 year(s)
Additional Warranty Information	Limited One Year Warranty - Parts and Labour. For one (1) year from the original retail purchase date, any part which fails in normal home use will be repaired or replaced free of charge. Refer to the Use and Care for warranty details.
UPC
UPC#	N/A

Amana YACR4330BCW

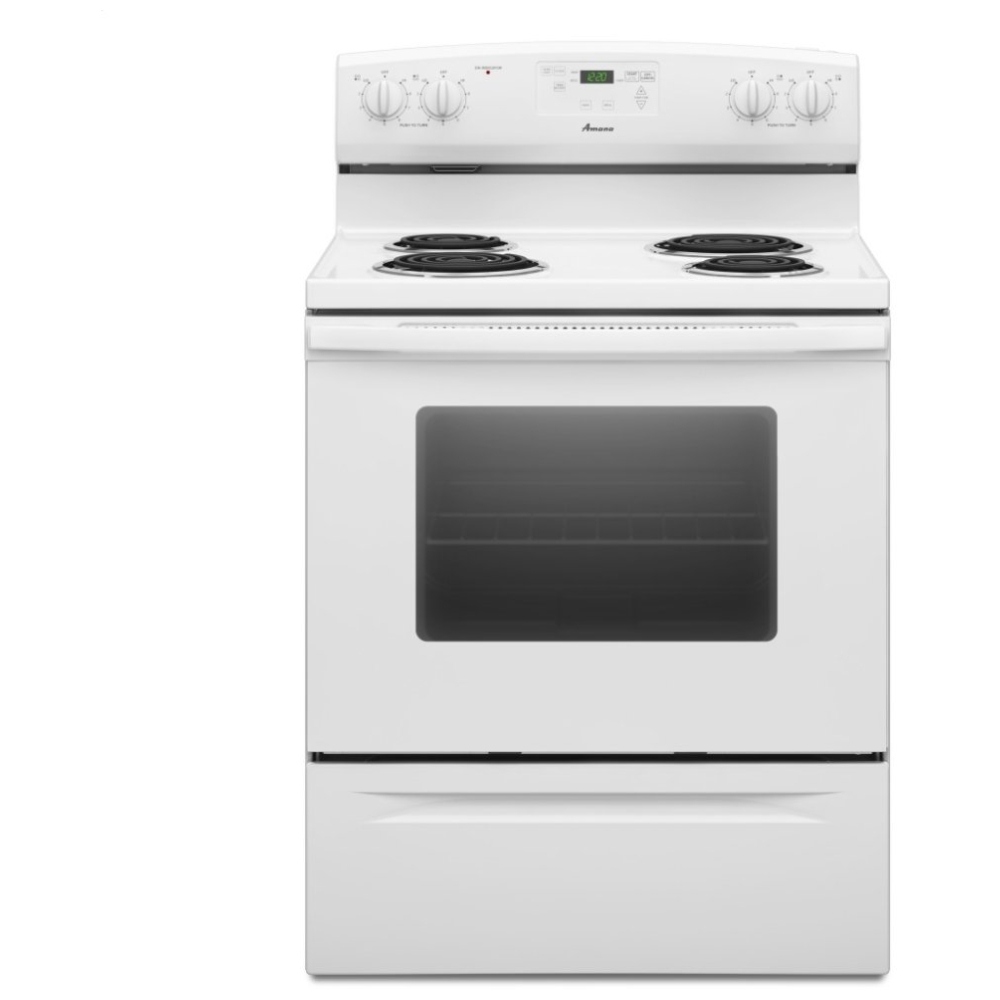

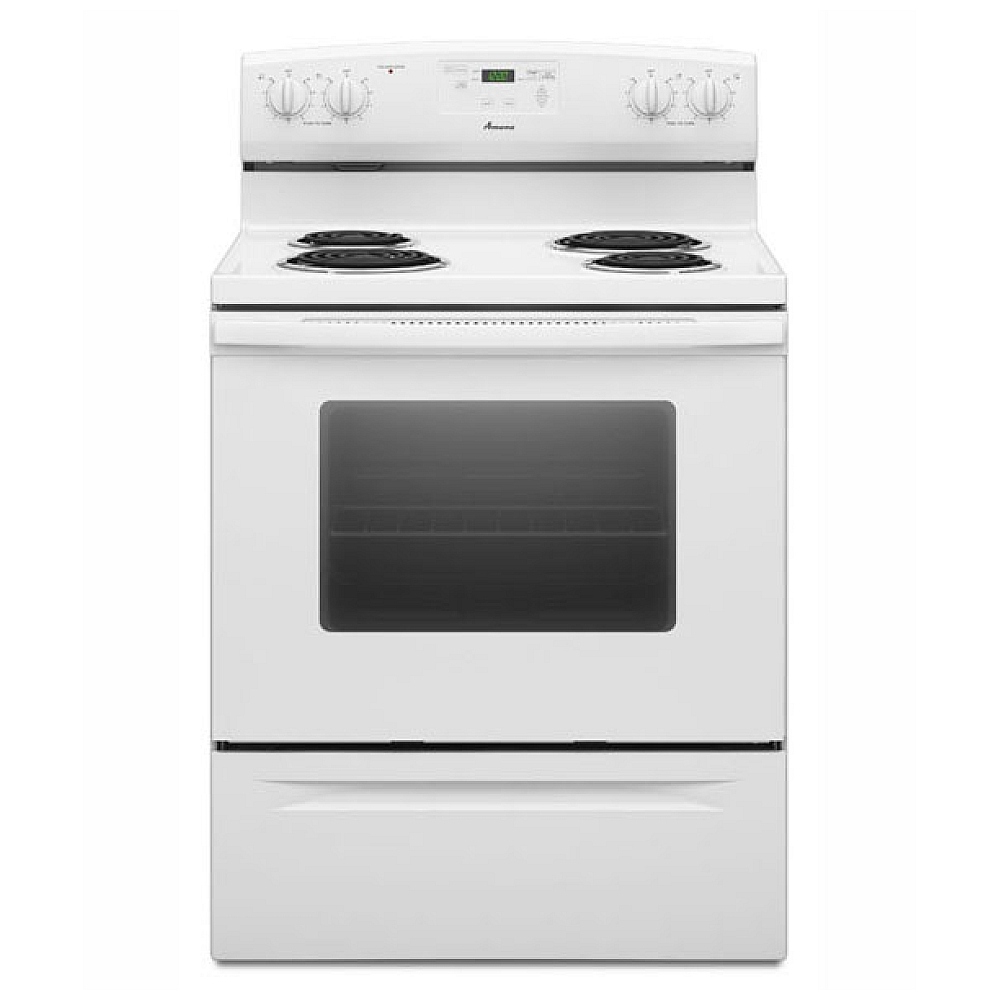

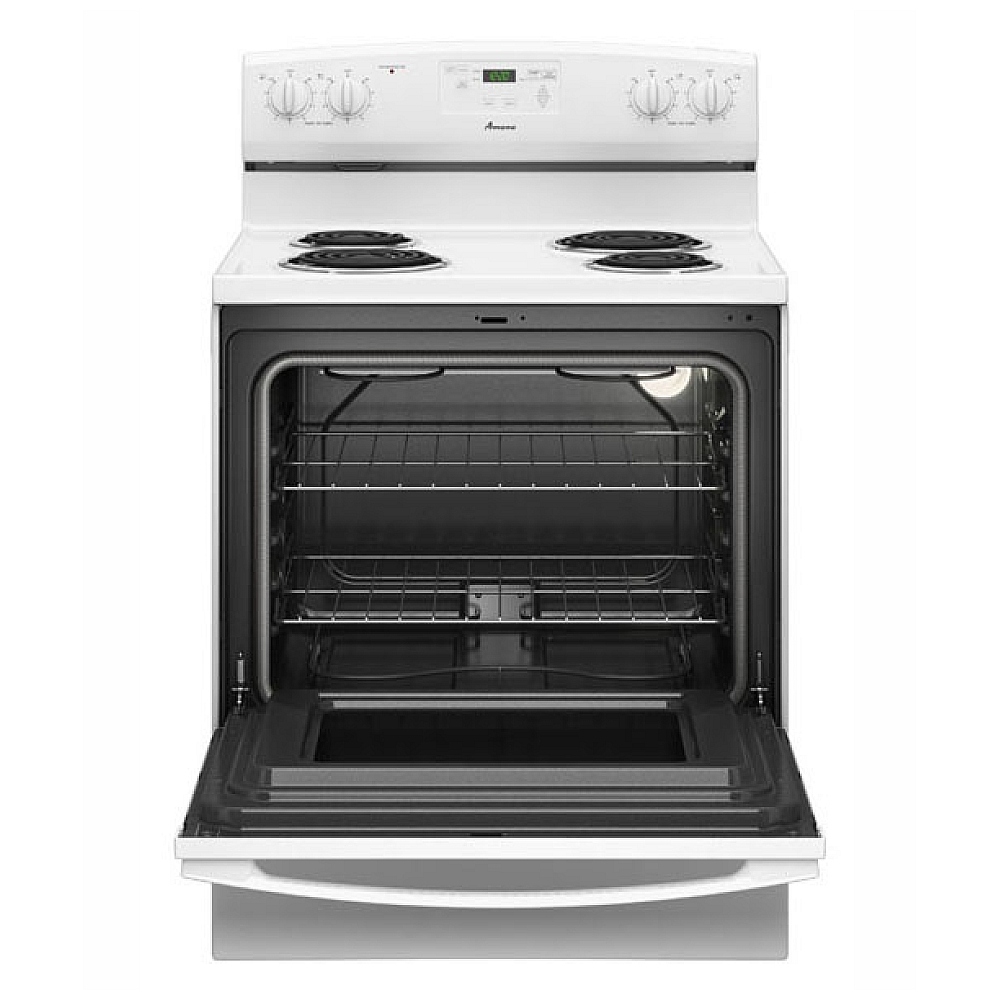

Amana YACR4330BCW Electric Range, 4.8 cu. ft. Capacity, 30 inch Exterior Width, 4 Burners, Storage Drawer, Manual Clean, White colour
