Best

WTT32I30SB

Width	30.00
Depth	22.00
Height	27.75
Finish	Stainless Steel
Material	Stainless Steel
Lighting Type	Halogen
Lighting Level	3
Light Bulbs Included	Yes
Minimum Height Above Cook Top	24.00
Control Type	Electronic Pushbutton
Speed Levels	4

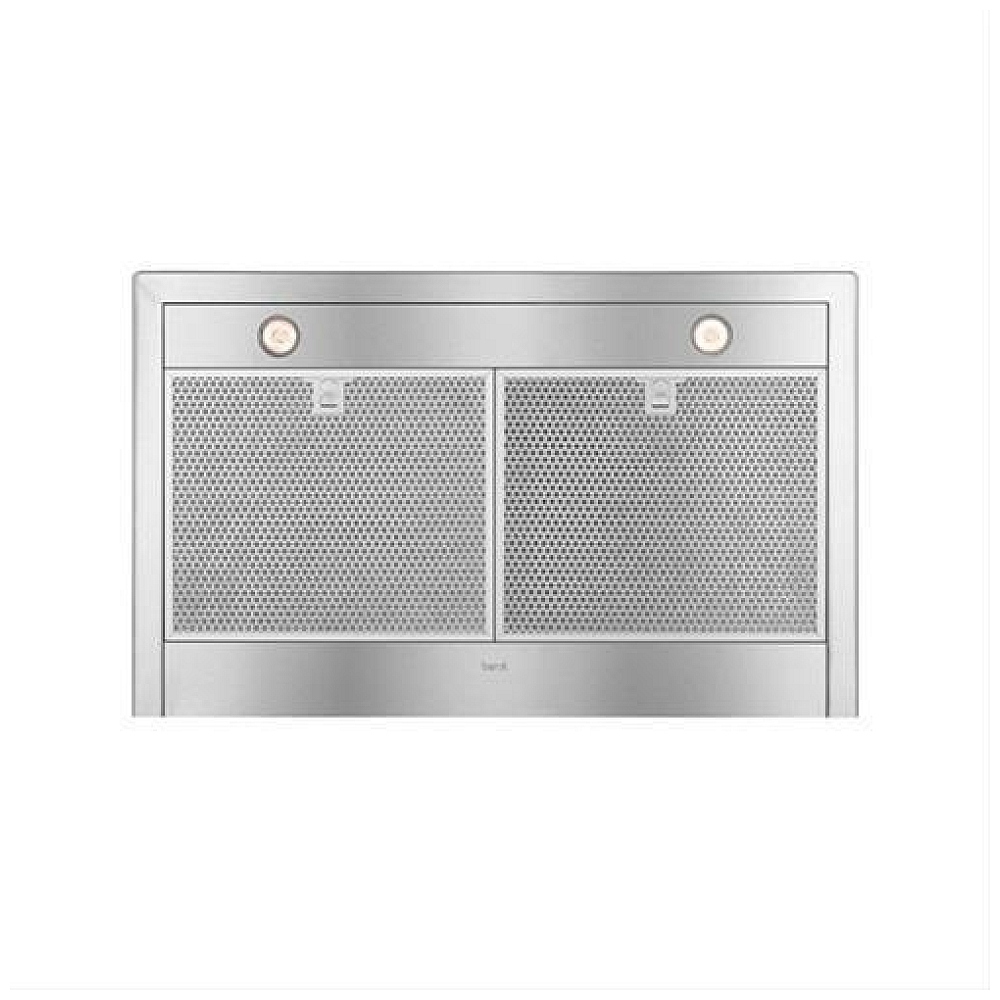

Filter Type	Aluminum Mesh
Heat Sentry	Yes
Remote Operation Capable	No
ENERGY STAR® certified	No
Can be used to comply with LEED Requirements	Yes
Manufacturer Warranty	5 Year Parts/2 Year Labor

---

Finish
Stocked: Brushed Standard Grade Stainless Steel
Special Order: Not Available
Features
Electrical Requirements: 120V; 60Hz; 20A
Light Type: Halogen, 50W: GU10-50W
Number of Lamps: 2
Lighting Levels: 3
Lighting Lamps Included: Yes
Control Type: 4-Speed, Electronic Push-Button
Control Features: Heat Sentry
Control Remote: Not Available
Filter Standard: Stainless Steel Mesh
Filter Options: Not Available
Non-Ducted Capability: Yes for 30", 36" and 42"
Blower Options
Internal CFM: Single 675 CFM; 30", 36", 42" and Dual 1200 CFM for 48"
Sones: 1.4 Single; 2.0 Dual
Accessories
Flue Extension: AEWRR32SB for 30", 36" and 42"; AEWTT328SB for 48"
Automatic Make-Up Air Damper: MD6T or MD8T
Non-Ducted Recirculating Kit: ANKWTT320 for 30"; ANKWTT326 for 36" and 42"
Decorative Trim: Not Available
Installation Requirements
Amps @ 120V: 4.5 (30", 36"), 5.0 (42"), 7.5 (48")
Electrical: Plug-In
Duct Size Internal 600 Blower: 8" Round
Duct Size Internal 1200 Blower: 10" Round
Duct Direction: Vertical
Backdraft Damper: Included

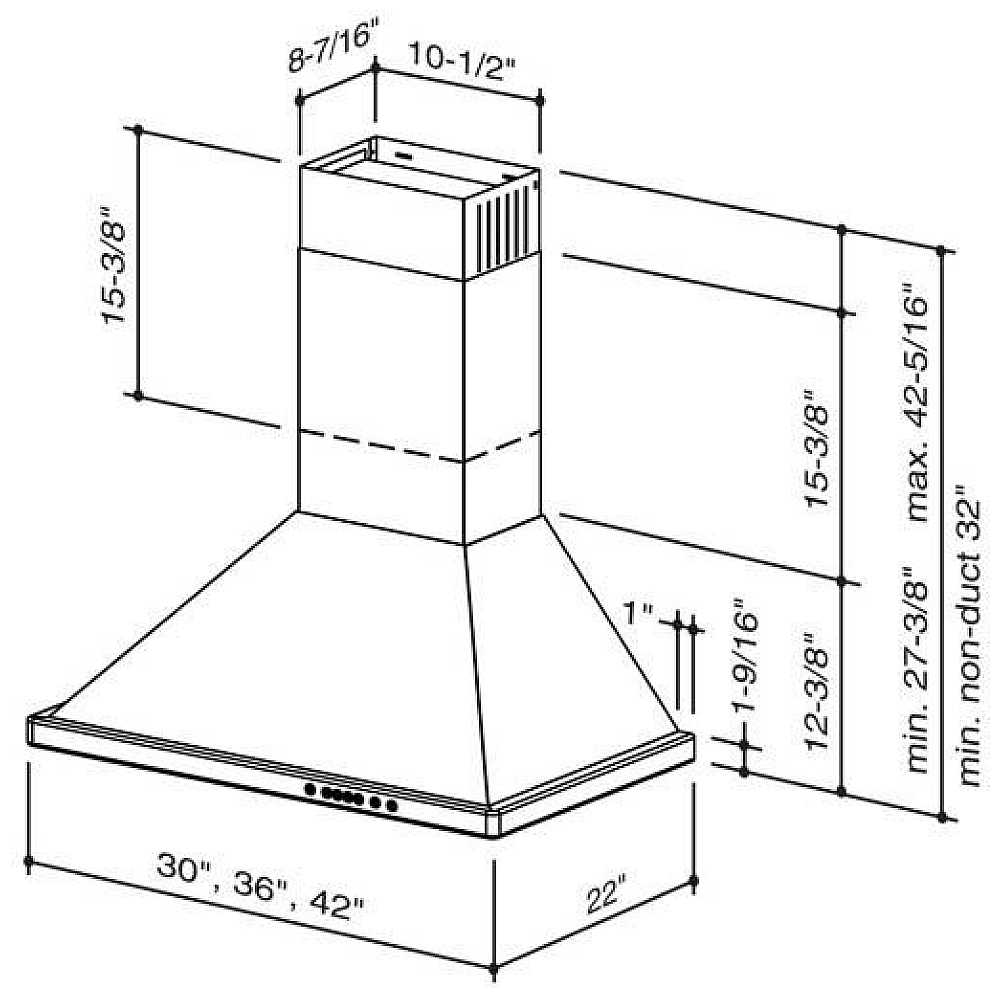

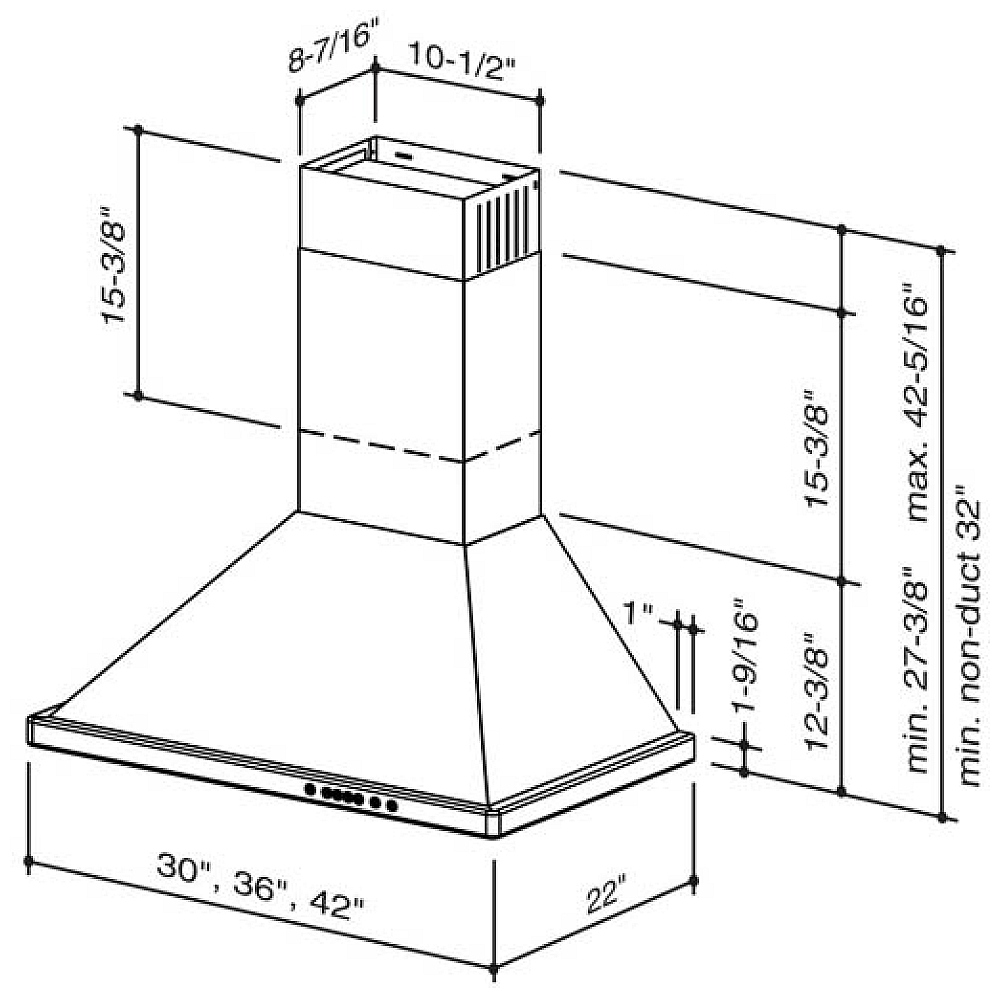

Dimensions
Width of Hood: 30"
Depth of Hood: 22"
Height of Hood: 12 3/8"
Width of Recirculating Flue: 10 1/4"
Depth of Recirculating Flue: 8 7/16"
Height of Flue: 15 3/8"
Overall Height including Flue: 27 3/8" min.; 42 5/16" max.
