Gas Range Connection $189
(Includes Disconnecting Old Gas Unit)
Bosch NGM8654UC
Discontinued
Bosch Cooktops & Rangetops 2024 Bosch Cooktops & Rangetops 2024
Step up to Bosch NGM5659UC for an extra $262
AJ21ZR
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $85.12 for 18 months
Price Match & Beat Guarantee: We beat any competitor’s price!*
Ratings & Reviews
AJ21ZR
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $85.12 for 18 months
Price Match & Beat Guarantee: We beat any competitor’s price!*
Description & Features

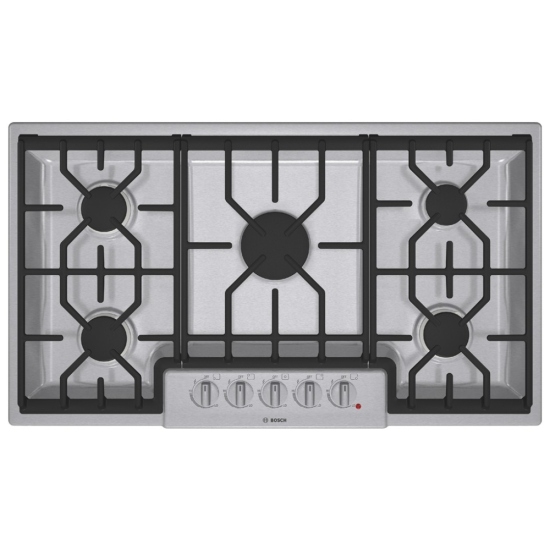

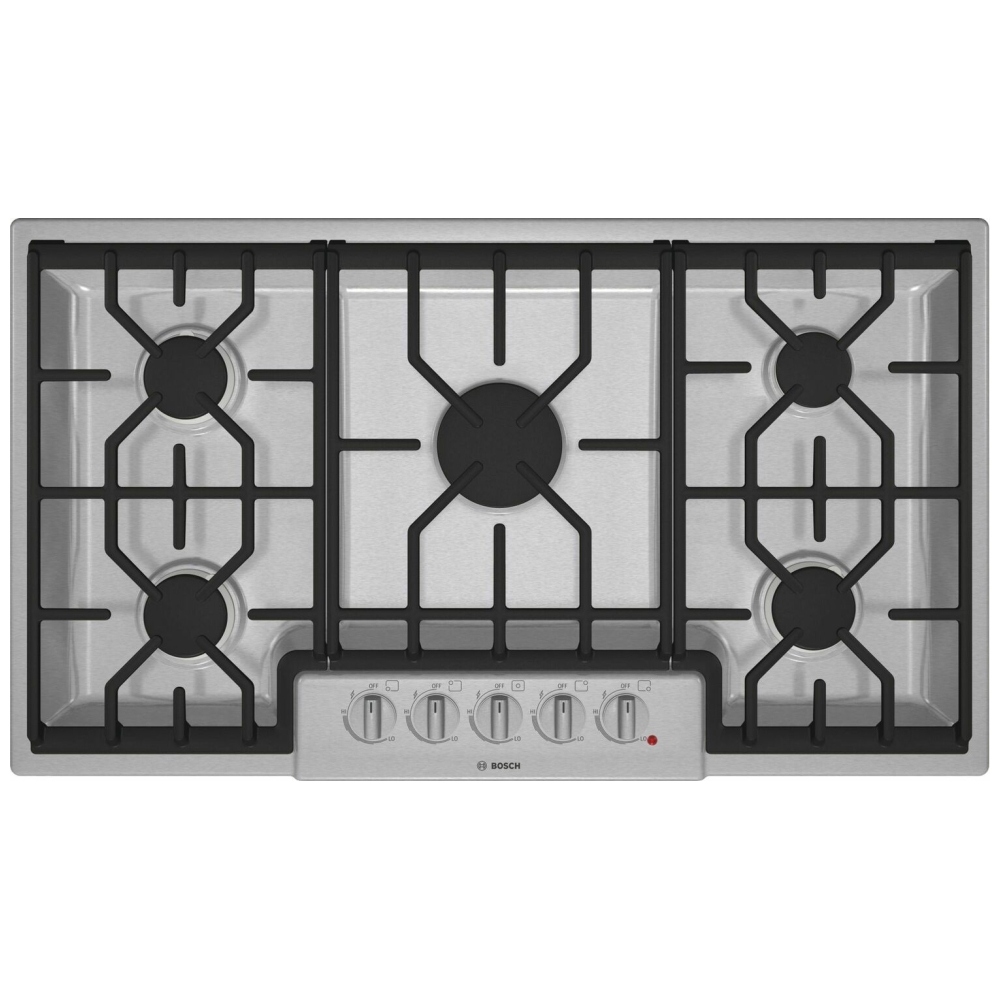

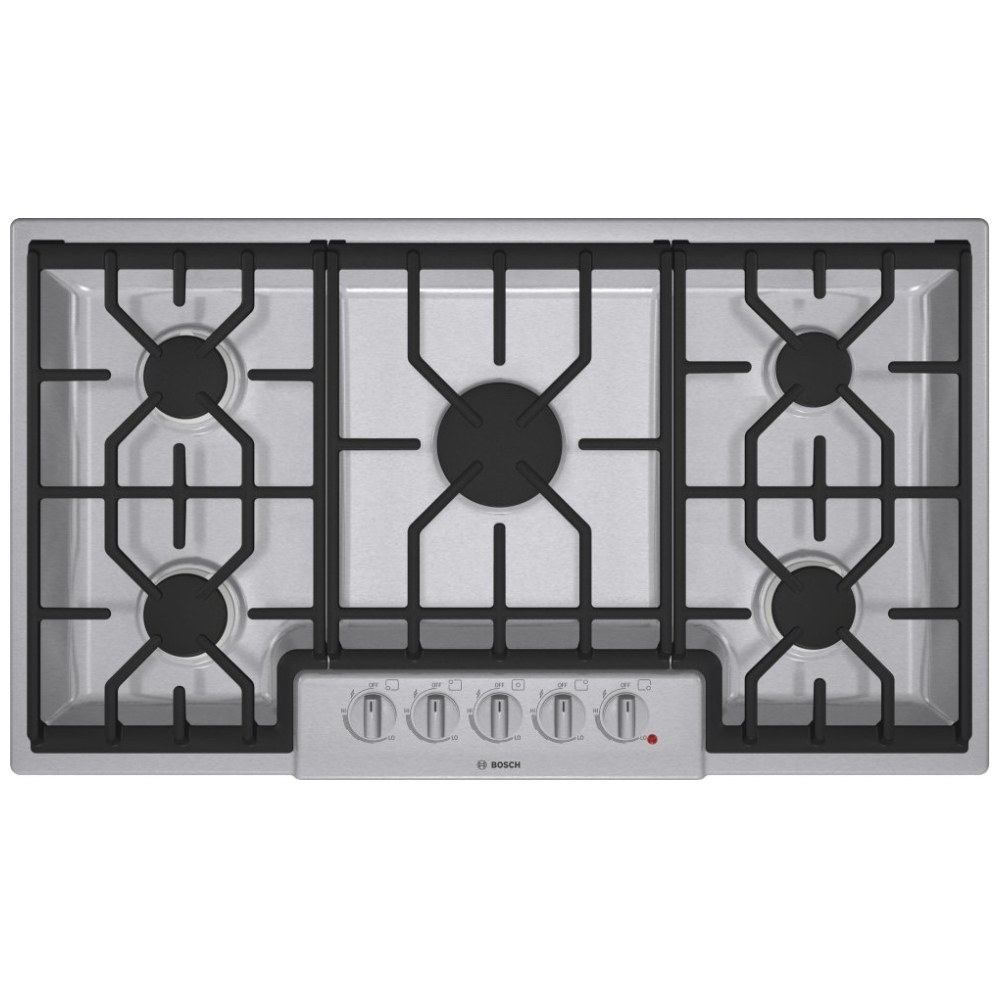

Bosch (NGM8654UC) 800 series, 36 inch, 5 burners, stainless steel, POWERSIM™ , OPTISIM™, 17K BTU Max, Recesssed burner areas, front control for easy operation, continuous cast iron grates, electronic

Use & Care Manual
  • Key Features
  • PowerSim® - Quick Heating with Large Flame or Gentle Simmering with a Diffuser Cap
  • OptiSim® - Simmer Delicate Sauces without Scorching
  • Centralized Controls for Easy Use and More Intuitive Operation of Cooktop.
  • Design
  • Heavy-Duty Metal Plated Knobs for a Quality Look and Feel.
  • Cooktop Design Coordinates with Bosch Wall Ovens
  • Low-Profile Design for a More Integrated Appearance
  • Performance
  • Powerful 18,000 BTU center-mounted burner
  • Convenience
  • Automatic Electronic Re-Ignition - in Case Flame Goes Out the Burner is Automatically Re-Ignited
  • Continuous Grates - Effortlessly Move Pots and Pans. Easy to Clean
  • Sealed Burners Prevent Spills From Entering the Burner Box



Appearance-

  • Centralized Controls for Easy Use and More Intuitive Operation of Cooktop.
  • Cooktop Design Coordinates with Bosch Wall Ovens
  • Low-Profile Design for a More Integrated Appearance
  • Heavy-Duty Metal Plated Knobs for a Quality Look and Feel.

Convenience-

  • Continuous Grates - Effortlessly Move Pots and Pans. Easy to Clean.
  • Sealed Burners Prevent Spills From Entering the Burner Box

Performance-

  • Powerful 17,000 BTU Center Burner
  • PowerSim® – Quick Heating with Large Flame or Gentle Simmering with a Diffuser Cap.
  • OptiSim® – Simmer Delicate Sauces without Scorching (400 BTU)

Safety-

  • Push-to-Turn Knobs - Limits Unauthorized Cooktop Operation by Children
  • Automatic Electronic Re-Ignition - in Case Flame Goes Out the Burner is Automatically Re-Ignited




Manufacturer's Warranty: 1 year

Canadian model: NGM8654UC

Canadian UPC: 825225858423

EAN: 0825225858423

Specs
Technical Specifications
General
Energy source Gas
Safety device automatic reignition
Construction type
Color of frame Stainless steel
Color of surface Stainless steel
Construction type Built-in
Number of electric elements 0
Number of electric cooking zones 0
Number of gas burners 0
Number of halogen elements 0
Installation Type Built-in
Type of grate Cast iron
Number of radiant elements 0
Size and weight
Net weight (lbs) 41 lbs
Minimum distance from counter front (in) 1 7/8''
Minimum distance from rear wall (in) 3''
Cooking zone 2
Location of 2nd heating element back left
Type of 2nd heating element Gas, High-speed burner
Cooking zone 3
Location of 3rd heating element middle back
Type of 3rd heating element Gas
Cooking zone 4
Location of 4th heating element back right
Type of 4th heating element Gas
Cooking zone 5
Location of 5th heating element front right
Type of 5th heating element Gas
Safety
Type of safety device for gas Without
Power on indicator
Safety device automatic reignition
Main on/off switch
Connection
Gas connection rating (W) 15,240 W
Location of gas connection bottom, rear, right
Frequency (Hz) 60 Hz
Energy source Gas
Power Cord Length 60''
Accessories
Included accessories 3 x cast iron pan support

 SKU:   NGM8654UC

Energy source:   Gas
Total number of cooktop burners:   5
Number of gas burners:   5
Gas type:   Natural gas 15 mbar (USA)
Alternative gas type:   Liquid gas 27,5 mbar (USA)
Watts (W):   1,800 W
Current (A):   15 A
Volts (V):   120 V
Frequency (Hz):   60 Hz
Approval certificates:   CSA
Power cord length (cm):   152.4 cm
Plug type:   120V-3 prong

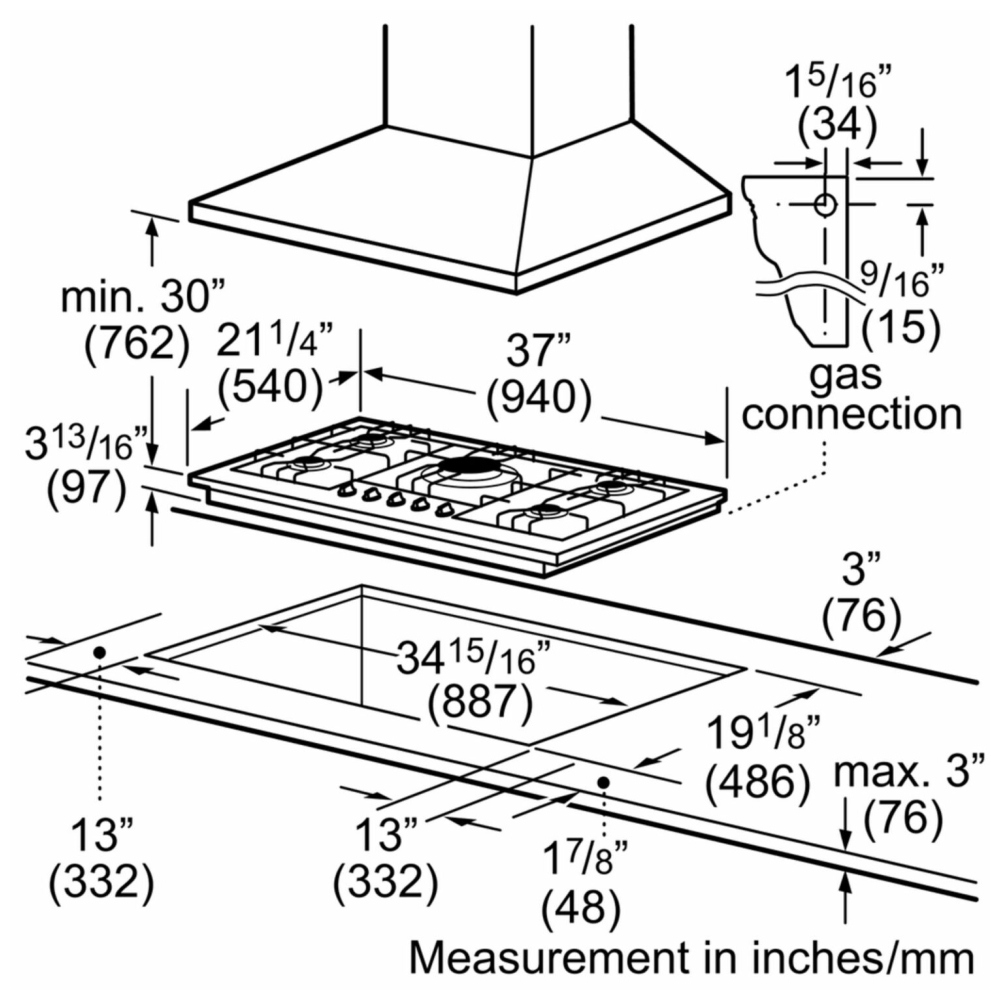

Required cutout size (HxWxD) (mm):   96.8 x 899 x 486 mm
Overall appliance dimensions (HxWxD) (mm):   96.8 x 940 x 540 mm
Product packaging dimensions (HxWxD) (mm):   203 x 635 x 1092 mm
Net weight (kg):   19.00 kg
Gross weight (kg):   24.00 kg
Location of 1st heating element:   front left
Location of 2nd heating element:   back left
Location of 3rd heating element:   middle back
Location of 4th heating element:   back right
Location of 5th heating element:   front right
Type of grate:   Cast iron
Included accessories:   3 x cast iron pan support
UPC code:   825225858423
Knob Material:   Full metal
Natural Gas Connection Rating (BTU):   52000 BTU
LP Gas Connection Rating (BTU):   47800 BTU
Power cord length (in):   60''
Required cutout size (HxWxD) (in):   3 13/16'' x 34 15/16'' x 19 1/8''
Minimum distance from counter front (in):   1 7/8''
Minimum distance from rear wall (in):   3''
Overall appliance dimensions (HxWxD) (in):   +3 13/16'' x 37'' x 21 1/4''
Product packaging dimensions (HxWxD) (in):   8 3/8'' x 43 1/8'' x 24 3/4''
Net weight (lbs):   41 lbs
Gross weight (lbs):   53 lbs
Power of 1st burner (BTU):   12000 BTU
Power of 2nd burner (BTU):   12000 BTU
Power of 3rd burner (BTU):   18000 BTU
Power of 4th burner (BTU):   5500 BTU
Power of 5th burner (BTU):   12000 BTU
Number of Single grates:   1
Number of Double grates:   2
Sealed Burners:   Yes
Variant color:   Stainless steel
SERIES:   800 Series
