MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).
















Manufacturer's Warranty: 1 year
Canadian model: SHE5AE75N
Canadian UPC: 825225968986
EAN: 4242005366262
Similar to SHE5AEH5N




| Specification | Value |
|---|---|

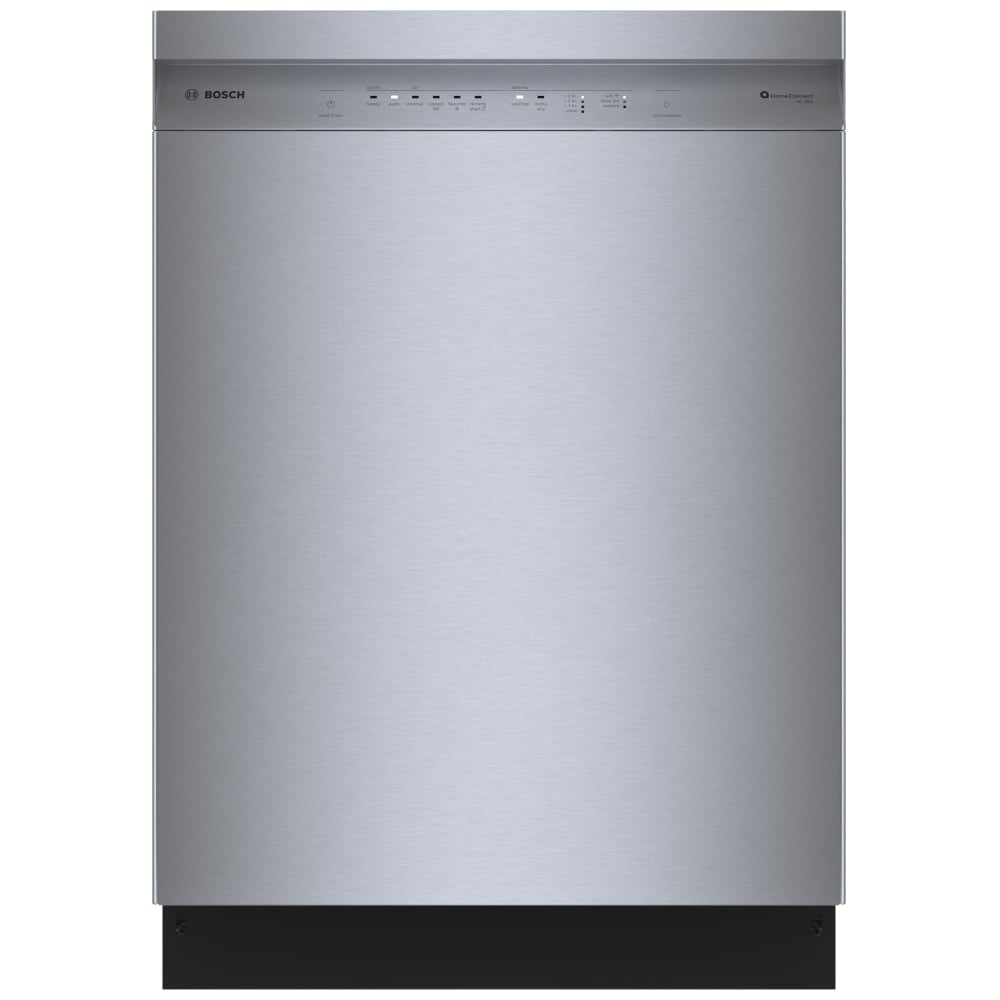

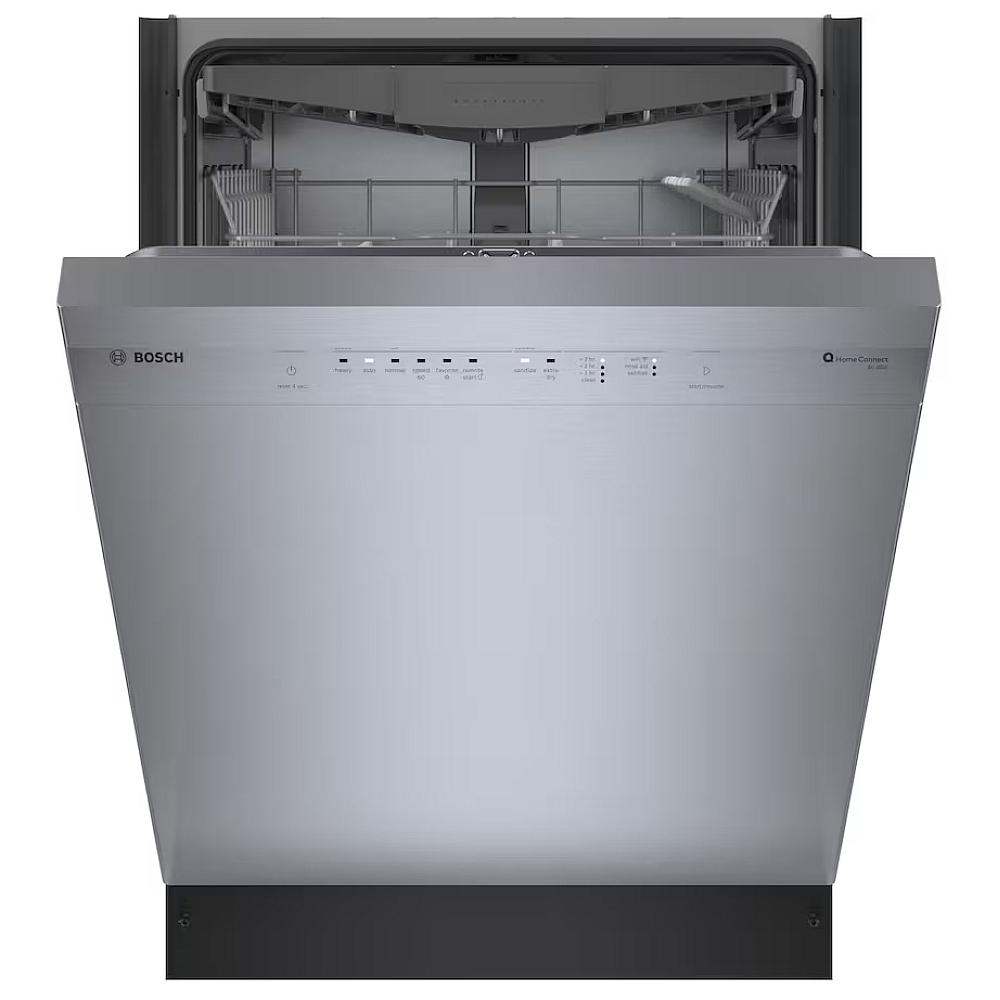

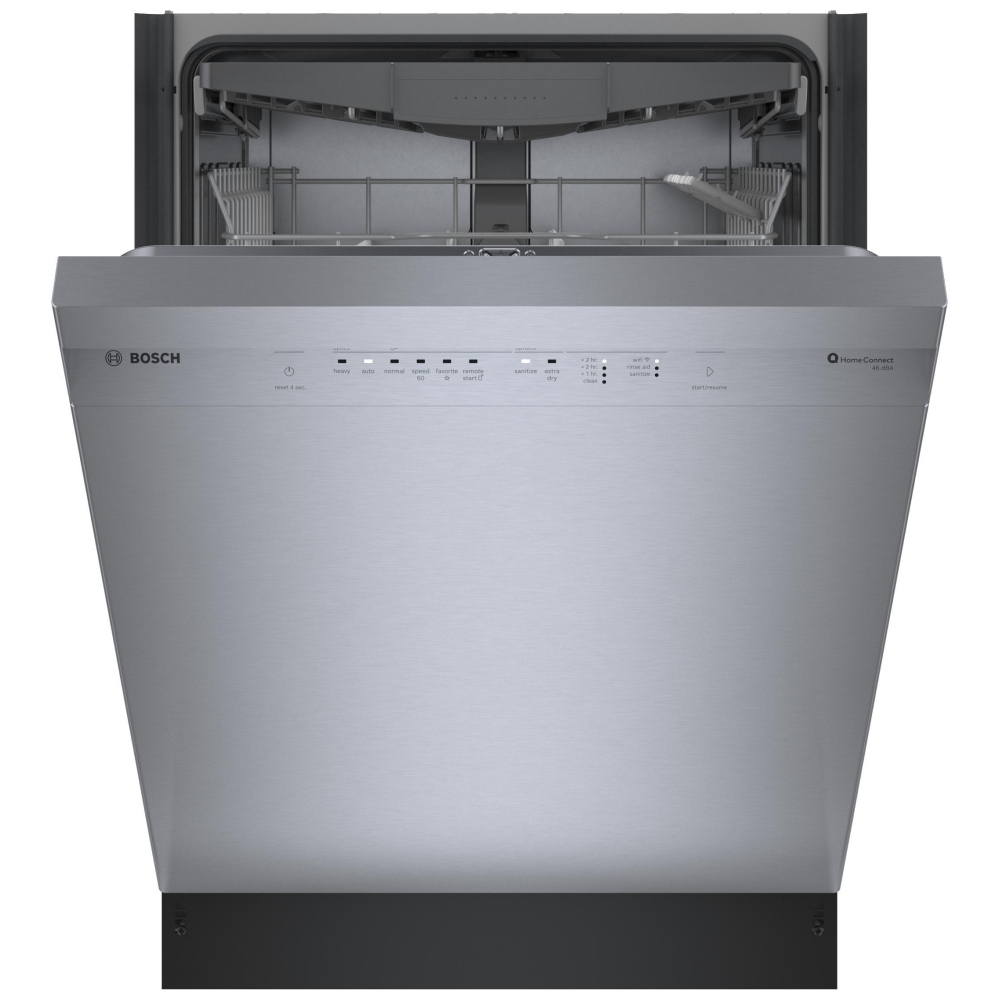

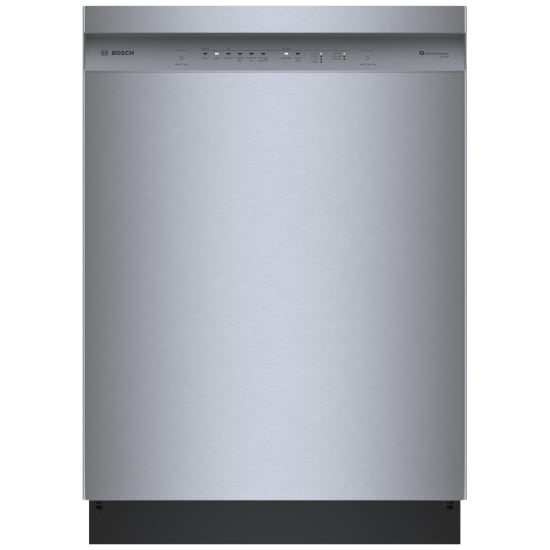

| Model | SHE5AE75N |
| Series | 100 Series Premium |

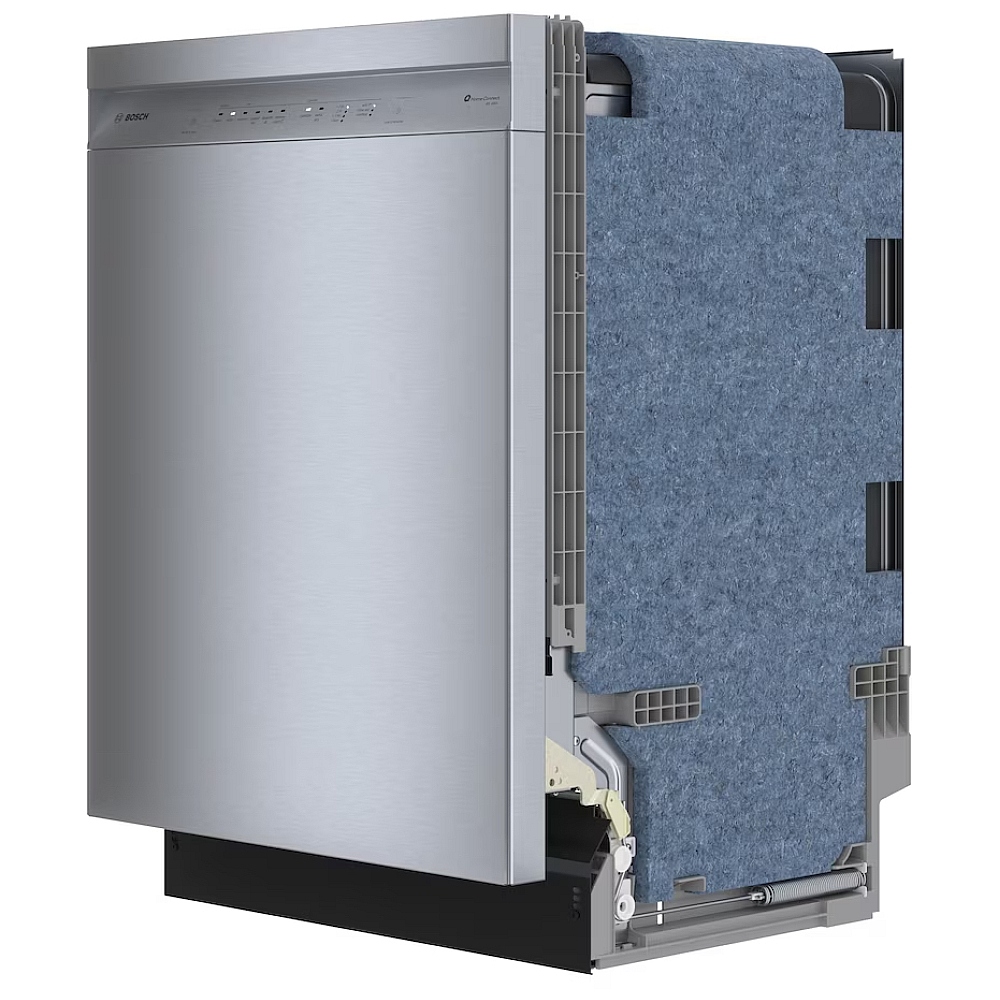

| Type | Built-in, built-under dishwasher |
| Color / Finish | Brushed stainless steel, anti-fingerprint |
| Capacity | 15 place settings |
| Width | 23 9/16 inches (23.54" / 598 mm) |
| Height | 33 7/8 inches (≈33.85" / 860 mm) |
| Depth (cabinet) | 22 9/16 inches (≈22.55" / 573 mm) |
| Depth with door open 90° | ≈47 1/2 inches (1206 mm) |
| Overall Dimensions (HxWxD) | 860 x 598 x 573 mm |
| Minimum Installation Height | 860 mm |
| Maximum Installation Height | 890 mm |
| Minimum Installation Width | 610 mm |
| Adjustable Feet | Yes – all feet, up to 30 mm |
| Adjustable Plinth | No |
| Removable Top / Worktop | No (height of removable worktop 0 mm) |
| Net Weight | 32.8 kg (72.0 lbs) |
| Packed Product Dimensions (HxWxD) | 930 x 670 x 660 mm |

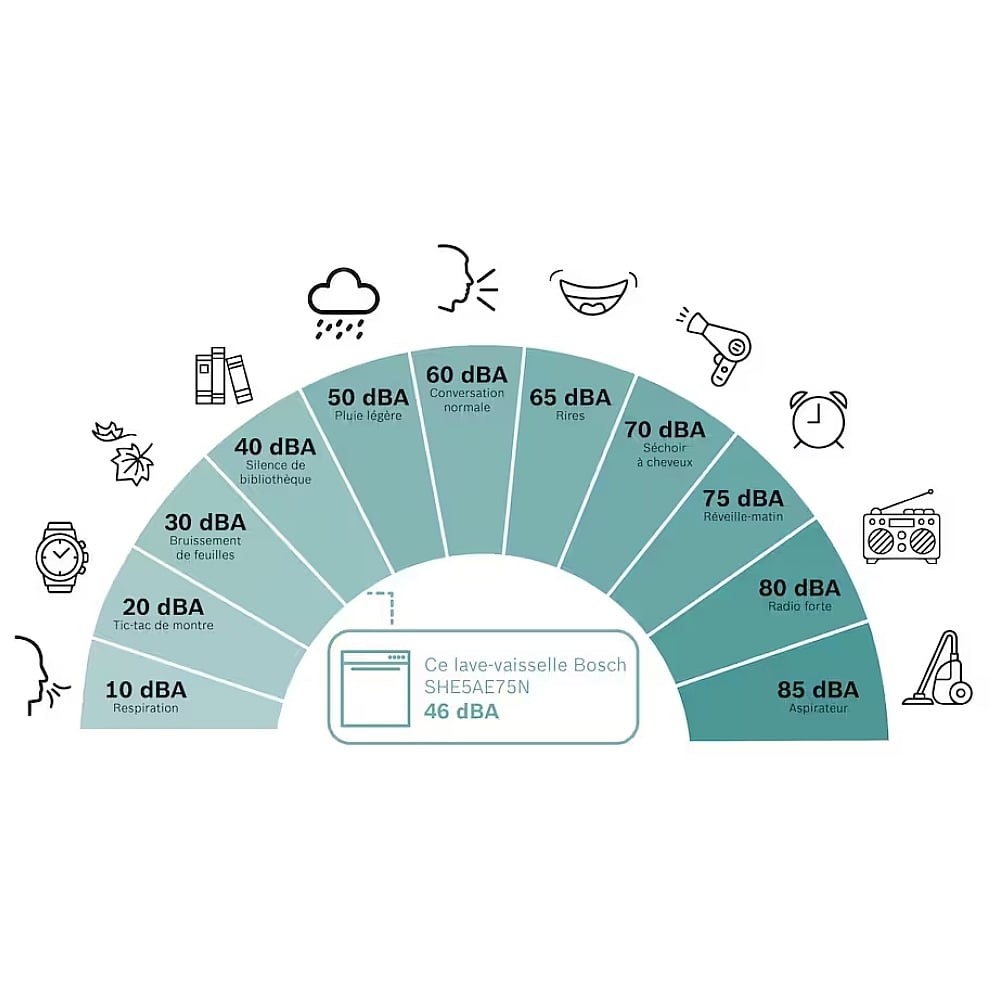

| Sound Level | 46 dBA |
| Energy Star | ENERGY STAR® Certified |
| Energy Efficiency Class | Tier 1 |
| Annual Energy Consumption | ≈239–240 kWh/year |
| Total Annual Water Consumption | 688 gallons |
| Water Consumption – Heavy (Program 1) | 4.9–6.4 gallons |
| Water Consumption – Auto (Program 2) | 3.4–6.3 gallons |
| Water Consumption – Normal/Economy (Program 3) | 2.4–5.5 gallons |
| Water Consumption – Speed60 (Program 4) | 3.8 gallons |
| Water Consumption – Favorite/Custom (Program 5) | 3.4–6.3 gallons |
| Maximum Water Inlet Temperature | 60 °C |
| Maximum Number of Place Settings (EU 2017/1369) | 15 |

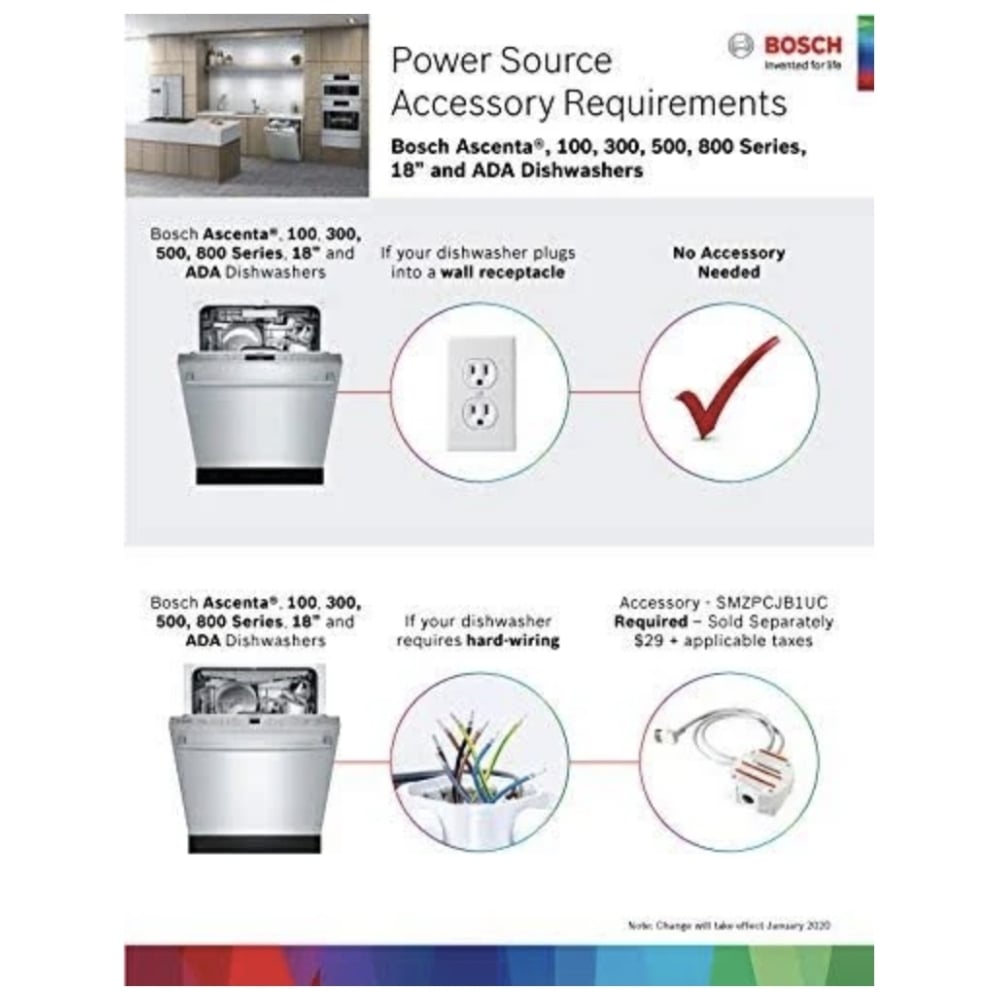

| Electrical Requirements | 120 V / 60 Hz / 12 A |
| Connected Load | 1,440 W |
| Power Cord Length | 170 cm (67") |
| Plug Type | NEMA 5-15P |
| Outlet Hose Length | 230 cm |

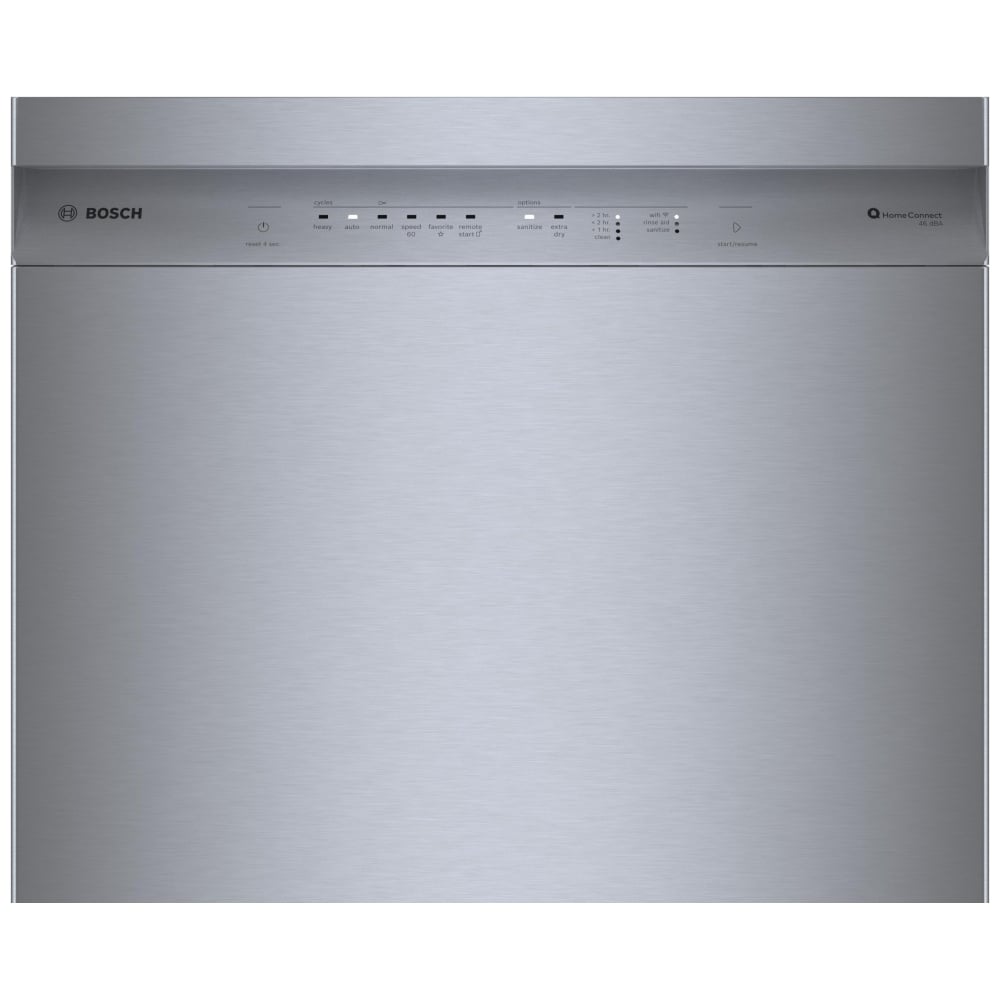

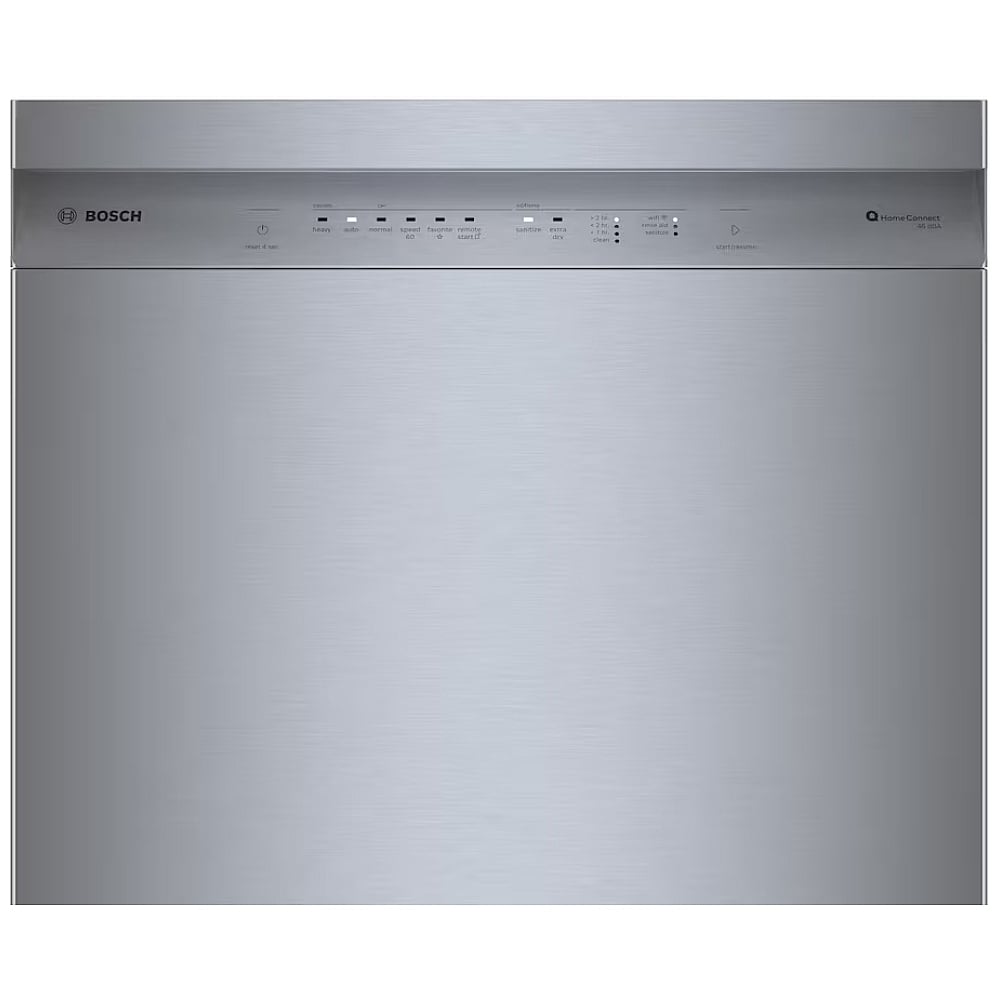

| Control Type | Electronic, touch controls, front control; via app (Home Connect) |
| Display | Yes |
| Home Connect (Wi‑Fi) | Yes – Wi‑Fi enabled, Remote Monitoring and Control |
| Home Connect Additional Cycles | Delicate, Rinse/Rinse & Hold, MachineCare (downloadable) |
| Home Connect Additional Options | Half Load, Eco (downloadable) |
| Wash System | PrecisionWash® with intelligent sensors |
| Drying System | PureDry® (inherent heat, energy-efficient) |
| Leak Protection | 24/7 Overflow Protection System® / AquaStop |
| Tub Material | Stainless steel with Polinox (polypropylene) base |
| Interior Light | No |
| Water Softener | No |
| Filtration System | Triple filtration system |

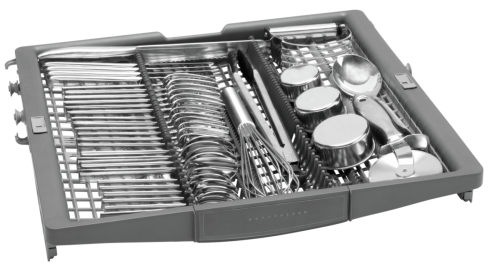

| Third Rack | Standard 3rd Rack (3rd Rack 1.0) |

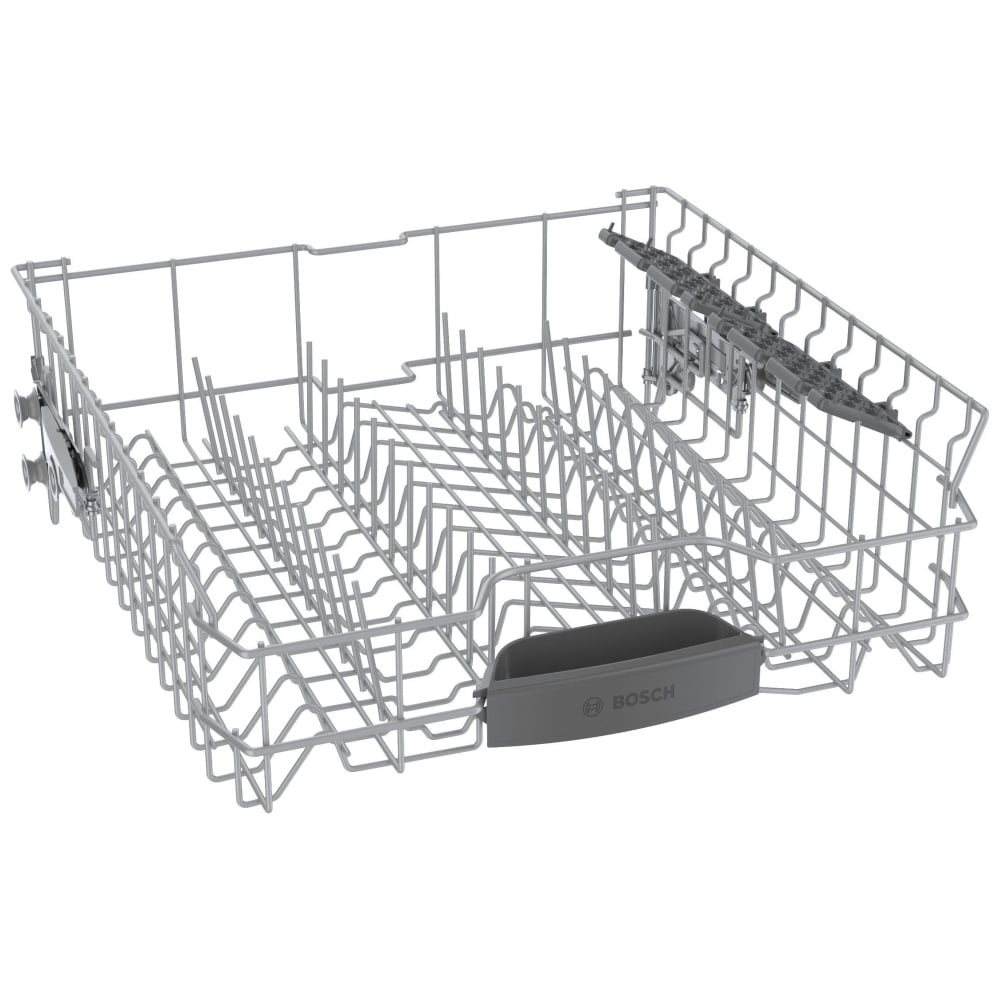

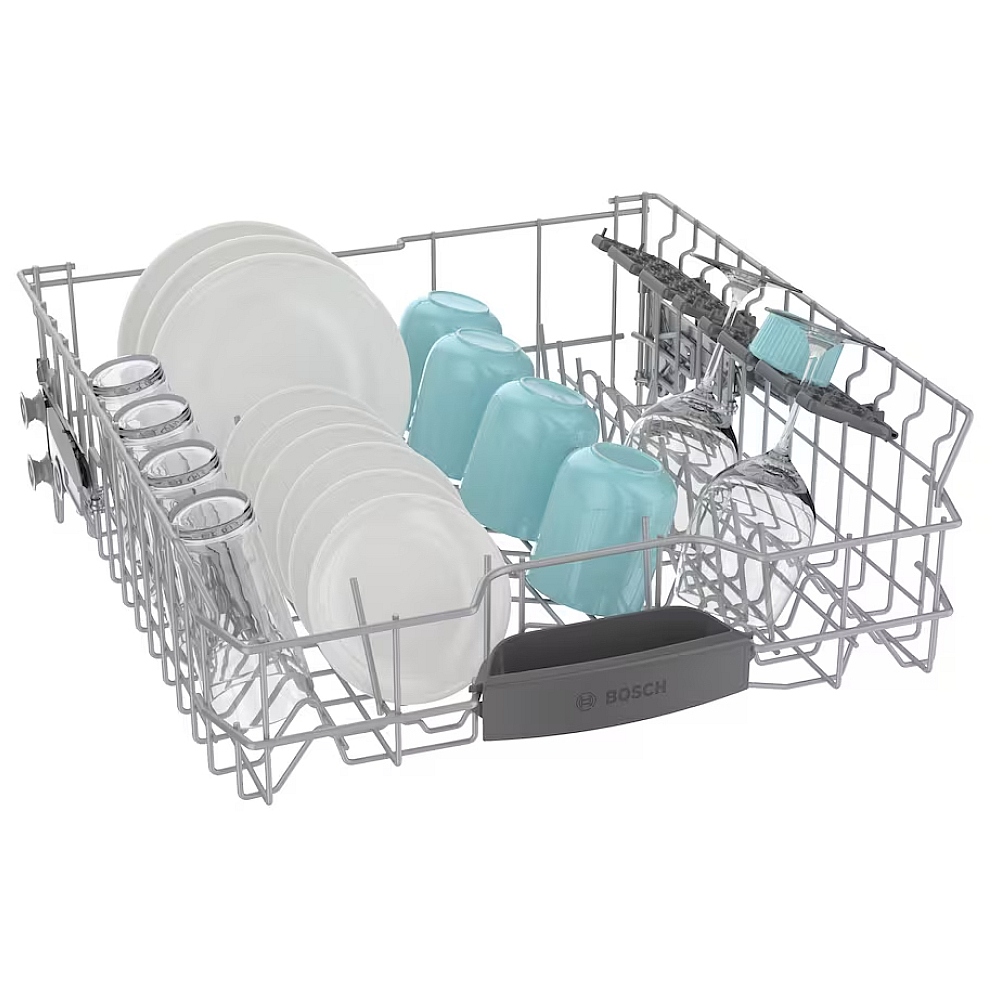

| Rack Adjustability | RackMatic® adjustable upper rack |

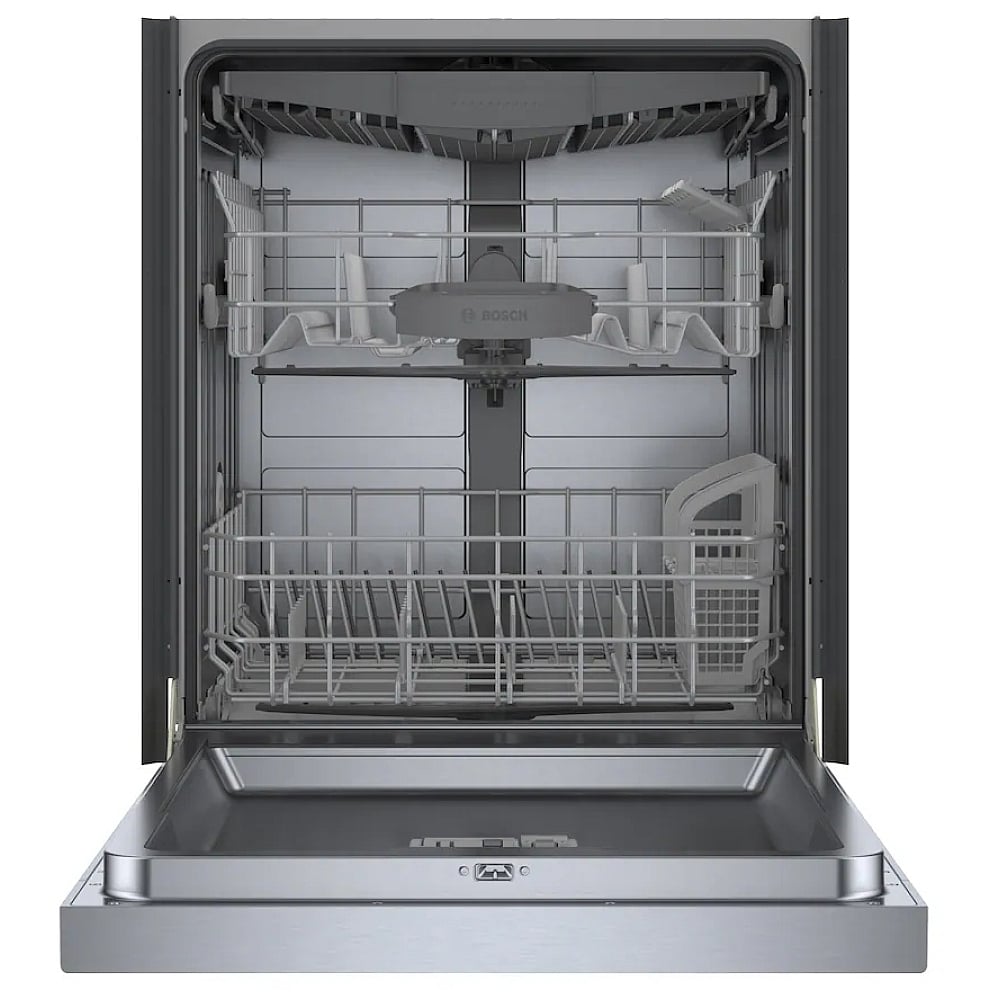

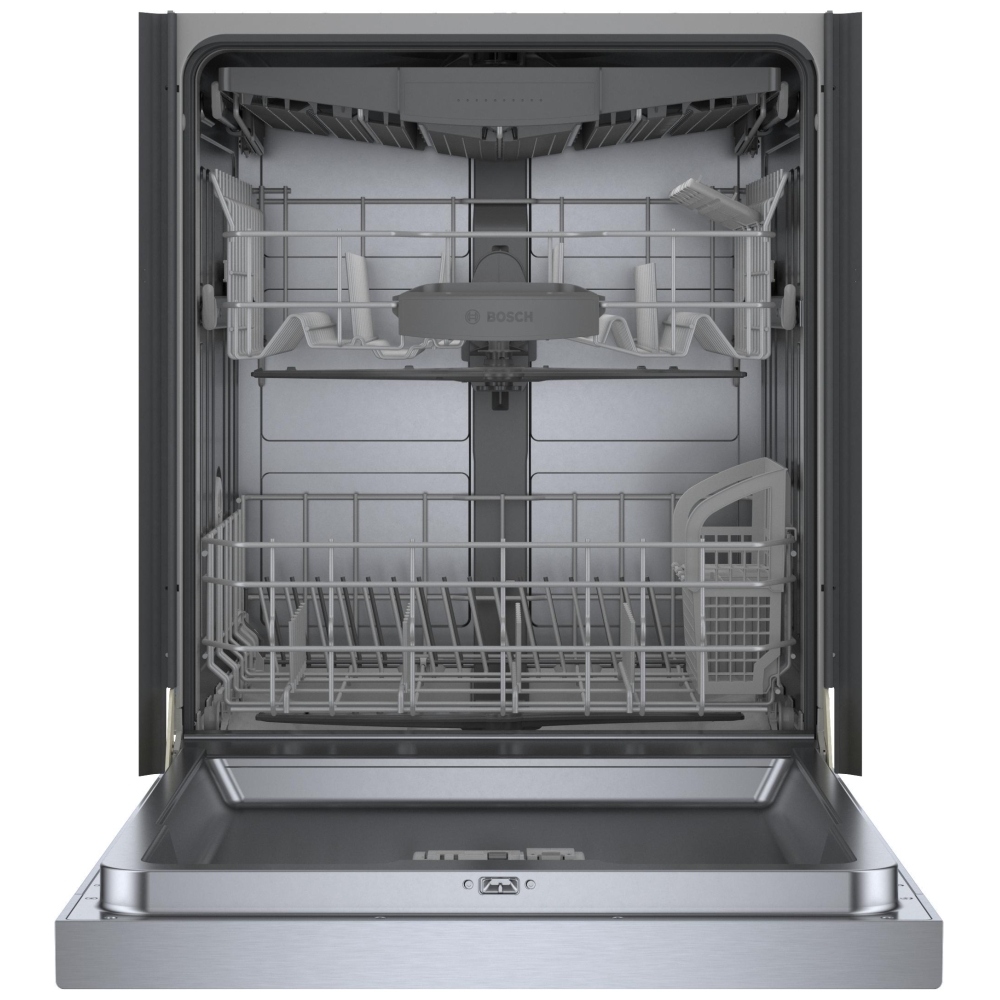

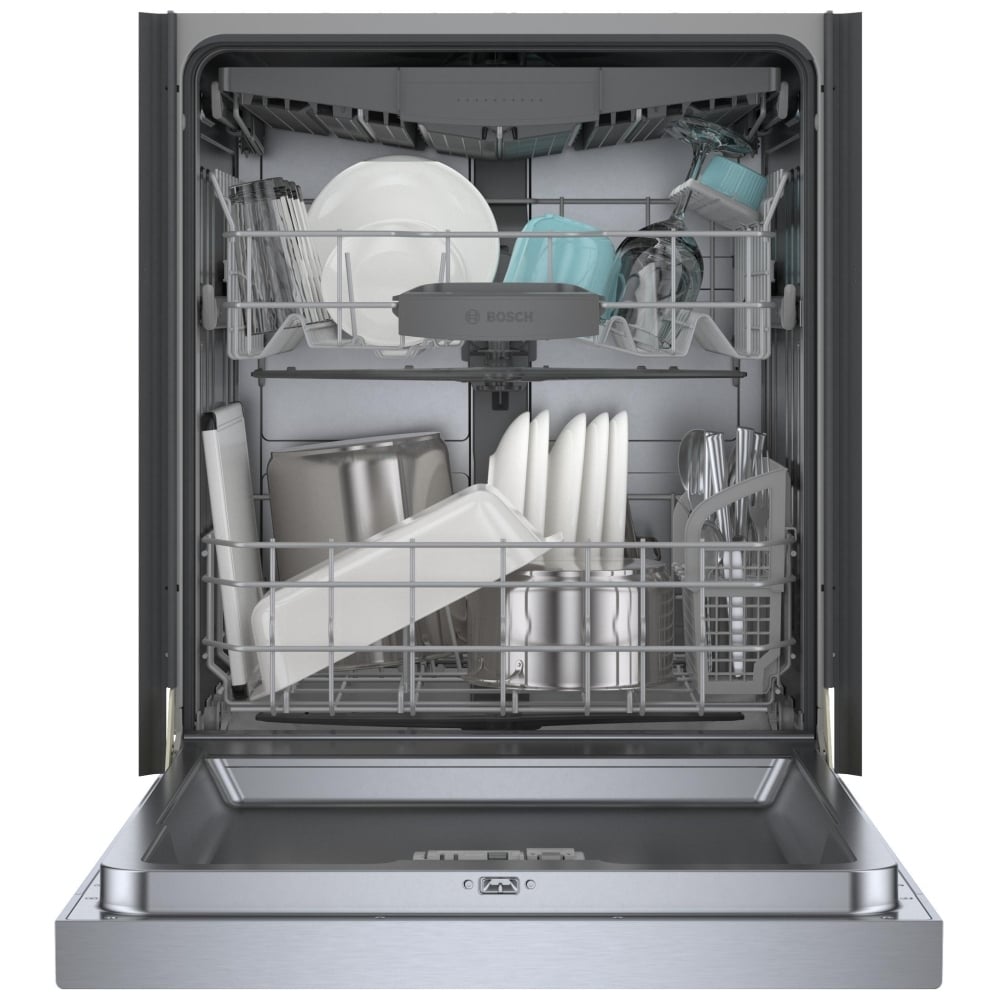

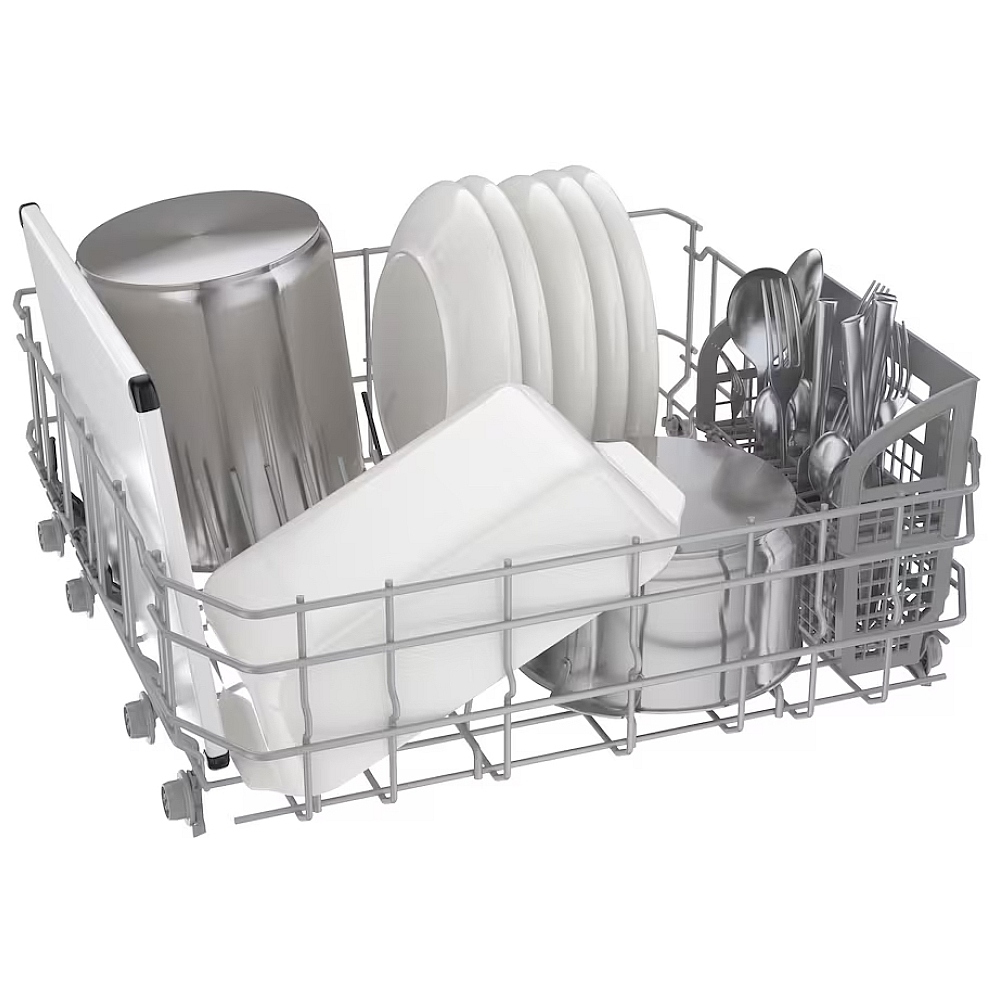

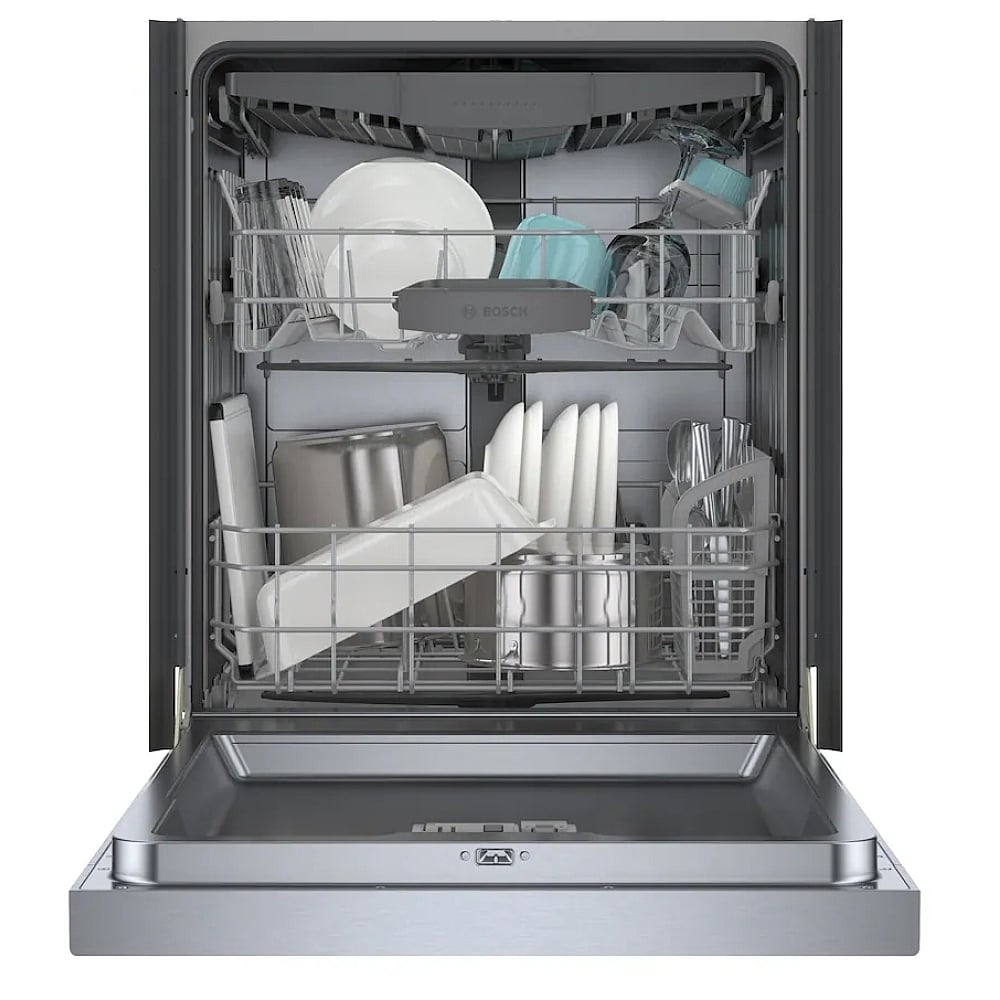

| Racks Included | Lower rack, adjustable upper rack, standard third rack |

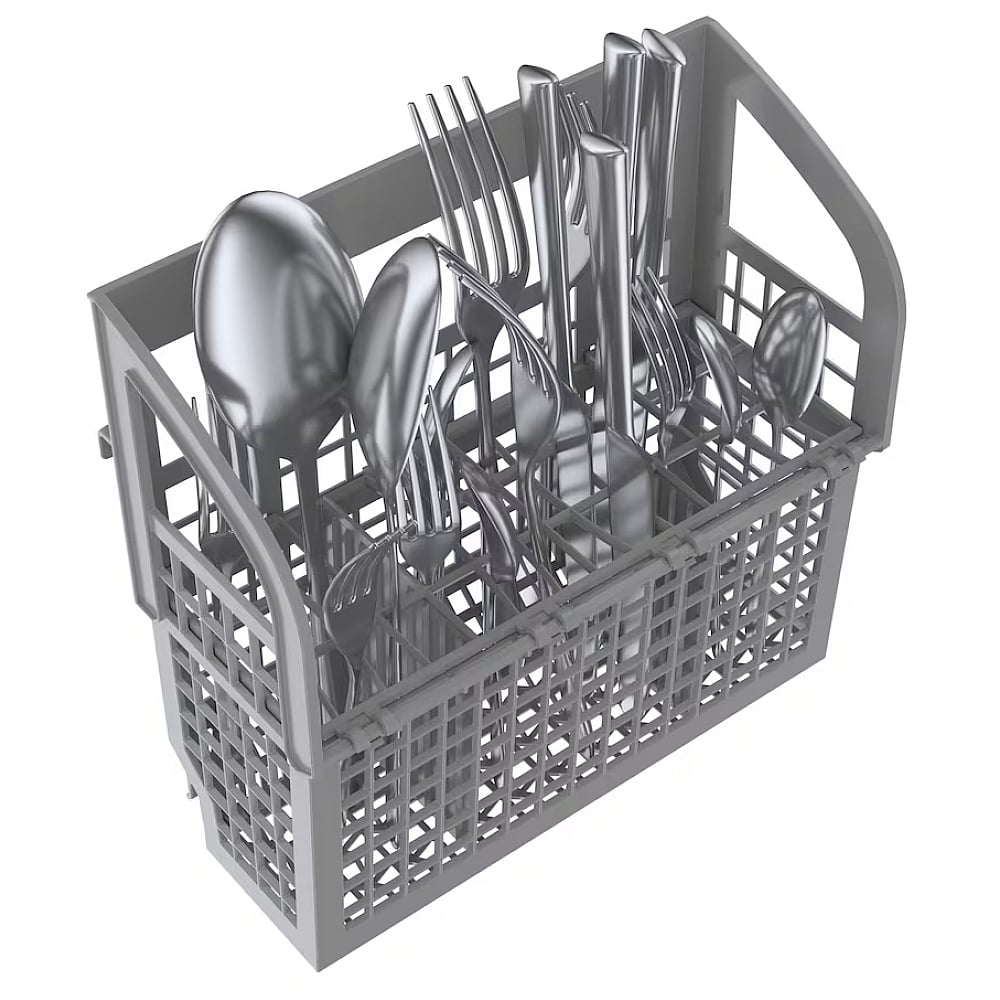

| Silverware Basket | Full basket included |
| Number of Wash Cycles (standard) | 5 |
| Standard Wash Cycles (Canadian listings) | Heavy, Auto, Normal/Economy, Speed60, Favorite/My Cycle/Custom |
| Standard Wash Cycles (some Canadian retailers) | Intensive, Auto, Economy, Quick L, Custom program |
| Number of Options (onboard) | 3 |
| Standard Options | Extra Dry, HygienePlus (Sanitize), Remote Start |
| Additional Smart Options | Half Load, Eco (via Home Connect) |
| Number of Wash Temperatures | 5 |
| Status Indicators | End-of-program audible signal; time-remaining indicator on front |
| Child Lock | Yes – button suspension / control lock |
| Hidden / Concealed Heating Element | Yes |
| Interior Finish | Stainless steel with polypropylene bottom |
| Fingerprint Resistant | Yes – anti-fingerprint stainless steel |
| Smart Capable | Yes – via Home Connect® app |
| Hoses Included | Yes (inlet and drain hose) |
| Certification | ENERGY STAR® Certified |
