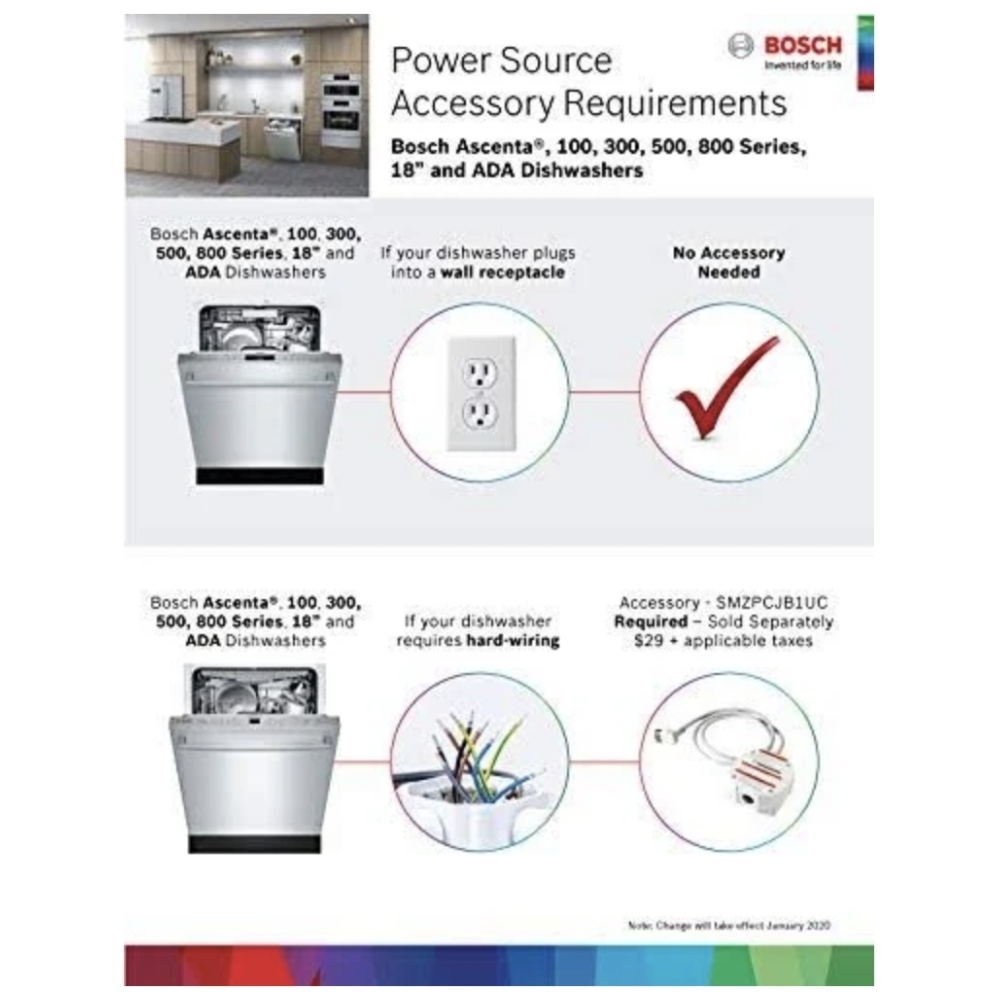

To hardwire, junction box SMZPCJB1UC sold separately.
Bosch SHV53CM3N
>> View & Compare Bosch Dishwasher Line Up << >> View & Compare Bosch Dishwasher Line Up <<
Bosch Dishwashers 2024 Bosch Dishwashers 2024
AD8VW3
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Clearance
Product Availability:
Calgary (AB) Not Available
Dartmouth (NS) Not Available
Current Region ➤ Laval (QC) Not Available
Ottawa Not Available
Toronto (ON) Not Available
Vancouver (BC) Not Available
Winnipeg (MB) Available
Online Price
$1,095
Replaced by SHV53EM3N
Out of stock -- Not Available For Sale
Call Local Showroom
Ratings & Reviews
SMZPCJB1UC
SMZPCJB1UC
Product Accessories
$32
AD8VW3
When will I get this?

Description & Features

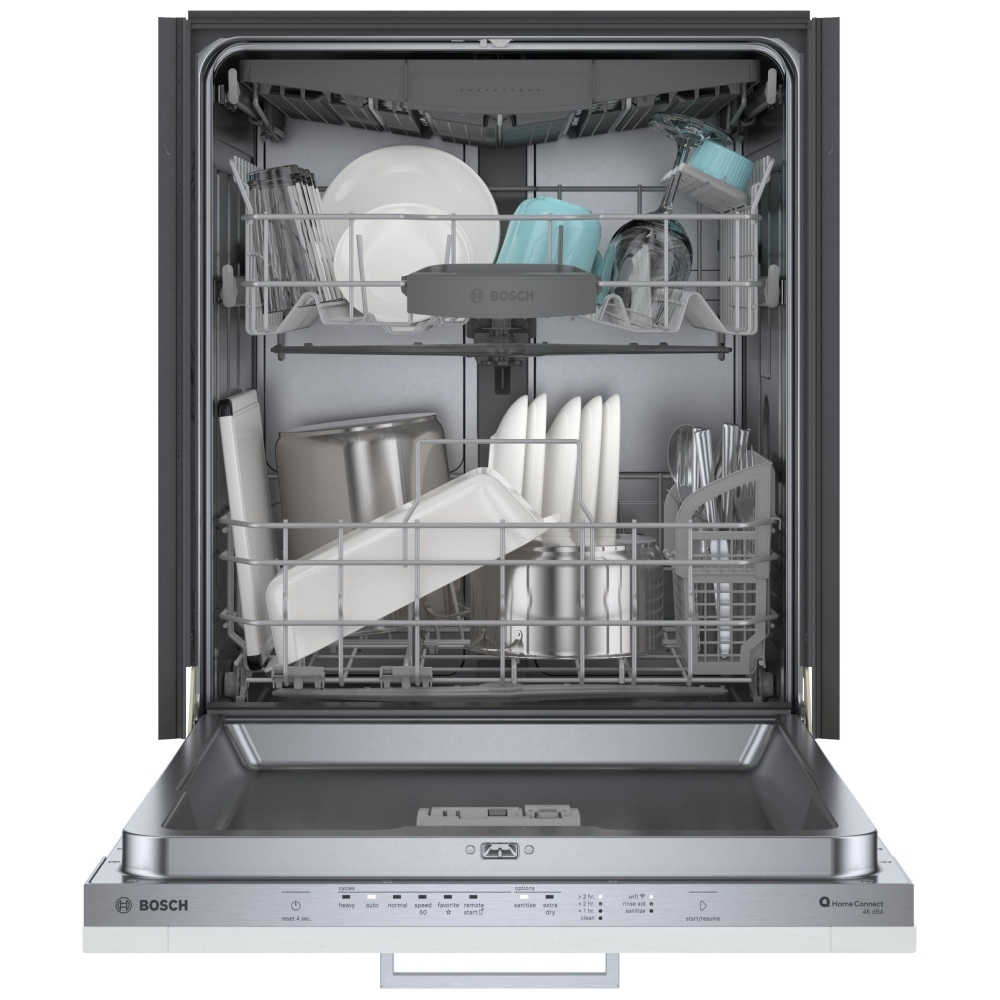

The Bosch SHV53CM3N 300 Series dishwasher is designed to disappear seamlessly into your custom cabinetry while delivering powerful, intelligent cleaning performance for busy households. At a sleek 24" width, it offers generous room for up to 16 place settings, helped by a versatile standard third rack that maximizes every inch of interior space for utensils, flatware, and hard‑to‑fit items. Behind the fully integrated, panel‑ready front, this dishwasher combines advanced wash technology with whisper‑quiet operation, making it ideal for open‑concept kitchens and late‑night cycles. One of its standout advantages is PrecisionWash®, an intelligent cleaning system that uses smart sensors and targeted spray arms to continually check the soil level of the water and adjust spray intensity, temperature, and cycle duration for a consistently thorough clean, even on heavily soiled pots and pans. Drying performance is elevated by PureDry®, an energy‑efficient, closed‑system drying technology that gently removes moisture as dishes cool, without pulling in outside air and without an exposed heating element, so you can safely place plastics anywhere in the racks. For added peace of mind, the AquaStop® 24/7 leak protection system continuously monitors for potential leaks, automatically shutting off the water inlet and activating the drain pump if an issue is detected, even when the dishwasher is not running. Everyday loading and unloading feel premium thanks to the newly redesigned EasyGlide™ rack system, which allows all three racks to slide smoothly, even when fully loaded, while RackMatic® gives you three height levels and up to nine rack positions to accommodate tall stemware or oversized cookware with ease. This model is also Wi‑Fi enabled with Home Connect®, allowing you to start or monitor cycles remotely, access additional programs like Smart Cycle, receive notifications, and even use voice control through compatible smart home assistants. Operating at just 46 dBA, with a discreet InfoLight® that shines a soft red beam on the floor to let you know it’s running, the Bosch SHV53CM3N delivers a premium blend of quiet performance, smart connectivity, flexible loading, and advanced leak and drying protection that sets it apart from many standard dishwashers in its class.

Home Connect® Wi-Fi control – lets you start, stop, monitor cycles and access extra programs from your smartphone or compatible voice assistant.
PrecisionWash® intelligent cleaning system – uses smart sensors and targeted spray arms to continuously check soil levels and adjust water pressure and temperature for a thorough clean.
EasyGlide™ rack system – redesigned rails provide a smooth glide on all three racks, even when fully loaded, for easier loading and unloading.
InfoLight® floor indicator – projects a red light onto the floor so you can tell at a glance when the dishwasher is running.
24/7 AquaStop® overflow protection – integrated sensors and a containment system detect and help stop leaks, protecting floors and cabinetry.
Standard 3rd Rack – adds a dedicated upper level for flatware, utensils and small items while leaving room below for taller dishes and stemware.
RackMatic® adjustable middle rack – quickly adjusts to three heights and up to nine rack positions to accommodate tall stemware or bulky pots and pans.

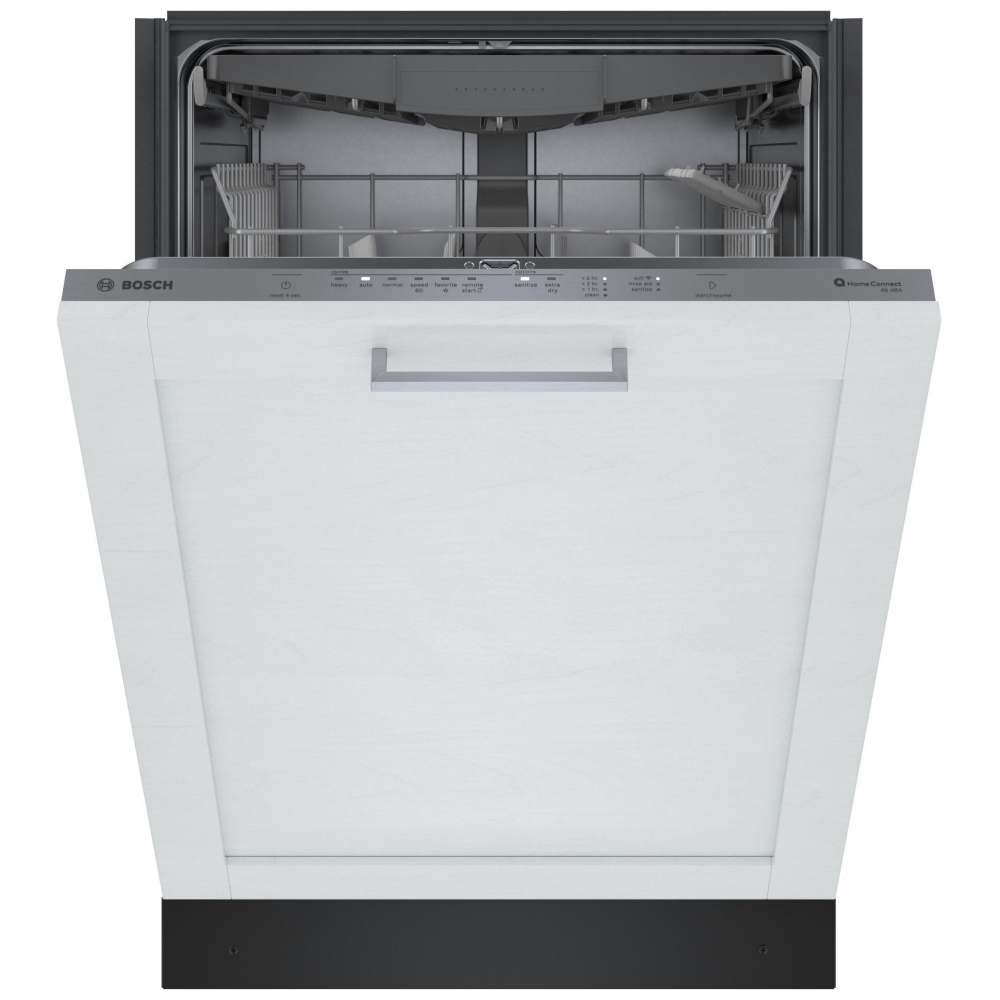

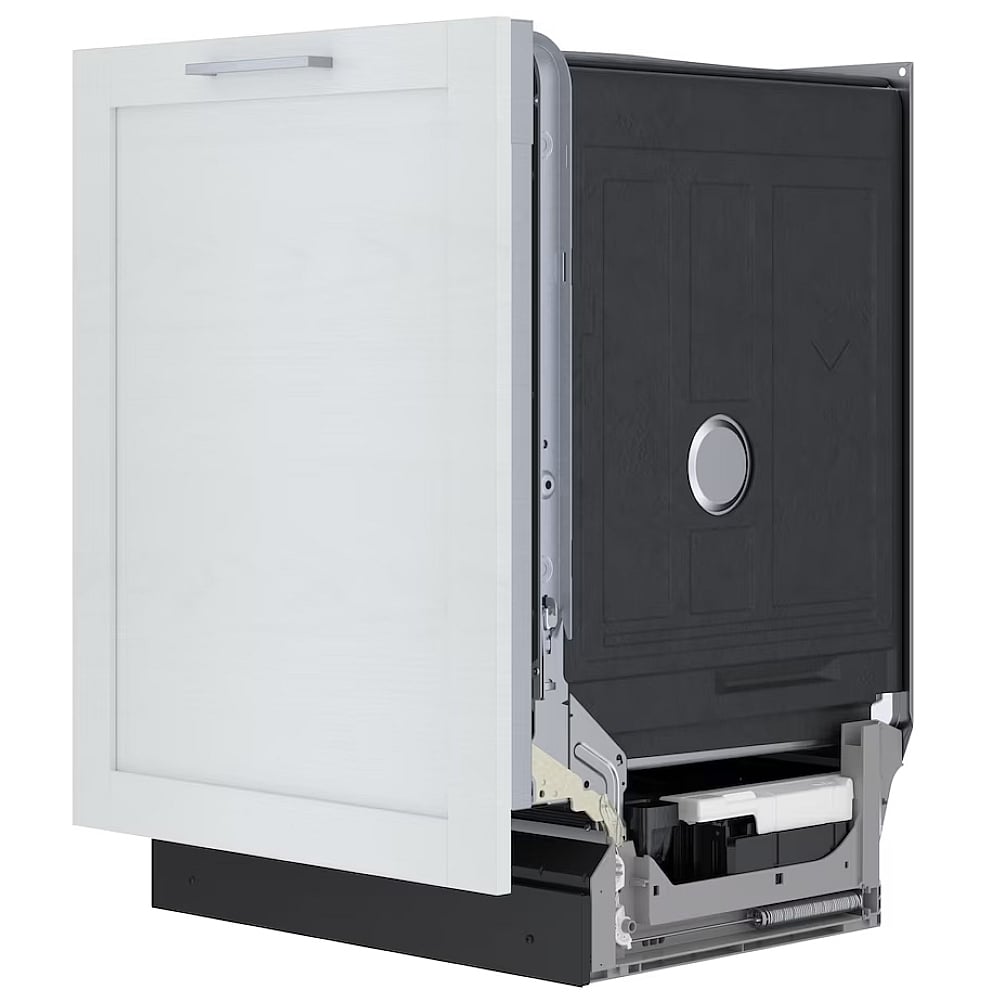

300 Series custom panel-ready design – accepts a custom cabinet panel (sold separately) so the dishwasher blends seamlessly with surrounding cabinetry.

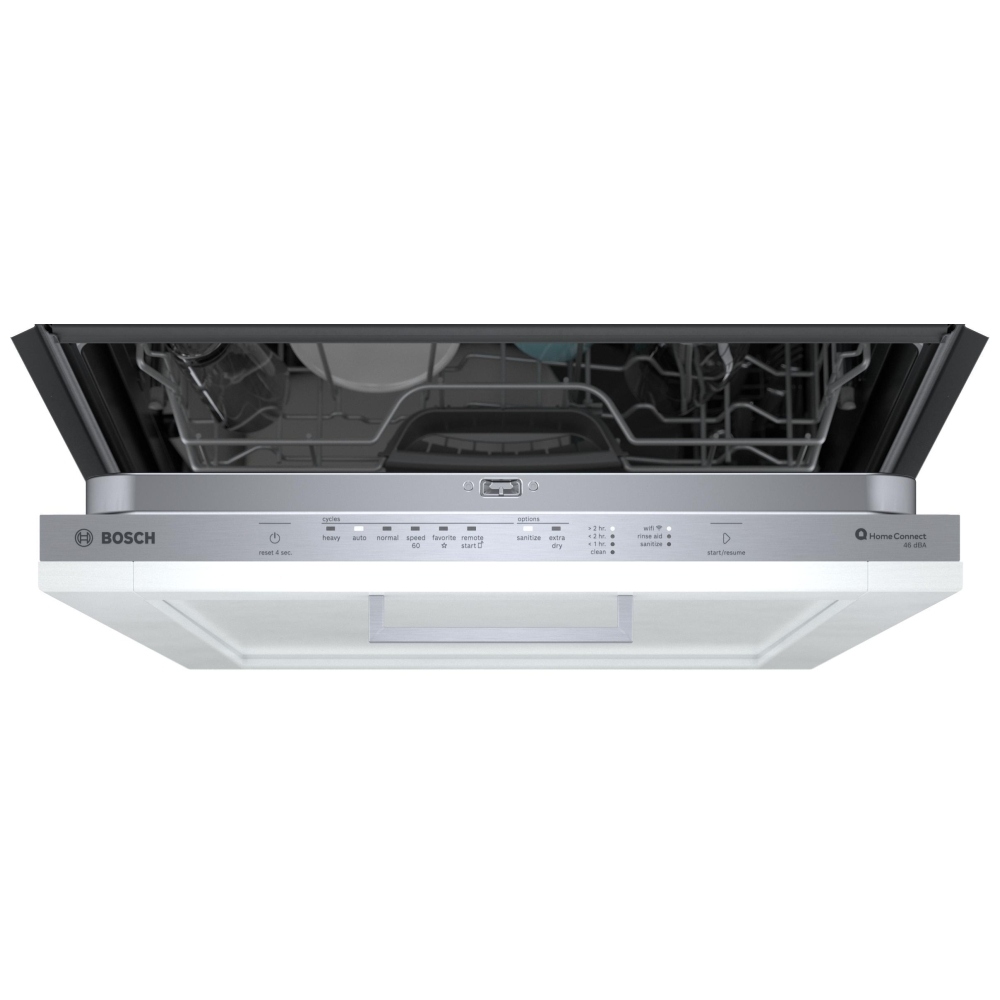

Hidden top touch controls – keep the front panel clean and uncluttered while still giving quick access to commonly used cycles and options.
Remarkably quiet 46 dBA operation – runs at a low sound level so conversations, TV watching and open-concept living are not disturbed.
Stainless steel tub interior – durable, stain‑resistant tub helps improve drying performance and resists odors over time.

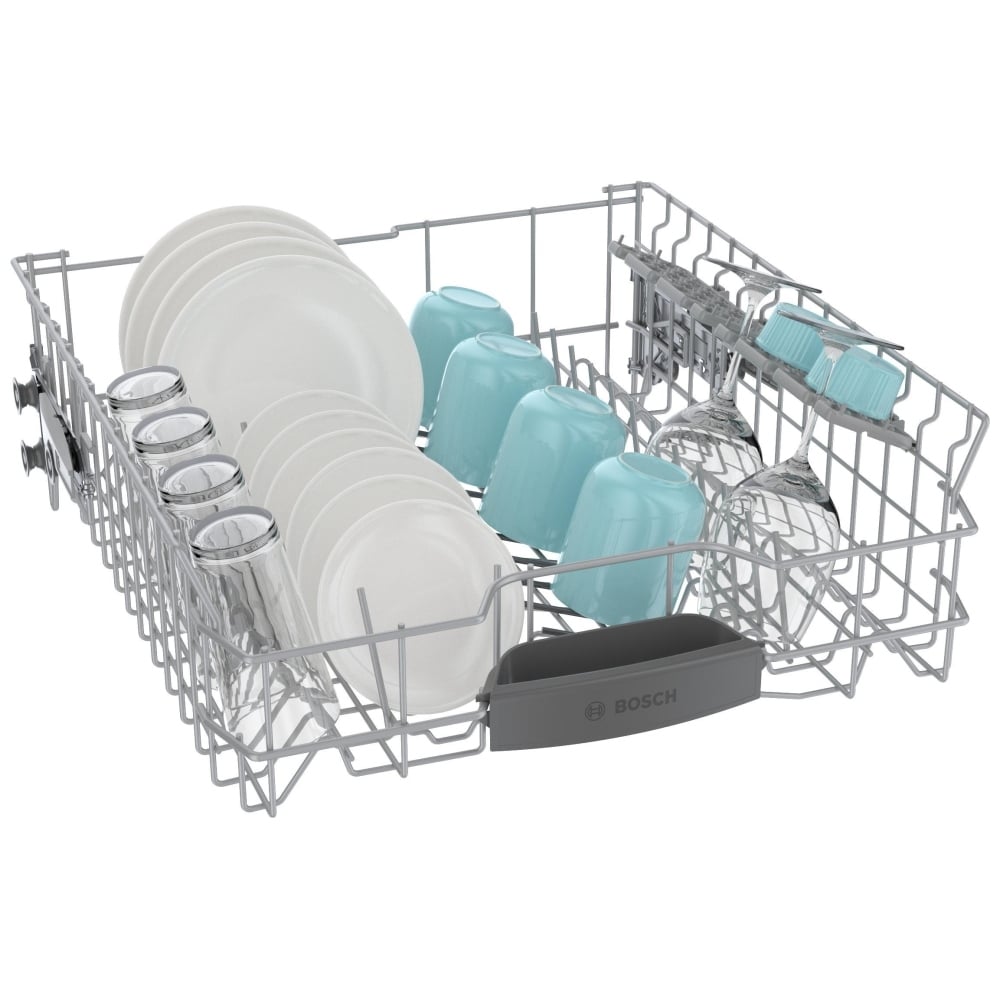

Large 16‑place‑setting capacity – fits a full load of dishes, pots, pans and serving pieces, ideal for families and entertaining.
Flexible loading with adjustable tines – folding and adjustable tines in the racks make it easier to fit large bowls, pots and awkwardly shaped items.
FlexSpace tines – fold down every other tine in one motion to create more room for large, bulky cookware while keeping items upright.

Five core wash cycles – Heavy, Auto, Normal, Speed60® (1‑hour wash) and Favorite/Smart Cycle cover everything from heavily soiled pots to quick everyday loads.
Expanded cycles via app – additional specialty cycles and options are available through the Home Connect® app for more tailored cleaning.
Sanitize / HygienePlus option – raises final rinse temperatures to help eliminate bacteria and meet sanitization standards, ideal for baby items and cutting boards.
Extra Dry option – increases drying time and temperature to improve drying results on plastics and hard‑to‑dry items.
Remote Start option – lets you begin a cycle from your phone so dishes can be cleaned while you’re away.
PureDry® closed‑system condensation drying – uses the heat of the final rinse and a closed stainless tub to dry dishes efficiently without a heating element exposed at the bottom.
Inherent heat drying system – leverages the hot final rinse and stainless tub walls to draw moisture off dishes for effective, energy‑efficient drying.

Energy‑efficient performance – advanced wash and dry technologies reduce the need to pre‑rinse and help save water and electricity per cycle.
Low 3.5‑gallon water use (approx.) – uses significantly less water than handwashing or older dishwashers, helping lower utility costs.
Sensor‑based Auto cycle – automatically adjusts time, temperature and water usage based on soil level for optimal cleaning with minimal waste.

Filtered water wash – internal filtration helps remove food particles from the wash water to reduce redepositing on dishes.
Optimized detergent tray – specially shaped dispenser and dedicated spray jet fully dissolve detergent tabs for consistent cleaning and less residue.
MachineCare maintenance program – dedicated cycle helps clean the interior of the dishwasher and reduce limescale and grease buildup.

End‑of‑cycle indicators – audible signal and status display let you know when the cycle is finished and dishes are ready to unload.
Time‑remaining display (internal) – shows how much time is left in the current cycle so you can plan around dishwashing.
Delay Start function – schedules the wash to run later, such as during off‑peak utility hours or while you’re asleep.

Full‑integrated 24" built‑in installation – designed to mount flush under the counter for a streamlined, built‑in look.
Standard 24" cutout fit – sized to fit most existing dishwasher openings for easier replacement of older units.
Front‑adjustable leveling feet – allow height adjustments from the front to align the dishwasher with surrounding cabinetry and countertops.
NEMA 5‑15P plug connection – comes with a standard 120V plug for straightforward electrical hookup.

Concealed heating element – safely hidden element reduces the risk of damage to plastics and improves safety when loading and unloading.
Leak detection sensors – monitor for water in the base of the unit and help trigger AquaStop® protection to minimize water damage.
NSF‑certified sanitization (select cycles) – certain cycles meet recognized sanitization standards for bacteria reduction when used as directed.

Durable Bosch build quality – each dishwasher undergoes extensive quality checks to ensure long‑term reliability in daily use.
10‑year rust‑through warranty on tub – long‑term coverage against rust perforation of the stainless steel tub for added peace of mind.

Manufacturer's Warranty: 1 year

Canadian model: SHV53CM3N

Canadian UPC: 825225965312

EAN: 4242005297146

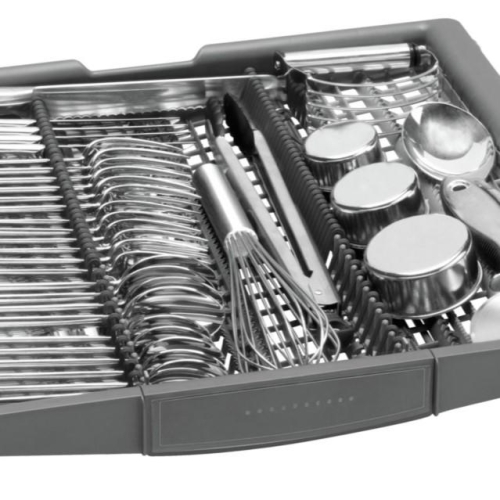

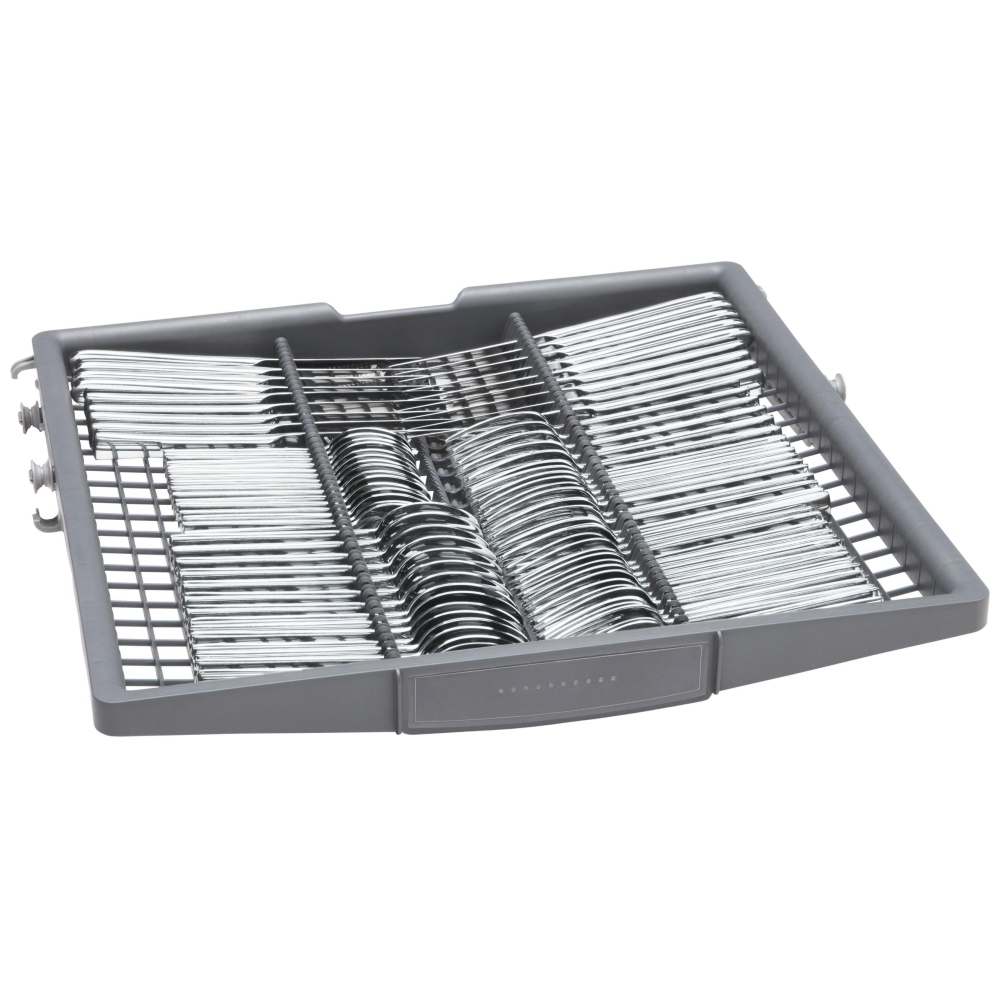

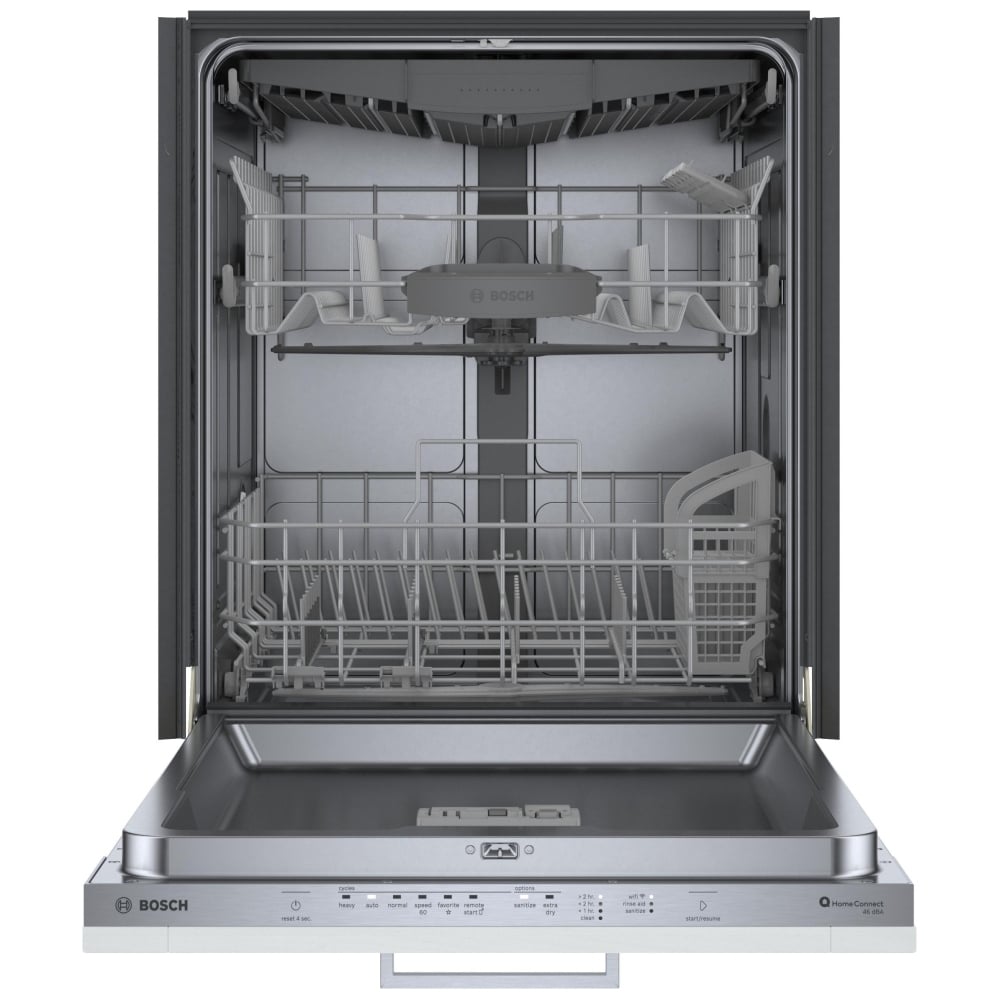

Standard 3rd rack - SHV53CM3N
Standard 3rd rack
SHV53CM3N - Standard 3rd rack
A standard 3rd rack adds versatility and more loading capacity

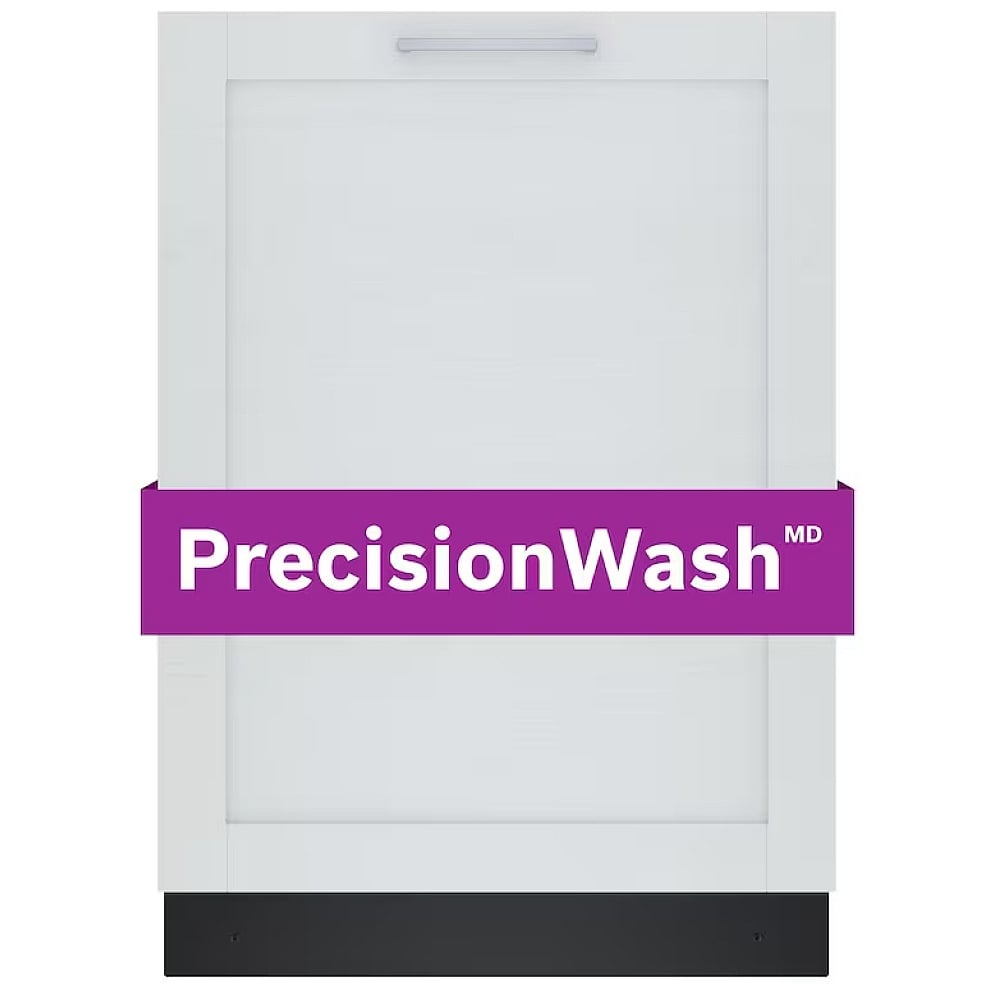

PrecisionWash System: No need to pre-rinse
SHV53CM3N - PrecisionWash System: No need to pre-rinse
Intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
Plastic-Safe PureDry System
SHV53CM3N - Plastic-Safe PureDry System
All Bosch dishwashers have PureDry, a closed drying system, without a heating element--so plastics can be safely placed anywhere.

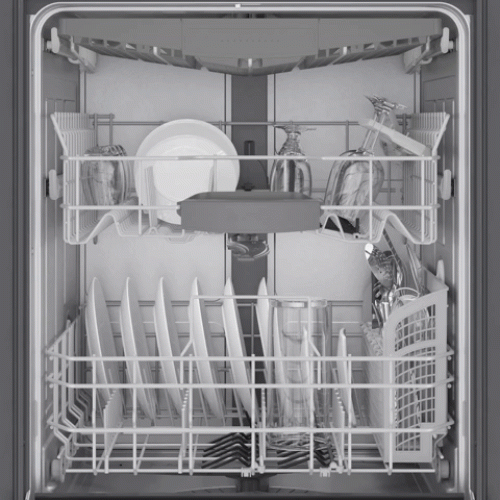

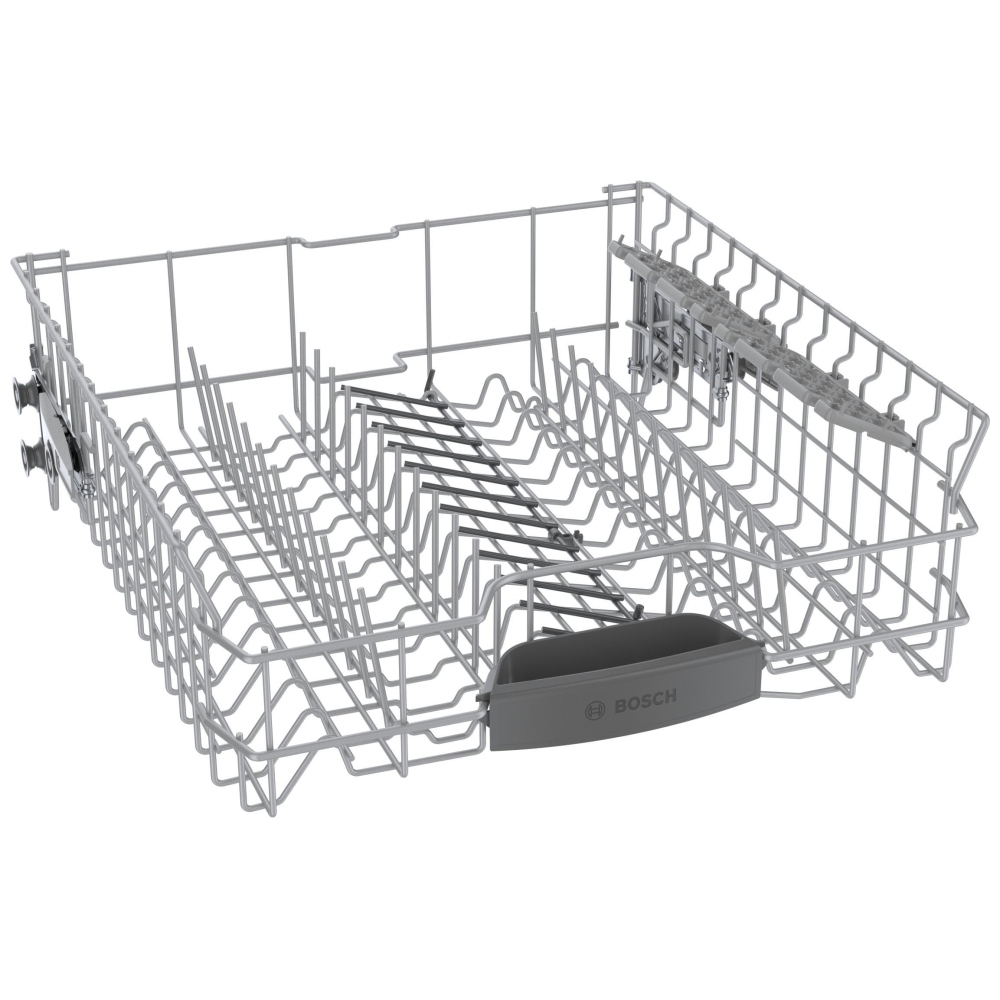

RackMatic - SHV53CM3N
RackMatic
SHV53CM3N - RackMatic
RackMatic adjustable middle rack easily adjusts to 9 different positions, to allow taller items like stemware to fit in the middle rack while leaving room for pots and pans below

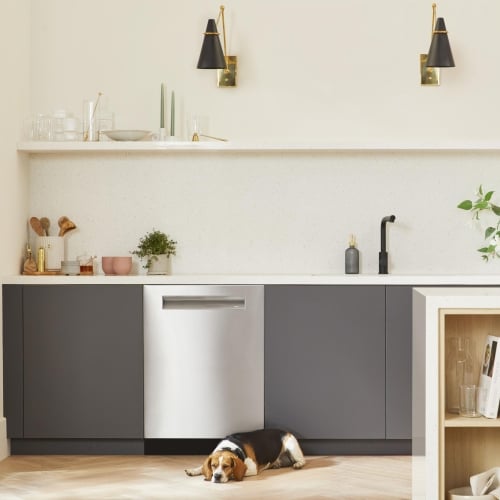

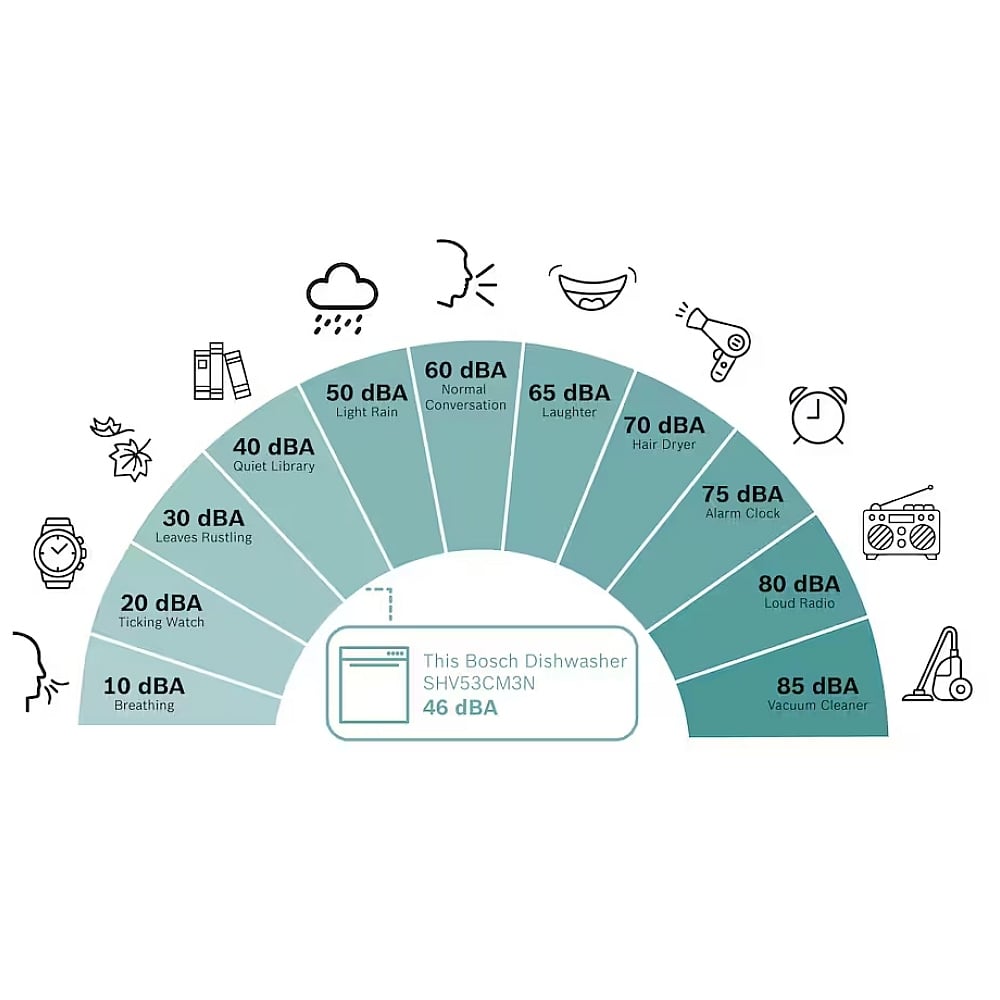

Remarkably Quiet: 46 dBA - SHV53CM3N
Remarkably Quiet: 46 dBA
SHV53CM3N - Remarkably Quiet: 46 dBA
Remarkably Quiet Operation at 46 dBA: creating a dishwasher so quiet, you can't always tell it's running.
Enhance your cleaning experience with Wi-Fi enabled Home Connect
SHV53CM3N - Enhance your cleaning experience with Wi-Fi enabled Home Connect
Wi-Fi enabled Home Connect lets you enhance your cleaning experience with personalized connected features like Smart Cycle, hands-free voice control when paired with Amazon Alexa or Google Home and so much more
Added leak protection wih 24/7 AquaStop
SHV53CM3N - Added leak protection wih 24/7 AquaStop
AquaStop 24/7 leak protection system features sensors that automatically stop the water intake and activate the drain pump if a possible leak is detected--even if you're not home.

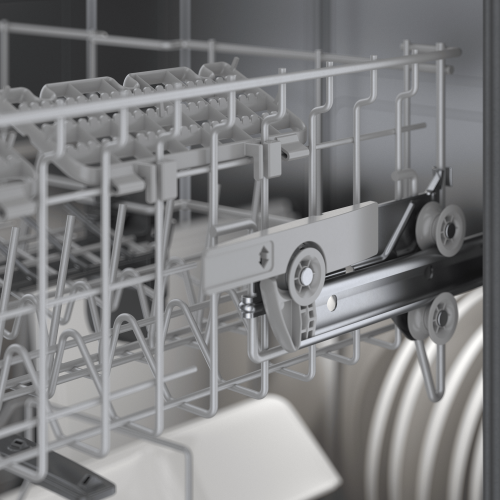

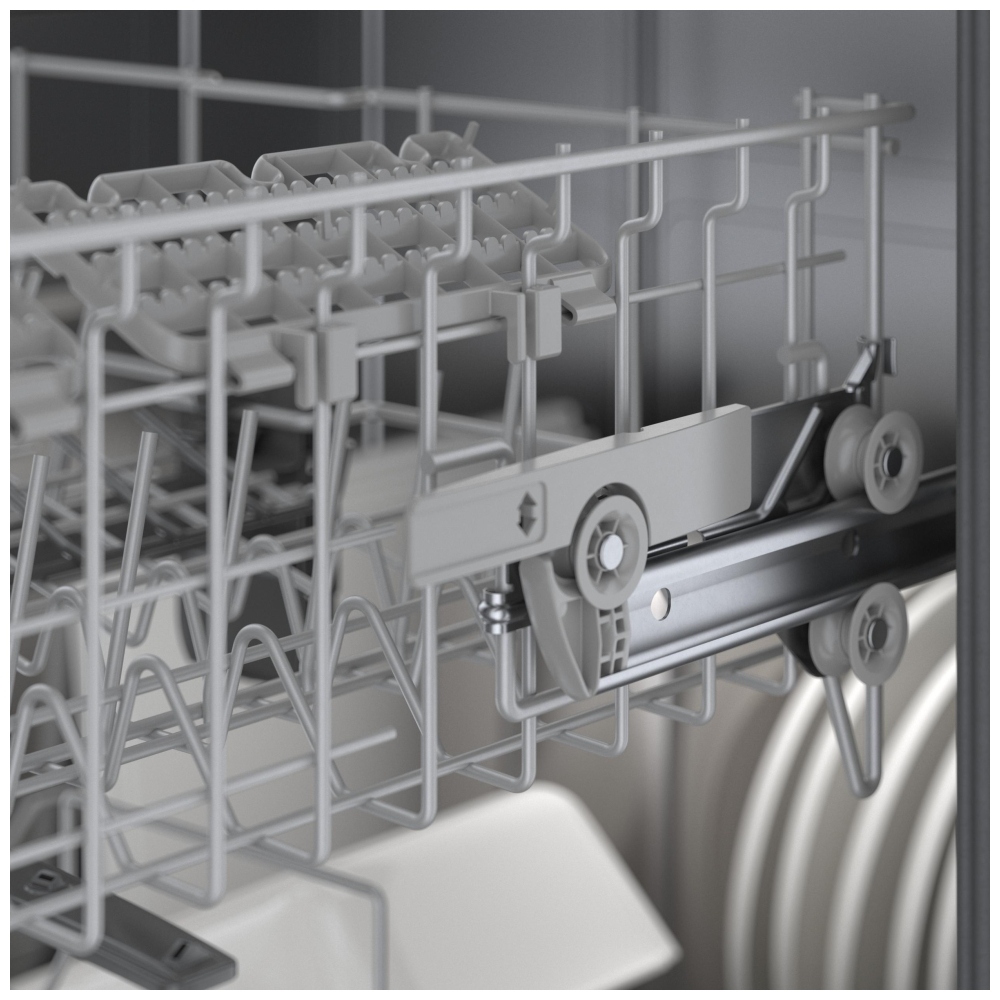

EasyGlide rack system for an even smoother glide - SHV53CM3N
EasyGlide rack system for an even smoother glide
SHV53CM3N - EasyGlide rack system for an even smoother glide
The EasyGlide rack system is redesigned to give you a smooth glide on all three racks-even when it s fully loaded
Bosch Quality
SHV53CM3N - Bosch Quality
Every Bosch dishwasher must pass 485 quality checks before leaving the factory.

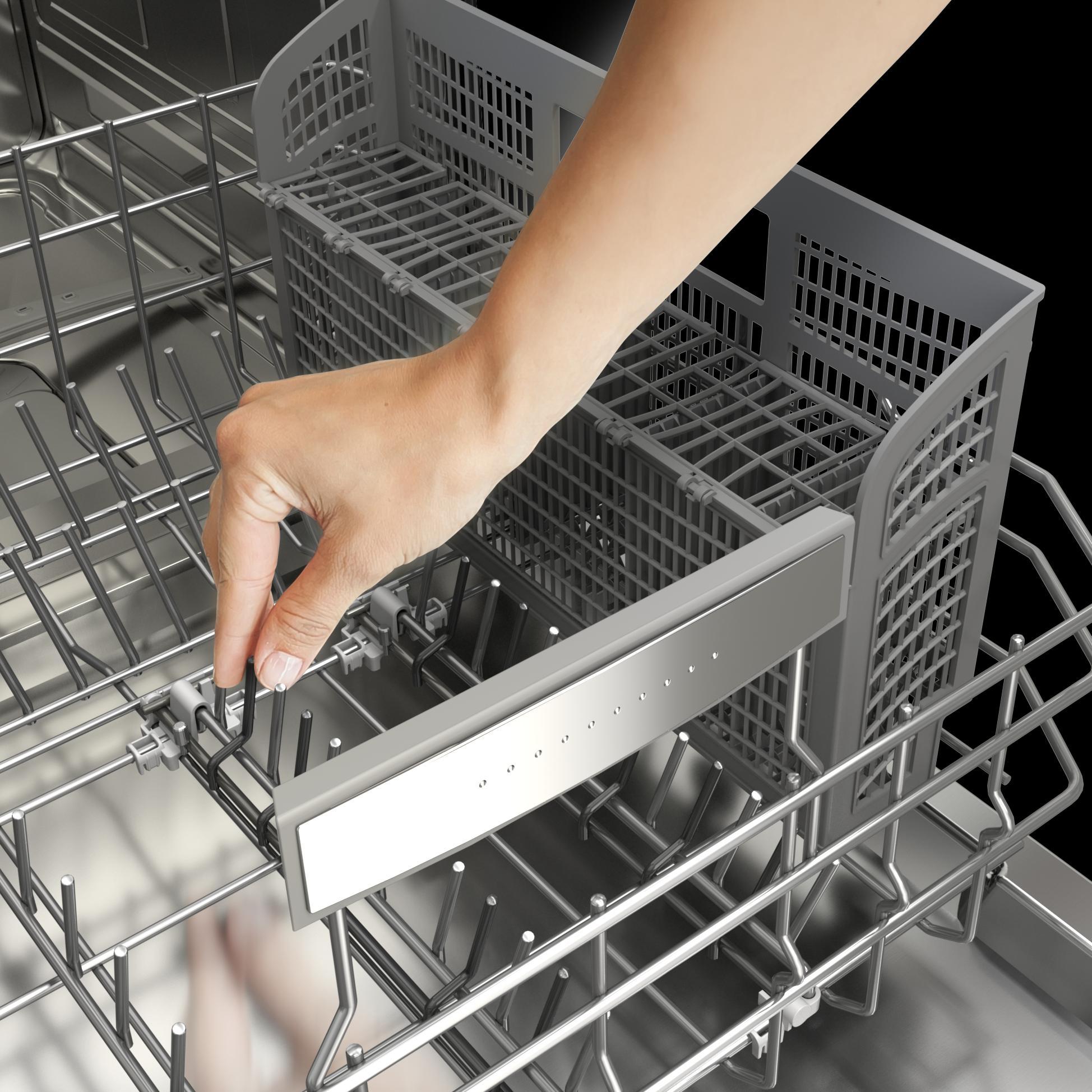

FlexSpace Tines - SHV53CM3N
FlexSpace Tines
SHV53CM3N - FlexSpace Tines
The FlexSpace Tines let you fold down every other tine in one simple step, so it s easier to fit your largest, bulkiest items. It helps to hold pots and pans upright, leaving more room for your other dishes.

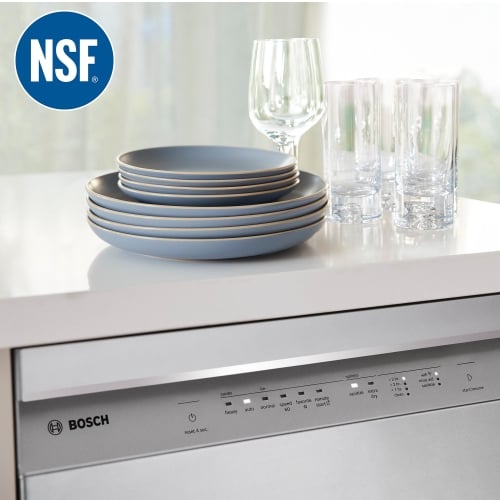

Sanitization for your dishes - SHV53CM3N
Sanitization for your dishes
SHV53CM3N - Sanitization for your dishes
Sanitize Option eliminates up to 99.9% of bacteria and meets NSF requirements for sanitization
Water and energy savings - SHV53CM3N
Water and energy savings
SHV53CM3N - Water and energy savings
With advanced wash and dry technologies, Bosch dishwashers allow you to skip the need to pre-rinse, saving water. Plus, Bosch dishwashers offer energy efficient cycles and options like Eco Cycle Mode and Half Load Options through Home Connect.

Specs
SpecificationValue
Product Type Built-in, fully-integrated dishwasher, 24"
Series 300 Series
Material Number SHV53CM3N
UPC 825225965312
Appliance Color/Finish Custom panel ready (panel required, sold separately)
Door Panel Type Panel-ready, custom panel
Control Panel Style Hidden / Top control
Type of Control Electronic / Electro-mechanical
Installation Type Built-in, full-integrated
Built-In / Free-Standing Built-in
Panel Ready Yes
Custom Door Panel Included No
ENERGY STAR Certified No
NSF Certified Yes
ADA Compliant No
CEE Tier Qualified CEE Tier III
Safety Listing CSA safety listing (Canada)
Leak Protection System 24/7 AquaStop® leak protection
Water Protection with Warranty AquaStop® leak protection (24/7)
Child Safety Locks / ChildLock No
Wi-Fi / Smart Connectivity Yes, Home Connect® (Wi-Fi enabled)
Home Connect Features Remote Monitoring and Control, Remote Start, Smart Cycle, additional programs and options via app
Voice Control Works with Amazon Alexa / Google Assistant via Home Connect (where supported)
Works with Apple HomeKit / Nest / SmartThings / Sonos No
Place Settings 16 place settings
3rd Rack Standard 3rd rack

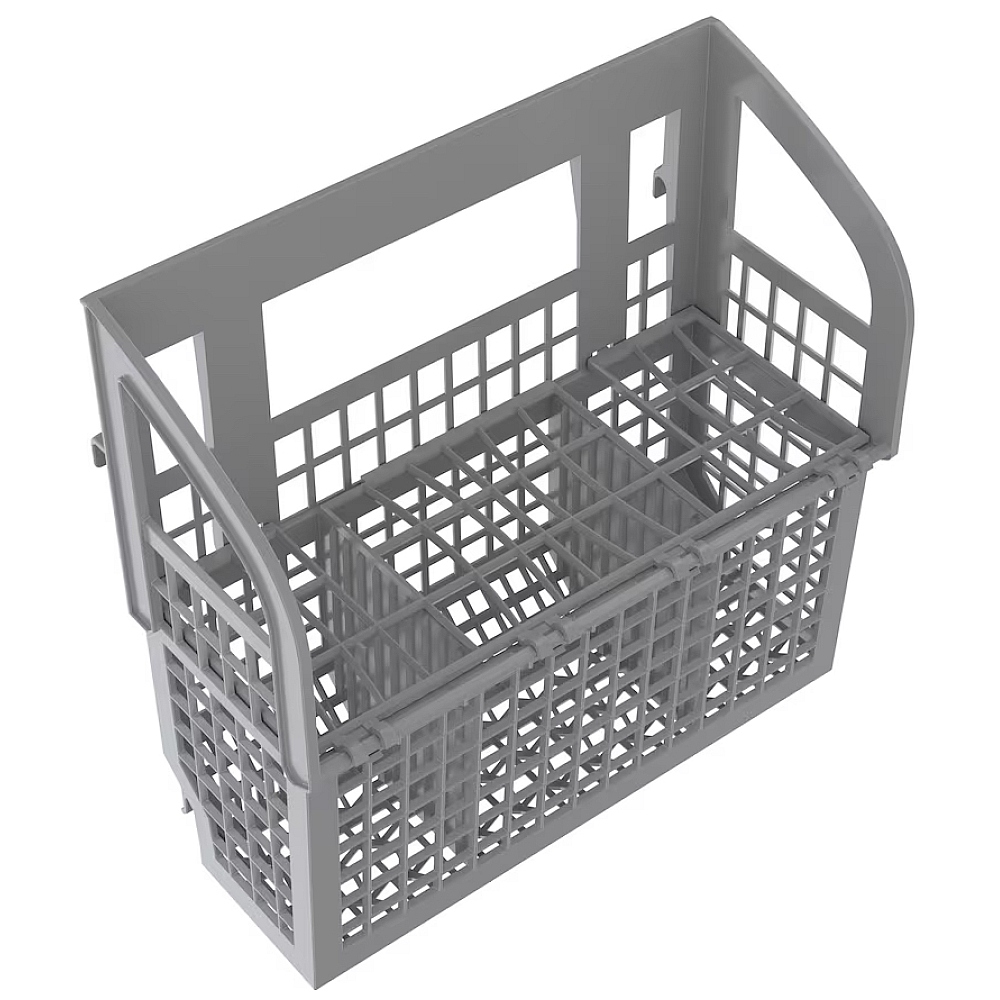

Silverware Basket Yes
Adjustable Upper Rack Yes (RackMatic® system, 3 height levels, up to 9 rack positions)
RackMatic® Yes, 3-level rack adjustment
Interior Tub Material Stainless steel
Concealed Heating Element Yes
Drying System PureDry® with inherent heat (condensation drying)
Filtration / Hard Food Disposer Triple filtration system (no hard food disposer)
PrecisionWash® Yes (intelligent sensors and spray arms)
Wash Levels Five-level wash
InfoLight® / Program Status Light Yes, red InfoLight® on floor / program status light
Interior Light No
EmotionLight / Sidelight No
Delay Start Yes
Pause/Reload No
Sanitize Option Yes (HygienePlus / Sanitize via options; some US retailer listings omit but manufacturer supports sanitize function)
Extra Dry Option Yes
Additional Options (on unit) Extra Dry, HygienePlus / Sanitize, Remote Start
Additional Options via Home Connect Hand Wash, Energy Save, Half Load, Machine Care, Rinse, additional downloadable cycles
Number of Cycles (total) 8 (5 on control panel + 3 additional via Home Connect)
Number of Programs (core) 5
Core Wash Programs (panel) Heavy (Intensive), Auto, Normal (Eco), Speed60 / Quick L, Favorite / Custom program
Downloadable / App-Only Programs Hand Wash, Energy Save, Half Load, Machine Care, Rinse, additional downloadable cycles
Number of Wash Temperatures Up to 6 temperature levels (depending on program)
Noise Level (Sound Rating) 46 dBA
Dishwasher Sound Rating Category Quiet (40–49 dB)
Extremely Quiet – EcoSilence Drive Yes
Capacity (Place Settings) 16 place settings (no cu ft rating for dishwashers)
Width 23 9/16 inches (23.56")
Height 33 7/8 inches (33.88")
Depth 23 1/16 inches (≈23.06") without panel/handle
Overall Appliance Dimensions (H x W x D) 33 7/8" x 23 9/16" x 23 1/16" (860 x 598 x 585 mm)
Required Cutout / Niche Size (H x W x D) 33 7/8" x 24" x 24" (approx. 86.0 x 61.0 x 61.0 cm)
Cutout Width (some US retailers) 24"–24 1/4"
Cutout Height (some US retailers) 33 7/8" (33.88")
Cutout Depth 24"
Adjustable Feet Yes, all adjustable from front
Adjustable Plinth / Toe Kick No (standard toe kick; black)
Power Cord Length 67" (170 cm)
Voltage 120 V
Frequency 60 Hz
Connection Rating (Watts) 1,440 W
Amperage (Fuse Protection) 12 A
Plug Type NEMA 5-15P (3-prong)
Total Annual Energy Consumption 269 kWh (typical)
Total Annual Water Consumption 753 gallons (approx.)
Water Consumption – Heavy Program Approx. 4.9–6.4 gallons
Water Consumption – Auto Program Approx. 3.4–6.4 gallons
Water Consumption – Normal / Eco Program Approx. 2.3–5.5 gallons
Water Consumption – Speed60 Program Approx. 3.8 gallons
Water Consumption – Favorite Program Approx. 3.4–6.4 gallons (depending on configuration)
Maximum Temperature for Water Intake 60 °C (140 °F)
Glass Protection No dedicated glass-protection system (uses gentle cycles instead)
Leak Protection Yes, AquaStop® 24/7 leak protection
Gross Weight Approx. 101 lbs (varies slightly by listing)
Net Weight Approx. 92 lbs (≈41.6 kg)
Manufacturer Warranty (typical) 1 year parts & labor; extended coverage on microprocessor, racks, and inner tub liner (terms vary by region/retailer)
Dishwasher Features (common retailer descriptors) 3rd rack, cutlery holder, sensor wash, leak sensor, sound reduction system, cycle status light, automatic temperature control, Wi-Fi capable, app capable, custom panel ready
