Broan

273603

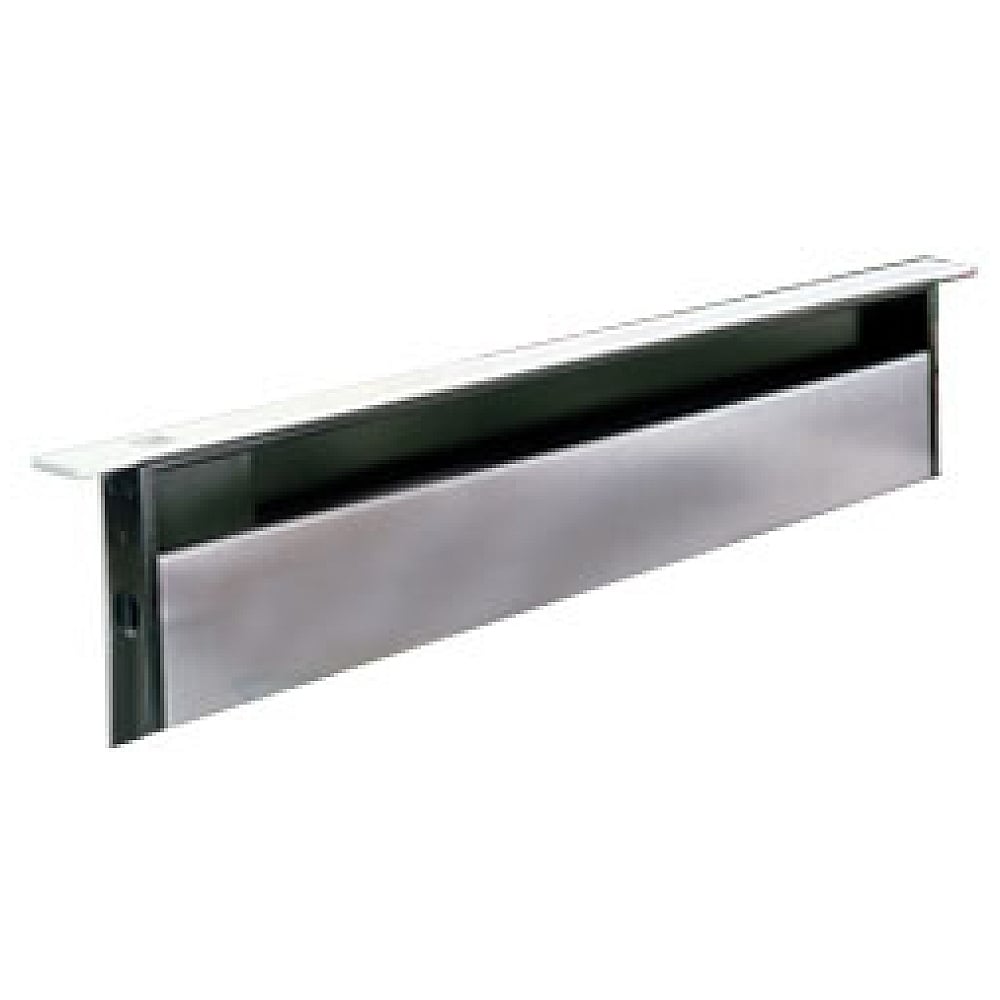

• Broan® Elite 27000 Series design – premium downdraft ventilation series engineered for powerful performance and a sleek, built‑in look.
• HVI Certified performance – independently tested to meet Home Ventilating Institute standards for airflow and sound, so published CFM and sones are verified.
• UL Listed safety – tested and certified to meet nationally recognized electrical and fire‑safety standards for household appliances.

• 600 Max CFM internal blower – high‑capacity blower quickly removes smoke, steam, and cooking odors to help keep kitchen air cleaner.

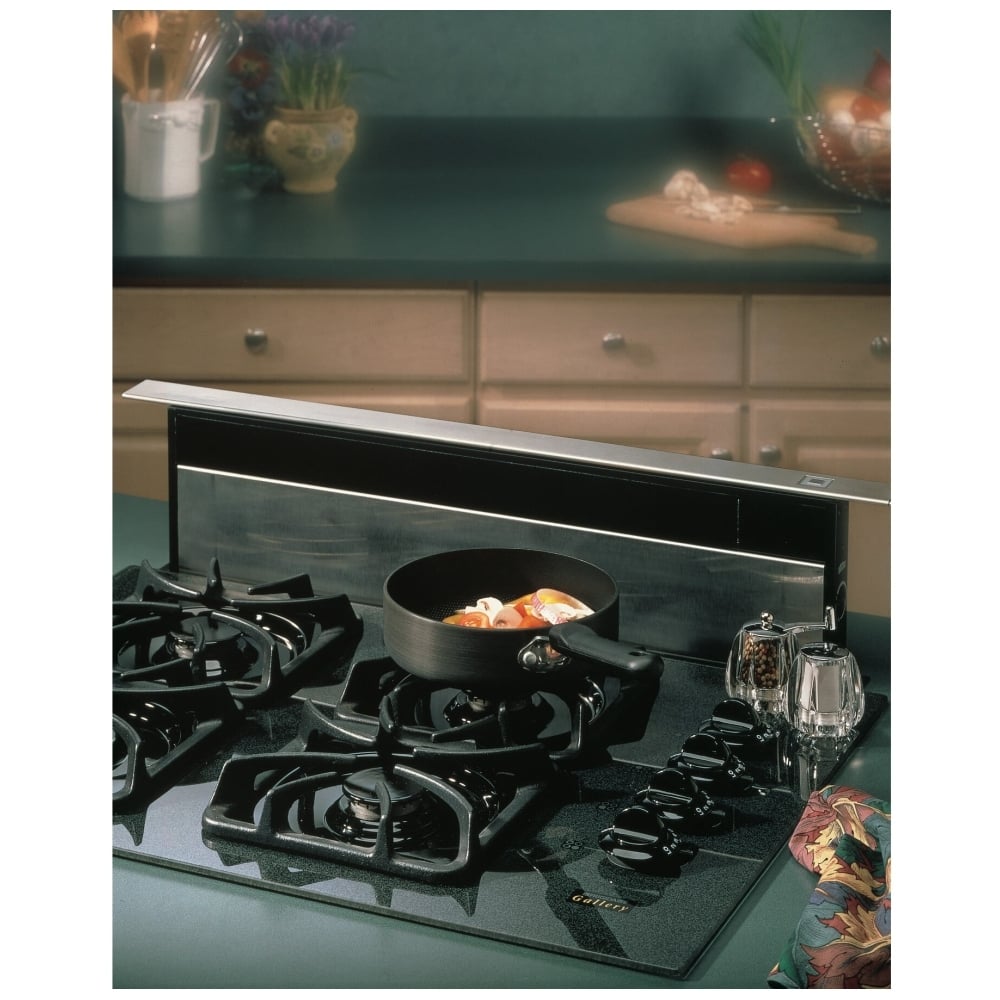

• 36-inch downdraft configuration – installs directly behind most 36" cooktops to capture rising smoke and steam at the source.
• Innovative downdraft ventilation system – pulls air across the cooking surface and down through the vent, ideal where a traditional overhead hood is not desired.
• Automatically raises with the touch of a button – lift mechanism raises the vent up from the countertop for use and lowers it out of sight when not needed.
• Disappears flush with the cooktop surface – retracts completely into the countertop for a clean, unobtrusive appearance.
• Space‑saving under‑counter design – slim housing preserves valuable cabinet and storage space beneath the cooktop.
• Infinitely adjustable variable speed control – rotary control lets you fine‑tune fan speed from low to high for precise ventilation.
• Side‑mounted flush control knob – control is recessed into the side of the unit, keeping the front clean while remaining easy to reach.
• 3‑sone sound rating (on typical setting) – engineered for relatively quiet operation compared with many high‑CFM hoods.

• Stainless steel cover standard – durable, modern stainless panel matches a wide range of cooktop and appliance finishes.
• Optional color‑matched covers available – compatible with separately sold covers in White, Biscuit, and Black to coordinate with different kitchen styles.
• Sleek, trim styling – low‑profile design complements both contemporary and traditional cooktops without dominating the space.

• Compatible with virtually all self‑contained cooktops – designed to work with most standard gas and electric cooktops (not for use with slide‑in ranges).
• Flexible 3‑way discharge – blower can discharge right, left, or down to accommodate different duct routing in the cabinet.

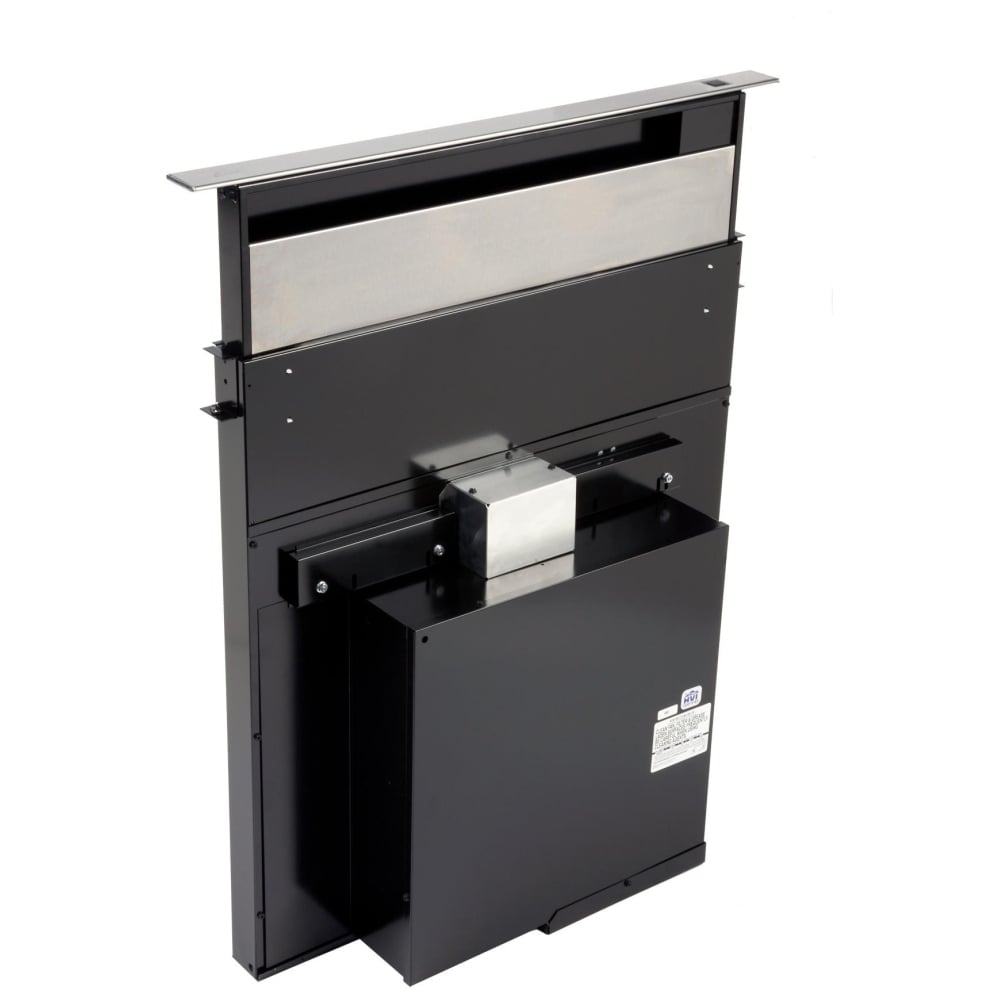

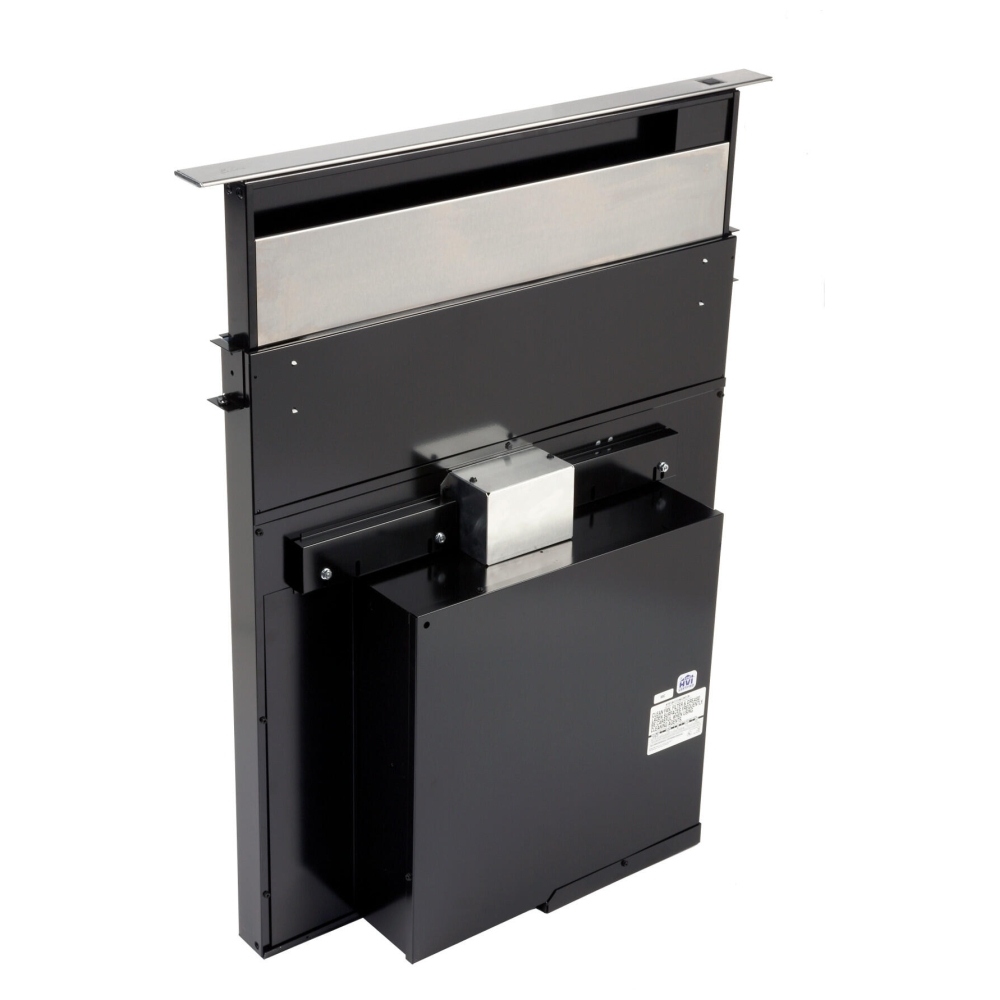

• Side‑to‑side sliding blower housing – blower box can shift laterally to help avoid floor joists or obstructions during installation.
• Ducted‑only ventilation – vents air outdoors for effective removal of moisture, heat, and airborne grease (not convertible to ductless).
• Horizontal or vertical duct direction – supports both horizontal (3¼" x 10") and vertical (6" round) duct connections for layout flexibility.

• Aluminum mesh grease filters – capture airborne grease and particulates to help protect ductwork and maintain performance.
• Dishwasher‑safe filters – removable filters can be cleaned in a dishwasher for easy maintenance and long‑term efficiency.
• Front access panel for cleaning – front service panel allows convenient access to interior components and filters without uninstalling the unit.

• Rotary mechanical controls – simple, reliable knob operation with no complex electronics.
• No built‑in lighting – designed to pair with existing cooktop or recessed lighting without adding extra light sources.
• No recirculating or ductless mode – ensures all captured air is exhausted outside rather than filtered and returned to the room.

• 36" width, 7" depth, ~29.5" height – compact chassis fits standard 36‑inch cooktop installations with minimal counter overhang.
• Internal blower included – comes with built‑in blower, eliminating the need to purchase a separate internal motor.
• 120V, 4.0A, 480W electrical rating – standard household power requirement for straightforward hookup.

• 1‑year limited parts and labor warranty – manufacturer coverage against defects in materials and workmanship for added peace of mind.
• ENERGY STAR® not required – high‑performance, on‑demand ventilation where efficiency labeling is not typically applied to downdraft hoods.
• ADA non‑compliant classification – standard installation height and control placement designed for typical, non‑ADA kitchen layouts.
