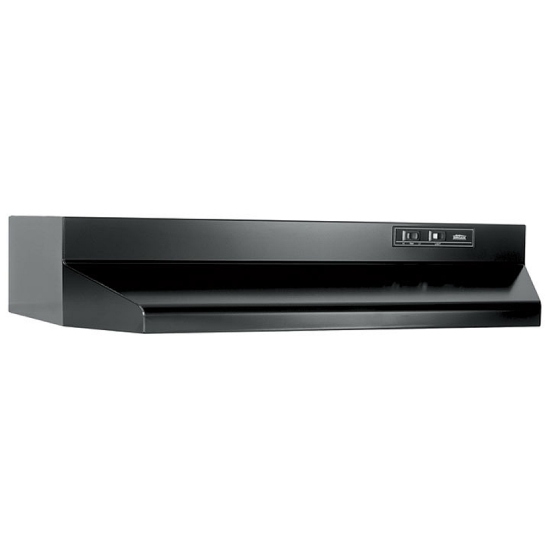

Broan 403023
Discontinued
ADXMV1
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Why Buy This at CAS?
In Home Delivery
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Ratings & Reviews
ADXMV1
When will I get this?

Why Buy This at CAS?
In Home Delivery
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Description & Features
Broan 40000 Series The Broan 40000 series is made for a wide range installations and comes in a variety of appliance matching colors and widths. The durable under cabinet hood installs as 3-1/4 in. x 10 in. ducted opening only and ducts either vertically or horizontally. The hood features a fan designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation. Includes duct adapter with built-in damper.
Features & Benefits
  • Installs as 3-1/4" x 10" vented only
  • 160 CFM, 6.5 Sone (vertical or horizontal discharge) performance - HVI 2100 Certified
  • Dishwasher-safe aluminum grease filter (model BP29)
  • A protective lamp lens distributes light evenly over the cook-top and accepts up to 75W bulb (bulb not included)
  • Duct connector with built-in damper included
  • This range hood can work in an ADA-compliant application
  • Dishwasher-safe aluminum grease filter.
  • 160 CFM, 6.5 Sone (vertical or horizontal discharge) performance - HVI 2100 Certified.
  • Accepts up to 75 watt light (bulb sold separately).
  • Installs as 3-1/4" x 10" vented only.
  • Duct connector with built-in damper included.

Manufacturer's Warranty: 1 year

Canadian model: 403023

Specs
Color Finish Black
CFM 160
Sones 6.5
Product Depth 17-1/2"
Product Height 6"
Product Width 30"
Light Number Of Levels 1
Light Type Incandescent
Nightlight Or Nightlight Setting No
Light Bulb Wattage 75W
Light Bulb Recommended Type A19
Light Bulbs Included No
Light Bulb Quantity 1
Filter Quantity 1
Boost Mode No
Heat Sentry® - Temperature Sensor No
Filter Type Aluminum
Motor Number Of Speeds 2
Built In Timer No
Remote Operation Capable No
ADA Compliance Yes
Damper Included Yes
Amperage 2
Rated Voltage 120
Wattage 240
Switch Control Type Rocker
Warranty 1 Year
UL Listed Yes
Duct Connector Size 3-1/4" x 10"
Duct Direction Horizontal/Vertical
Duct Shape Rectangular
Duct Diameter 3-1/4" x 10"
Duct Height Rectangular 3-1/4"
Duct Width Rectangular 10"
HVI Certified Yes
ENERGY STAR® certified product No
