Broan 423604
Discontinued
AHHJTQ
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Why Buy This at CAS?
In Home Delivery
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Ratings & Reviews
AHHJTQ
When will I get this?

Why Buy This at CAS?
In Home Delivery
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Description & Features

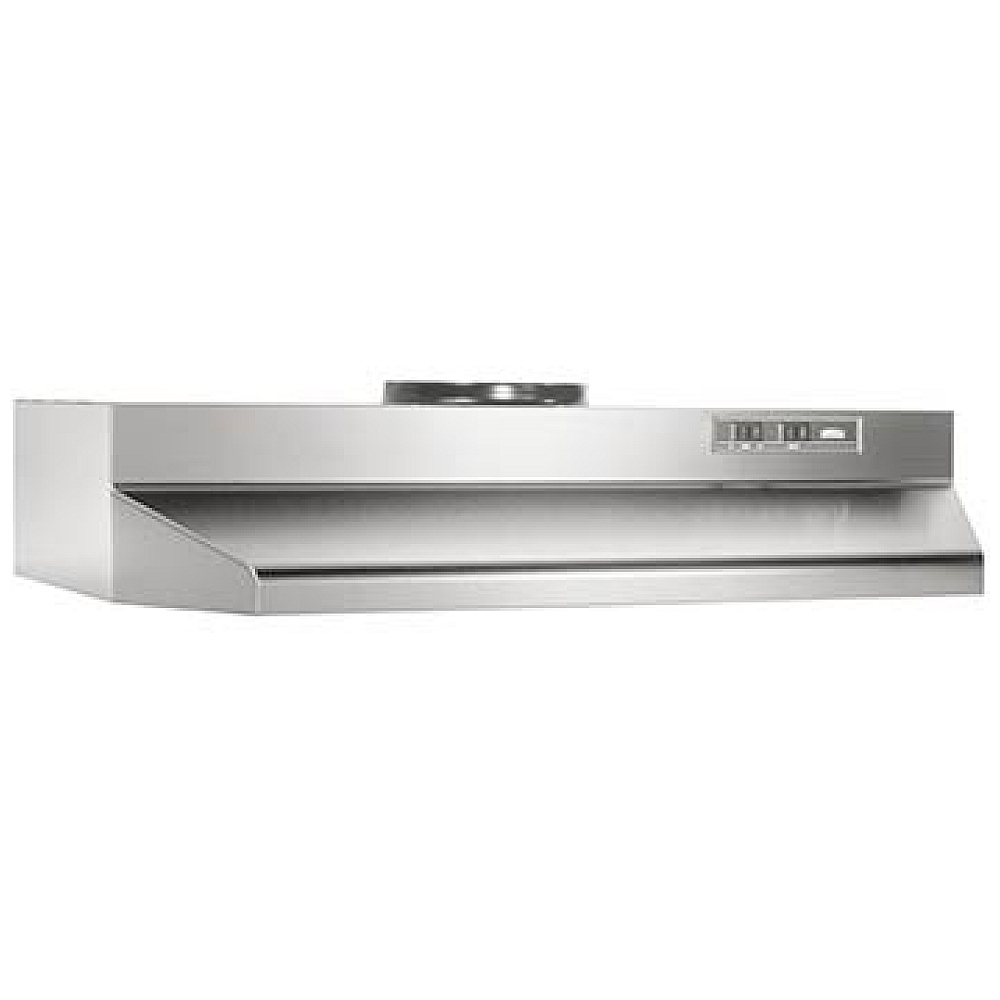

Broan 42000 Series The 42000 series offers an effective and durable under-the-cabinet hood solution for vertical discharge installations. The range hood is designed for 7 in. round vertical duct attachment. The hood comes in a variety of appliance matching colors and widths, and features a fan designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation. Includes built-in 7 in. duct adapter.
Features & Benefits
  • Installs as 7" round ducted only
  • 190 CFM, 6.0 Sone (vertical discharge) performance - HVI 2100 Certified
  • Dishwasher-safe aluminum grease filter (model BP29)
  • A protective lamp lens distributes light evenly over the cook-top and accepts up to 75W bulb (bulb not included)
  • Built-in 7" adapter
  • BP87 dampers sold separately
  • This range hood can work in an ADA-compliant application
  • Dishwasher-safe aluminum grease filter.
  • Built-in 7" adapter; use Broan #87 damper (available separately).
  • Installs as 7" round ducted only.
  • Accepts up to 75 watt light (bulb sold separately).
  • 190 CFM, 6.0 Sone (vertical discharge) performance - HVI 2100 Certified.

Manufacturer's Warranty: 1 year

Canadian model: 423604

Specs
Color Finish Stainless Steel
CFM 190
Sones 6
Product Depth 17-1/2"
Product Height 6"
Product Width 36"
Light Number Of Levels 1
Light Type Incandescent
Nightlight Or Nightlight Setting No
Light Bulb Wattage 75W
Light Bulb Recommended Type A19
Light Bulbs Included No
Light Bulb Quantity 1
Filter Quantity 1
Boost Mode No
Heat Sentry® - Temperature Sensor No
Filter Type Aluminum
Motor Number Of Speeds 2
Built In Timer No
Remote Operation Capable No
ADA Compliance Yes
Damper Included No
Amperage 2
Rated Voltage 120
Wattage 240
Switch Control Type Rocker
Warranty 1 Year
UL Listed Yes
Duct Connector Size 7" Round
Duct Direction Vertical
Duct Shape Round
Duct Diameter 7"
HVI Certified Yes
ENERGY STAR® certified product No
Dimensions
Height: 6"
Depth: 17 1/2"
Duct Size: 7
Weight: 25 lbs.
Height: 6 in.
Width: 36 in.
Depth: 17 1/2 in.
Appearance
Style: Under Cabinet
Mounting: Wall Mounted
Features
Blower: Internal
Dishwasher Safe Filters: Yes
Fan Speeds: 2
Hidden Controls: No
Technical Details
Volts: 120
Amps: 10
CFM: 190
